NSN 4730-00-678-1879 BBNX5 P/N591021, BBNX5PN591021, 7345125
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-678-1879 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: BBNX5 P/N591021, BBNX5PN591021, 7345125, 7345126, 7345127, 7345128, 4730-00-678-1879, 00-678-1879, 4730006781879, 006781879
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-678-1879 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-00-678-1879
Demand History | NSN 4730-00-678-1879
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-678-1879 | 2017-05-128 | 60 | DIBBS |
| 4730-00-678-1879 | 2017-04-115 | 60 | DIBBS |
| 4730-00-678-1879 | 2009-02-57 | 3050 | US |
Cross Reference | NSN 4730-00-678-1879
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7345125 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7345126 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7345127 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7345128 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| BBNX5 P/N591021 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-678-1879
Technical Data | NSN 4730-00-678-1879
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS, QQ-B-626, ALLOY 360 |

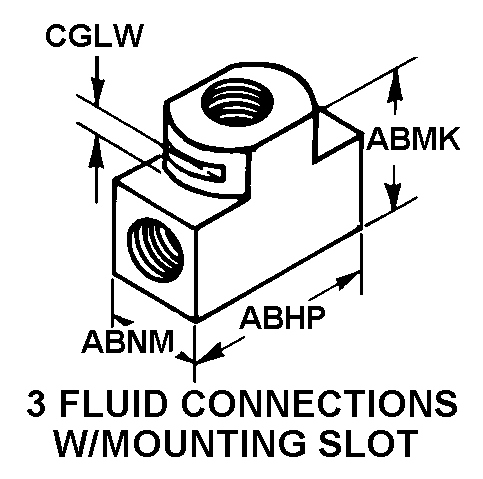

| STYLE DESIGNATOR | D19 3 FLUID CONNECTIONS W/MOUNTING SLOT |
| OVERALL LENGTH | 0.820 INCHES NOMINAL |
| OVERALL WIDTH | 0.820 INCHES NOMINAL |
| THICKNESS | 0.500 INCHES NOMINAL |
| MOUNTING SLOT HEIGHT | ANY ACCEPTABLE |
| DEG BETWEEN OUTLETS | 90.0 |
| FLUID CONNECTION QUANTITY | 3 |
| CONNECTION STYLE | E2 INVERTED FLARE |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 3/16 IN. OD TUBE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 0.375-24 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| SEAT ANGLE IN DEG | 37.0 |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | NOT PROVIDED |
| SPECIAL FEATURES | BRACKET FURNISHED STEEL,QQ-S-698,0.060 IN. THK,1.620 IN. LG,0.422 IN. BOLT HOLE |
Restrictions/Controls & Freight Information | NSN 4730-00-678-1879
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-00-678-1879
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
