NSN 4730-00-722-7216 MS24394D16, AN83316D, AN833-16D

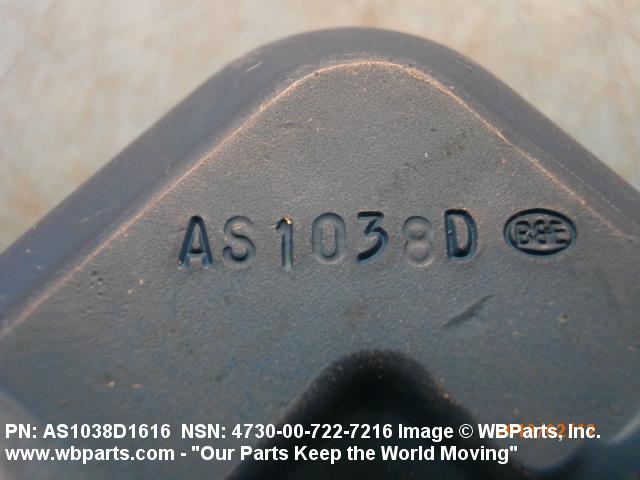

Product Details | TUBE ELBOW

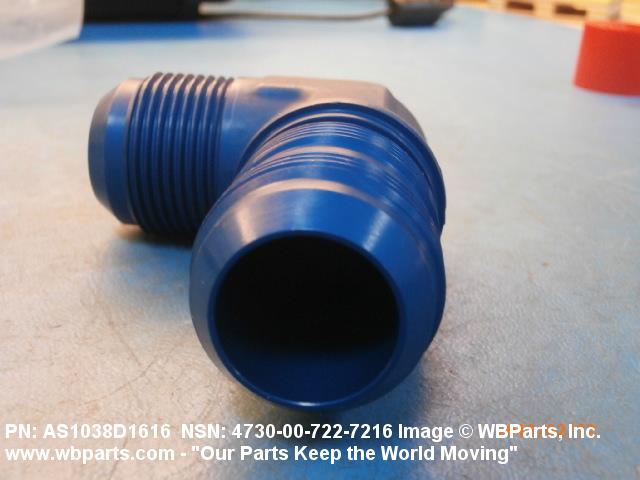

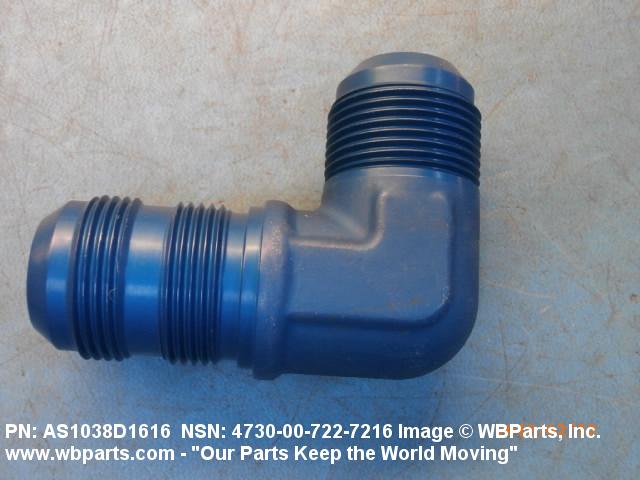

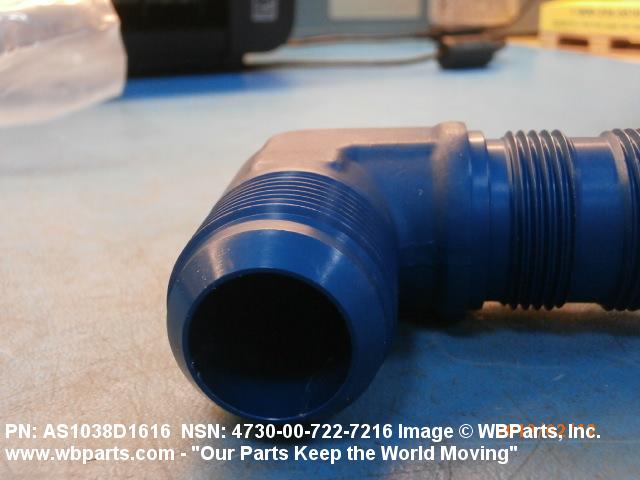

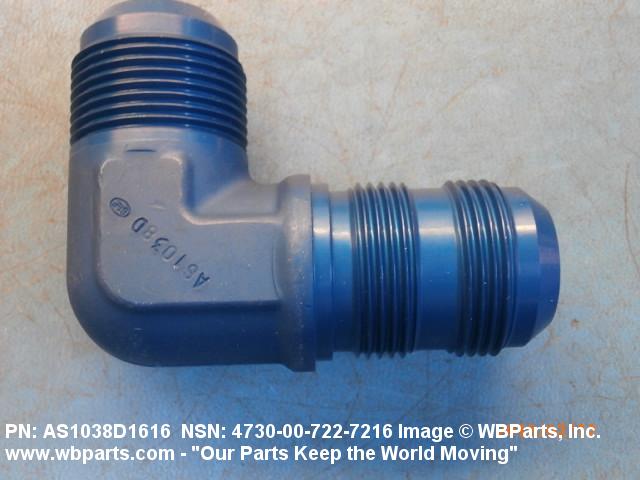

4730-00-722-7216 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS24394D16, AN83316D, AN833-16D, AS1038, AS1038D1616, AS4841, 8101385880, 810-1385880 , 810841166REV5, 810-841166REV5 , 4730-00-722-7216, 00-722-7216, 4730007227216, 007227216
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-722-7216 | 03771 ( ELBOW, TUBE ) |
Drawings & Photos | NSN 4730-00-722-7216
Demand History | NSN 4730-00-722-7216
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS4841 | 2025-04-106 | 1 | France |
| AN83316D | 2023-01-30 | 2 | United States |
| 4730-00-722-7216 | 2022-11-317 | 1019 | DIBBS |
| 4730-00-722-7216 | 2021-06-154 | 928 | DIBBS |
| 4730-00-722-7216 | 2021-02-41 | 36 | DIBBS |
| 4730-00-722-7216 | 2021-02-39 | 412 | DIBBS |
| 4730007227216 | 2020-06-155 | 4 | United States |
| 4730-00-722-7216 | 2020-05-125 | 286 | DIBBS |
| 4730-00-722-7216 | 2019-05-134 | 698 | DIBBS |
| AS1038D1616 | 2018-09-253 | 40 | United States |
| 4730-00-722-7216 | 2018-08-233 | 522 | DIBBS |
| 4730-00-722-7216 | 2018-02-32 | 42 | United States |
| 4730-00-722-7216 | 2018-01-25 | 30 | United States |
| 4730-00-722-7216 | 2017-12-338 | 100 | DIBBS |
| 4730-00-722-7216 | 2017-10-290 | 500 | DIBBS |
| 4730-00-722-7216 | 2016-10-298 | 320 | DIBBS |
| 4730-00-722-7216 | 2016-07-192 | 380 | DIBBS |
| 4730-00-722-7216 | 2016-04-108 | 59 | DIBBS |
| 4730-00-722-7216 | 2015-08-218 | 431 | DIBBS |
| 4730-00-722-7216 | 2015-03-61 | 358 | DIBBS |
| 4730-00-722-7216 | 2013-02-59 | 345 | DIBBS |
| 4730-00-722-7216 | 2012-06-166 | 191 | DIBBS |
| 4730-00-722-7216 | 2012-04-103 | 165 | DIBBS |
| MS24394D16 | 2012-03-80 | 1 | United States |
| 4730-00-722-7216 | 2012-02-40 | 132 | DIBBS |
| AS4841 | 2011-03-69 | 8 |
Cross Reference | NSN 4730-00-722-7216
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN833-16D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS1038 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS1038D1616 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24394D16 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS24394D16 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| MS24394D16 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| MS24394D16 | 14397 | FABER ENTERPRISES, INC. |
| MS24394D16 | 22995 | CROWN FITTING CO INC |
| MS24394D16 | 26616 | PACIFIC HI-TEMP HARDWARE CO., INC. |
| MS24394D16 | 34724 | ACRA AEROSPACE INC |
| MS24394D16 | 71563 | COLLINS ENGINEERING CORP |
| MS24394D16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24394D16 | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-722-7216
Related Products | NSN 4730-00-722-7216
Technical Data | NSN 4730-00-722-7216
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4,T6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-225/6,T6 FED SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | M1L-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 225.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |

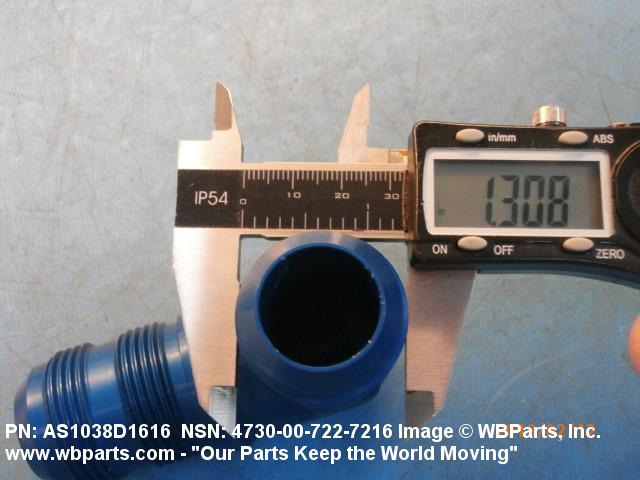

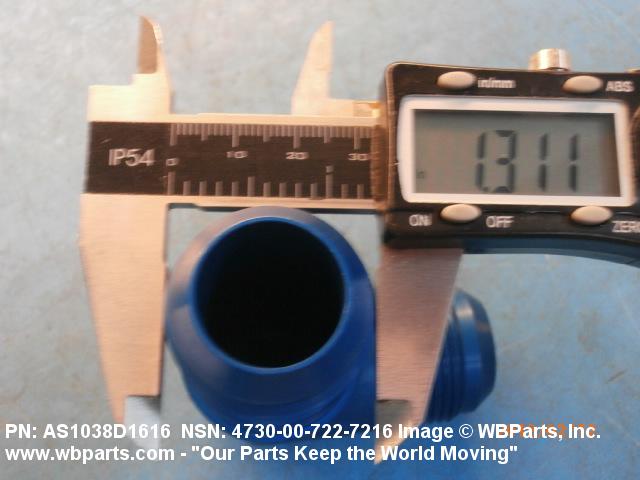

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS UNJ 1ST END BULKHEAD |
| NOMINAL THREAD SIZE | 1.312 INCHES ALL ENDS 1.312 INCHES 1ST END BULKHEAD |
| THREAD QUANTITY PER INCH | 12 ALL ENDS 12 1ST END BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A 1ST END BULKHEAD |

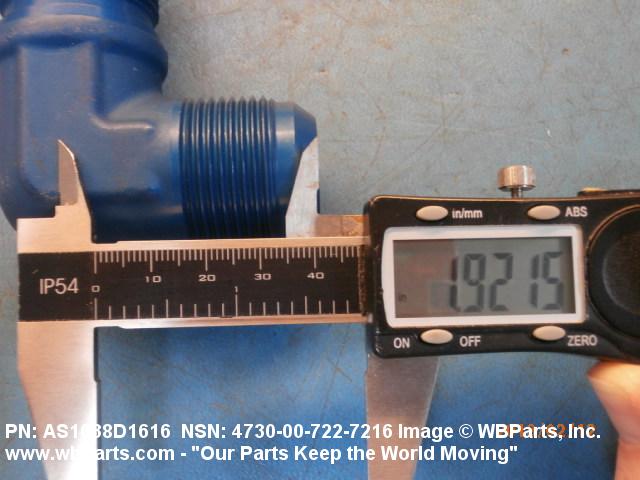

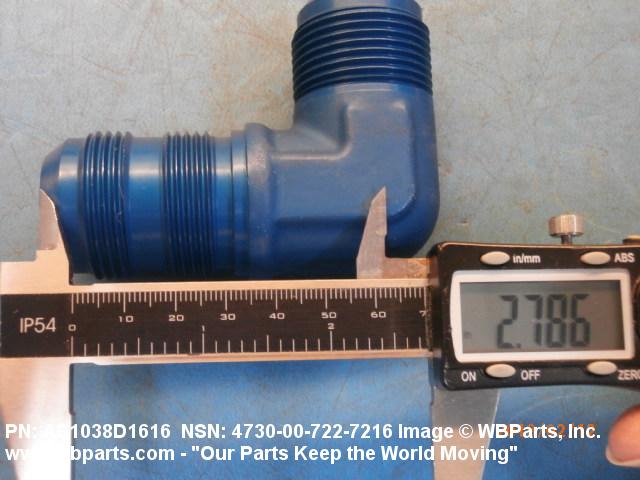

| LEG LENGTH | 2.781 INCHES NOMINAL 1ST END 1.922 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| SPECIFICATION/STANDARD DATA | 96906-MS24394 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | GRUMMAN A10A AIRCRAFT |
