NSN 4730-00-725-4351 MS24394D4, AN8294D, AN829-4D

Product Details | TUBE ELBOW

4730-00-725-4351 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: MS24394D4, AN8294D, AN829-4D, AN83340, AN833-40, AN8334D, AN833-4D, AN833D4, AN833-D4, AS1038D0404, AS4841, Z00.N7730062147, Z00N7730062147, 0000274251 , 12P6687, 12P668-7, 1626545PC51 , 274251, 3111418, 458 900, 458900, 58630404, 5863-0404, 722006, 722-006, 8020639, 946.21.65.633, 9462165633, 983304, 4730-00-725-4351, 00-725-4351, 4730007254351, 007254351

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-725-4351	03771 ( ELBOW, TUBE )

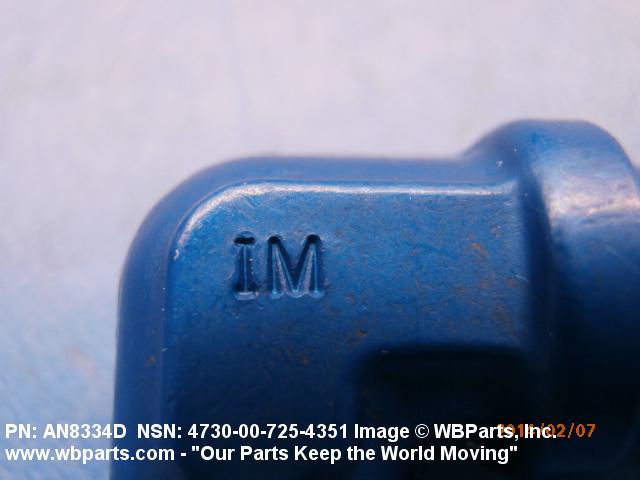

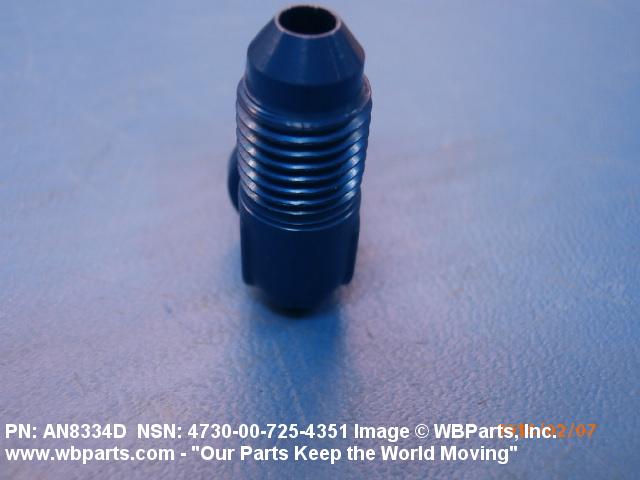

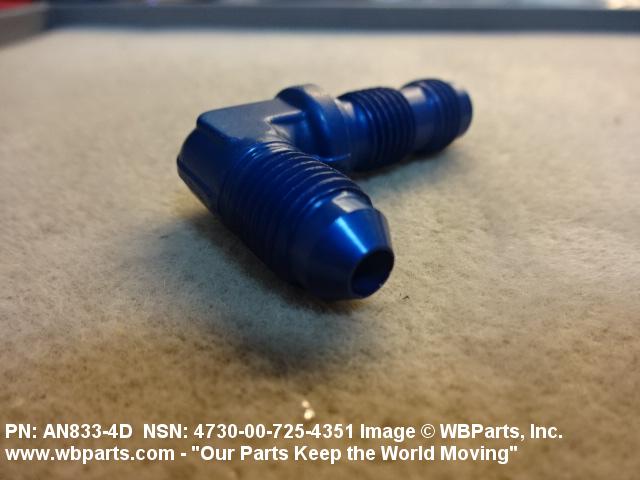

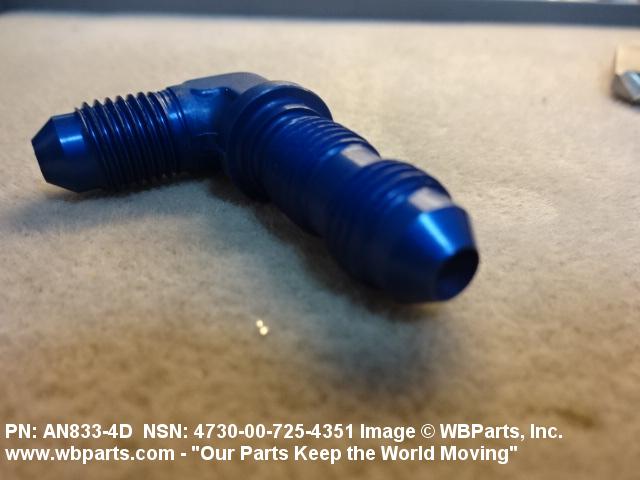

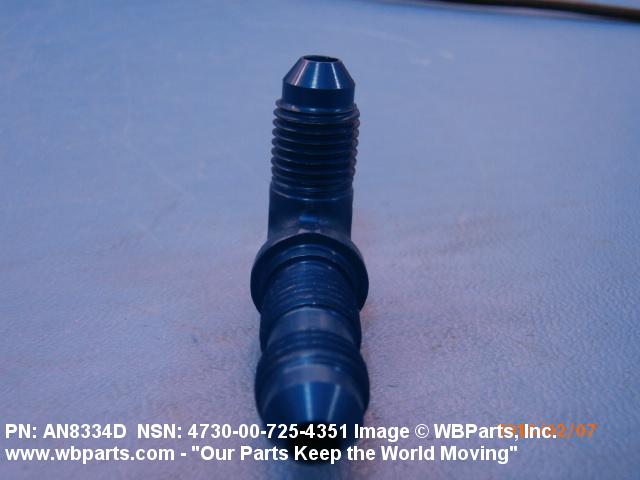

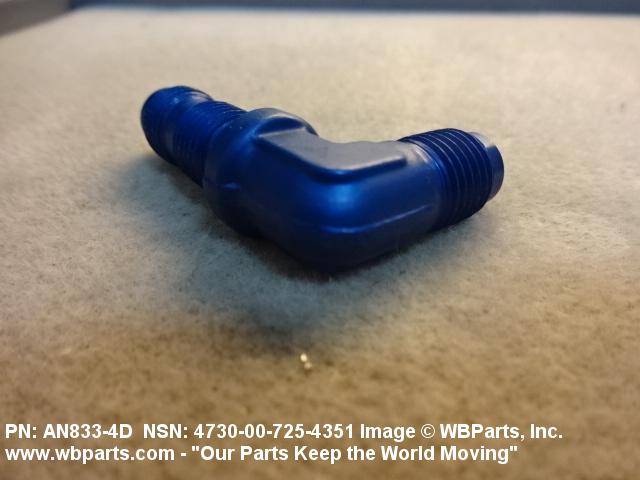

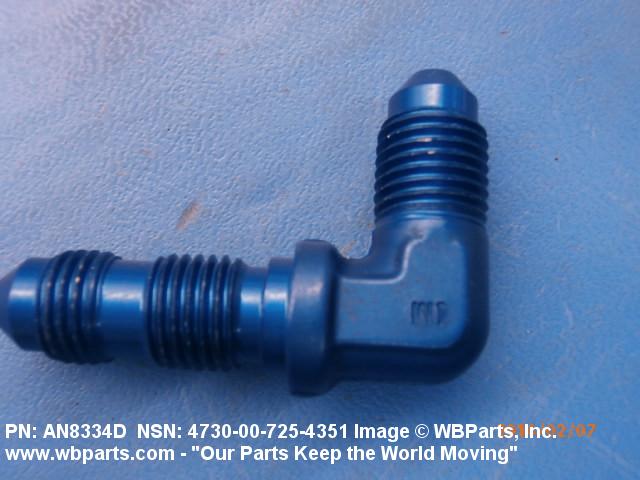

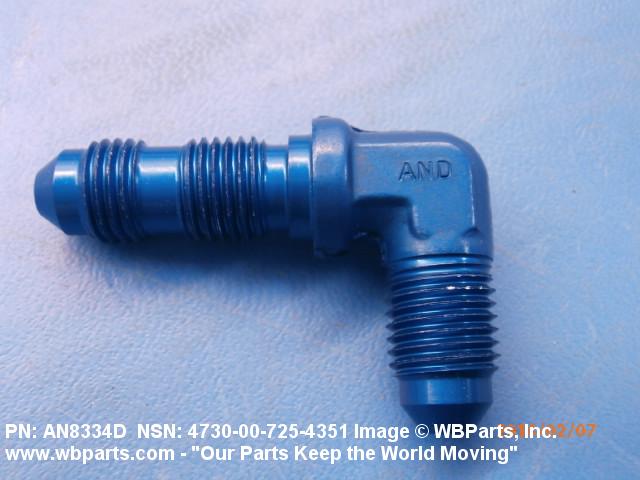

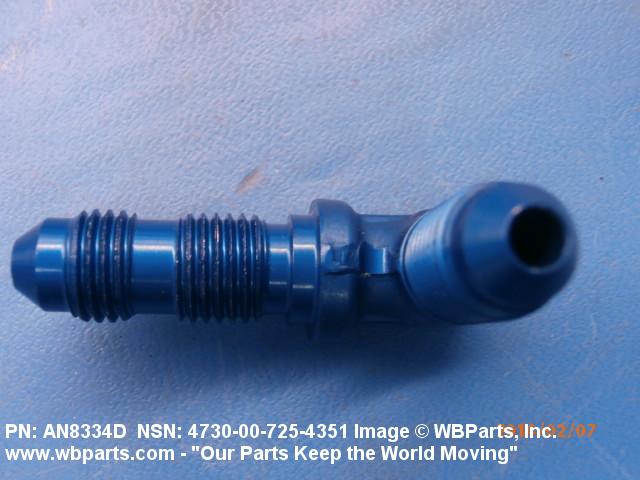

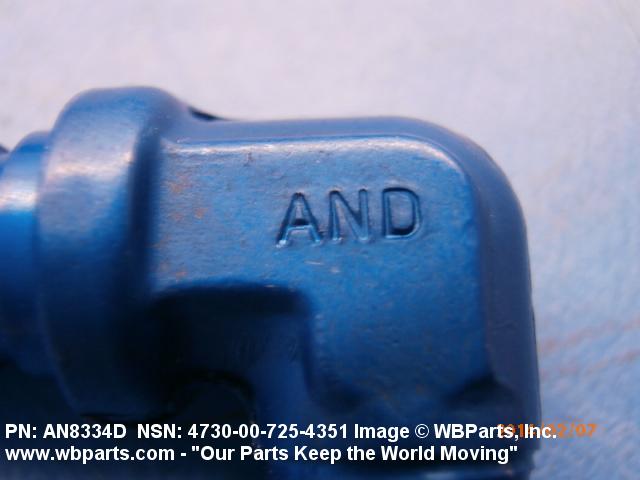

Drawings & Photos | NSN 4730-00-725-4351

Part Number	Request Date	QTY	Origin
AN8334D	2025-10-304	50	United States
AN8334D	2025-10-280	150	Japan
4730-00-725-4351	2025-09-261	342	DIBBS
AS4841	2025-04-106	1	France
AN8334D	2025-01-31	40	United States
AN8334D	2024-12-348	100	Japan
0000274251	2024-12-343	10	US
AN8334D	2024-11-327	20	United States
AN8334D	2024-09-263	30	United States
AN8334D	2024-09-263	30	United States
AN8334D	2024-09-254	50	United States
AN8334D	2024-07-194	30	United States
AN8334D	2024-04-110	40	United States
AN8334D	2024-04-110	40	United States
AN8334D	2023-12-352	30	United States
AN8334D	2023-12-348	317	United States
AN8334D	2023-12-348	317	United States
AN8334D	2023-09-254	260	US
4730-00-725-4351	2023-08-232	396	DIBBS
AN8334D	2023-08-222	40	United States
4730-00-725-4351	2023-08-219	816	DIBBS
4730-00-725-4351	2023-07-198	700	DIBBS
4730-00-725-4351	2023-05-123	884	DIBBS
4730-00-725-4351	2023-04-120	495	DIBBS
AN8334D	2023-03-61	3	us
AN8334D	2023-02-39	25	South Africa
4730-00-725-4351	2023-01-29	699	DIBBS
4730-00-725-4351	2022-09-250	884	DIBBS
4730-00-725-4351	2022-06-171	12	Malaysia
AN8334D	2022-04-109	116	United States
AN8334D	2022-04-109	250	United States
AN8334D	2022-04-109	500	United States
4730-00-725-4351	2022-02-41	116	DIBBS
4730-00-725-4351	2021-12-342	133	DIBBS
AN8334D	2021-07-190	50	Hong Kong
AN8334D	2021-02-32	10	BD
AN8334D	2020-11-306	90	United States
AN8334D	2020-11-306	100	United States
AN833D4	2020-10-302	45	United States
MS24394D4	2020-05-149	4	AE
AN833-4D	2019-02-42	5	Lebanon
4730-00-725-4351	2019-01-30	10	Singapore
AN8334D	2019-01-11	40	US
4730-00-725-4351	2018-07-192	3705	DIBBS
4730-00-725-4351	2018-05-135	50	United States
AN8334D	2018-04-94	50	UAE
AN8334D	2018-02-40	5	United States
AN8334D	2018-02-38	10	United States
4730-00-725-4351	2017-10-297	1	DIBBS-KIT
AS1038D0404	2017-10-297	1
AN8334D	2017-06-171	3	United States
4730-00-725-4351	2017-02-38	2329	DIBBS
AN8334D	2016-11-309	2	US
AN8334D	2016-06-168	2	China
4730-00-725-4351	2016-02-54	3626	DIBBS
AN8334D	2015-08-229	25	US
458900	2015-06-178	8	IN
AN833-4D	2015-03-85	2	US
AN833-4D	2015-03-69	500	US
4730-00-725-4351	2015-02-37	1879	DIBBS
4730-00-725-4351	2014-01-29	2185	DIBBS
AN8294D	2013-12-352	5	Germany
4730-00-725-4351	2013-04-95	1005	DIBBS
4730-00-725-4351	2012-09-255	338	DIBBS
4730-00-725-4351	2012-08-240	338	DIBBS
4730-00-725-4351	2012-08-226	564	DIBBS
MS24394D4	2012-06-158	5	Mexico
MS24394D4	2012-06-157	5	Mexico
4730-00-725-4351	2012-05-142	405	DIBBS
4730-00-725-4351	2012-03-80	0	DIBBS
4730-00-725-4351	2012-03-80	526	DIBBS
AN8334D	2012-02-38	30	AR
4730-00-725-4351	2012-02-38	30	MANUAL
AN833-4D	2012-02-38	30	US
4730-00-725-4351	2012-02-32	30	AR
4730-00-725-4351	2011-04-102	412	DIBBS
AS4841	2011-03-69	8
4730-00-725-4351	2011-03-67	297	DIBBS
AN8334D	2009-11-329	1	United States
AN8334D	2009-11-329	1	United States
AN8334D	2007-10-302	40	US

Cross Reference | NSN 4730-00-725-4351

Part Number	Cage Code	Manufacturer
12P668-7	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
3111418	001JK	EMBRAER S/A
3111418	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
458 900	77294	PIPER AIRCRAFT INC.
5863-0404	0KDP7	KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS
722-006	94861	MALABAR DBA MALABAR INTERNATIONAL
8020639	18876	U S ARMY AVIATION AND MISSILE COMMAND
946.21.65.633	S4080	PILATUS AIRCRAFT LTD
983304	65023	EARLS SUPPLY CO
AN829-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN833-40	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN833-4D	00624	EATON CORPORATION DBA AEROSPACE DIV
AN833-4D	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
AN833-4D	14397	FABER ENTERPRISES, INC.
AN833-4D	14728	PRECISION FORM RIVET INC
AN833-4D	22995	CROWN FITTING CO INC
AN833-4D	30974	AEROFIT, LLC
AN833-4D	32382	ARLINGTON AIR PARTS INC
AN833-4D	71563	COLLINS ENGINEERING CORP
AN833-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN833-4D	R1120	SATAIR A/S
AN833-D4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS1038D0404	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS4841	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS24394D4	22995	CROWN FITTING CO INC
MS24394D4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
Z00.N7730062147	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-725-4351

Compare

Related Products | NSN 4730-00-725-4351

4730-00-725-4358, 4730-00-725-4465, 4730-00-725-4466, 4730-00-725-4502, 4730-00-725-4521

Technical Data | NSN 4730-00-725-4351

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	M1L-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
CONNECTION TYPE	THREADED EXTERNAL TUBE ALL ENDS
CONNECTION STYLE	B64 FLARED ALL ENDS
SEAT ANGLE	37.0 DEGREES ALL ENDS
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNJF ALL ENDS UNJF 1ST END BULKHEAD

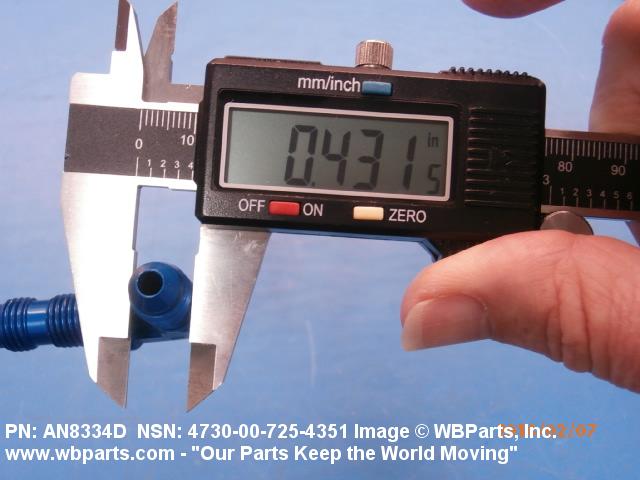

NOMINAL THREAD SIZE	0.438 INCHES ALL ENDS 0.438 INCHES 1ST END BULKHEAD
THREAD CLASS	3A ALL ENDS 3A 1ST END BULKHEAD

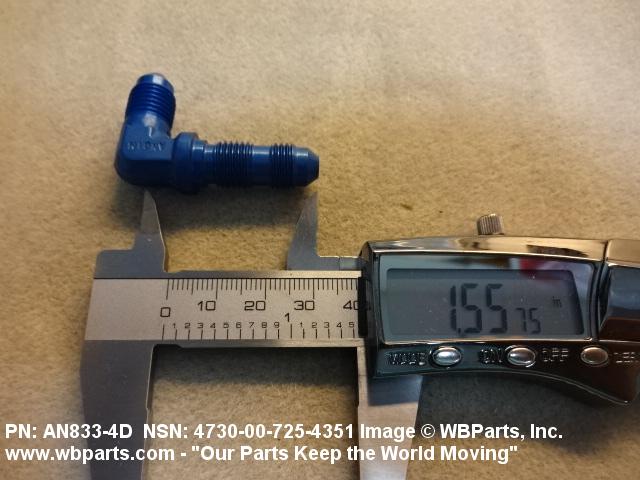

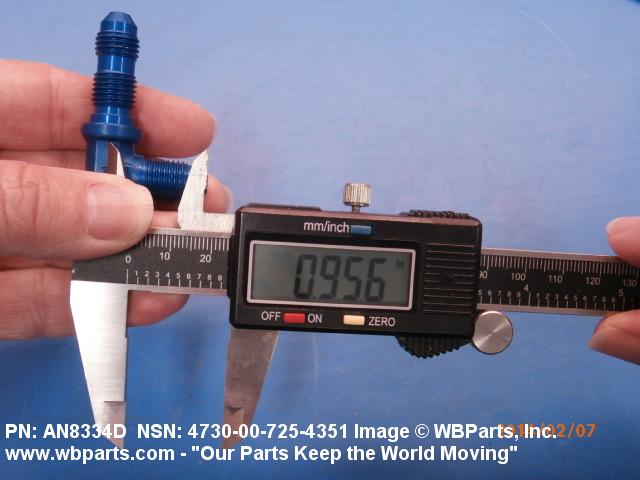

LEG LENGTH	1.578 INCHES NOMINAL 1ST END 0.953 INCHES NOMINAL 2ND END
FLOW ANGLE	90.0 DEGREES
SPECIFICATION/STANDARD DATA	96906-MS24394 GOVERNMENT STANDARD
III END ITEM IDENTIFICATION	GRUMMAN A-10 AIRCRAFT

Restrictions/Controls & Freight Information | NSN 4730-00-725-4351

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-725-4351

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
