NSN 4730-00-769-0182 91000475, 00-769-0182, 007690182
Product Details | LUBRICATION FITTING
4730-00-769-0182 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Part Alternates: 91000475, 4730-00-769-0182, 00-769-0182, 4730007690182, 007690182
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 APR 1972 | 00-769-0182 | 03177 ( FITTING, LUBRICATION ) |

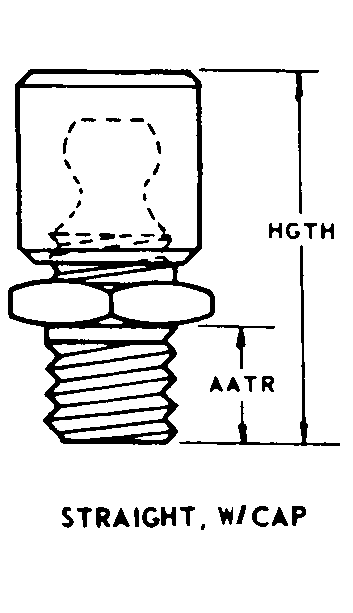

Drawings & Photos | NSN 4730-00-769-0182
Cross Reference | NSN 4730-00-769-0182
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 91000475 | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-769-0182
Technical Data | NSN 4730-00-769-0182
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281,CLASS A9 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | E4 STRAIGHT, W/CAP |
| SHANK LENGTH | 0.250 INCHES NOMINAL |
| HEIGHT | 1.000 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| BYPASS RELIEF VALVE SETTING RANGE | NOT RATED |
| WIDTH ACROSS FLATS | 0.438 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-00-769-0182
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 124520 | LUBRICATORS/GREASE CUPS NOI AUT |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-769-0182
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
