NSN 4730-00-781-6089 MS51501A6S, MS51501A6SS, MS51501-A6SS

Product Details | TUBE NIPPLE

4730-00-781-6089 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.

Part Alternates: MS51501A6S, MS51501A6SS, MS51501-A6SS, MS51501B6, MS51501-B6, MS51501B6S, C5305X6, F101847, LT11548, LT1-1548, MILF18866, MIL-F-18866, 030366, 0303-6-6, 11177546-3, 1336, 13-3-6, 14691, 202766S, 2027-6-6S, 2027TF66S, 2027TF-6-6S, 3322050050, 332-2050-050, 5815X6, 6-6 070101C, 6-6 070101SA, 66070101C, 66070101SA, 6HBTXSS, 6JMS, 6LHTXS, 6MJ6MJ, 6STTS, 815X6, 87F5, 959274, 9592741, 959274-1, 9R2118, 4730-00-781-6089, 00-781-6089, 4730007816089, 007816089, 111775463

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1960	00-781-6089	03783 ( NIPPLE, TUBE )

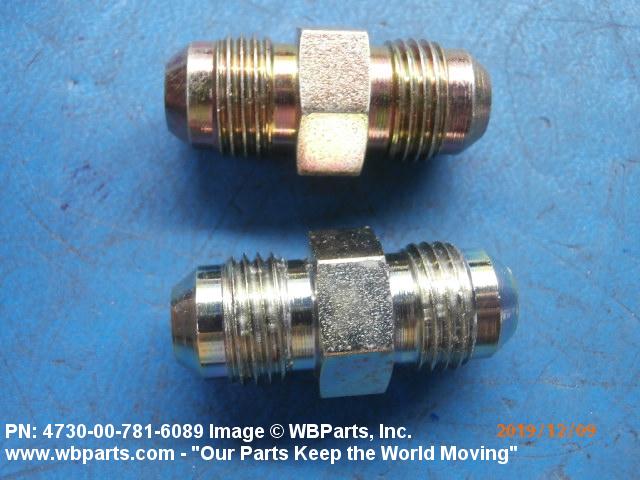

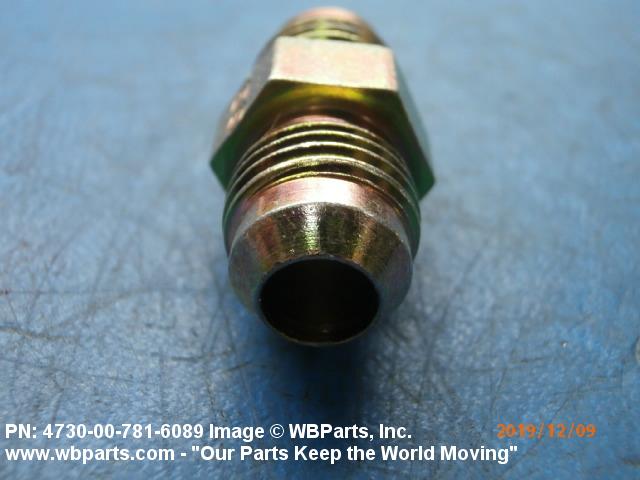

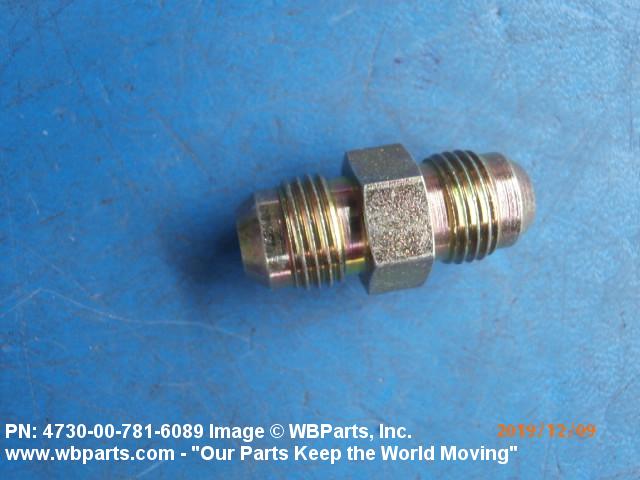

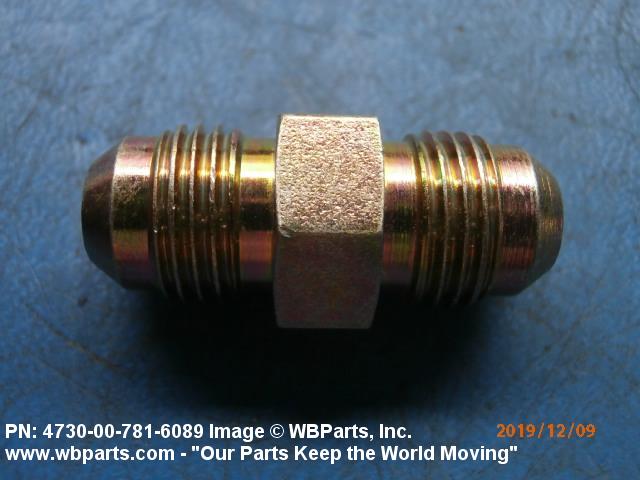

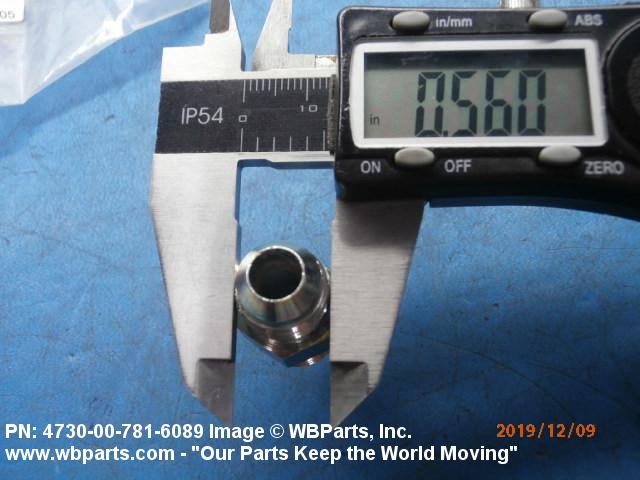

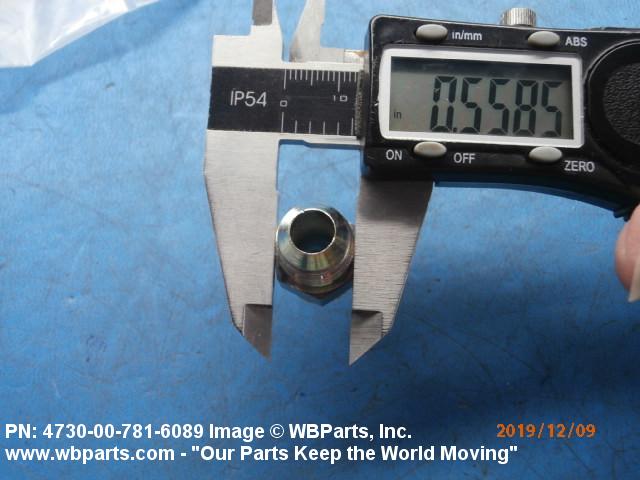

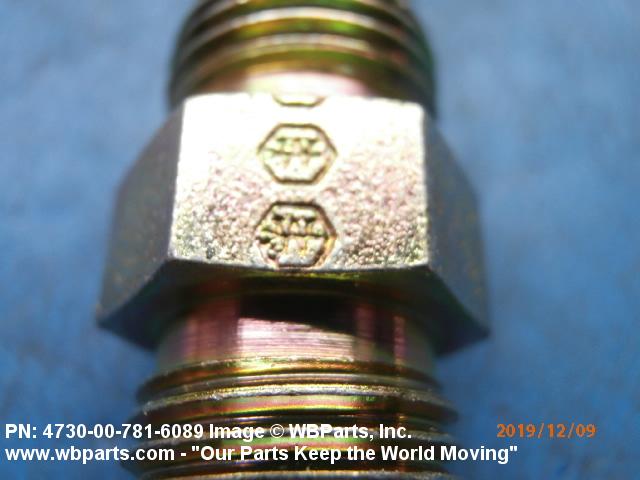

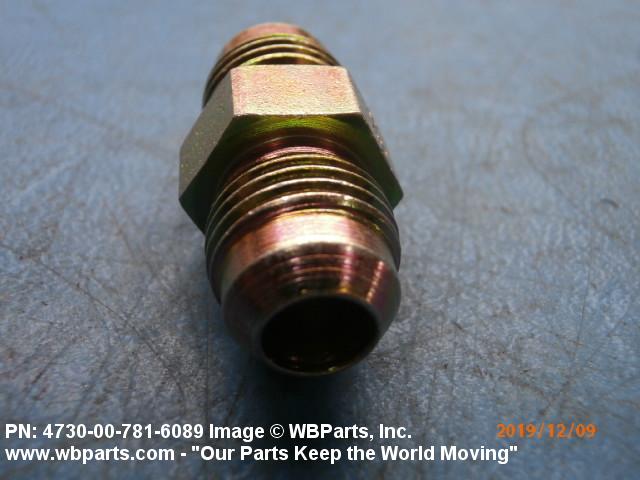

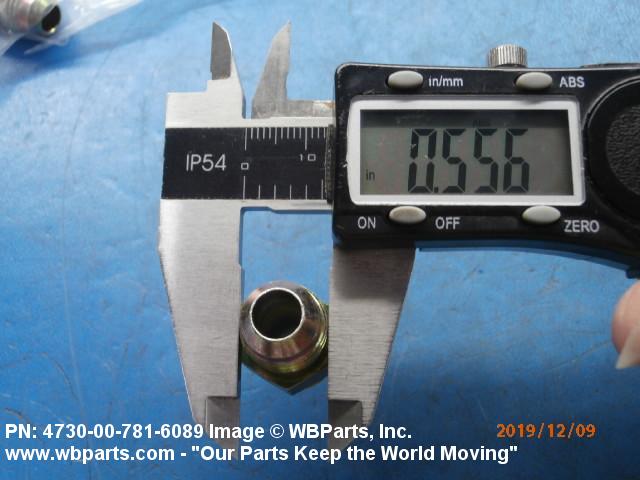

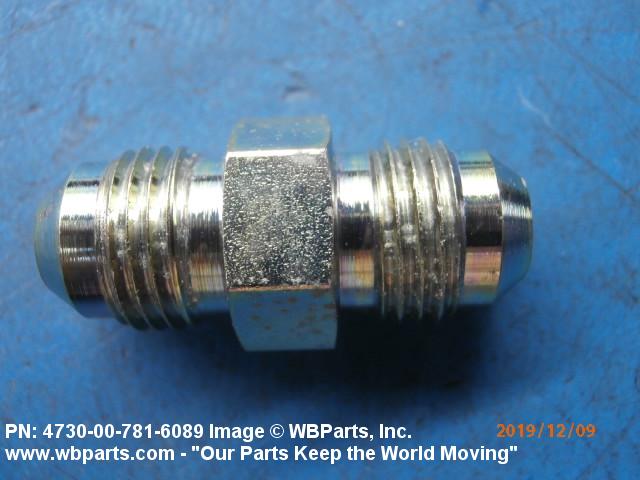

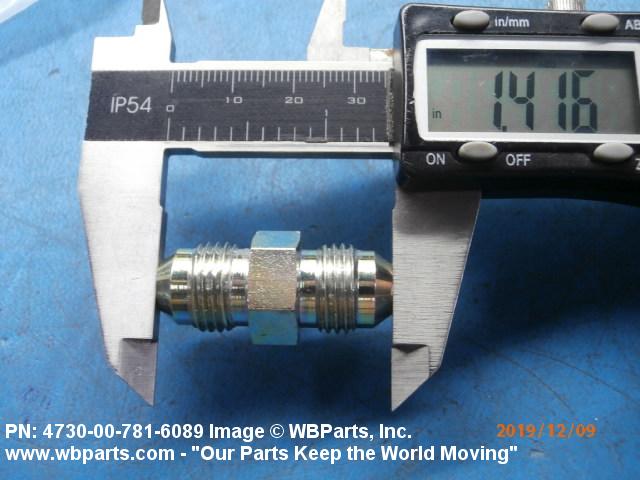

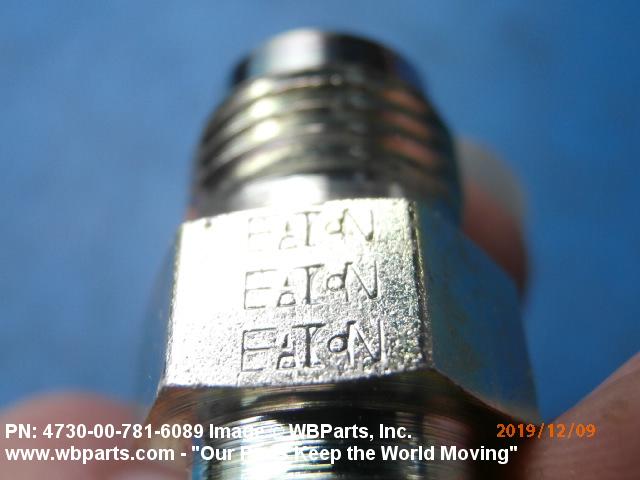

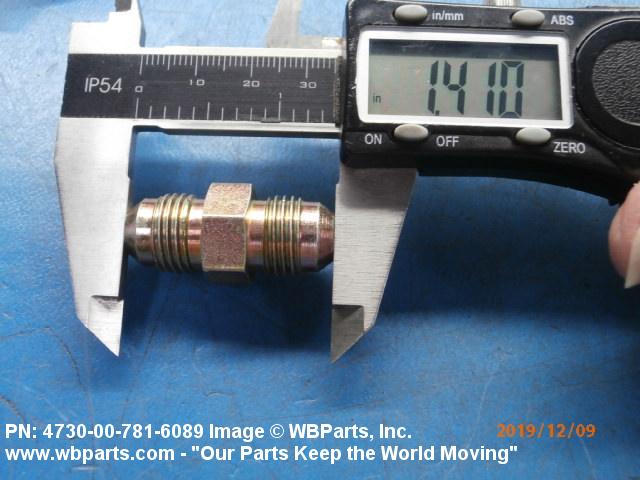

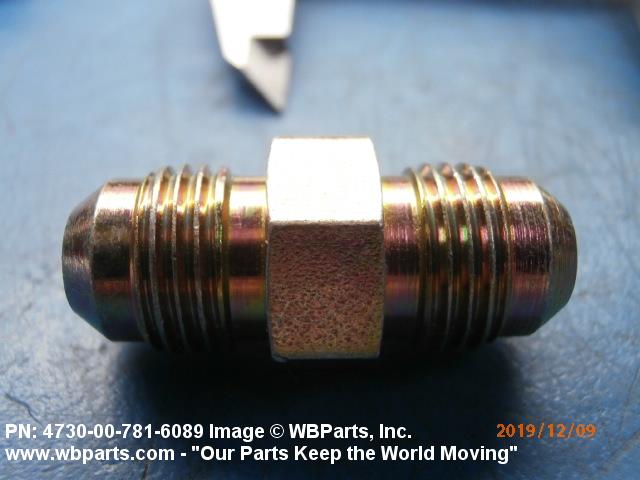

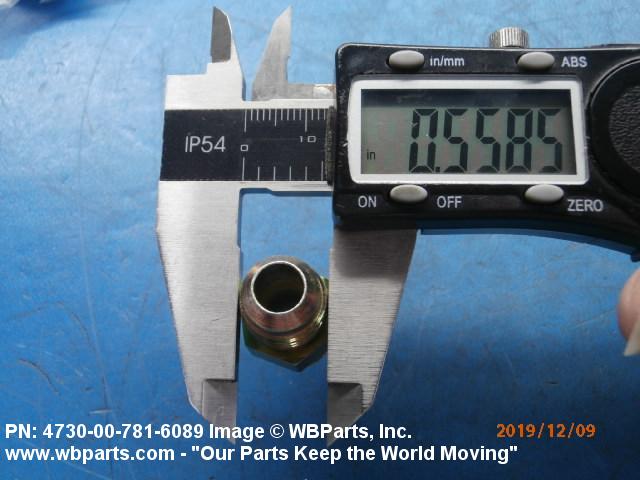

Drawings & Photos | NSN 4730-00-781-6089

Part Number	Request Date	QTY	Origin
MS51501A6S	2025-04-97	50	TW
4730-00-781-6089	2023-10-292	250	TW
4730-00-781-6089	2023-09-251	250	TW
MS51501B6S	2022-09-250	7	ES
4730-00-781-6089	2022-03-78	1	US
4730-00-781-6089	2021-01-27	1	United States
MS51501A6S	2020-11-318	200	TW
4730-00-781-6089	2019-11-323	1	United States
6LHTXS	2014-11-317	25	United States
66070101C	2014-09-267	2	United States
4730-00-781-6089	2013-09-245	1792	DIBBS
4730-00-781-6089	2009-12-344	100	US
4730-00-781-6089	2008-12-354	705	Taiwan
4730-00-781-6089	2008-11-322	705	Taiwan
4730-00-781-6089	2008-11-315	472	Taiwan
4730-00-781-6089	2008-11-315	705	Taiwan
MS51501B6S	2007-07-192	4	Australia

Cross Reference | NSN 4730-00-781-6089

Part Number	Cage Code	Manufacturer
0303-6-6	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
11177546-3	17773	BALLISTIC MISSILE DEFENSE SYSTEMS COMMAND
13-3-6	04285	ATHEY PRODUCTS CORP
14691	30076	NACCO MATERIALS HANDLING GROUP INC DBA HYSTER
2027-6-6S	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
2027TF-6-6S	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
332-2050-050	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
332-2050-050	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
5815X6	79470	DANA CORP WEATHERHEAD DIV
6HBTXSS	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
6HBTXSS	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
6HBTXSS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
6JMS	63906	VEYANCE TECHNOLOGIES, INC. DIV VEYANCE NORTH AMERICA
6JMS	70434	ANCHOR SWAN CORP SUB OF AMERACE CORP
6LHTXS	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
6LHTXS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
6MJ6MJ	12190	ENERTECH TECHNICAL SERVICES CORPORATION
6STTS	17419	DEUTSCH CO THE
815X6	72983	ESSEX GROUP, INC.
87F5	12603	CLARK EQUIPMENT CO
959274	49956	RAYTHEON COMPANY DBA RAYTHEON
959274-1	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
959274-1	49956	RAYTHEON COMPANY DBA RAYTHEON
9R2118	99240	CRISSAIR, INC.
C5305X6	79470	DANA CORP WEATHERHEAD DIV
F101847	44185	NMC/WOLLARD, INC.
LT1-1548	03622	ROLO INSTRUMENT PRODUCTS INC
MIL-F-18866	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS51501-A6SS	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51501-B6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51501A6S	00624	EATON CORPORATION DBA AEROSPACE DIV
MS51501A6S	30327	IMPERIAL
MS51501A6S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51501A6S	R1120	SATAIR A/S
MS51501B6S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-781-6089

Compare

Related Products | NSN 4730-00-781-6089

4730-00-781-6530, 4730-00-781-6531, 4730-00-781-6672, 4730-00-781-6805, 4730-00-781-7032

Technical Data | NSN 4730-00-781-6089

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35,TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MEDIA FOR WHICH DESIGNED	HYDRAULIC FLUID SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	400.0 DEG FAHRENHEIT SINGLE RESPONSE
STYLE DESIGNATOR	A56 FLARED W/CENTER WRENCHING FACILITY
CONNECTION TYPE	THREADED EXTERNAL TUBE ALL ENDS
CONNECTION STYLE	B64 FLARED ALL ENDS
SEAT ANGLE	37.0 DEGREES ALL ENDS
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.375 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNF ALL ENDS
NOMINAL THREAD SIZE	0.562 INCHES ALL ENDS
THREAD CLASS	2A ALL ENDS
NOMINAL OVERALL LENGTH	1.410 INCHES
FURNISHED ITEMS AND QUANTITY	2 TUBE COUPLING NUT W/SLEEVE
SPECIFICATION/STANDARD DATA	96906-MS51501 GOVERNMENT STANDARD AND 81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
NONDEFINITIVE SPEC/STD DATA	2B FIGURE
III END ITEM IDENTIFICATION	02N STRATEGIC WEAPON SYSTEMS(POSEIDON AND TRIDENT)
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-18866
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51501A6S

Restrictions/Controls & Freight Information | NSN 4730-00-781-6089

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-781-6089

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
