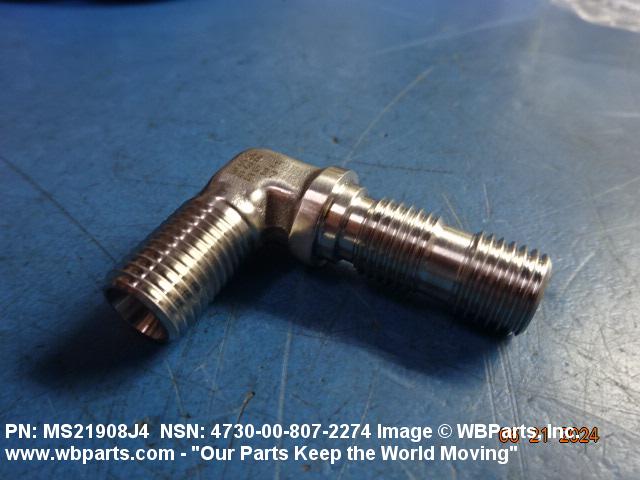

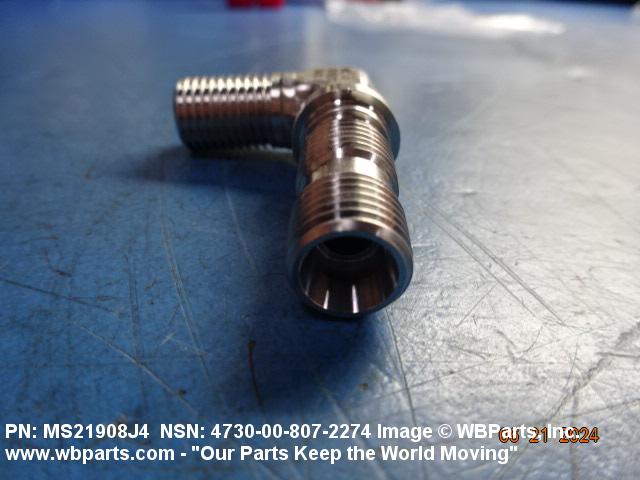

Product Details | TUBE ELBOW

4730-00-807-2274 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: MS21902C4, MS219084C, MS21908-4C, MS219084J, MS21908-4J, MS21908C4, MS21908J4, AP2853J04, AS18280, AS21908, EX32874, 10108443 , 44280114, 4428-0114, 4730-00-807-2274, 00-807-2274, 4730008072274 , 008072274

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1960	00-807-2274	03771 ( ELBOW, TUBE )

Drawings & Photos | NSN 4730-00-807-2274

Part Number	Request Date	QTY	Origin
4730-00-807-2274	2025-02-49	560	DIBBS
4730-00-807-2274	2025-02-37	560	DIBBS
4730-00-807-2274	2024-06-165	50	us
4730-00-807-2274	2024-04-109	1266	DIBBS
MS21908J4	2022-10-283	10	CN
4730-00-807-2274	2021-08-233	50	US
MS21908J4	2018-08-213	44	IN
4730-00-807-2274	2018-08-213	15	DIBBS
4730-00-807-2274	2017-12-360	300	DIBBS
4730-00-807-2274	2017-12-338	834	DIBBS
4730-00-807-2274	2017-06-159	1	Malaysia
4730-00-807-2274	2017-05-142	467	DIBBS
MS21908J4	2016-09-252	10	Thailand
AS18280	2014-10-280	1	US
4730-00-807-2274	2013-11-325	1	DIBBS-RFPs
4730-00-807-2274	2013-10-291	1	DIBBS-RFPs
4730-00-807-2274	2013-09-246	1	DIBBS-RFPs
AS21908	2013-01-29	1	ID
MS219084C	2012-08-242	3	United States
MS219084C	2012-08-223	5	United States
4730-00-807-2274	2012-04-93	2	BH
4730-00-807-2274	2012-02-55	245	DIBBS
4730-00-807-2274	2012-01-12	241	DIBBS
4730-00-807-2274	2011-07-211	198	DIBBS
4730-00-807-2274	2011-06-154	338	DIBBS
MS21908J4	2011-02-42	20	HK
MS21908J4	2011-02-42	25	HK
4730-00-807-2274	2010-04-103	525	DIBBS

Cross Reference | NSN 4730-00-807-2274

Part Number	Cage Code	Manufacturer
4428-0114	78385	MEGGITT (TROY), INC. DIV MEGGITT PLC
4730008072274	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
AP2853J04	01673	SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
AS18280	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS21908	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21908-4C	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21908J4	00624	EATON CORPORATION DBA AEROSPACE DIV
MS21908J4	01673	SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
MS21908J4	03647	GLOBE AEROSPACE INC
MS21908J4	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
MS21908J4	79470	DANA CORP WEATHERHEAD DIV
MS21908J4	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21908J4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21908J4	R1120	SATAIR A/S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-807-2274

Compare

Related Products | NSN 4730-00-807-2274

4730-00-807-2566, 4730-00-807-2656, 4730-00-807-2729, 4730-00-807-2821, 4730-00-807-3003

Technical Data | NSN 4730-00-807-2274

Characteristic	Specifications
MATERIAL	STEEL COMP 304 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
MEDIA FOR WHICH DESIGNED	HYDRAULIC FLUID SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	275.0 DEG FAHRENHEIT SINGLE RESPONSE
CONNECTION TYPE	THREADED EXTERNAL TUBE ALL ENDS THREADED EXTERNAL TUBE 1ST END BULKHEAD
CONNECTION STYLE	B66 FLARELESS ALL ENDS
SEAT ANGLE	12.0 DEGREES ALL ENDS
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES 1ST END 0.250 INCHES 2ND END
THREAD SERIES DESIGNATOR	UNJF ALL ENDS UNJF 1ST END BULKHEAD
NOMINAL THREAD SIZE	0.438 INCHES ALL ENDS 0.438 INCHES 1ST END BULKHEAD
THREAD CLASS	3A ALL ENDS 3A 1ST END BULKHEAD
LEG LENGTH	1.500 INCHES NOMINAL 1ST END 0.938 INCHES NOMINAL 2ND END
FLOW ANGLE	90.0 DEGREES
SPECIFICATION/STANDARD DATA	96906-MS21908 GOVERNMENT STANDARD
