NSN 4730-00-821-8835 810-1385870REVH PC18 1-4IN, 8101385870REVHPC1814IN, 8101385883PC689
Product Details | UNION TAILPIECE
4730-00-821-8835 A fitting used with a union nut and thread piece to form a union.
Part Alternates: 810-1385870REVH PC18 1-4IN, 8101385870REVHPC1814IN, 8101385883PC689, 8101385883PC6TYPE1REVB, 810-1385883PC6TYPE1REVB, 810-1385883PC6TYPEI-1/4, 8101385883PC6TYPEI14, 4730-00-821-8835, 00-821-8835, 4730008218835, 008218835
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1960 | 00-821-8835 | 04135 ( TAILPIECE, UNION ) |

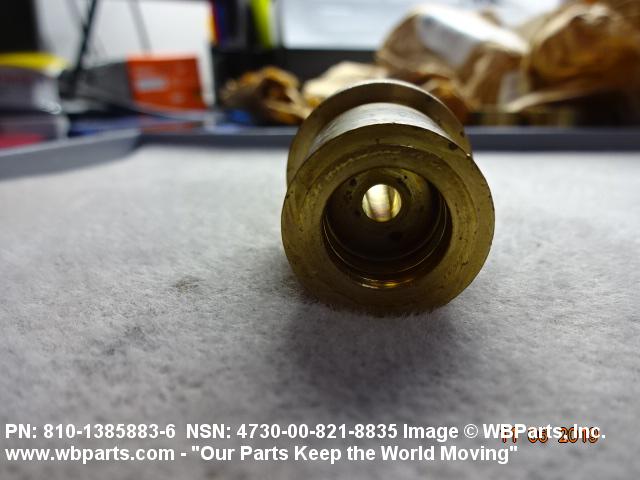

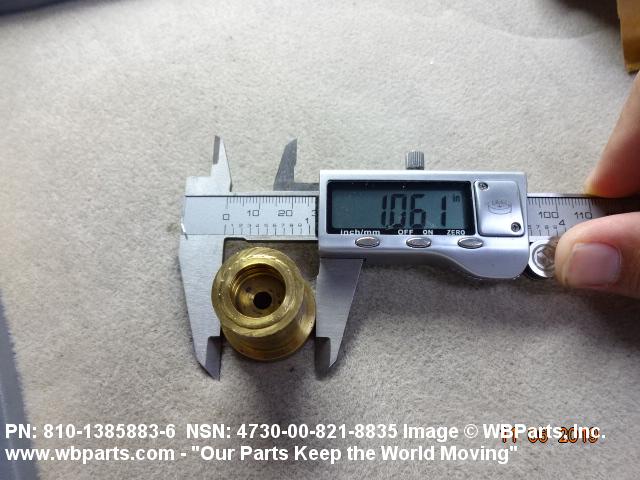

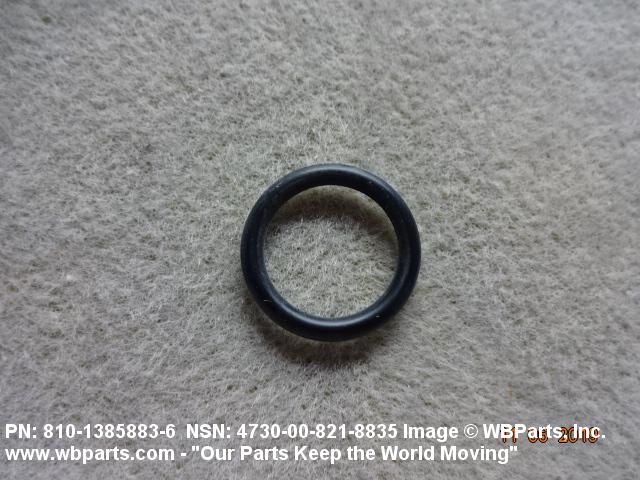

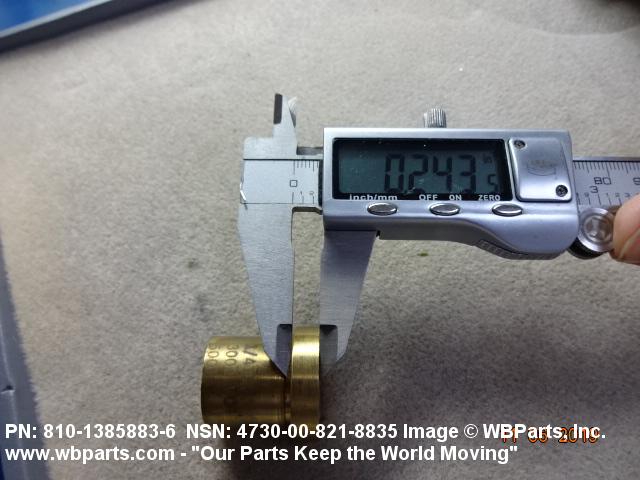

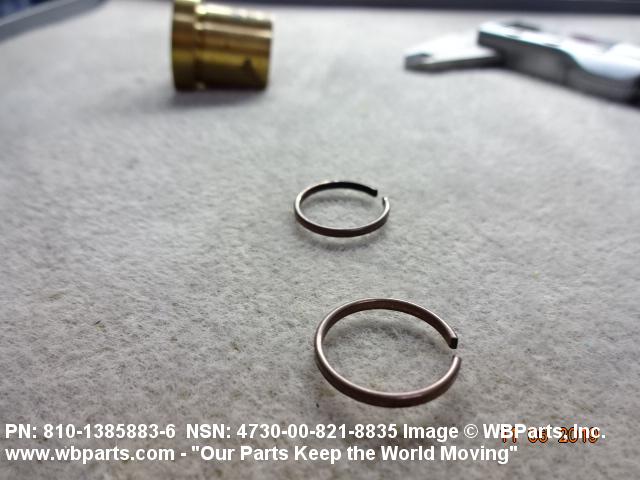

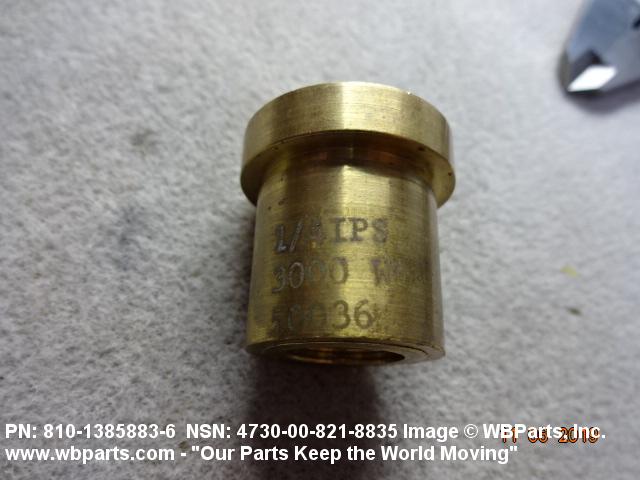

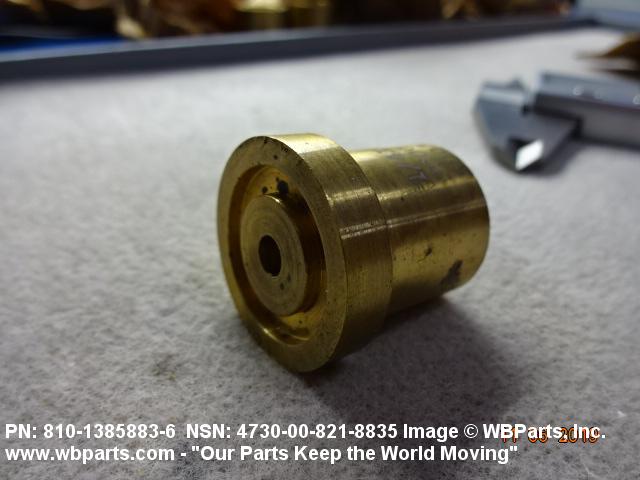

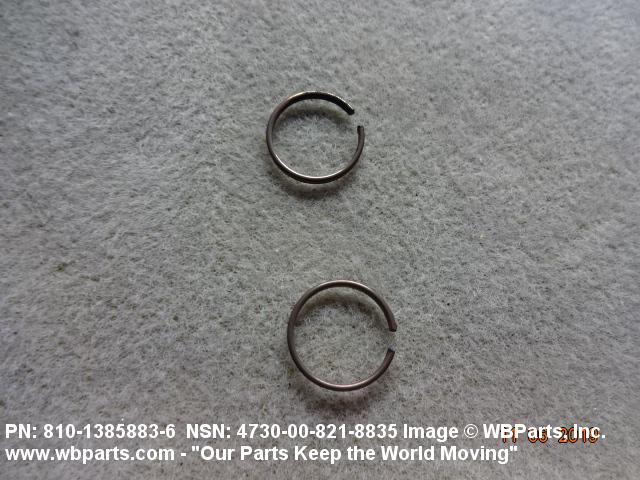

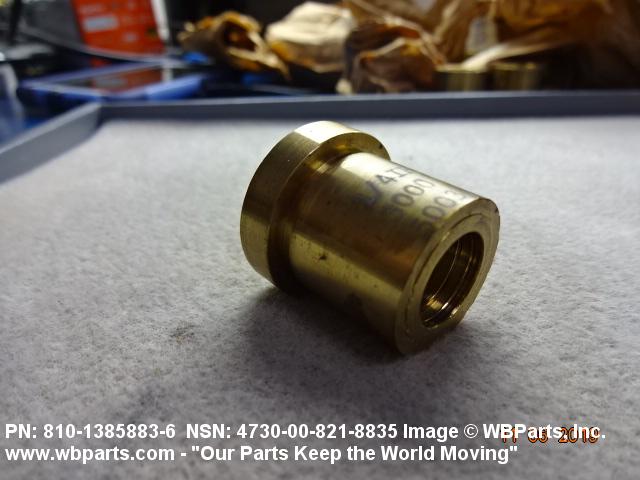

Drawings & Photos | NSN 4730-00-821-8835
Demand History | NSN 4730-00-821-8835
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8 | 2024-11-318 | 1 | us |
| 9 | 2024-09-267 | 10 | United States |
| 4730-00-821-8835 | 2019-10-297 | 17 | United States |
| 4730-00-821-8835 | 2019-05-134 | 17 | DIBBS |
| 4730-00-821-8835 | 2017-10-296 | 70 | DIBBS |
| 4730-00-821-8835 | 2013-10-304 | 161 | DIBBS |
| 9 | 2013-05-151 | 1 | |
| 4730-00-821-8835 | 2013-05-127 | 33 | DIBBS |
| 9 | 2011-08-233 | 5 | |
| 9 | 2011-08-233 | 5 | |
| 9 | 2011-08-233 | 5 | |
| 9 | 2011-08-232 | 5 | |
| 9 | 2011-08-232 | 5 | |
| 9 | 2011-08-232 | 5 | |
| 9 | 2011-07-188 | 5 | |
| 9 | 2011-04-110 | 2 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-821-8835
Related Products | NSN 4730-00-821-8835
Technical Data | NSN 4730-00-821-8835
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRONZE, MIL-B-16541, GRADE A |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | NOT RATED |
| SEAT TYPE | STRAIGHT FACE |
| END CONNECTION TYPE | BRAZED |
| NOMINAL PIPE SIZE DESIGNATION | 0.250 INCHES |
| MALE END FEATURE | NOT INCLUDED |
| NUT RETAINING FLANGE | INCLUDED |
| FLANGE OUTSIDE DIAMETER | 1.063 INCHES NOMINAL |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 1.063 INCHES NOMINAL |
| WORKING PRESSURE AND SERVICE TYPE | 3000.0 POUNDS PER SQUARE INCH NOMINAL GAS 3000.0 POUNDS PER SQUARE INCH NOMINAL OIL 3000.0 POUNDS PER SQUARE INCH NOMINAL WATER |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 6 PIECE |
Restrictions/Controls & Freight Information | NSN 4730-00-821-8835
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-821-8835
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
