NSN 4730-00-822-0359 WWP401, 00-822-0359, 008220359
Product Details | SOIL PIPE TRAP
4730-00-822-0359 A device having hub and/or spigot ends. It is used in drain of soil systems to prevent sewer gas from backing up beyond desired point by forming a water seal in the line. This is accomplished by its peculiar shape which is usually in the form of a letter P or S. It may have side inlet and/or cleanout.
Part Alternates: WWP401, 4730-00-822-0359, 00-822-0359, 4730008220359, 008220359
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-822-0359 | 17663 ( TRAP, SOIL PIPE ) |

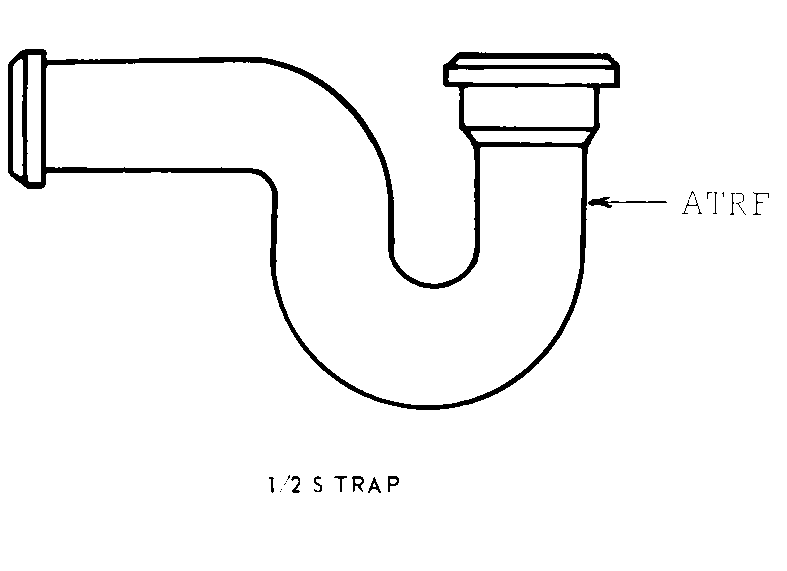

Drawings & Photos | NSN 4730-00-822-0359
Cross Reference | NSN 4730-00-822-0359
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWP401 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-822-0359
Technical Data | NSN 4730-00-822-0359
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | X1 1/2 S TRAP |
| NOMINAL PIPE SIZE | 5.000 INCHES |
| MATERIAL | IRON, CAST |
| WALL THICKNESS DESIGNATION | EXTRA HEAVY WEIGHT |
| NONDEFINITIVE SPEC/STD DATA | XH CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WWP401 |
Restrictions/Controls & Freight Information | NSN 4730-00-822-0359
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
