NSN 4730-00-827-3676 MS219162420C, MS21916-24-20C, MS21916J2420
Product Details | BOSS REDUCER
4730-00-827-3676 A straight fitting having a boss connection of a different size at each end. Both connections have external or internal machine threads (straight threads other than pipe or hose series) and are designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. Excludes BUSHING (as modified).
Part Alternates: MS219162420C, MS21916-24-20C, MS21916J2420, MS21916J24-20, 4730-00-827-3676, 00-827-3676, 4730008273676, 008273676
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-827-3676 | 23541 ( REDUCER, BOSS ) |

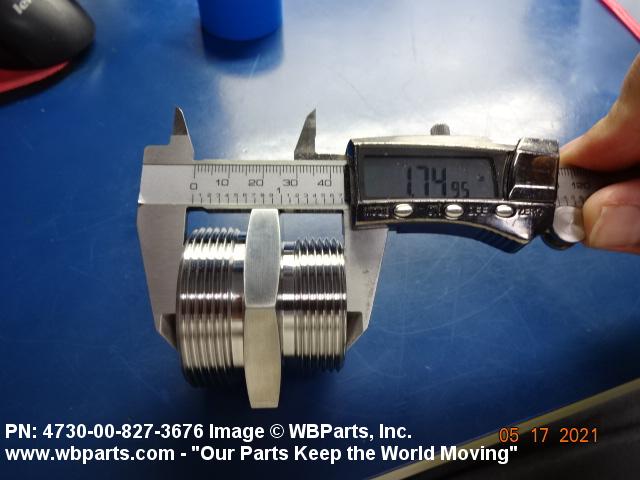

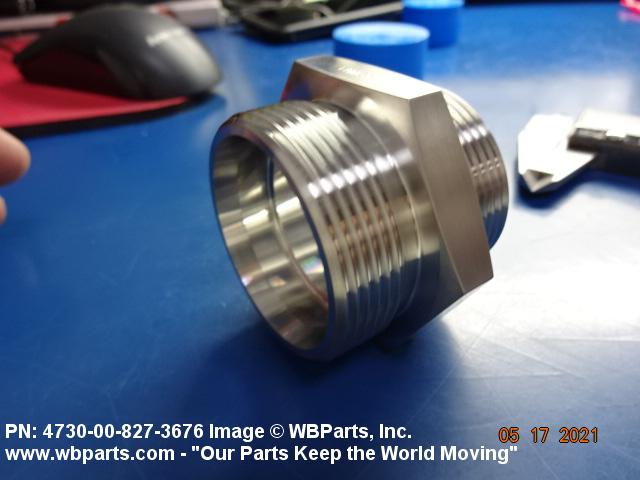

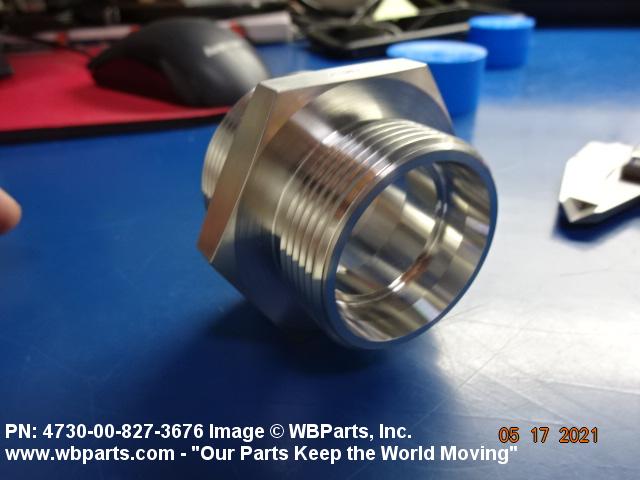

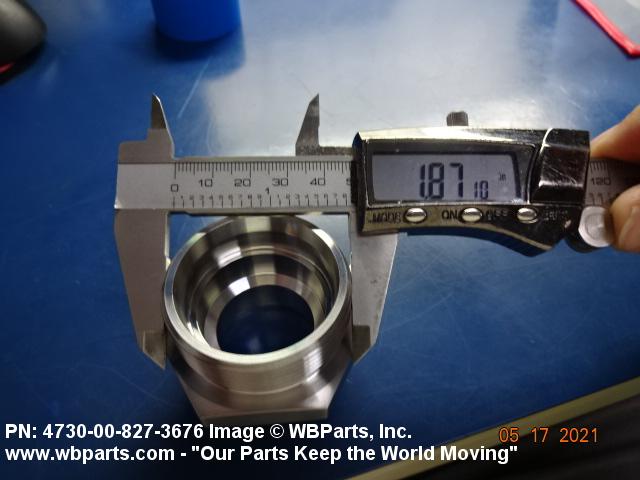

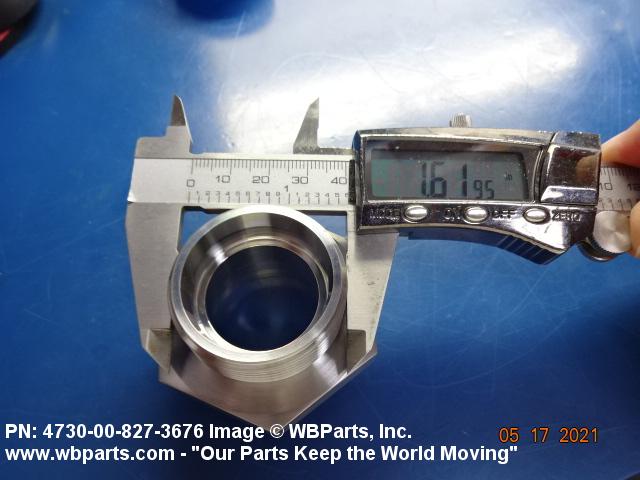

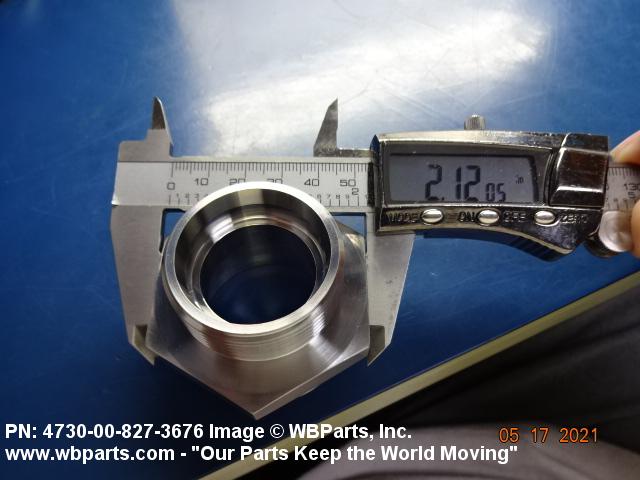

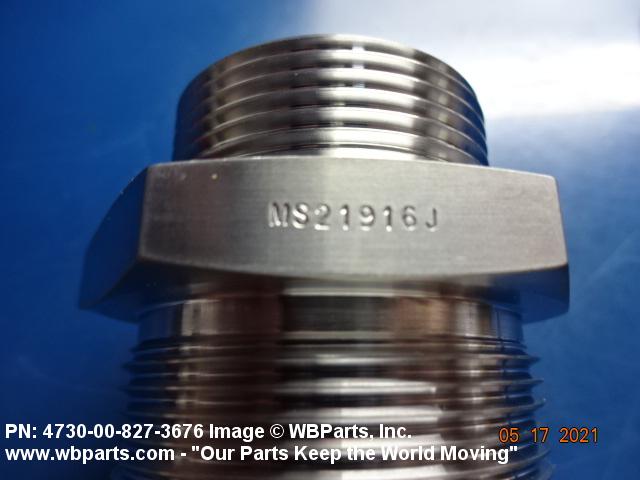

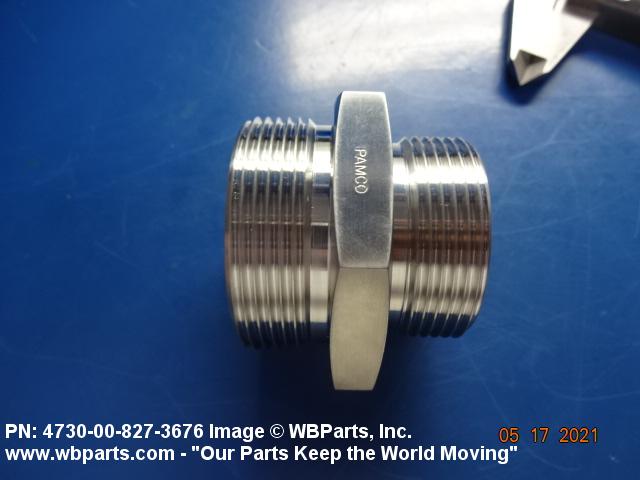

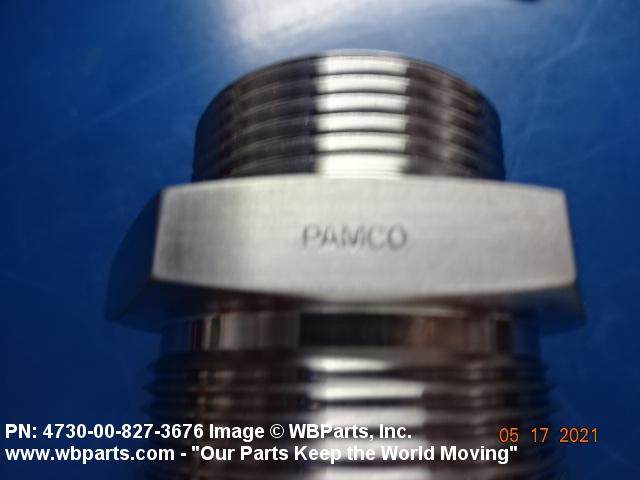

Drawings & Photos | NSN 4730-00-827-3676
Demand History | NSN 4730-00-827-3676
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21916J2420 | 2024-10-299 | 3 | United States |
| 4730-00-827-3676 | 2021-04-109 | 1 | United States |
| MS21916J2420 | 2020-06-169 | 1 | United States |
| 4730-00-827-3676 | 2020-03-79 | 5 | DIBBS |
| 4730-00-827-3676 | 2020-03-79 | 21 | DIBBS |
| 4730-00-827-3676 | 2020-02-51 | 21 | DIBBS |
| 4730-00-827-3676 | 2020-01-15 | 5 | DIBBS |
| 4730-00-827-3676 | 2019-12-339 | 5 | DIBBS |
| 4730-00-827-3676 | 2019-12-336 | 1 | DIBBS |
| 4730-00-827-3676 | 2019-11-323 | 1 | DIBBS |
| 4730-00-827-3676 | 2019-08-240 | 1 | DIBBS |
| 4730-00-827-3676 | 2019-08-240 | 3 | DIBBS |
| 4730-00-827-3676 | 2019-08-240 | 4 | DIBBS |
| MS21916J2420 | 2017-10-291 | 2 | US |
Cross Reference | NSN 4730-00-827-3676
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21916-24-20C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21916J24-20 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS21916J24-20 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| MS21916J24-20 | 79470 | DANA CORP WEATHERHEAD DIV |
| MS21916J24-20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-827-3676
Related Products | NSN 4730-00-827-3676
Technical Data | NSN 4730-00-827-3676
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI/SAE ASSN STD ALL MATERIAL RESPONSES OR 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| MEDIA FOR WHICH DESIGNED | AERONAUTICAL FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 1500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 135.0 DEG CELSIUS SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | B71A EXTERNAL SEAT FOR GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS |
| NOMINAL THREAD SIZE | 1.875 INCHES 1ST END 1.625 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.750 INCHES |
| REDUCER TYPE | CONCENTRIC |
| SPECIFICATION/STANDARD DATA | 96906-MS21916 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21916J24-20 |
Restrictions/Controls & Freight Information | NSN 4730-00-827-3676
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-827-3676
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
