Product Details | QUICK DISCONNECT CAP
4730-00-838-3060 A fluid line fitting having an internal quick disconnect feature, designed to fit over a fitting with an external quick disconnect feature, to block the flow of fluid.
Part Alternates: 12007085-3, 32078, 3207-8, 320789, 3207-8-9, 4553X28, 4553X2-8, 10000083, 4730-00-838-3060, 00-838-3060, 4730008383060, 008383060, 120070853
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-838-3060 | 29760 ( CAP, QUICK DISCONNECT ) |

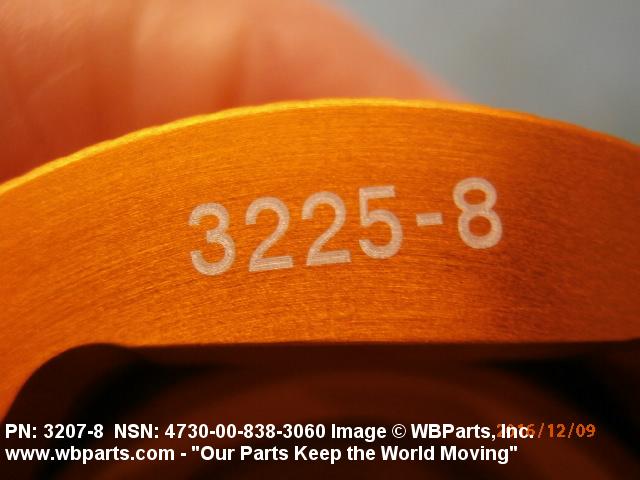

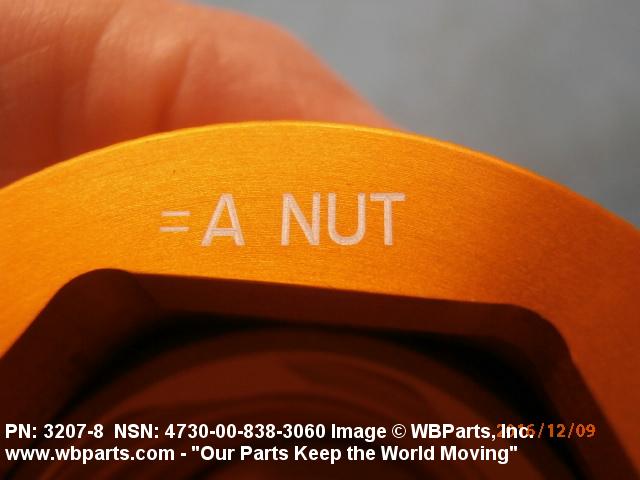

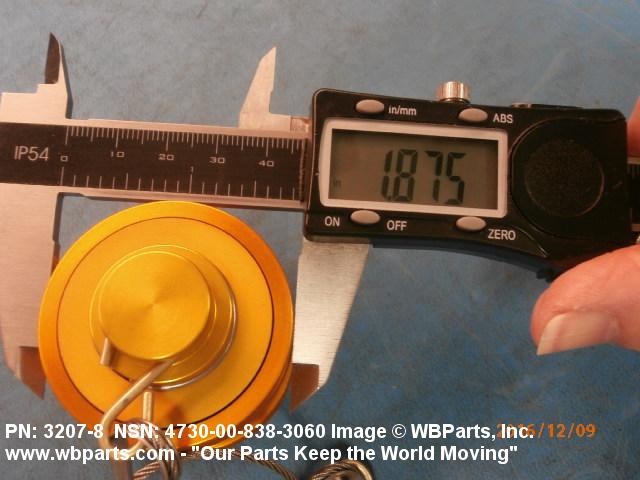

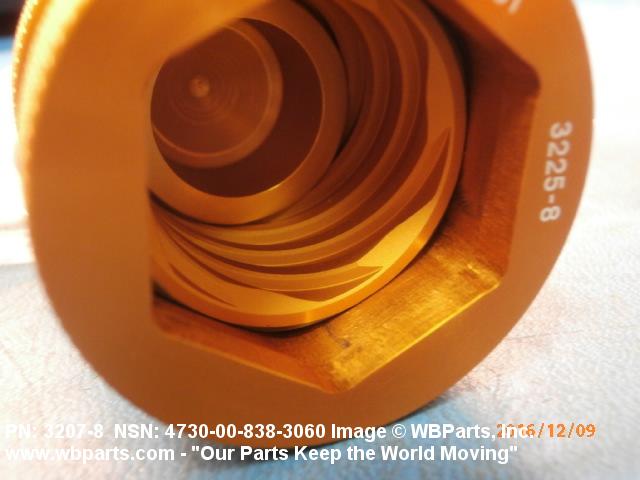

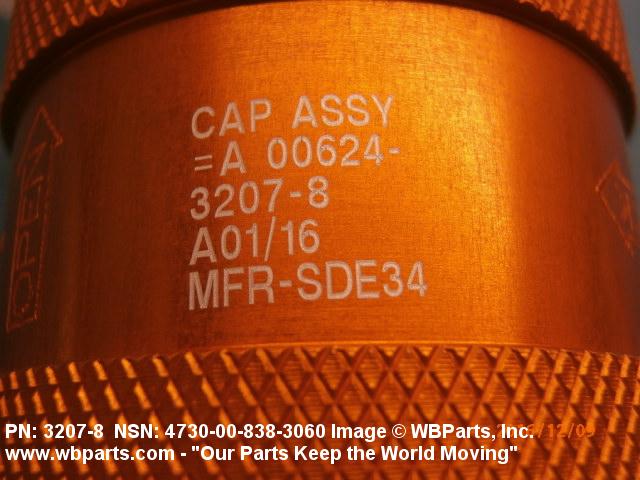

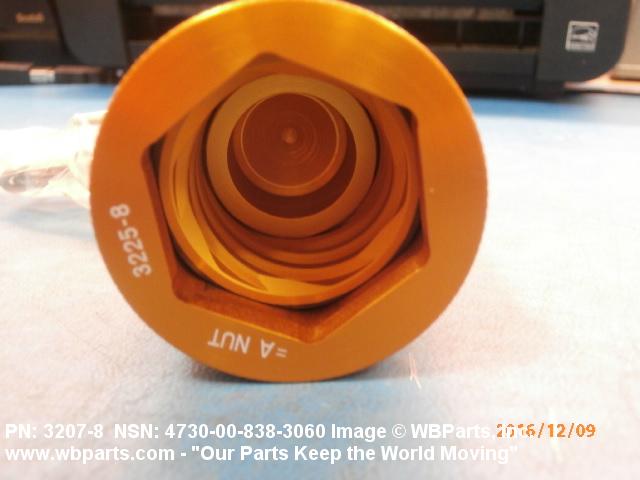

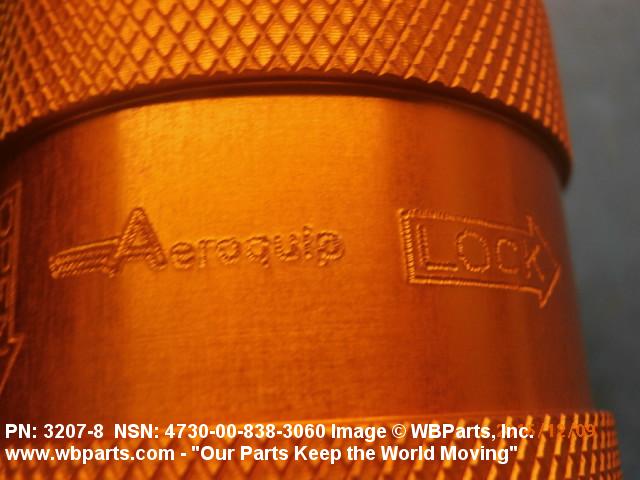

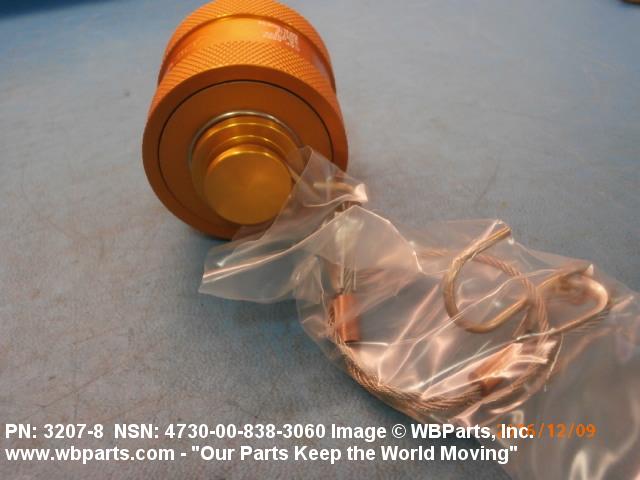

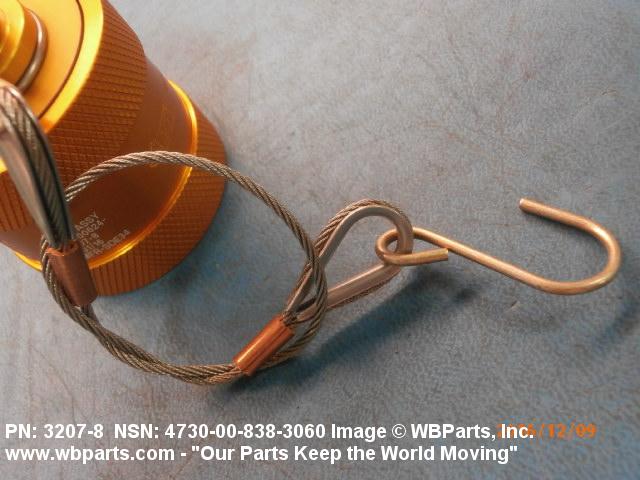

Drawings & Photos | NSN 4730-00-838-3060
Demand History | NSN 4730-00-838-3060
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3207-8 | 2023-08-03 | 44 | DIBBS |
| 4553X2-8 | 2023-08-03 | 44 | DIBBS |
| 4730-00-838-3060 | 2021-09-14 | 1 | US |
| 4730-00-838-3060 | 2021-09-14 | 2 | US |
| 4730-00-838-3060 | 2021-03-08 | 1 | United States |
| 4730-00-838-3060 | 2019-08-12 | 5 | United States |
| 4730-00-838-3060 | 2018-09-12 | 5 | US |
| 4730-00-838-3060 | 2018-08-13 | 28 | DIBBS |
| 4730-00-838-3060 | 2018-08-02 | 28 | DIBBS |
| 4730-00-838-3060 | 2016-12-02 | 1 | us |
| 4730-00-838-3060 | 2016-08-11 | 79 | DIBBS |
| 4730-00-838-3060 | 2016-07-31 | 79 | DIBBS |
| 32078 | 2014-09-09 | 2 | US |
| 32078 | 2014-09-09 | 2 | US |
| 32078 | 2012-10-24 | 10 | United States |
| 4730-00-838-3060 | 2010-08-02 | 456 | DIBBS |
| 4730-00-838-3060 | 2010-06-10 | 135 | DIBBS |
| 4730-00-838-3060 | 2010-06-08 | 59 | DIBBS |
| 4730-00-838-3060 | 2010-02-05 | 70 | DIBBS |
| 4730-00-838-3060 | 2009-10-29 | 40 | DIBBS |
| 4730-00-838-3060 | 2009-06-04 | 40 | DIBBS |
| 4730-00-838-3060 | 2009-05-01 | 51 | DIBBS |
| 4730-00-838-3060 | 2008-12-18 | 77 | DIBBS |
| 4730-00-838-3060 | 2008-11-13 | 120 | DIBBS |
| 4730-00-838-3060 | 2008-08-21 | 75 | DIBBS |
| 4730-00-838-3060 | 2008-07-23 | 74 | DIBBS |
| 4730-00-838-3060 | 2008-04-08 | 305 | United States |
Cross Reference | NSN 4730-00-838-3060
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10000083 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 12007085-3 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 3207-8 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 3207-8 | R1120 | SATAIR A/S |
| 3207-8-9 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 4553X2-8 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-00-838-3060
Related Products | NSN 4730-00-838-3060
4730-00-838-3061, 4730-00-838-3540, 4730-00-838-3541, 4730-00-838-3555, 4730-00-838-4002
Technical Data | NSN 4730-00-838-3060
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 60.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 275.0 DEG FAHRENHEIT ANY ACCEPTABLE |

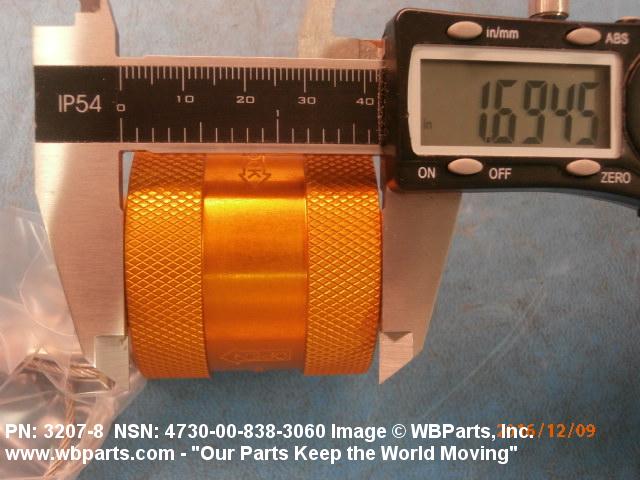

| OVERALL LENGTH | 1.695 INCHES NOMINAL |
| QUICK DISCONNECT METHOD | QUICK LEAD THREAD ALL ENDS |

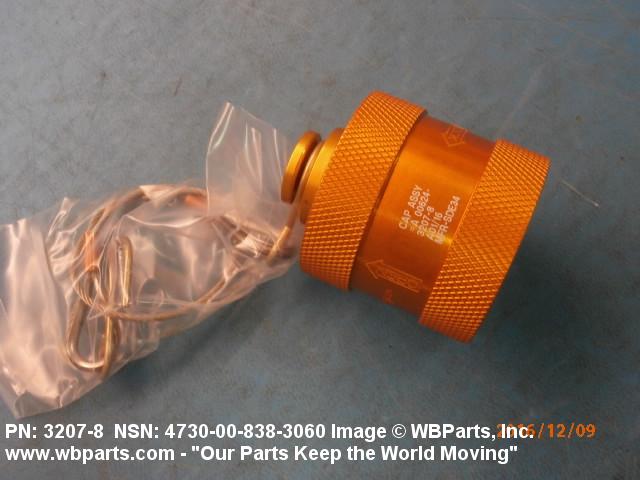

| FURNISHED ITEMS AND QUANTITY | 1 CHAIN |
Restrictions/Controls & Freight Information | NSN 4730-00-838-3060
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-838-3060
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
