NSN 4730-00-838-7477 MS21916106C, MS21916-10-6C, MS21916J106
Product Details | BOSS REDUCER
4730-00-838-7477 A straight fitting having a boss connection of a different size at each end. Both connections have external or internal machine threads (straight threads other than pipe or hose series) and are designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. Excludes BUSHING (as modified).
Part Alternates: MS21916106C, MS21916-10-6C, MS21916J106, MS21916J10-6, 4730-00-838-7477, 00-838-7477, 4730008387477, 008387477
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-838-7477 | 23541 ( REDUCER, BOSS ) |

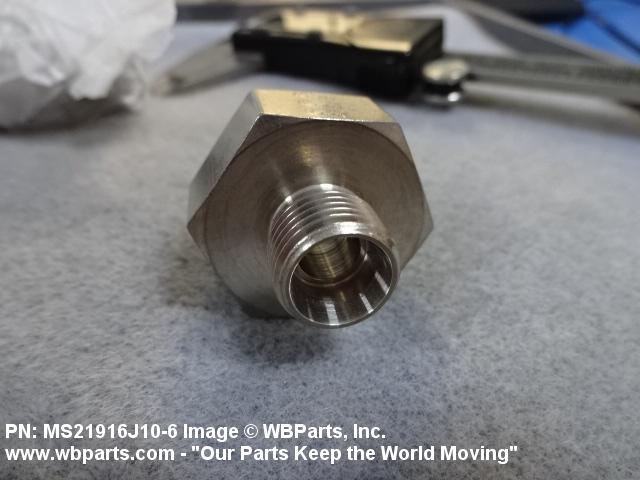

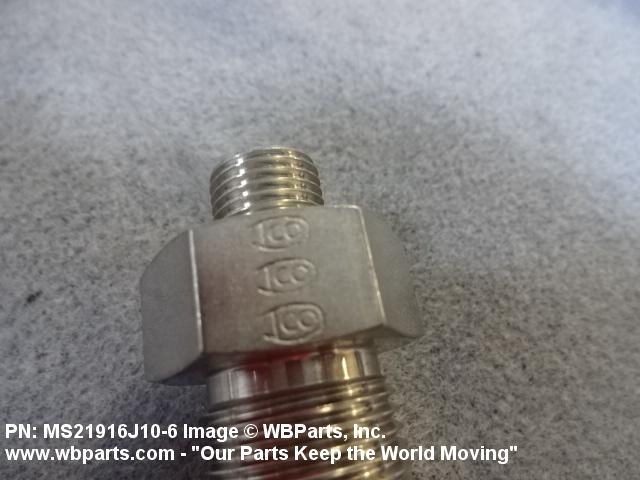

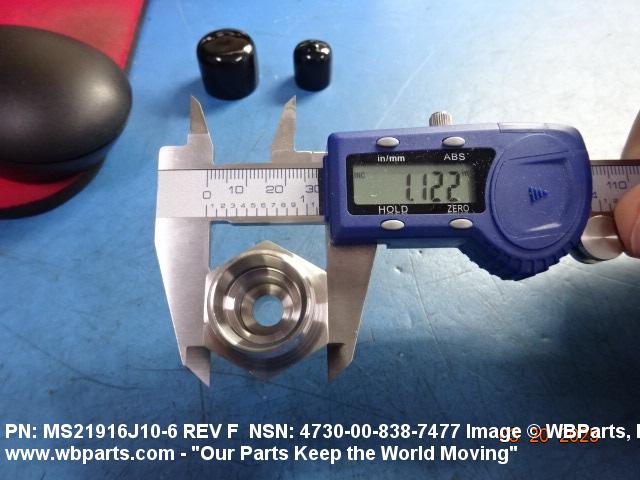

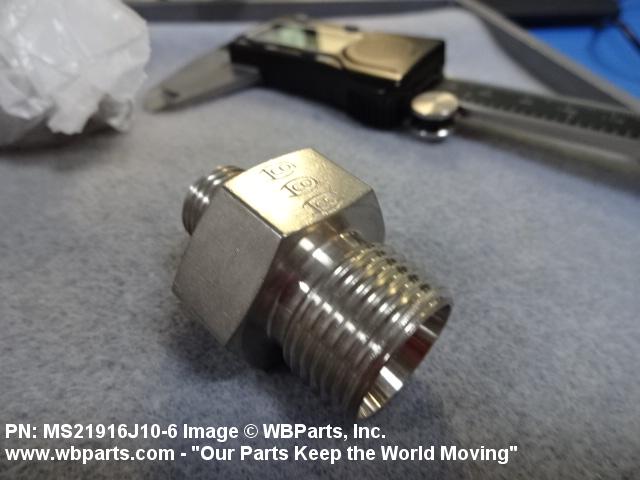

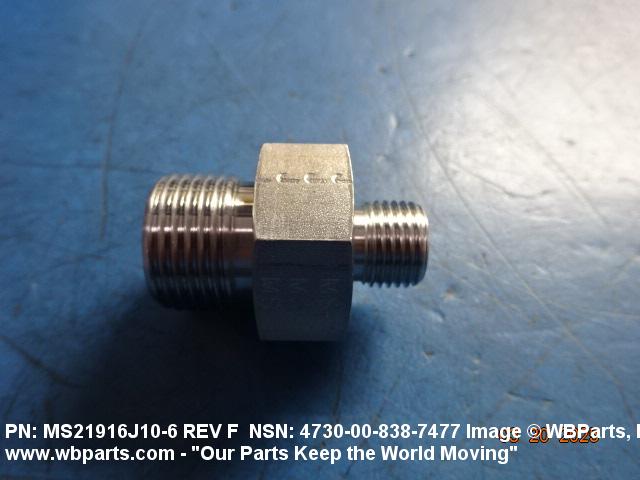

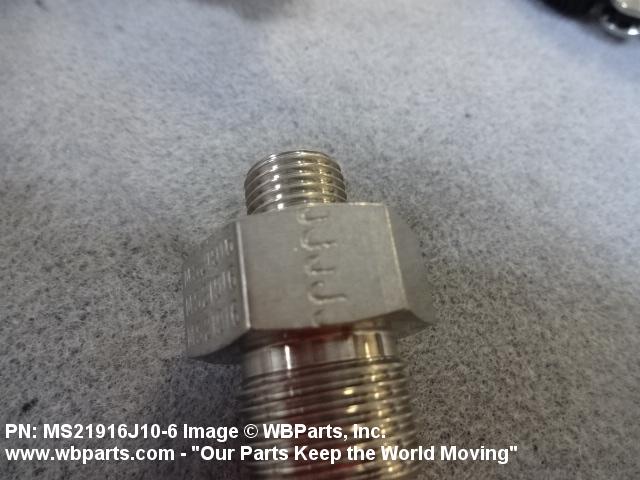

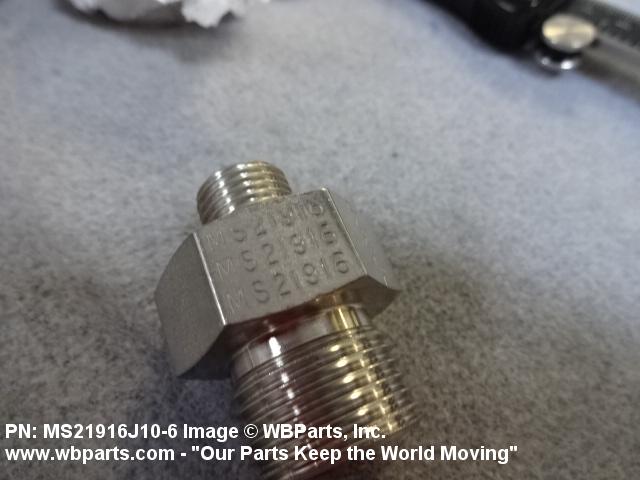

Drawings & Photos | NSN 4730-00-838-7477
Demand History | NSN 4730-00-838-7477
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-838-7477 | 2025-03-64 | 4 | United States |
| MS21916J106 | 2024-12-351 | 4 | US |
| 4730-00-838-7477 | 2023-06-174 | 100 | US |
| MS21916J106 | 2020-06-169 | 1 | United States |
| 4730-00-838-7477 | 2020-02-54 | 155 | DIBBS |
| MS21916J106 | 2017-05-129 | 10 | United States |
| 4730-00-838-7477 | 2010-08-214 | 104 | DIBBS |
| 4730-00-838-7477 | 2009-11-316 | 58 | DIBBS |
| 4730-00-838-7477 | 2009-01-06 | 76 | DIBBS |
Cross Reference | NSN 4730-00-838-7477
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-838-7477
Technical Data | NSN 4730-00-838-7477
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-F-14072,E300,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| MEDIA FOR WHICH DESIGNED | OIL SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | B71A EXTERNAL SEAT FOR GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |

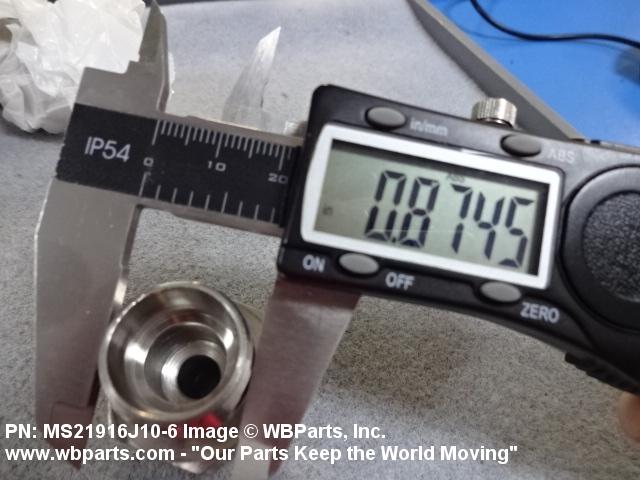

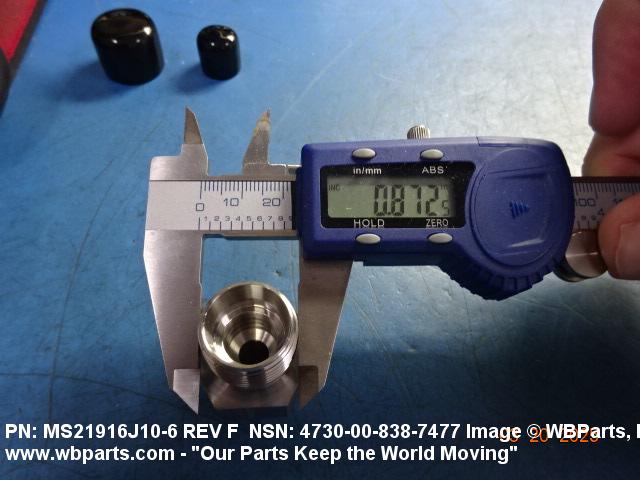

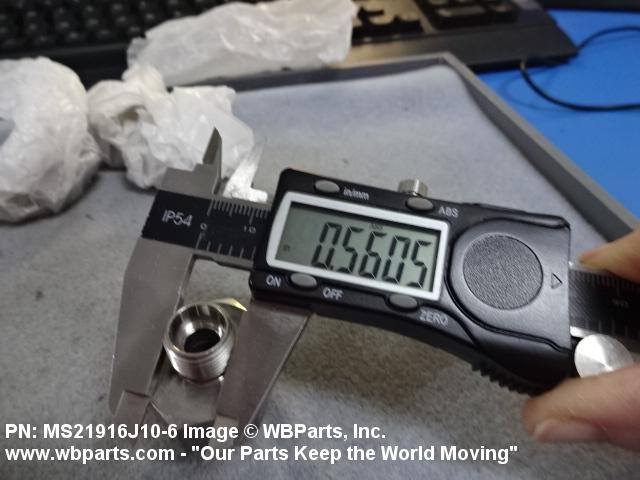

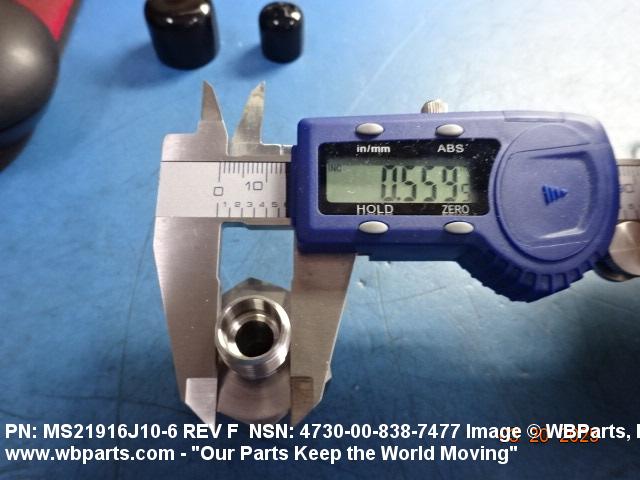

| NOMINAL THREAD SIZE | 0.875 INCHES 1ST END 0.562 INCHES 2ND END |
| THREAD CLASS | 3A ALL ENDS |

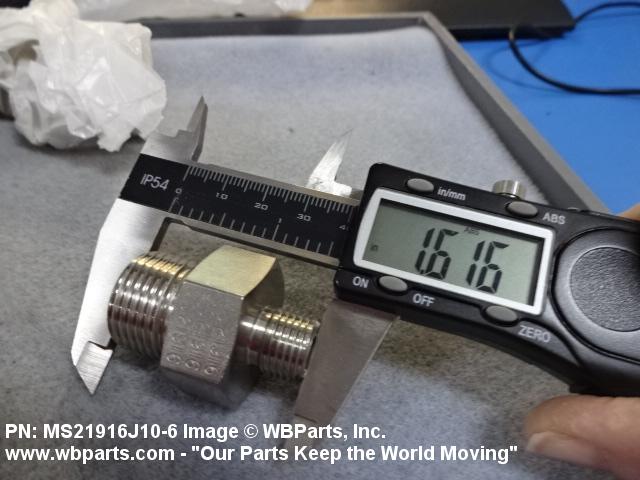

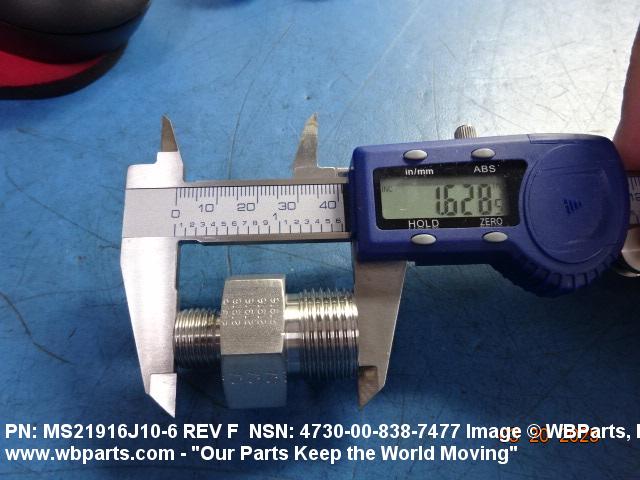

| NOMINAL OVERALL LENGTH | 1.625 INCHES |
| REDUCER TYPE | CONCENTRIC |
| SPECIFICATION/STANDARD DATA | 96906-MS21916 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21916J10-6 |
Restrictions/Controls & Freight Information | NSN 4730-00-838-7477
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
