NSN 4730-00-842-2200 MS2458704, MS24587-04, MS245874
Product Details | TUBE TO HOSE STRAIGHT ADAPTER
4730-00-842-2200 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a tube or tube fitting to a hose or hose fitting.
Part Alternates: MS2458704, MS24587-04, MS245874, MS24587-4, MS287404, MS28740-4, MS28741415, MS28741-4-15, AN7874, AN787-4, AN7924, AN792-4, MILDTL5070, MIL-DTL-5070, 0491024, 049102-4, 100100-002, 21C157742, 21C1577-42, 4730-00-842-2200, 00-842-2200, 4730008422200, 008422200, 100100002
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-842-2200 | 03777 ( ADAPTER, STRAIGHT, TUBE TO HOSE ) |

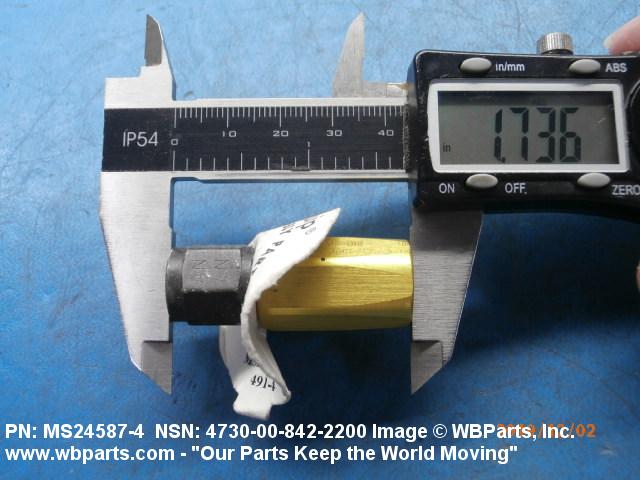

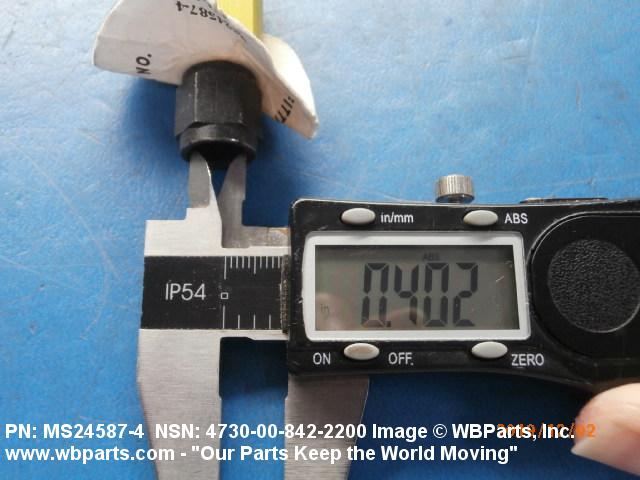

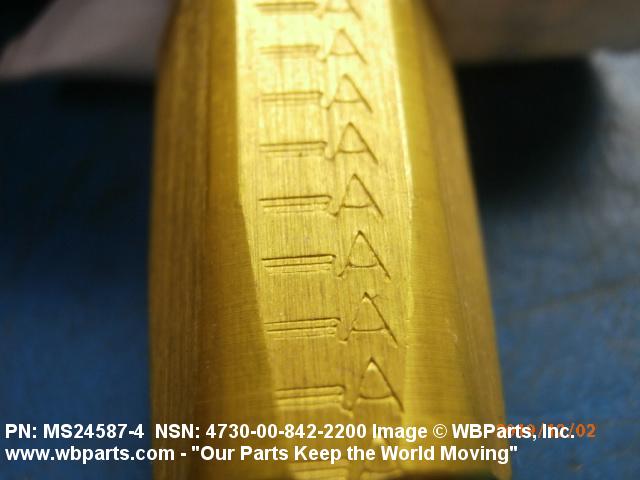

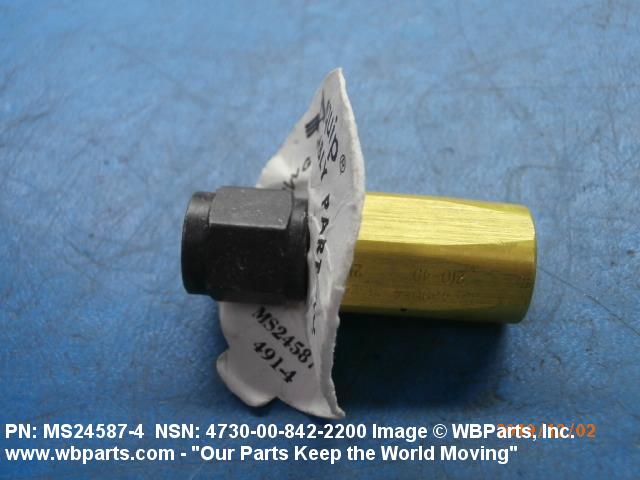

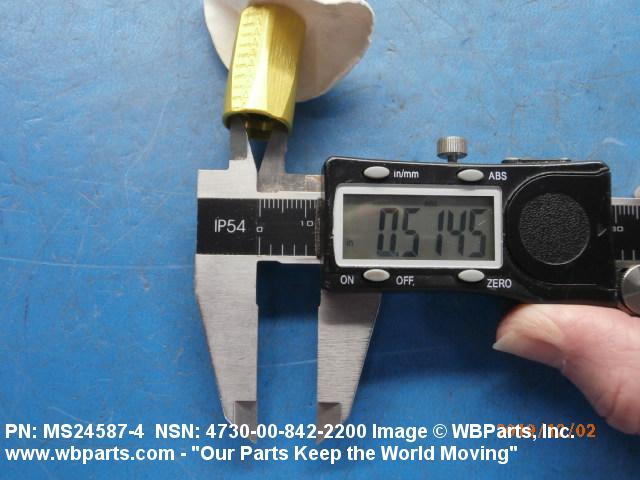

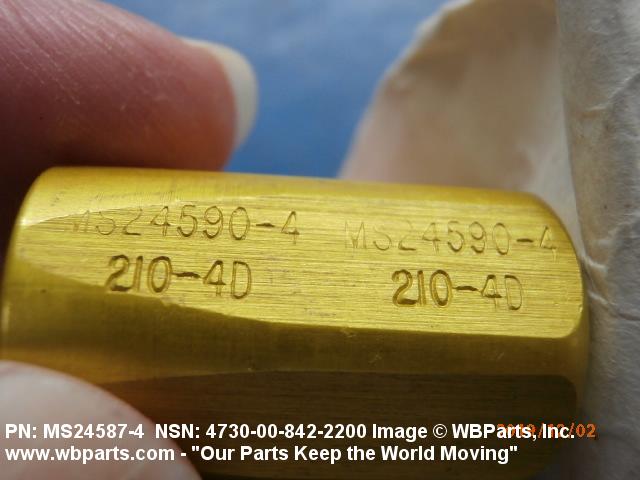

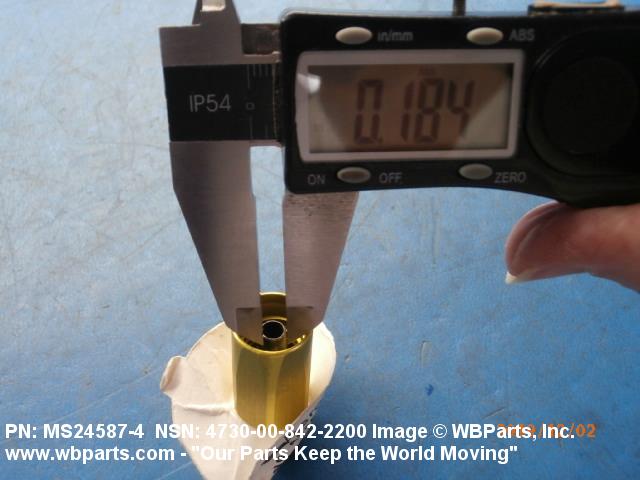

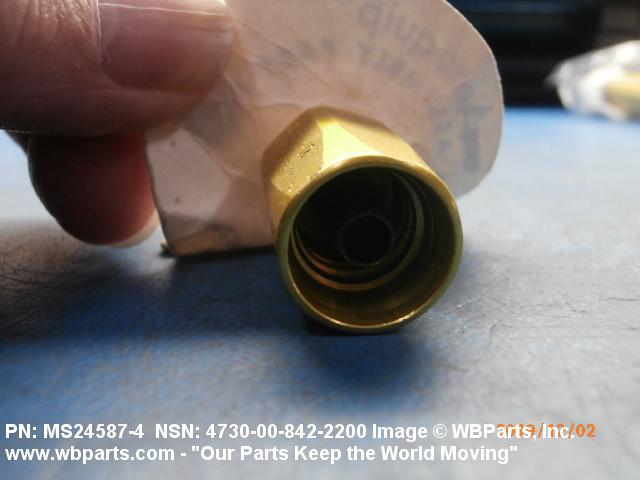

Drawings & Photos | NSN 4730-00-842-2200
Demand History | NSN 4730-00-842-2200
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-842-2200 | 2024-07-198 | 380 | US |
| 4730-00-842-2200 | 2020-12-361 | 12 | Israel |
| 4730-00-842-2200 | 2020-04-100 | 1468 | DIBBS |
| 4730-00-842-2200 | 2019-11-329 | 20 | United States |
| 4730-00-842-2200 | 2019-11-329 | 20 | United States |
| 4730-00-842-2200 | 2019-07-197 | 2148 | DIBBS |
| MS245874 | 2019-03-85 | 200 | us |
| 4730-00-842-2200 | 2018-07-196 | 2223 | DIBBS |
| MS245874 | 2017-07-201 | 10 | US |
| 4730-00-842-2200 | 2017-05-145 | 1800 | DIBBS |
| 4730-00-842-2200 | 2017-04-96 | 1400 | DIBBS |
| 4730-00-842-2200 | 2017-03-65 | 2000 | DIBBS |
| 4730-00-842-2200 | 2017-01-25 | 1530 | DIBBS |
| 4730-00-842-2200 | 2010-11-313 | 1314 | DIBBS |
| 4730-00-842-2200 | 2010-04-100 | 1675 | DIBBS |
| 4730-00-842-2200 | 2009-12-338 | 1146 | DIBBS |
| 4730-00-842-2200 | 2009-10-293 | 2809 | DIBBS |
| 4730-00-842-2200 | 2009-09-258 | 407 | DIBBS |
| 4730-00-842-2200 | 2009-07-198 | 614 | DIBBS |
| 4730-00-842-2200 | 2009-06-174 | 751 | DIBBS |
Cross Reference | NSN 4730-00-842-2200
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 049102-4 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 100100-002 | 54933 | AERO SYSTEMS ENGINEERING, INC. DBA ASE |
| 21C1577-42 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| AN787-4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN792-4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MIL-DTL-5070 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24587-04 | 11201 | DEVAL CORPORATION |
| MS24587-4 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS24587-4 | 30327 | IMPERIAL |
| MS24587-4 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| MS24587-4 | 63906 | VEYANCE TECHNOLOGIES, INC. DIV VEYANCE NORTH AMERICA |
| MS24587-4 | 70434 | ANCHOR SWAN CORP SUB OF AMERACE CORP |
| MS24587-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24587-4 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| MS24587-4 | R1120 | SATAIR A/S |
| MS28740-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS28741-4-15 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-842-2200
Restrictions/Controls & Freight Information | NSN 4730-00-842-2200
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
