NSN 4730-00-879-2362 MS24393D20, AN83220D, AN832-20D
Product Details | TUBE NIPPLE
4730-00-879-2362 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Part Alternates: MS24393D20, AN83220D, AN832-20D, AS5406, 4730-00-879-2362, 00-879-2362, 4730008792362, 008792362
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 00-879-2362 | 03783 ( NIPPLE, TUBE ) |

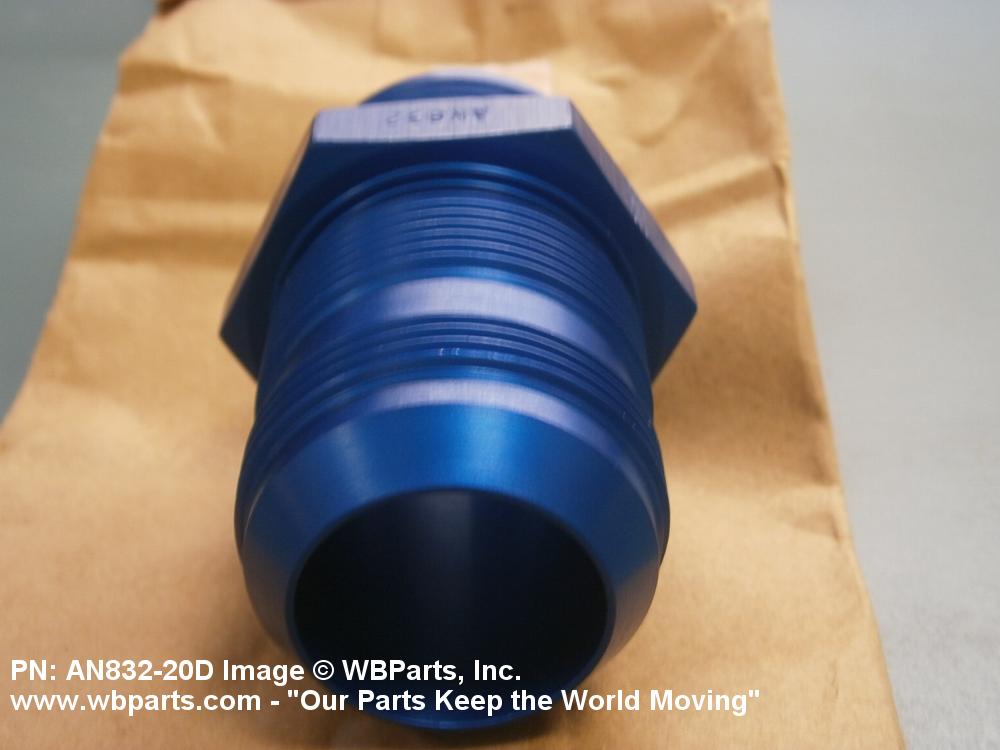

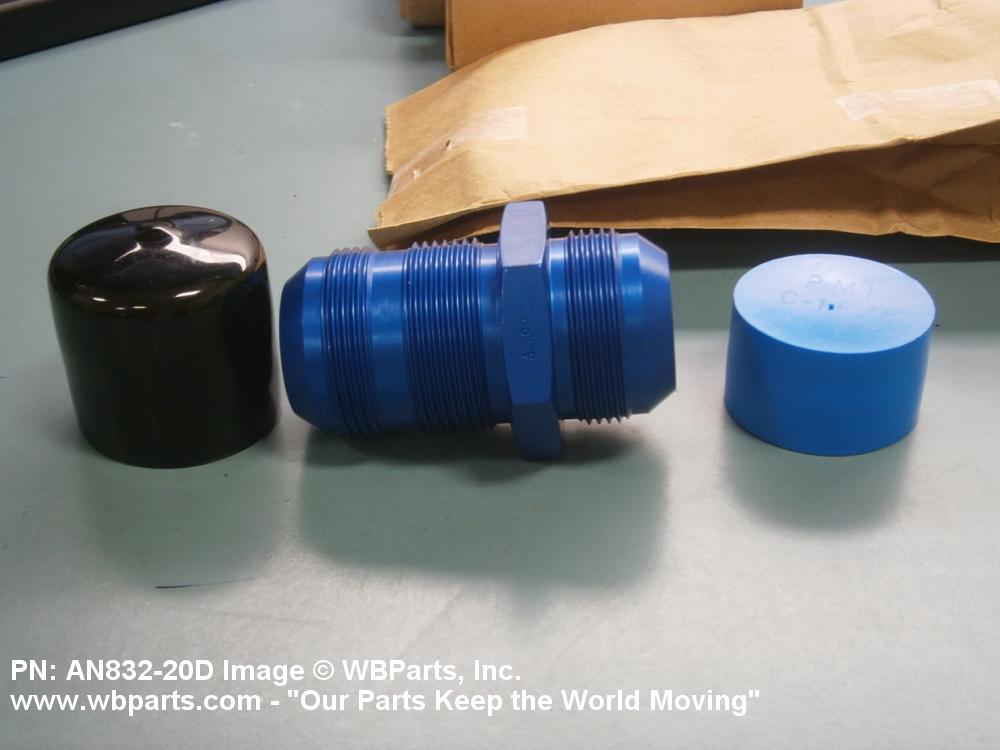

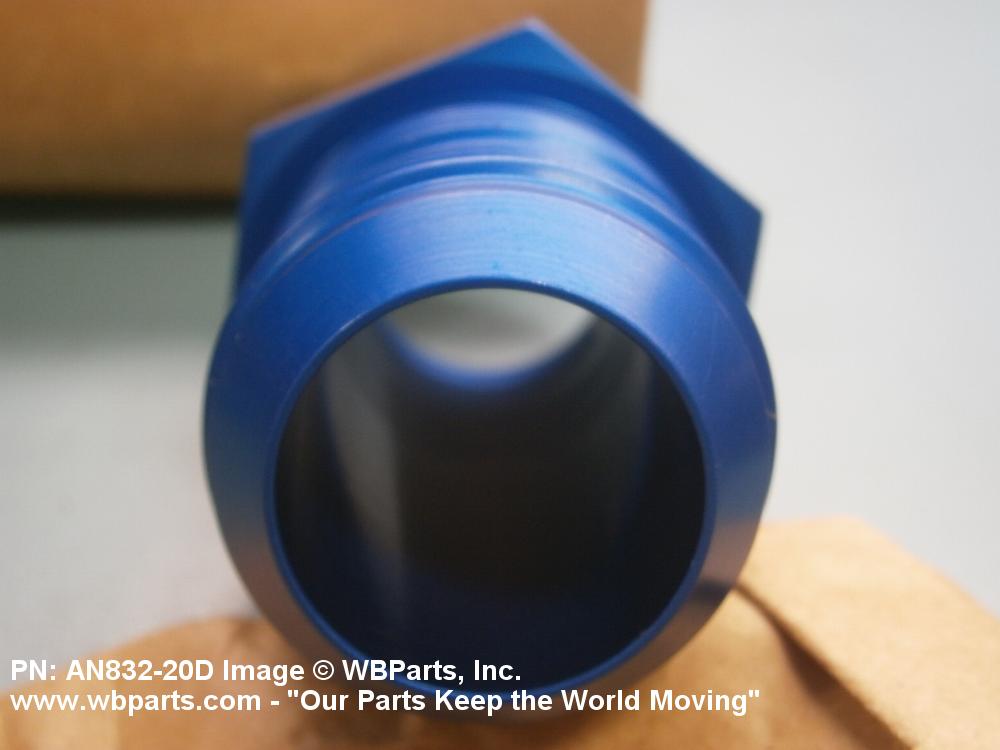

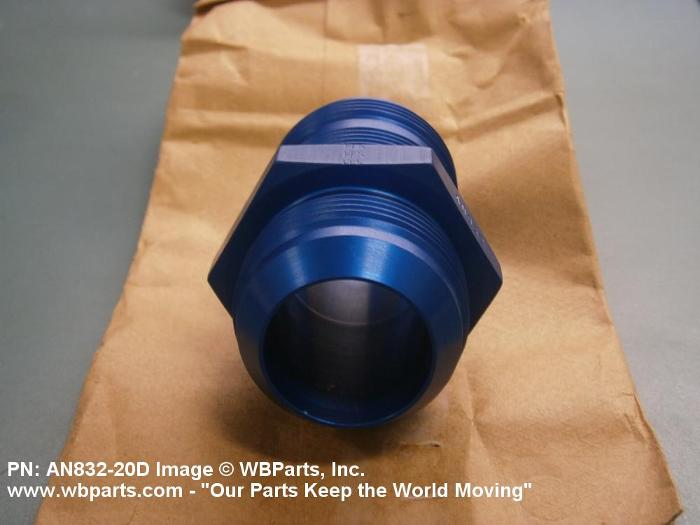

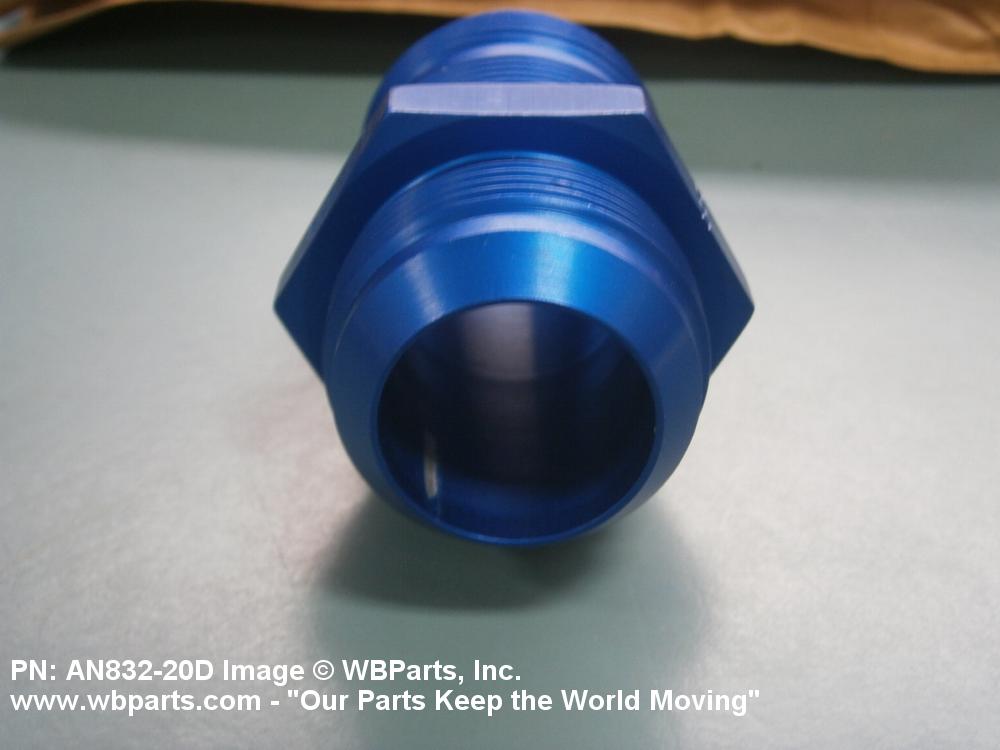

Drawings & Photos | NSN 4730-00-879-2362
Cross Reference | NSN 4730-00-879-2362
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 69-26723-2 | 81205 | THE BOEING COMPANY DBA BOEING |
| AN282-20D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN832-20D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN832-20D | 14397 | FABER ENTERPRISES, INC. |
| AN832-20D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN832-20D | 71563 | COLLINS ENGINEERING CORP |
| AN832-20D | 7L611 | BLAKO INC. DBA BLAKESLEE |
| AN832-20D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN832-20D | R1120 | SATAIR A/S |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5406 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5406D20 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24393D20 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| MS24393D20 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| MS24393D20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-879-2362
Technical Data | NSN 4730-00-879-2362
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE INSIDE ANODIZE OUTSIDE |
| STYLE DESIGNATOR | A64 FLARED W/BULKHEAD THREAD |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.250 INCHES ALL ENDS 1.250 INCHES 1ST END BULKHEAD |
| THREAD SERIES DESIGNATOR | UN ALL ENDS UN 1ST END BULKHEAD |
| NOMINAL THREAD SIZE | 1.625 INCHES ALL ENDS 1.625 INCHES 1ST END BULKHEAD |
| THREAD QUANTITY PER INCH | 12 ALL ENDS 12 1ST END BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A 1ST END BULKHEAD |

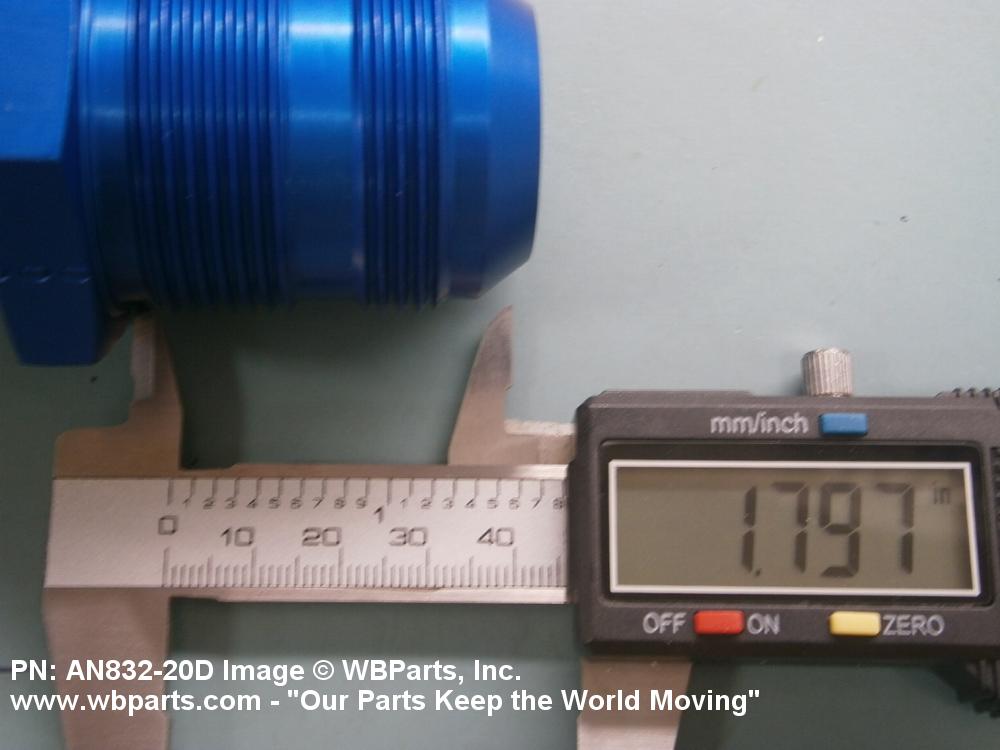

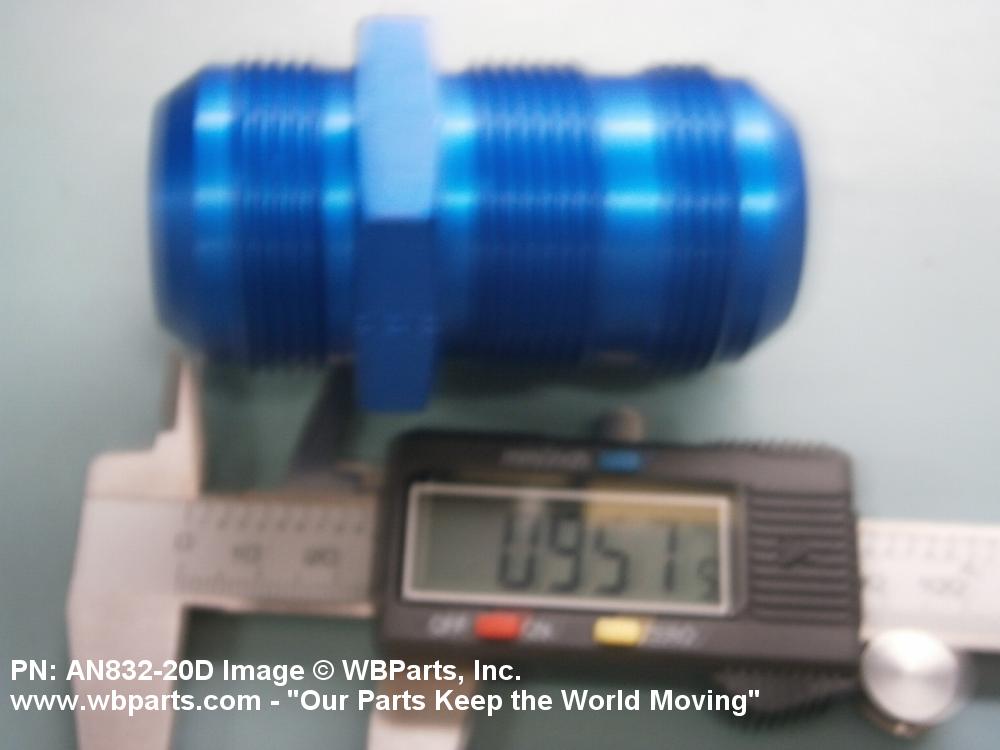

| LEG LENGTH | 1.828 INCHES NOMINAL 1ST END 0.958 INCHES NOMINAL 2ND END |

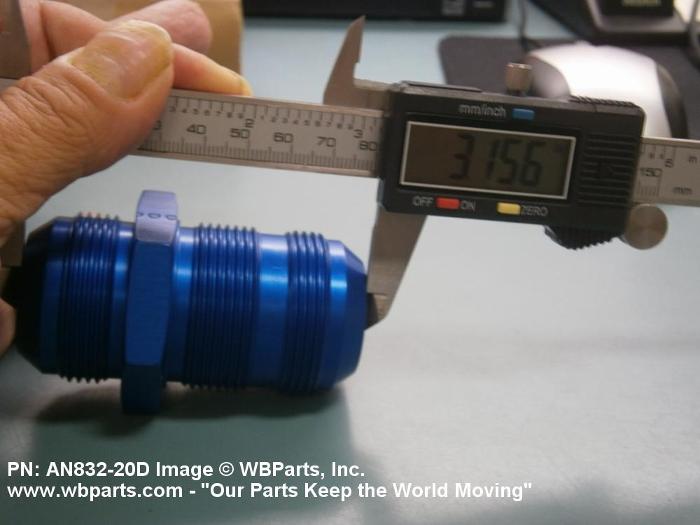

| NOMINAL OVERALL LENGTH | 3.156 INCHES |
| SPECIFICATION/STANDARD DATA | 96906-MS24393 GOVERNMENT STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-00-879-2362
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
