NSN 4730-00-880-0053 MS208192C, MS20819-2C, MS208192J
Product Details | TUBE FITTING FLARED SLEEVE

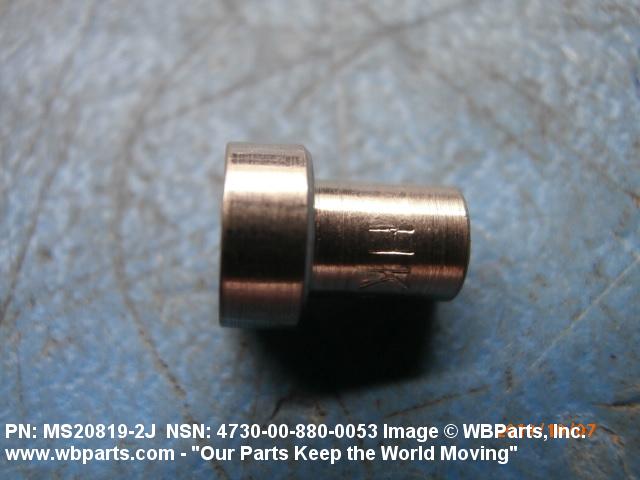

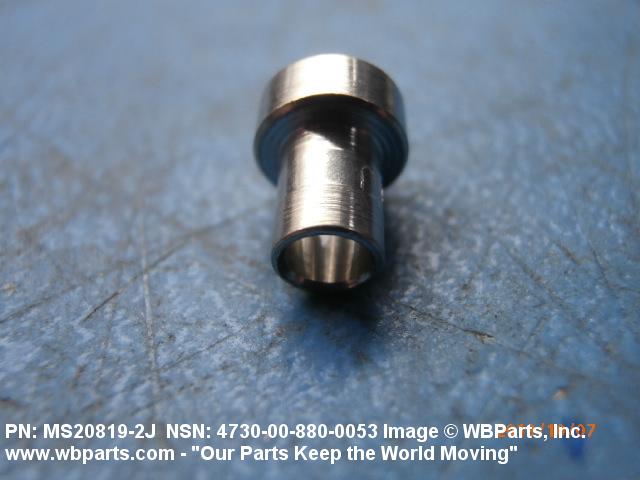

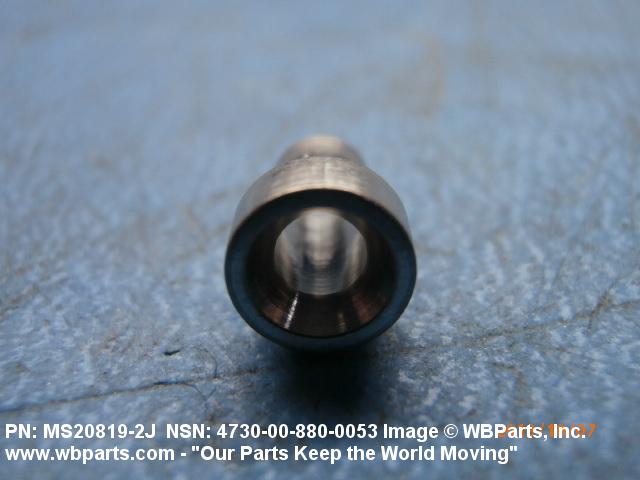

4730-00-880-0053 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: MS208192C, MS20819-2C, MS208192J, MS20819-2J, AN8192C, AN819-2C, 10108447 , 4730-00-880-0053, 00-880-0053, 4730008800053, 008800053
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 NOV 1967 | 00-880-0053 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |
Drawings & Photos | NSN 4730-00-880-0053
Demand History | NSN 4730-00-880-0053
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS208192J | 2019-10-275 | 50 | United States |
| 4730-00-880-0053 | 2018-09-247 | 794 | DIBBS |
| 4730-00-880-0053 | 2018-05-126 | 486 | DIBBS |
| 4730-00-880-0053 | 2017-05-144 | 481 | DIBBS |
| MS208192J | 2014-04-97 | 220 | United States |
| AN8192C | 2013-10-299 | 8 | United States |
| MS208192J | 2012-06-163 | 15 | United States |
| 4730-00-880-0053 | 2010-06-153 | 179 | DIBBS |
| 4730-00-880-0053 | 2009-05-141 | 1409 | DIBBS |
Cross Reference | NSN 4730-00-880-0053
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN819-2C | 22995 | CROWN FITTING CO INC |
| AN819-2C | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS20819-2C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20819-2J | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS20819-2J | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| MS20819-2J | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| MS20819-2J | 14397 | FABER ENTERPRISES, INC. |
| MS20819-2J | 22995 | CROWN FITTING CO INC |
| MS20819-2J | 50948 | PARKER HANNIFIN CORP STRATOFLEX DIV AIRCRAFT FITTINGS OPN |
| MS20819-2J | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20819-2J | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-880-0053
Related Products | NSN 4730-00-880-0053
Technical Data | NSN 4730-00-880-0053
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATED |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.125 INCHES NOMINAL |
| STYLE DESIGNATOR | M1 SLEEVE |
| OVERALL LENGTH | 0.344 INCHES NOMINAL |

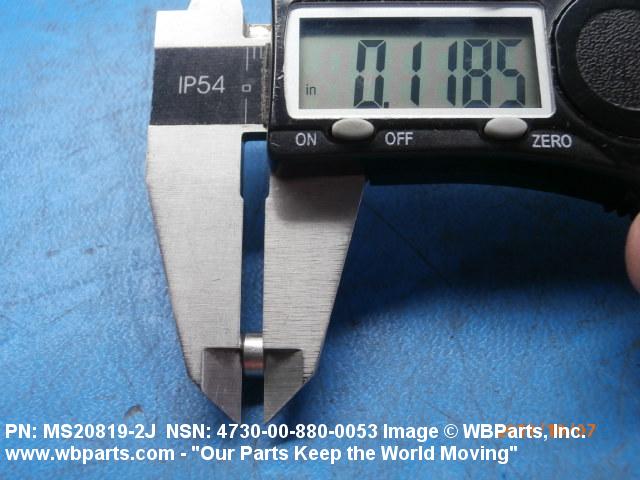

| FLANGE WIDTH | 0.125 INCHES NOMINAL |

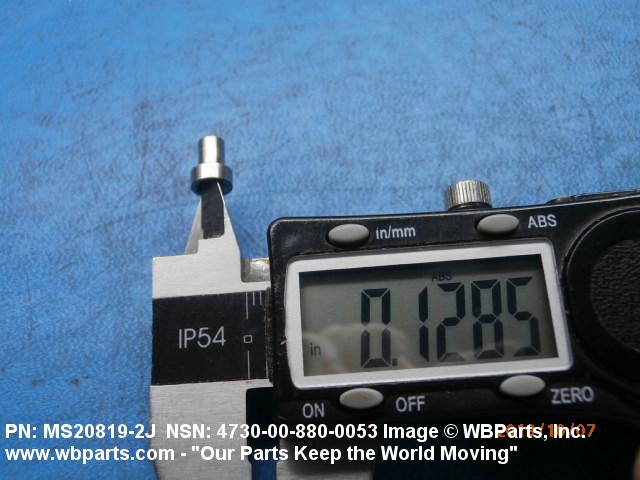

| FLANGE OUTSIDE DIAMETER | 0.267 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 33.0 |

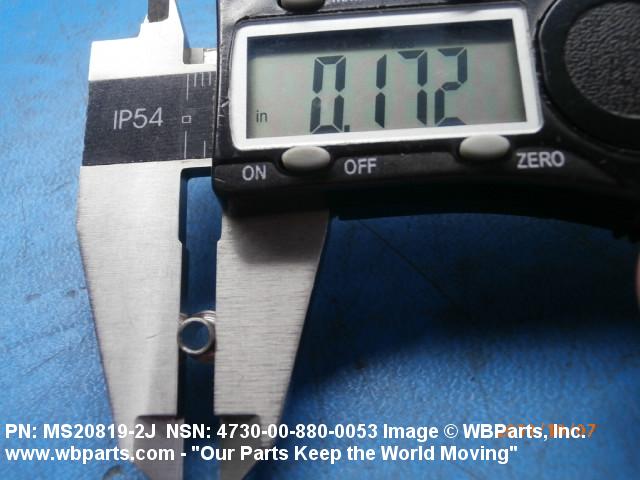

| SLEEVE OUTSIDE DIAMETER | 0.172 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | GRUMMAN; A10 AIRCRAFT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20819-2J |
