NSN 4730-00-922-8381 NAS59310, NAS593-10, 00-922-8381
Product Details | TUBE COUPLING NUT
4730-00-922-8381 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: NAS59310, NAS593-10, 4730-00-922-8381, 00-922-8381, 4730009228381, 009228381
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 JAN 1966 | 00-922-8381 | 03859 ( NUT, TUBE COUPLING ) |

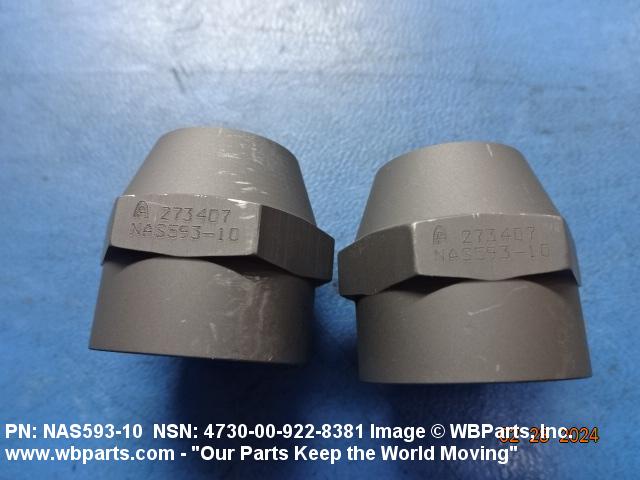

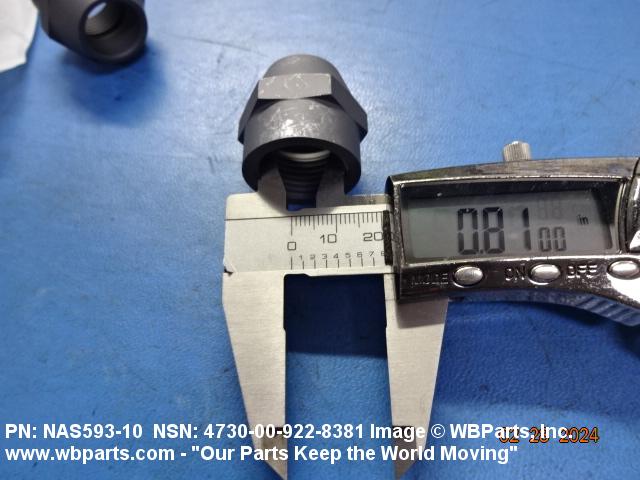

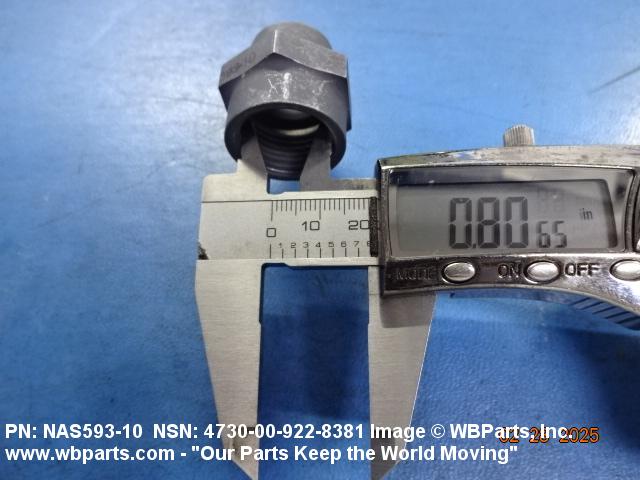

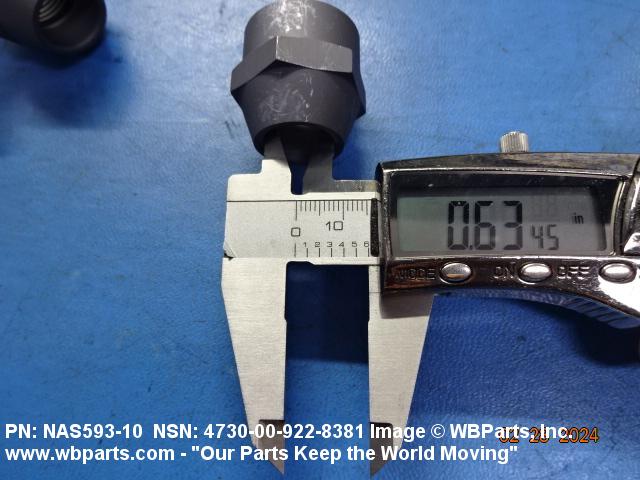

Drawings & Photos | NSN 4730-00-922-8381
Demand History | NSN 4730-00-922-8381
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-922-8381 | 2025-07-210 | 20 | US |
| 4730-00-922-8381 | 2025-02-50 | 4 | United States |
| NAS59310 | 2025-02-45 | 64 | United States |
| 4730-00-922-8381 | 2025-01-29 | 63 | United States |
| 4730-00-922-8381 | 2024-01-22 | 60 | United States |
| NAS59310 | 2008-08-224 | 1 | MX |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-922-8381
Technical Data | NSN 4730-00-922-8381
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD QUANTITY PER INCH | 14 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| NUT STYLE | A352 TUBE COUPLING |

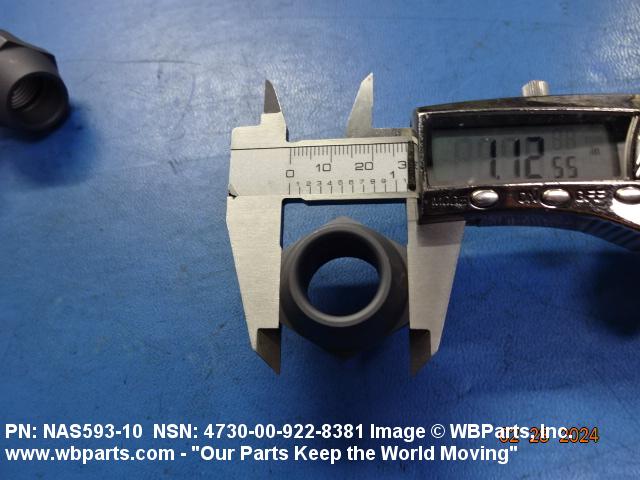

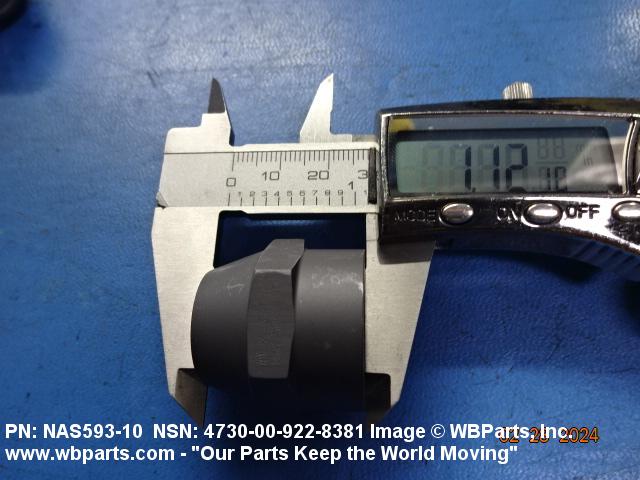

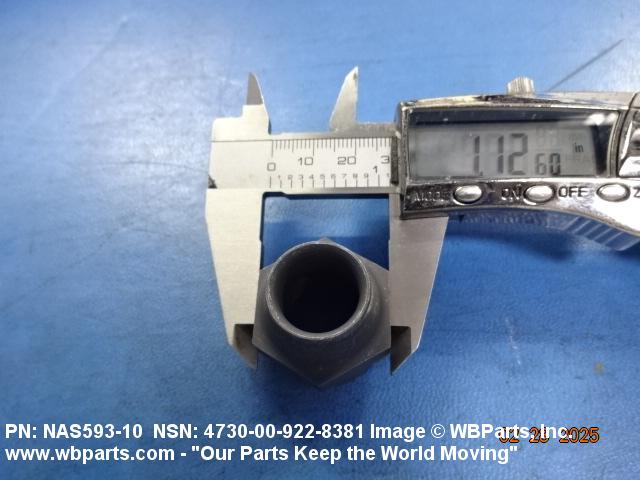

| NUT HEIGHT | 1.120 INCHES NOMINAL |

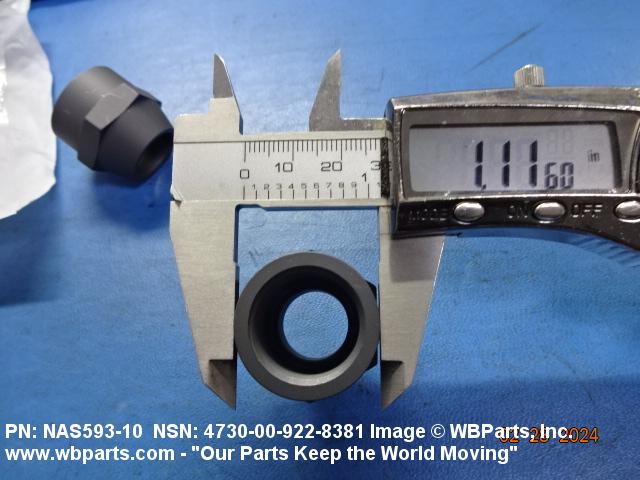

| WIDTH ACROSS FLATS | 1.109 INCHES MINIMUM AND 1.141 INCHES MAXIMUM |

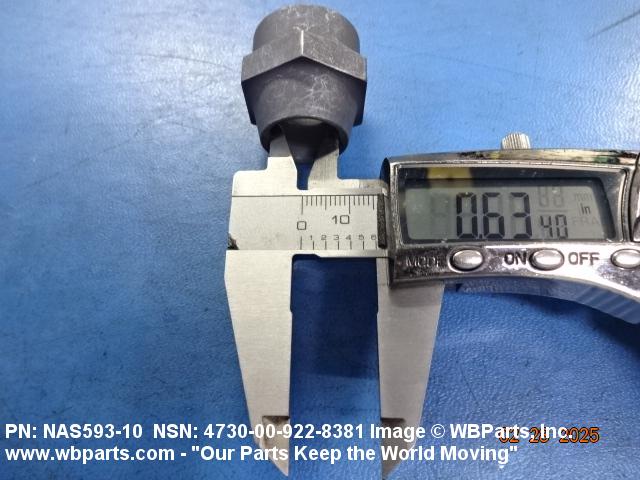

| LENGTH TO SHOULDER | 0.630 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 0.632 INCHES NOMINAL |
| SEAT ANGLE | 33.00 DEGREES NOMINAL |
| FABRICATION METHOD | ANY ACCEPTABLE |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.625 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-00-922-8381
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104390 | BARS, RODS OR WIRE, WELDING |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 746 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-922-8381
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
