NSN 4730-00-924-8775 MS245196, MS24519-6, 00-924-8775
Product Details | PIPE TO HOSE ELBOW
4730-00-924-8775 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. One connecting end has standard pipe threads or is unthreaded and designed to accommodate a pipe. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It may have side or heel inlet(s). See also ELBOW, HOSE; ELBOW, PIPE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS245196, MS24519-6, 4730-00-924-8775, 00-924-8775, 4730009248775, 009248775
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 FEB 1966 | 00-924-8775 | 03769 ( ELBOW, PIPE TO HOSE ) |

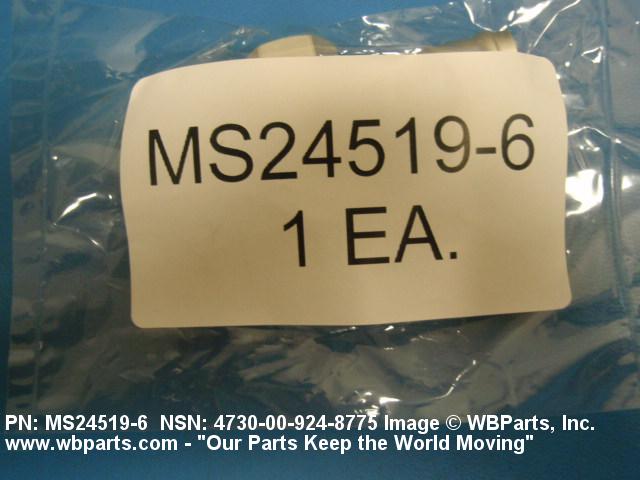

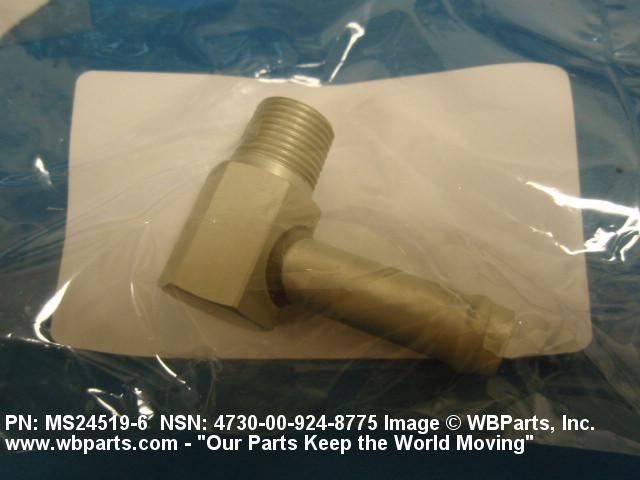

Drawings & Photos | NSN 4730-00-924-8775
Demand History | NSN 4730-00-924-8775
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS245196 | 2009-05-146 | 100 | Italy |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-924-8775
Technical Data | NSN 4730-00-924-8775
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | M1L-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END UNTHREADED EXTERNAL HOSE 2ND END |
| CONNECTION STYLE | B67B PLAIN 1ST END B103 BEADED 2ND END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.500 INCHES 2ND END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.375 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | NPTF 1ST END |
| NOMINAL THREAD SIZE | 0.375 INCHES 1ST END |
| LEG LENGTH | 1.125 INCHES MINIMUM AND 1.156 INCHES MAXIMUM 1ST END 1.969 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24519-6 |
Restrictions/Controls & Freight Information | NSN 4730-00-924-8775
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
