NSN 4730-00-928-7402 AA13624, AA1362-4, C9104
Product Details | TUBE ELBOW
4730-00-928-7402 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AA13624, AA1362-4, C9104, C910-4, 37DH4, 462K4052D04, 5015274, 5-01527-4, 51954, 5195-4, 4730-00-928-7402, 00-928-7402, 4730009287402, 009287402
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 26 AUG 1966 | 00-928-7402 | 03771 ( ELBOW, TUBE ) |

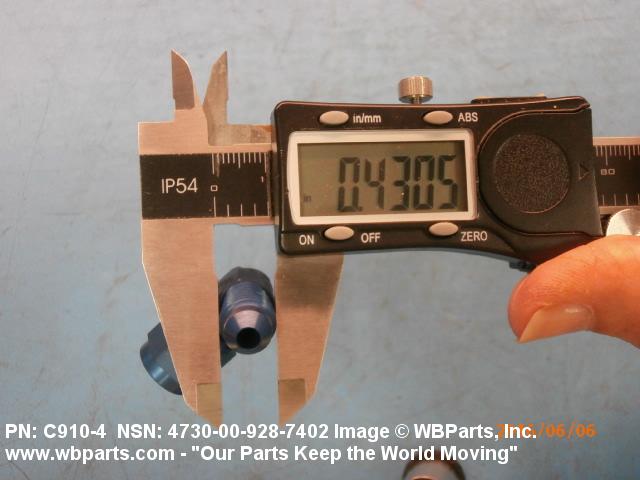

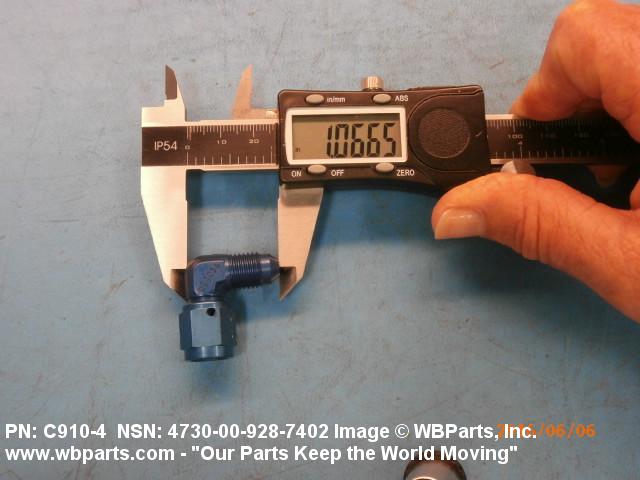

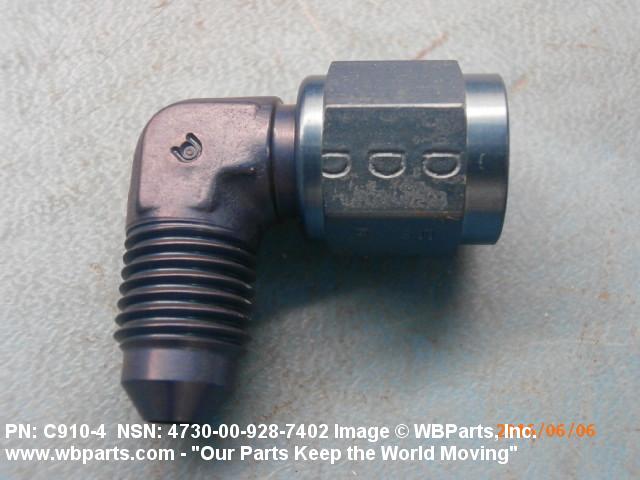

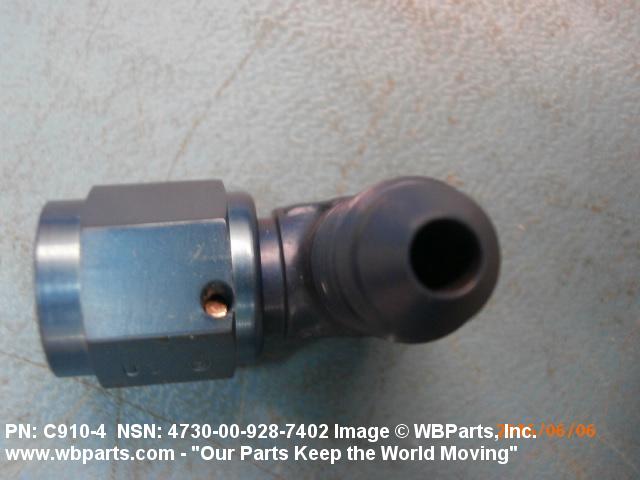

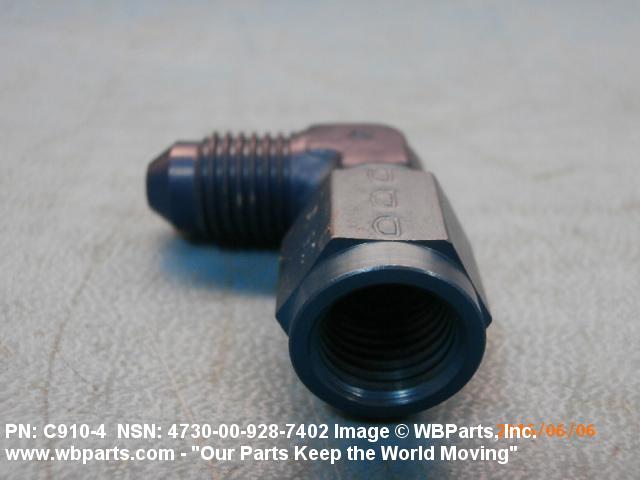

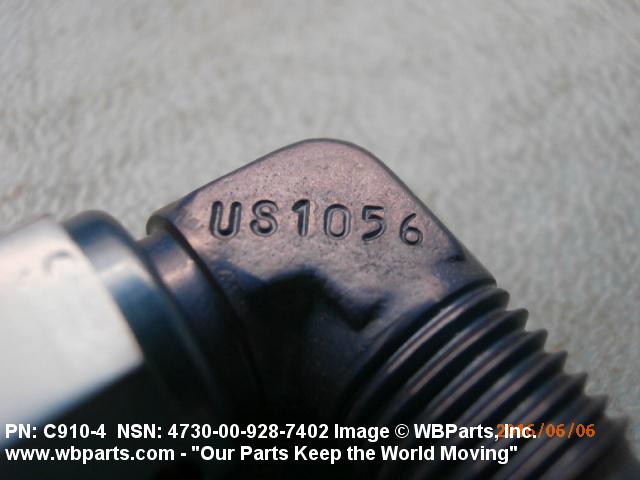

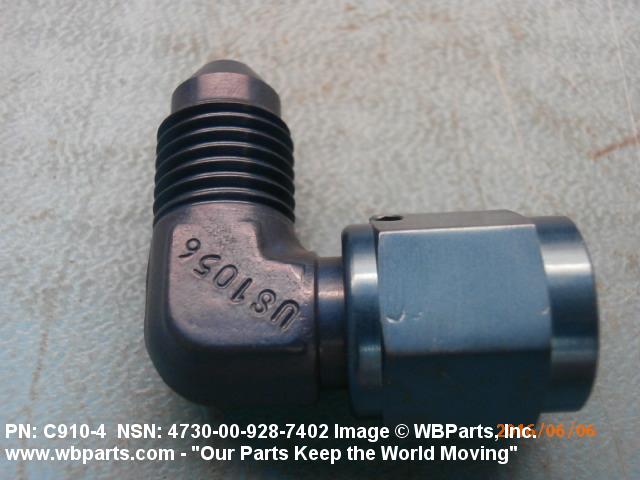

Drawings & Photos | NSN 4730-00-928-7402
Demand History | NSN 4730-00-928-7402
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-928-7402 | 2025-02-44 | 1 | United States |
| 4730-00-928-7402 | 2024-08-239 | 1 | US |
| 4730-00-928-7402 | 2018-12-355 | 1 | TH |
| 4730-00-928-7402 | 2016-05-152 | 2 | United States |
| 4730-00-928-7402 | 2015-05-127 | 1 | US |
Cross Reference | NSN 4730-00-928-7402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 37DH4 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| 462K4052D04 | 50948 | PARKER HANNIFIN CORP STRATOFLEX DIV AIRCRAFT FITTINGS OPN |
| 462K4052D04 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 5-01527-4 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 5195-4 | 17341 | TECH AERO INC |
| AA1362-4 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| C910-4 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-928-7402
Technical Data | NSN 4730-00-928-7402
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B3 SWIVEL NUT, FLARE 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.438 INCHES 2ND END |
| THREAD CLASS | 3B 1ST END 3A 2ND END |
| LEG LENGTH | 1.000 INCHES NOMINAL 1ST END 0.875 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
Restrictions/Controls & Freight Information | NSN 4730-00-928-7402
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
