NSN 4730-00-950-9759 SS2SE, SS-2-SE, 63559051

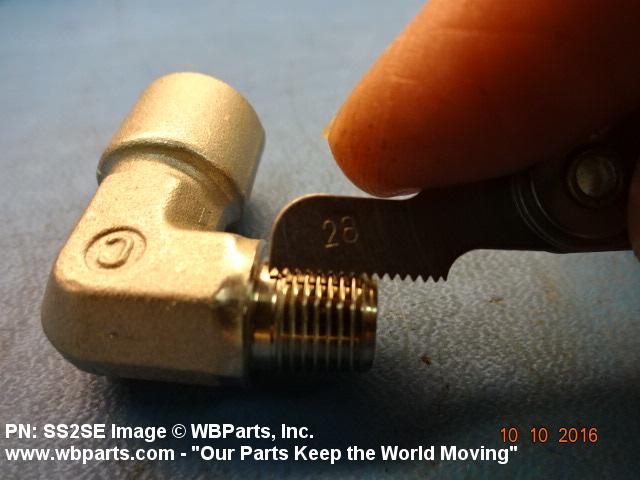

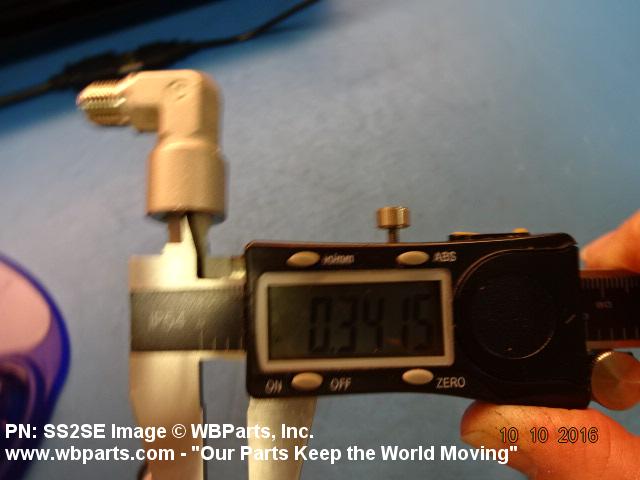

Product Details | PIPE ELBOW
4730-00-950-9759 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. Both connecting ends have standard pipe threads or are unthreaded and designed to accommodate a pipe. It may have side or heel inlet(s). See also ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. Excludes BEND, SOIL PIPE.
Part Alternates: SS2SE, SS-2-SE, 63559051, 6355905-1, 18CDSS, 1-8CDSS, 4730-00-950-9759, 00-950-9759, 4730009509759, 009509759
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-950-9759 | 03768 ( ELBOW, PIPE ) |

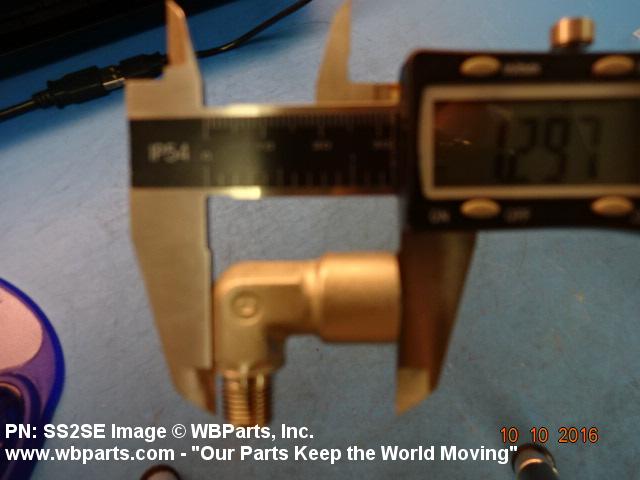

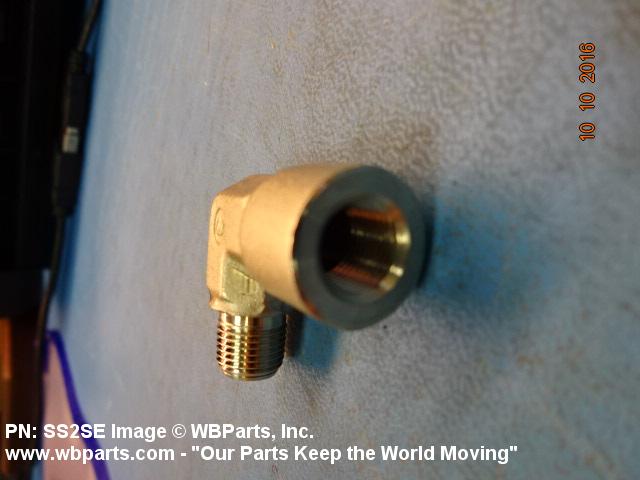

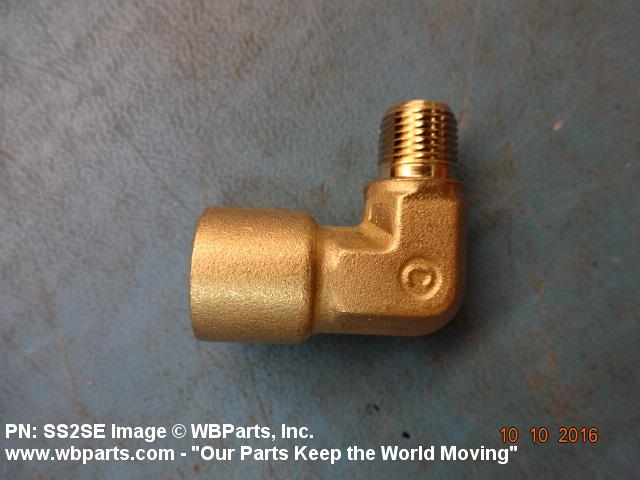

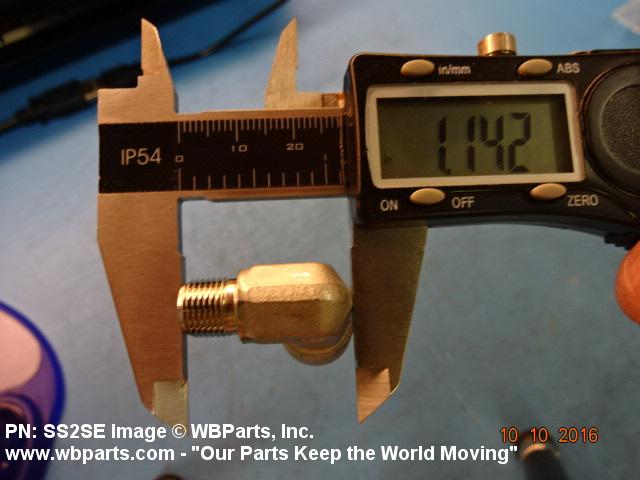

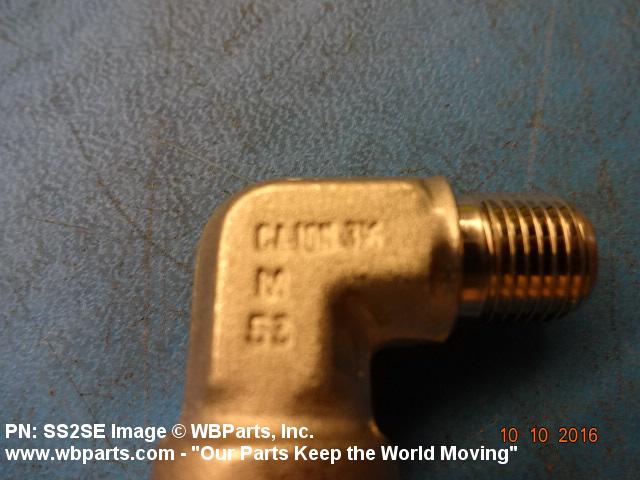

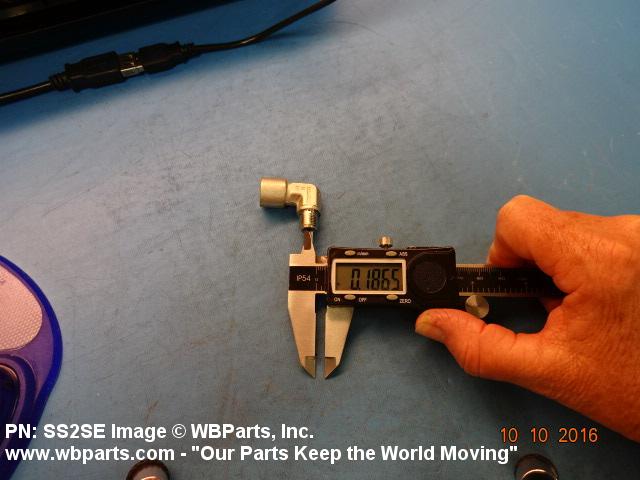

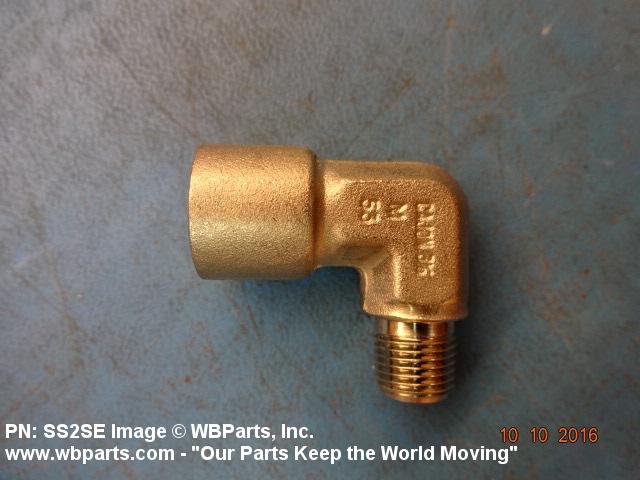

Drawings & Photos | NSN 4730-00-950-9759
Demand History | NSN 4730-00-950-9759
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1-8CDSS | 2021-04-95 | 54 | DIBBS |
| SS2SE | 2020-10-300 | 2 | United States |
| SS2SE | 2019-11-308 | 12 | United States |
| SS2SE | 2018-04-114 | 2 | United States |
| SS2SE | 2016-09-266 | 2 | United States |
| SS2SE | 2016-09-266 | 2 | United States |
| 4730-00-950-9759 | 2016-07-194 | 56 | DIBBS |
| SS2SE | 2014-07-211 | 4 | United States |
| 18CDSS | 2014-03-63 | 40 | Singapore |
| 4730-00-950-9759 | 2010-08-239 | 24 | DIBBS |
| 4730-00-950-9759 | 2008-12-353 | 43 | DIBBS |
Cross Reference | NSN 4730-00-950-9759
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-8CDSS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 1-8CDSS | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 1-8CDSS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 6355905-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| SS-2-SE | 11649 | CAJON CO |
