NSN 4730-00-992-1491 43297031, 4-3297-03-1, 00-992-1491
Product Details | FLANGE TO TUBE STRAIGHT ADAPTER
4730-00-992-1491 An adapter having a flange connection on one end designed to connect with another flange connection or a compression type mounting pad. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a flange or flange fitting to a tube or tube fitting in a straight line.
Part Alternates: 43297031, 4-3297-03-1, 4730-00-992-1491, 00-992-1491, 4730009921491, 009921491
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 MAR 1967 | 00-992-1491 | 29657 ( ADAPTER, STRAIGHT, FLANGE TO TUBE ) |
Cross Reference | NSN 4730-00-992-1491
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4-3297-03-1 | 04823 | TACTAIR FLUID CONTROLS INC WESTERN HYDRAULICS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare

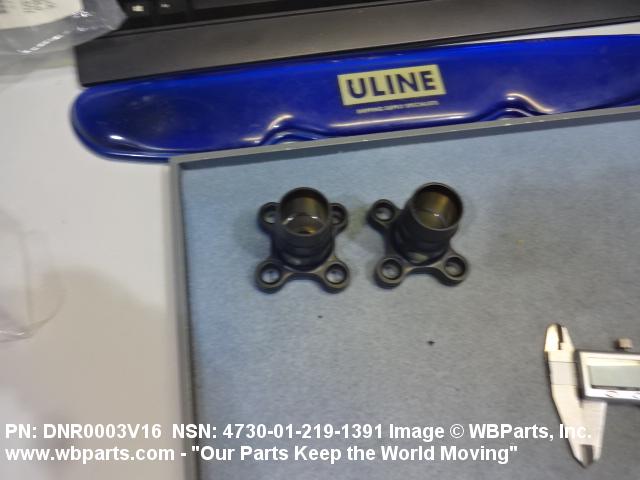

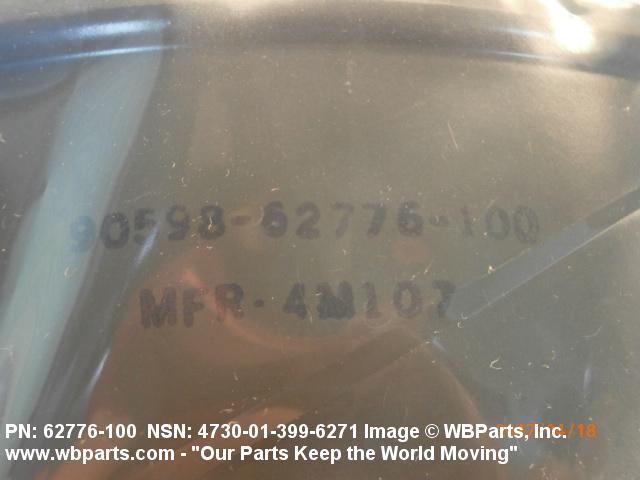

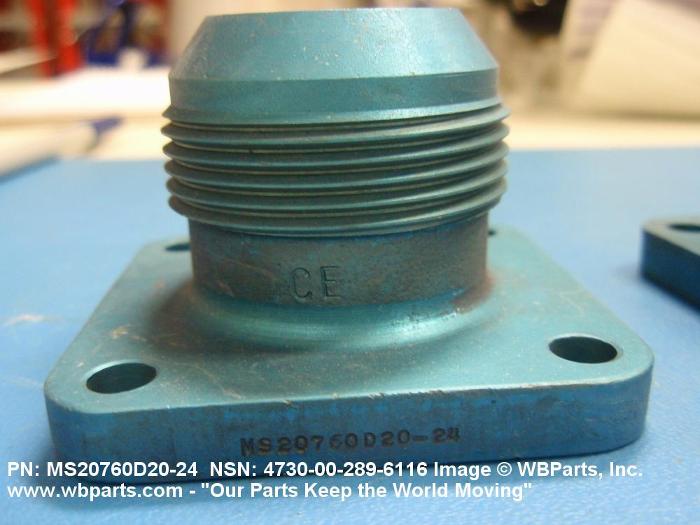

Related Products | NSN 4730-00-992-1491
Technical Data | NSN 4730-00-992-1491
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/9B MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | FPS-0043 FSCM 81755 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END FLANGE 2ND END |
| FLANGE SHAPE | ROUND 2ND END |
| NOMINAL OUTSIDE DIAMETER | 1.750 INCHES 2ND END |
| NOMINAL THICKNESS | 0.130 INCHES 2ND END |
| FLANGE FACE DESIGN | RAISED STRAIGHT 2ND END |
| RAISED FACE NOMINAL HEIGHT | 0.100 INCHES 2ND END |
| RAISED FACE NOMINAL DIAMETER | 1.318 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.429 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UN 1ST END |
| NOMINAL THREAD SIZE | 1.375 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 16 1ST END |
| THREAD CLASS | 3A 1ST END |
| NOMINAL OVERALL LENGTH | 1.580 INCHES |
| MANUFACTURERS CODE | 04823 |
| DESIGN CONTROL REFERENCE | 4-3297-03-1 |
Restrictions/Controls & Freight Information | NSN 4730-00-992-1491
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
