Product Details | TUBE COUPLING NUT
4730-00-995-6965 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: MS3921010, MS39210-10, P8105X16, PGF949710, PGF9497-10, MILF18866, MIL-F-18866, 10810516, 108-10516, 193449, 5347761, 7372660, 8105X16, 4730-00-995-6965, 00-995-6965, 4730009956965, 009956965
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-995-6965 | 03859 ( NUT, TUBE COUPLING ) |

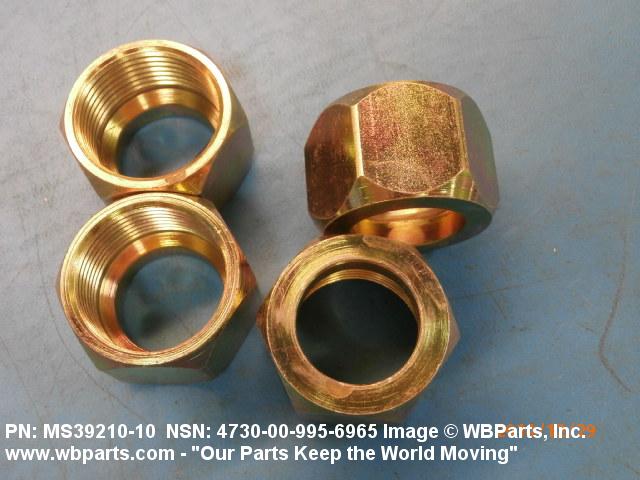

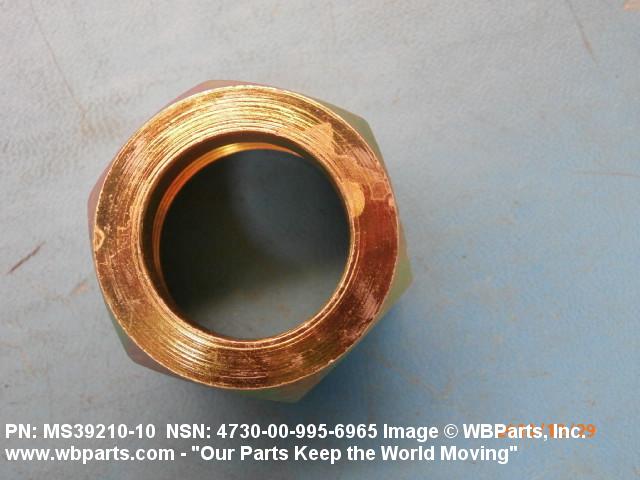

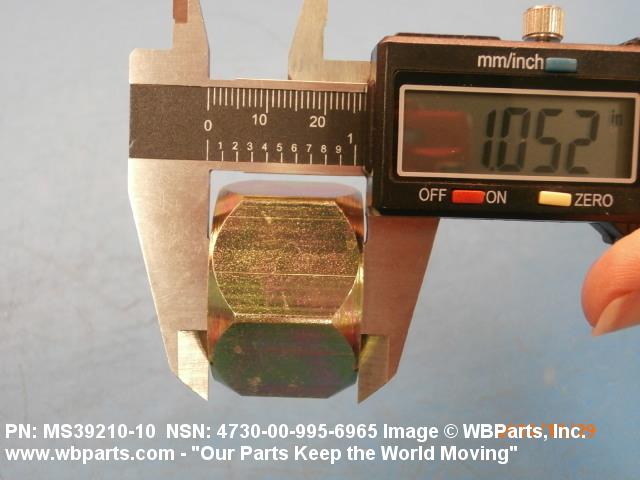

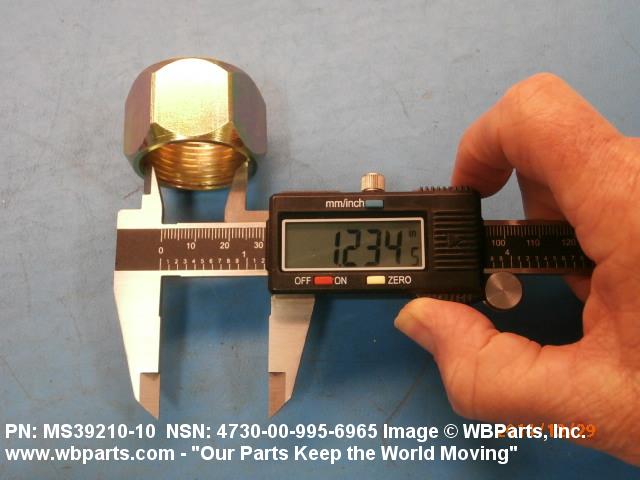

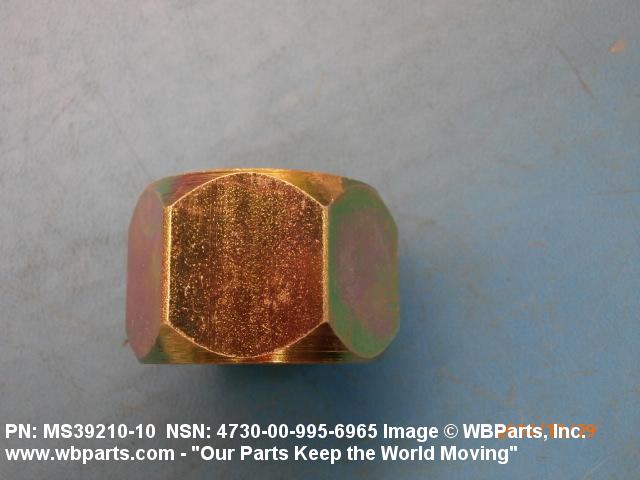

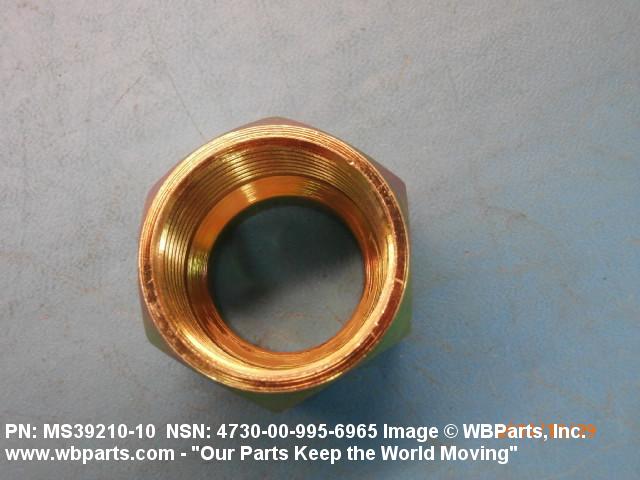

Drawings & Photos | NSN 4730-00-995-6965
Demand History | NSN 4730-00-995-6965
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3921010 | 2023-12-18 | 100 | US |
| MS3921010 | 2023-12-18 | 500 | US |
| MS3921010 | 2023-12-18 | 1000 | US |
| 4730-00-995-6965 | 2023-11-02 | 18040 | United States |
| 4730-00-995-6965 | 2023-11-02 | 3680 | United States |
| MS3921010 | 2023-09-06 | 920 | US |
| 4730-00-995-6965 | 2021-11-29 | 300 | US |
| MS3921010 | 2021-10-05 | 330 | US |
| 4730-00-995-6965 | 2021-06-14 | 600 | US |
| 4730-00-995-6965 | 2019-02-17 | 1 | US |
| 4730-00-995-6965 | 2019-02-17 | 50 | US |
| 4730-00-995-6965 | 2018-02-06 | 144 | US |
| MS3921010 | 2015-11-12 | 120 | US |
| 4730-00-995-6965 | 2014-11-17 | 4 | Saudi Arabia |
| 4730-00-995-6965 | 2013-02-01 | 175 | DIBBS |
| 4730-00-995-6965 | 2010-02-25 | 35 | DIBBS |
| MS3921010 | 2008-05-16 | 220 | US |
Cross Reference | NSN 4730-00-995-6965
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 108-10516 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 108-10516 | 79470 | DANA CORP WEATHERHEAD DIV |
| 193449 | 24617 | GENERAL MOTORS CORP |
| 193449 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 4730009956965 | A00AM | E.C.A ETABLISSEMENT CENTRAL DESAPPROVISIONNEMENTS DES FORCES |
| 5347761 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7372660 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 8105X16 | 79470 | DANA CORP WEATHERHEAD DIV |
| MIL-F-18866 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS39210-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| P8105X16 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| P8105X16 | 79470 | DANA CORP WEATHERHEAD DIV |
| PGF9497-10 | 1X0J7 | VOLVO CONSTRUCTION EQUIPMENT NORTH AMERICA, LLC |
| PGF9497-10 | 40152 | VME AMERICAS INC SUB OF VME GROUP N V |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-00-995-6965
Related Products | NSN 4730-00-995-6965
4730-00-995-6968, 4730-00-995-7102, 4730-00-995-7135, 4730-00-995-7929, 4730-00-995-7986
Technical Data | NSN 4730-00-995-6965
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UN |
| NOMINAL THREAD SIZE | 1.938 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| NUT STYLE | A350 TUBE COUPLING |
| NUT HEIGHT | 0.812 INCHES NOMINAL |

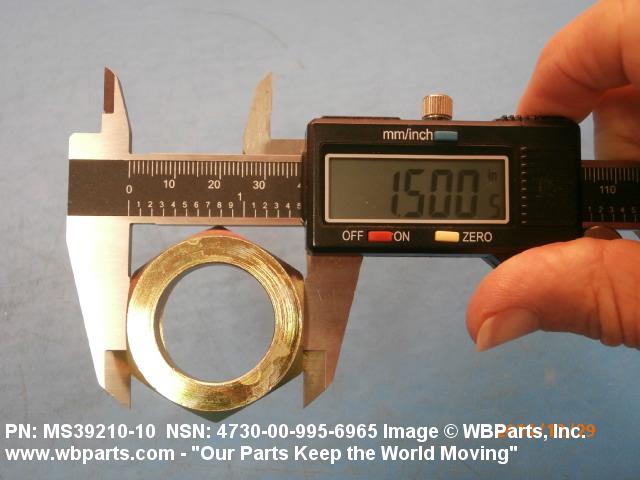

| WIDTH ACROSS FLATS | 1.500 INCHES NOMINAL |
| LENGTH TO SHOULDER | 0.500 INCHES NOMINAL |

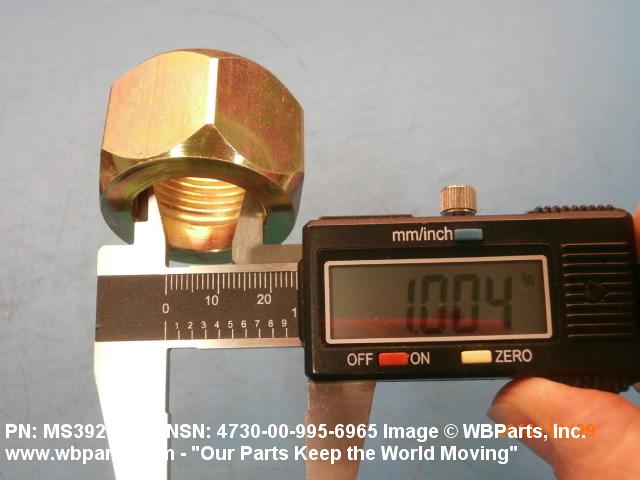

| SMALLEST INSIDE DIAMETER | 1.008 INCHES NOMINAL |
| SEAT ANGLE | 45.00 DEGREES NOMINAL |
| FABRICATION METHOD | ANY ACCEPTABLE |
| NOMINAL TUBE OUTSIDE DIAMETER | 1.000 INCHES |
| SPECIFICATION/STANDARD DATA | 96906-MS51823 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-18866 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS39210-10 |
Restrictions/Controls & Freight Information | NSN 4730-00-995-6965
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-995-6965
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 0 | Non-combat Essential End Item. End items that do not fit the definition of Code 1 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
