NSN 4730-01-004-8245 MS2192110W, MS21921-10W, AS18280
Product Details | TUBE COUPLING NUT
4730-01-004-8245 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: MS2192110W, MS21921-10W, AS18280, AS21921, 4730-01-004-8245, 01-004-8245, 4730010048245, 010048245
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 JUN 1975 | 01-004-8245 | 03859 ( NUT, TUBE COUPLING ) |

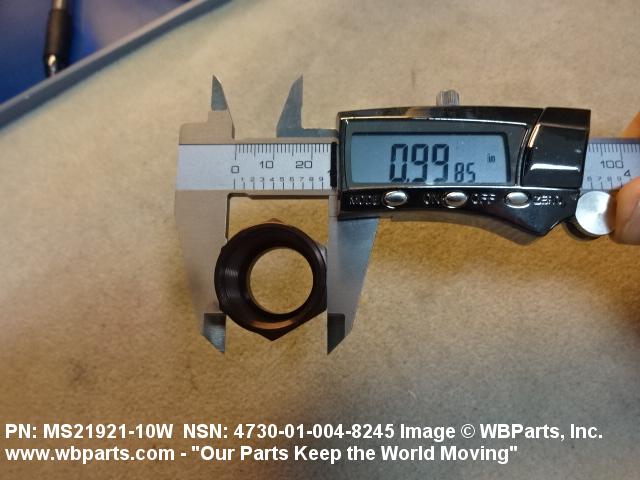

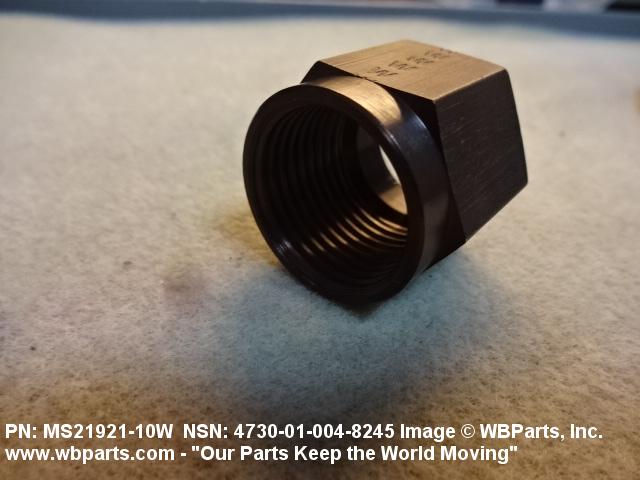

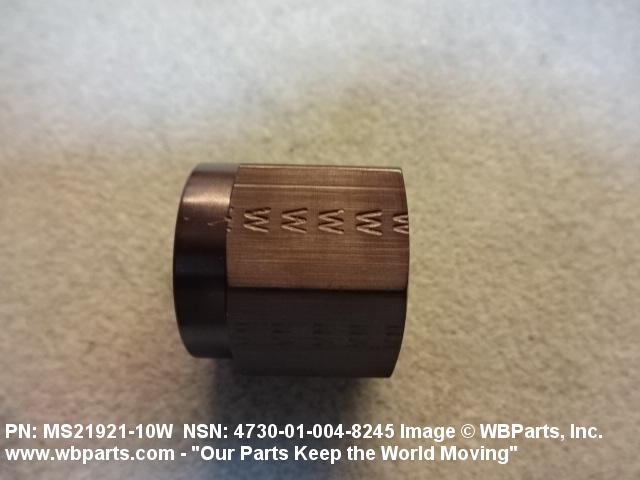

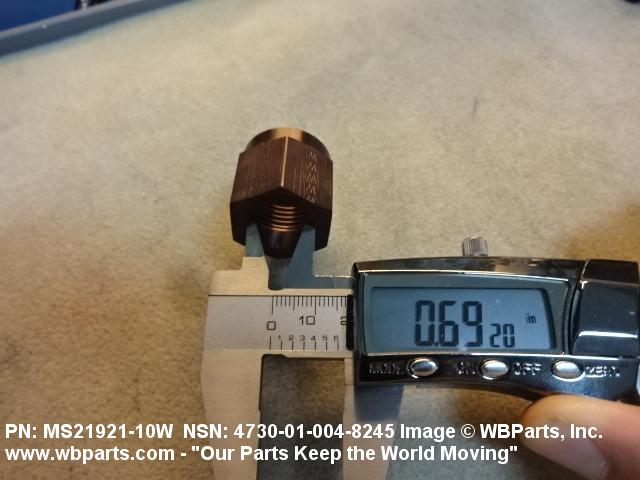

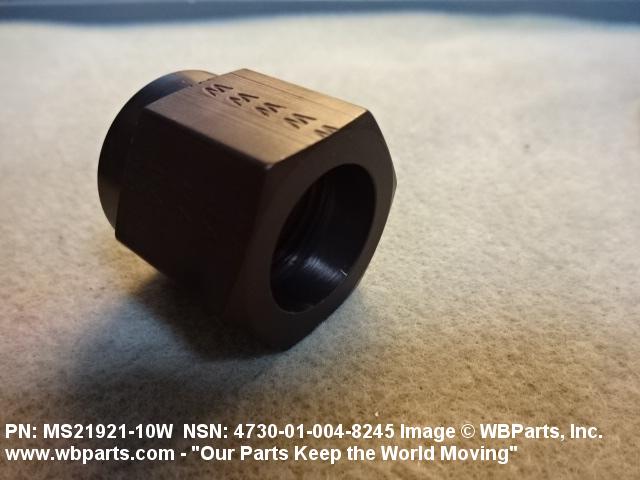

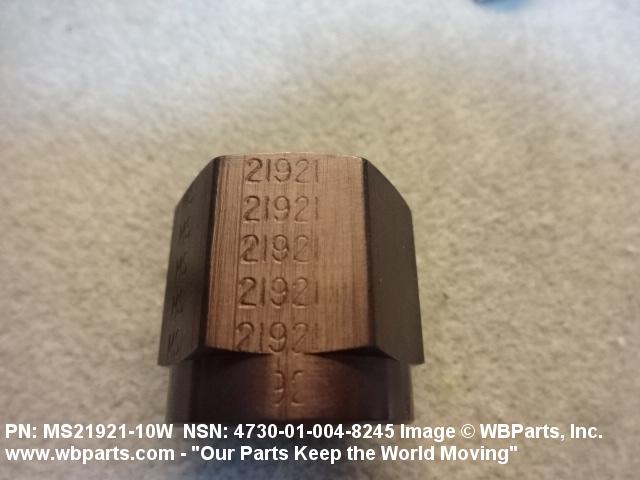

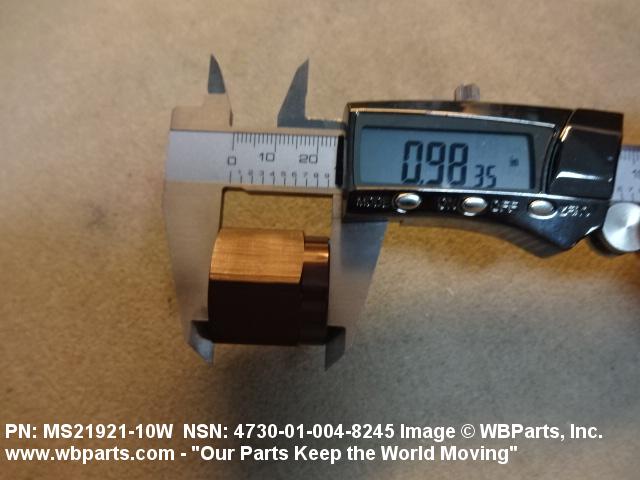

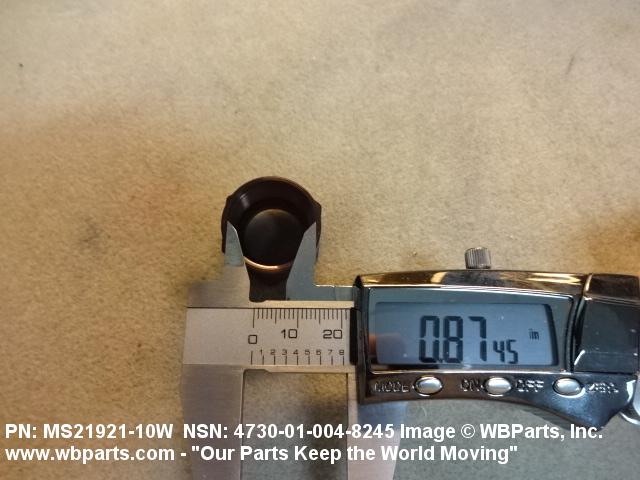

Drawings & Photos | NSN 4730-01-004-8245
Demand History | NSN 4730-01-004-8245
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-004-8245 | 2024-08-232 | 104 | DIBBS |
| 4730-01-004-8245 | 2024-08-221 | 104 | DIBBS |
| 4730-01-004-8245 | 2023-05-124 | 60 | DIBBS |
| 4730-01-004-8245 | 2023-02-36 | 38 | DIBBS |
| 4730-01-004-8245 | 2022-07-209 | 134 | DIBBS |
| 4730-01-004-8245 | 2022-06-164 | 12 | DIBBS |
| 4730-01-004-8245 | 2022-06-153 | 12 | DIBBS |
| 4730-01-004-8245 | 2022-03-73 | 26 | DIBBS |
| 4730-01-004-8245 | 2022-03-60 | 26 | DIBBS |
| 4730-01-004-8245 | 2019-01-02 | 80 | DIBBS |
| 4730-01-004-8245 | 2018-10-298 | 24 | DIBBS |
| 4730-01-004-8245 | 2018-05-126 | 12 | DIBBS |
| 4730-01-004-8245 | 2018-03-74 | 8 | DIBBS |
| 4730-01-004-8245 | 2018-02-38 | 7 | DIBBS |
| 4730-01-004-8245 | 2017-04-107 | 164 | DIBBS |
| AS18280 | 2014-10-280 | 1 | US |
| MS2192110W | 2014-05-147 | 20 | Spain |
| 4730-01-004-8245 | 2013-07-206 | 295 | DIBBS |
| AS21921 | 2013-03-73 | 20 | US |
| AS21921 | 2013-03-73 | 50 | US |
| AS21921 | 2013-03-73 | 100 | US |
| AS21921 | 2013-03-73 | 20 | US |
| AS21921 | 2013-03-73 | 50 | US |
| AS21921 | 2013-03-73 | 100 | US |
| 4730-01-004-8245 | 2010-08-228 | 146 | DIBBS |
| AS21921 | 2010-04-95 | 4 | Seychelles |
Cross Reference | NSN 4730-01-004-8245
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-004-8245
Related Products | NSN 4730-01-004-8245
Technical Data | NSN 4730-01-004-8245
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD QUANTITY PER INCH | 14 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| NUT STYLE | A350 TUBE COUPLING |
| NUT HEIGHT | 0.980 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.000 INCHES NOMINAL |
| LENGTH TO SHOULDER | 0.687 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 0.690 INCHES NOMINAL |
| SEAT ANGLE | 45.00 DEGREES NOMINAL |
| FABRICATION METHOD | ANY ACCEPTABLE |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.625 INCHES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21921-10W |
Restrictions/Controls & Freight Information | NSN 4730-01-004-8245
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-004-8245
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
