Product Details | TUBE FITTING CLINCH SLEEVE

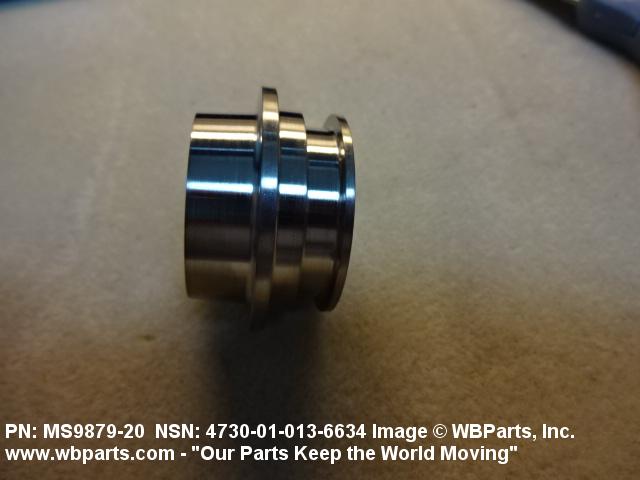

4730-01-013-6634 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.
Part Alternates: MS987920, MS9879-20, 4730-01-013-6634, 01-013-6634, 4730010136634, 010136634
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 07 DEC 1975 | 01-013-6634 | 18025 ( SLEEVE, CLINCH, TUBE FITTING ) |

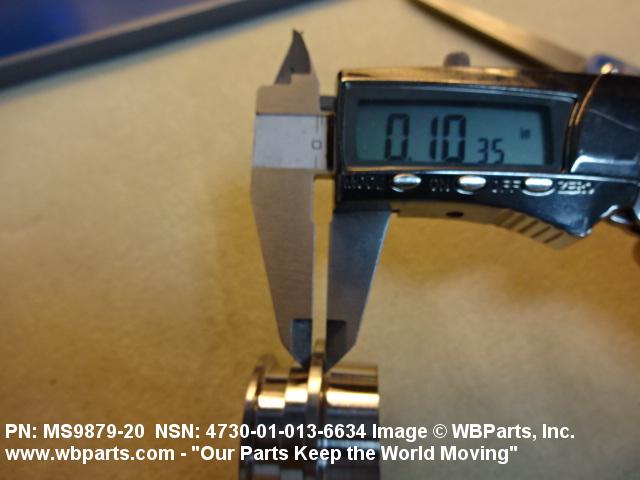

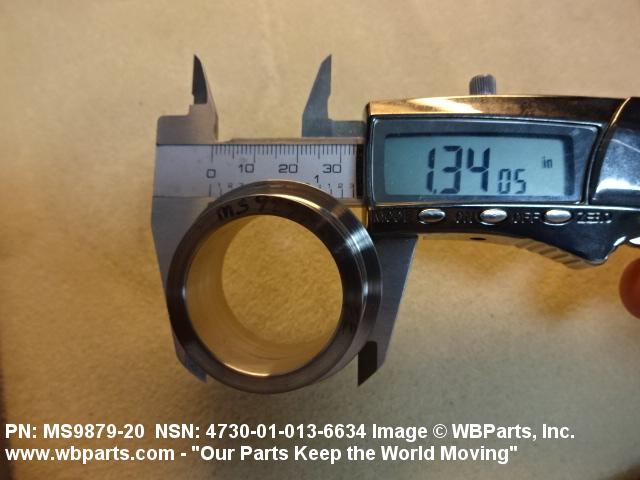

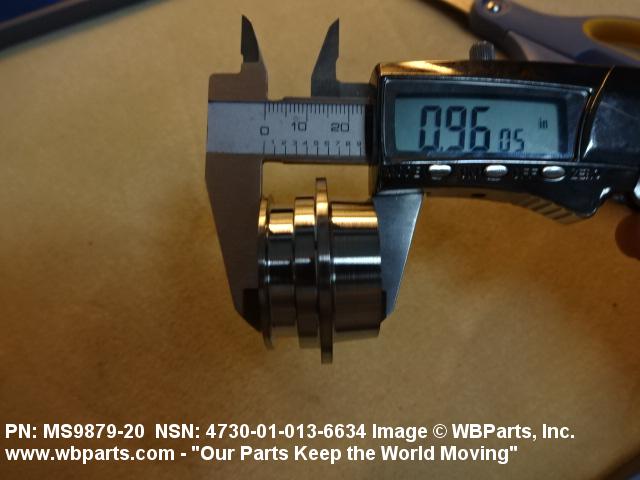

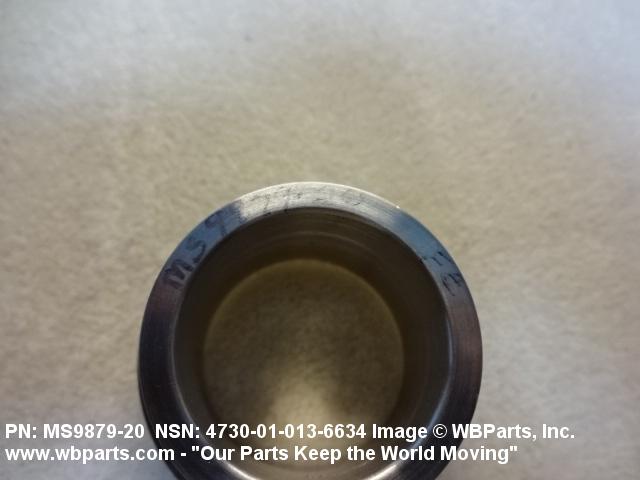

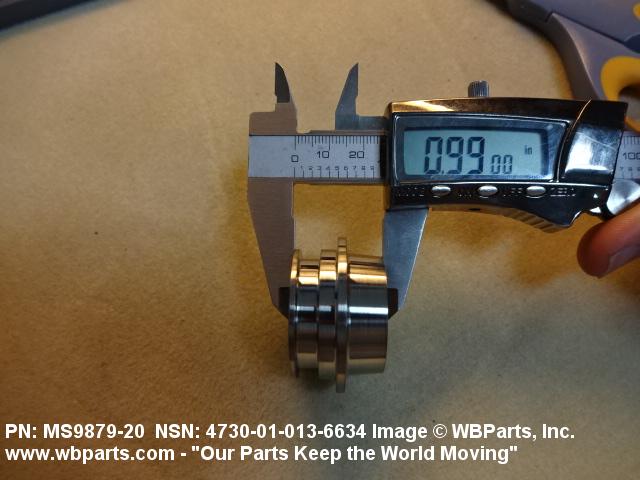

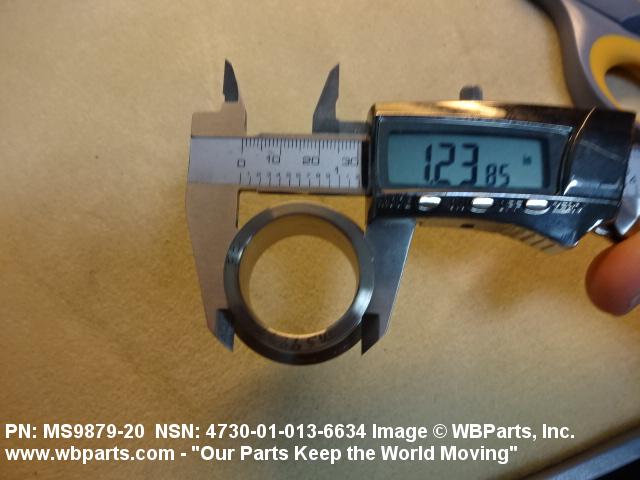

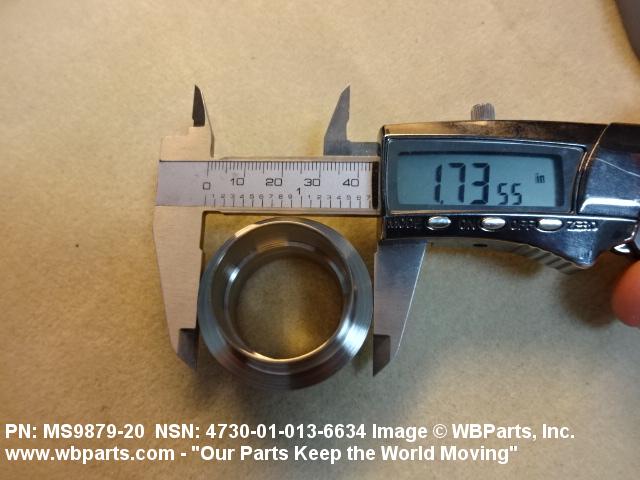

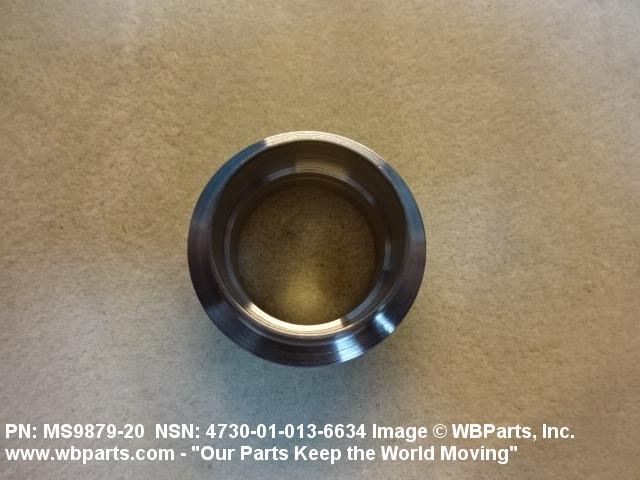

Drawings & Photos | NSN 4730-01-013-6634
Demand History | NSN 4730-01-013-6634
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-013-6634 | 2025-12-337 | 1 | United States |
| MS987920 | 2025-10-287 | 3 | Canada |
| MS987920 | 2025-10-280 | 1 | Canada |
| 4730-01-013-6634 | 2017-08-227 | 1 | Singapore |
| 4730-01-013-6634 | 2017-02-40 | 2 | US |
| MS987920 | 2015-04-96 | 360 | US |
| MS987920 | 2012-01-09 | 2 | US |
Cross Reference | NSN 4730-01-013-6634
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9879-20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
