NSN 4730-01-048-3513 MS20756J20, MS20756-J20, BACF22AH20
Product Details | SWIVEL RETAINING PIPE FLANGE
4730-01-048-3513 An item having an unthreaded hole with a recessed shoulder for the purpose of retaining a swivel type pipe, tube, or hose fitting. The face may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. Excludes ADAPTER (as modified).
Part Alternates: MS20756J20, MS20756-J20, BACF22AH20, 4730-01-048-3513, 01-048-3513, 4730010483513, 010483513
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 SEP 1977 | 01-048-3513 | 03799 ( FLANGE, PIPE, SWIVEL RETAINING ) |

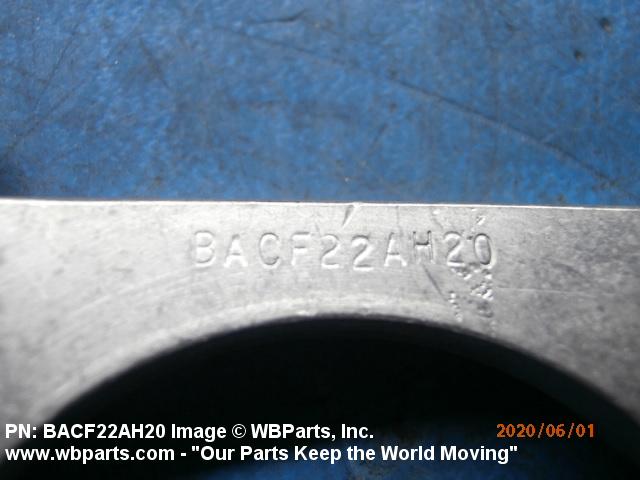

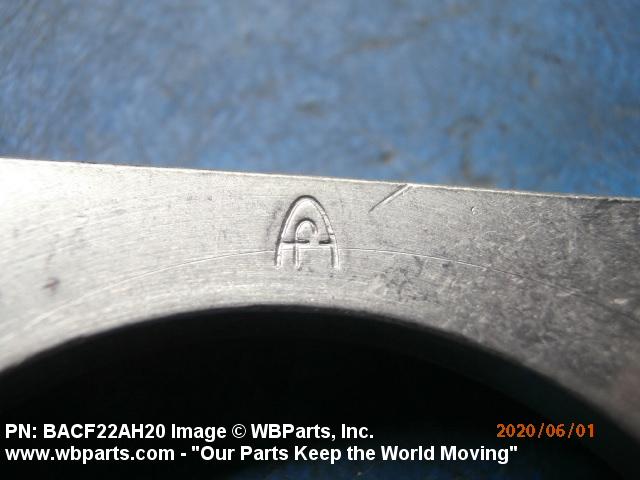

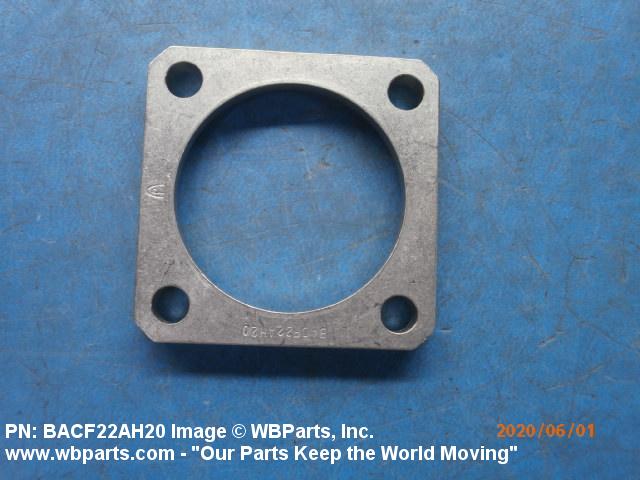

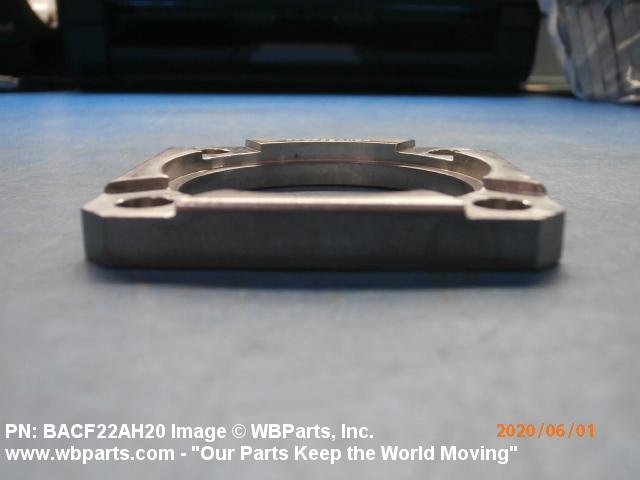

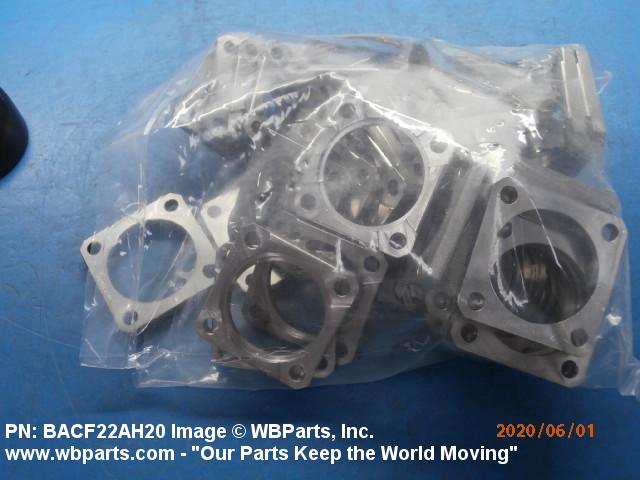

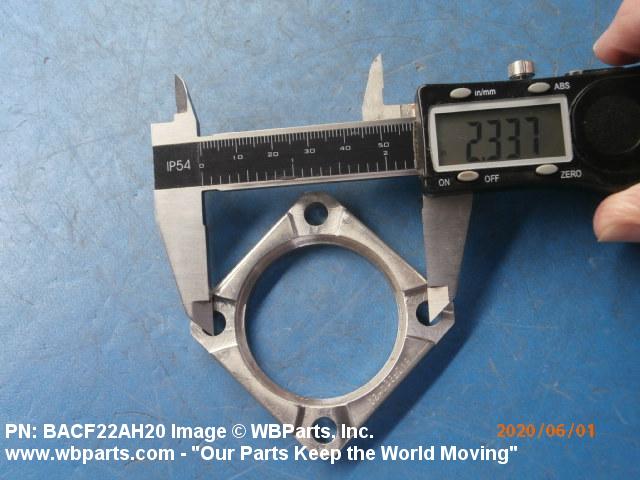

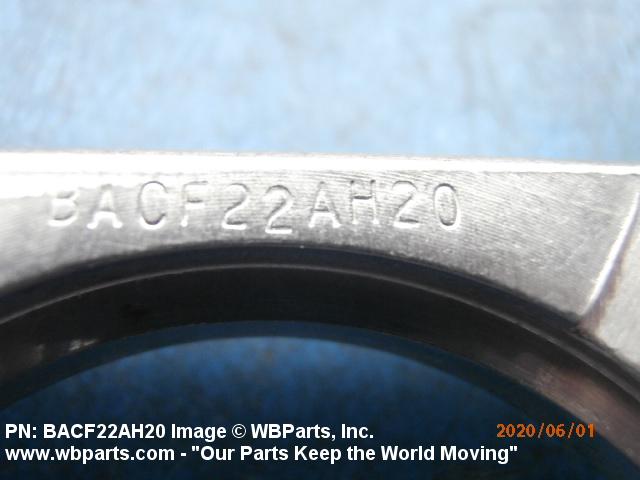

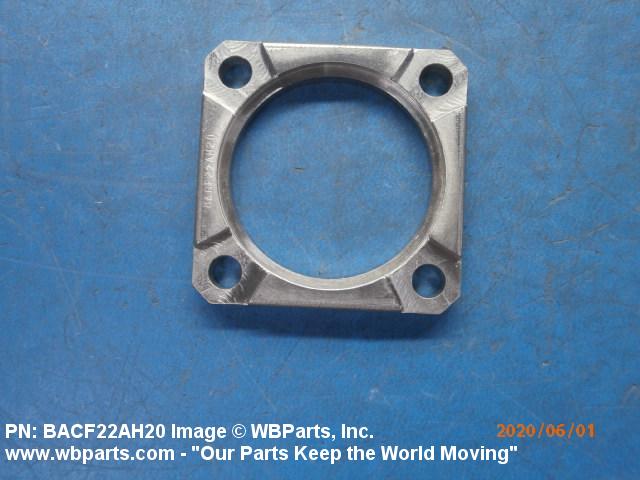

Drawings & Photos | NSN 4730-01-048-3513
Demand History | NSN 4730-01-048-3513
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20756J20 | 2021-01-15 | 10 | United States |
| BACF22AH20 | 2020-05-122 | 40 | United States |
| 4730-01-048-3513 | 2017-11-305 | 3 | United States |
| 4730-01-048-3513 | 2016-05-124 | 1 | DIBBS |
| 4730-01-048-3513 | 2009-02-54 | 6 | DIBBS |
| BACF22AH20 | 2009-01-21 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-048-3513
Related Products | NSN 4730-01-048-3513
Technical Data | NSN 4730-01-048-3513
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,CLASS 303 SE FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-764,CLASS 303 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-763,CLASS 304L FED SPEC 2ND MATERIAL RESPONSE OR QQ-S-763,CLASS 304 FED SPEC 2ND MATERIAL RESPONSE OR QQ-S-766 FED SPEC 3RD MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 7 SQUARE, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 2.342 INCHES NOMINAL |

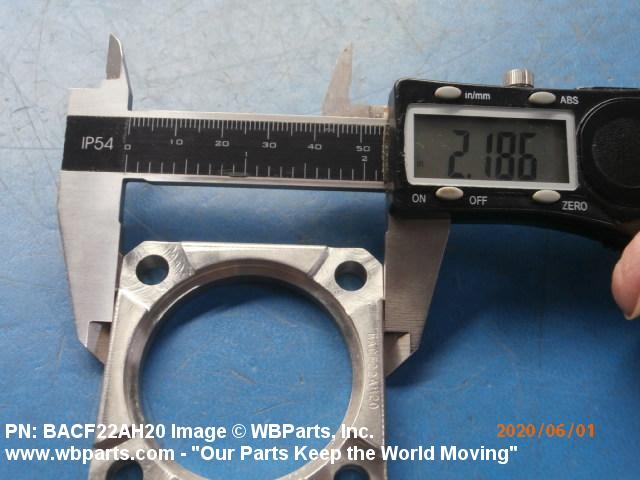

| FLANGE WIDTH | 2.188 INCHES NOMINAL |

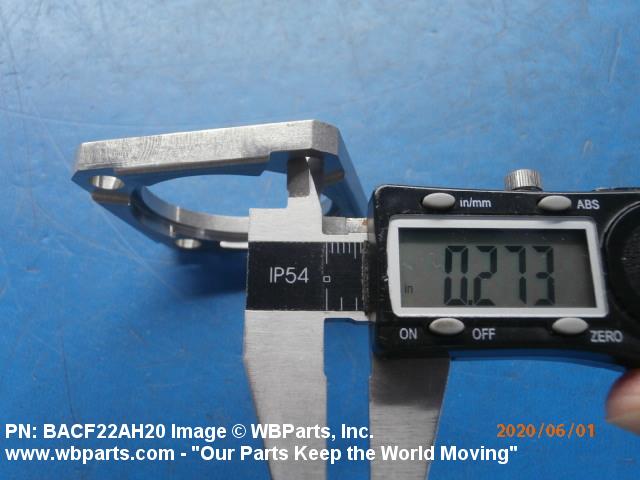

| BOLT HOLE DIAMETER | 0.266 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |
| FLANGE SECTION STYLE | 19 PLAIN RECESSED FACE |

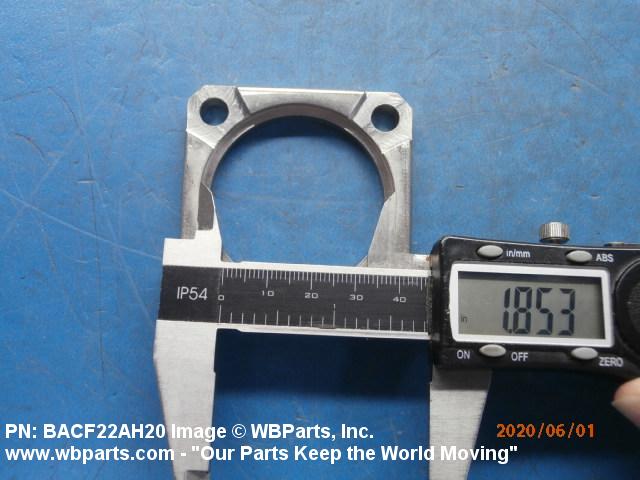

| RECESS DIAMETER | 1.854 INCHES NOMINAL |
| RECESS DEPTH | 0.136 INCHES NOMINAL |

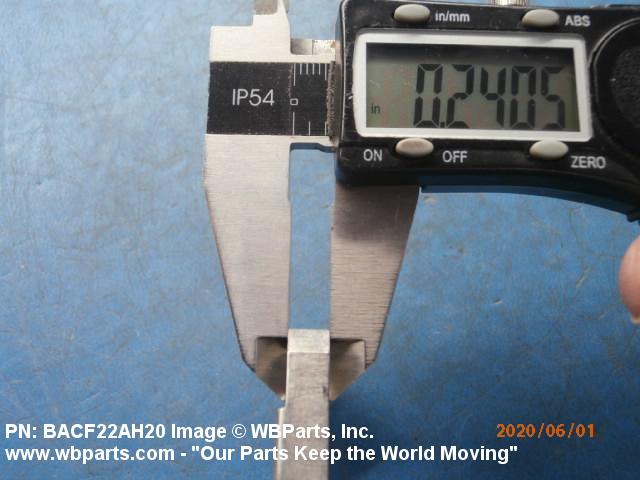

| THICKNESS | 0.234 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.250 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 1500.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
| FACE SEATING SURFACE CONDITION | MACHINED |
| SPECIFICATION/STANDARD DATA | 81205-BACF22AH MANUFACTURERS STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20756-J20 |
Restrictions/Controls & Freight Information | NSN 4730-01-048-3513
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-048-3513
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
