NSN 4730-01-052-5975 C7551220, C7551-2-20, F20712A
Product Details | TUBE OUTLET
4730-01-052-5975 A fitting having one end connection designed to accommodate tubing. The other end is designed to be attached to a flat surface or the external contour of a tube, pipe or fitting by welding, brazing, soldering, or the like. It is used to fabricate tube outlets in a pipe or tubing line.
Part Alternates: C7551220, C7551-2-20, F20712A , W90220D, W902-20D, 07A06120A, 07A061-20A, 14F0220A, 14F02-20A , 14F3220A, 14F32-20A, 4730-01-052-5975, 01-052-5975, 4730010525975, 010525975
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 16 DEC 1977 | 01-052-5975 | 28336 ( OUTLET, TUBE ) |

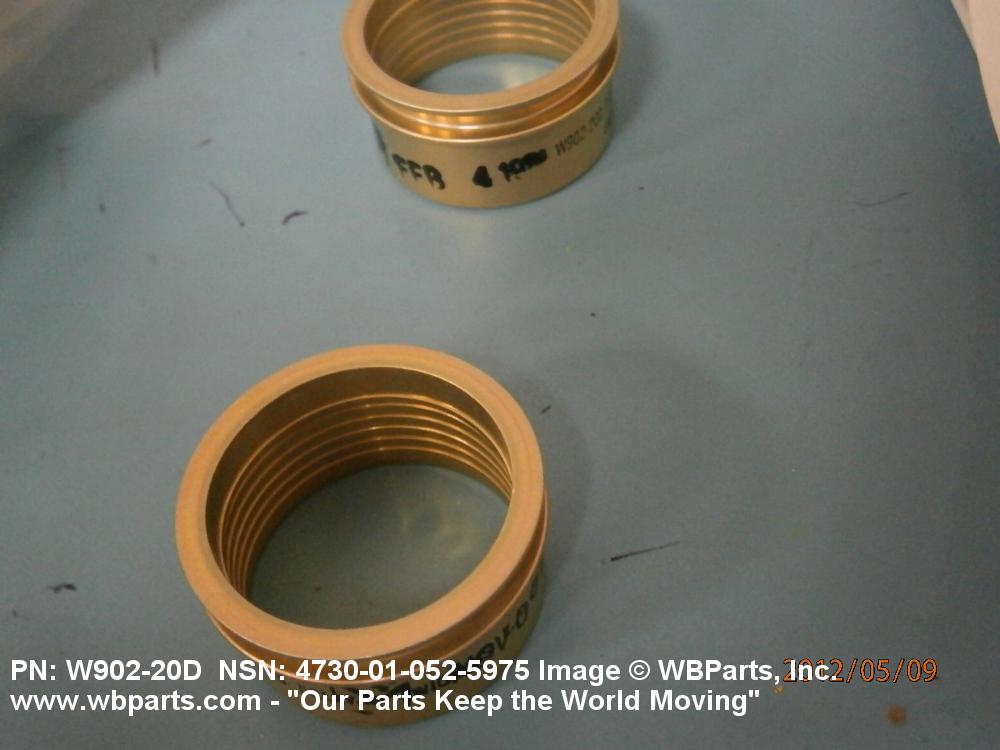

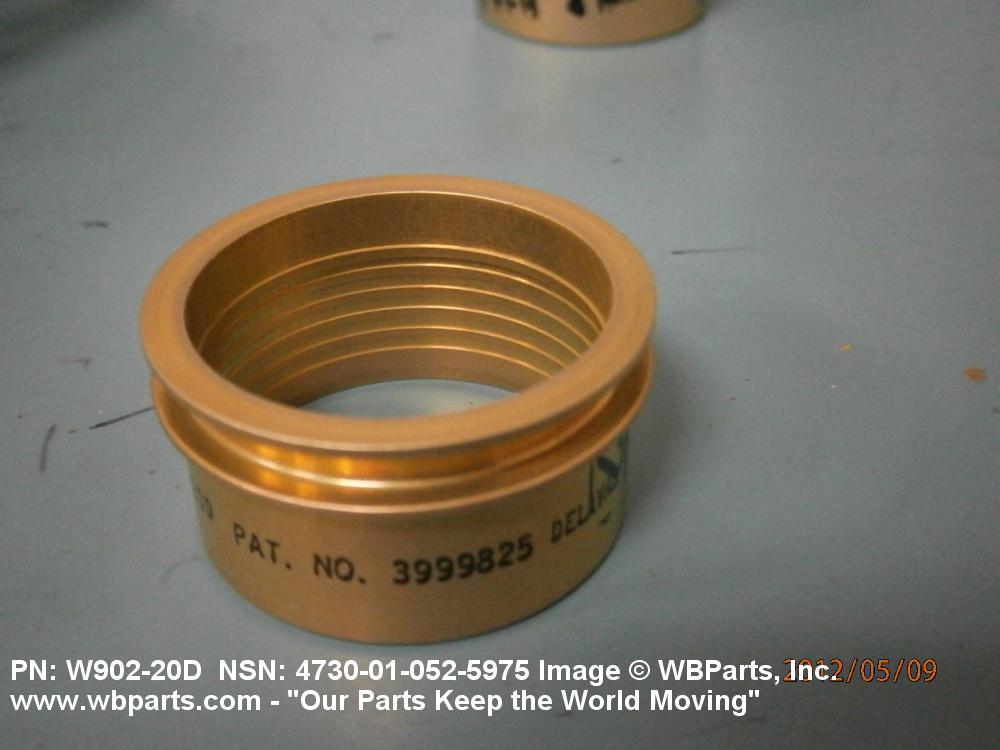

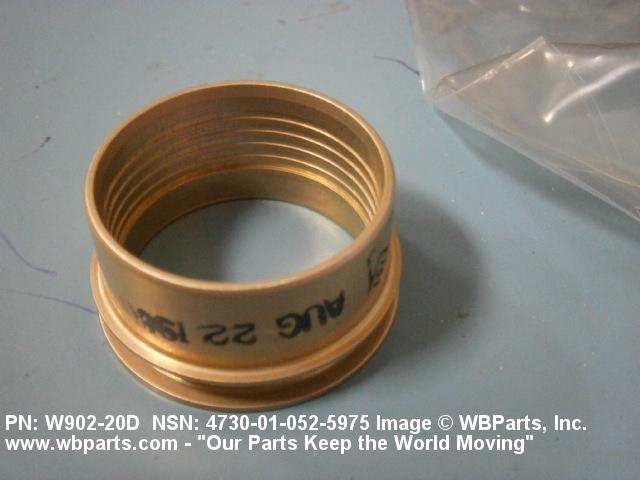

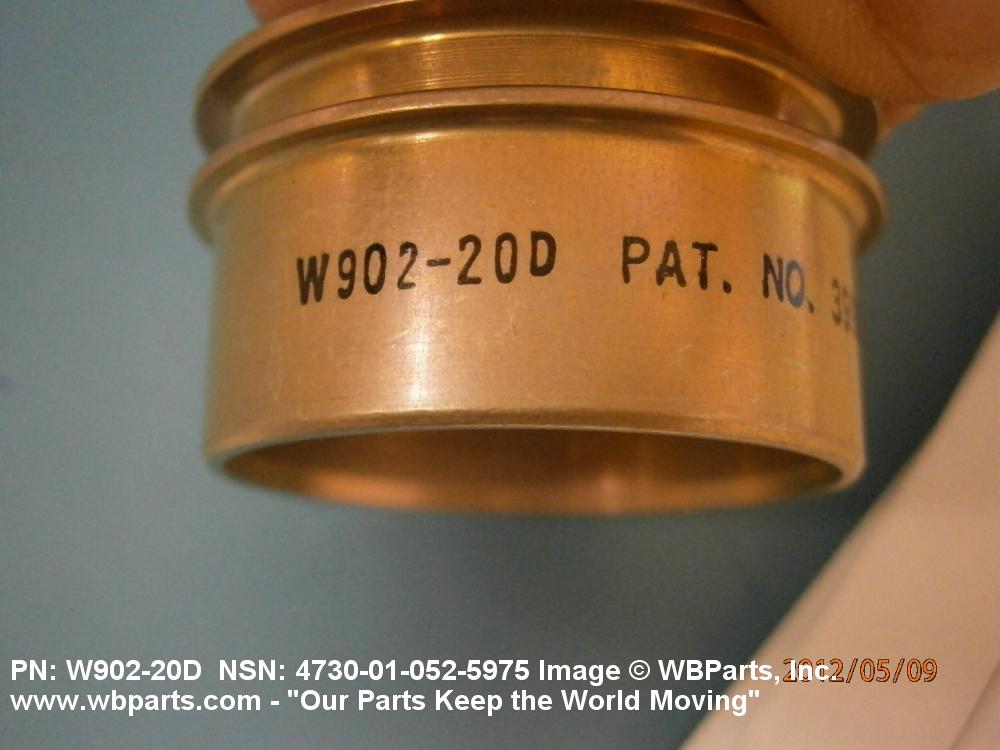

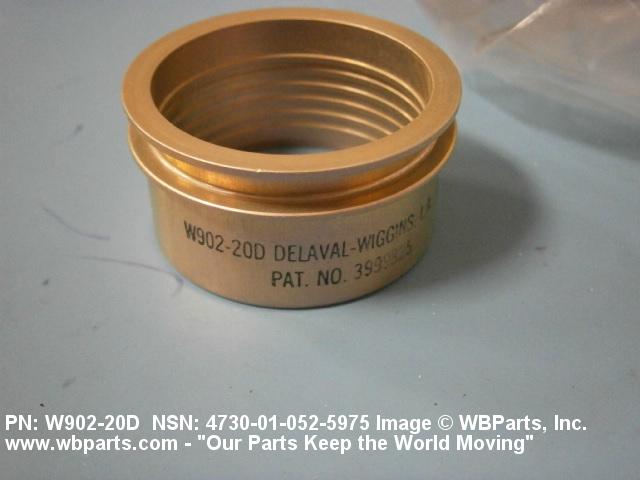

Drawings & Photos | NSN 4730-01-052-5975
Demand History | NSN 4730-01-052-5975
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-052-5975 | 2025-04-92 | 1 | DIBBS |
| 4730-01-052-5975 | 2025-03-84 | 1 | DIBBS |
| W90220D | 2024-11-327 | 2 | Israel |
| 4730-01-052-5975 | 2024-04-106 | 2 | DIBBS |
| 4730-01-052-5975 | 2024-04-102 | 1 | DIBBS |
| 4730-01-052-5975 | 2022-05-125 | 2 | DIBBS |
| W90220D | 2020-11-328 | 80 | DE |
| 4730-01-052-5975 | 2018-02-43 | 2 | DIBBS |
| 4730-01-052-5975 | 2015-10-280 | 1 | DIBBS |
| 4730-01-052-5975 | 2014-02-51 | 1 | DIBBS |
| 4730-01-052-5975 | 2014-01-22 | 1 | DIBBS |
| 4730-01-052-5975 | 2014-01-07 | 1 | DIBBS |
| W90220D | 2012-12-342 | 20 | Canada |
| W90220D | 2012-05-123 | 20 | Canada |
| W90220D | 2012-03-83 | 75 | Canada |
| W90220D | 2012-03-83 | 220 | Canada |
| 4730-01-052-5975 | 2011-04-117 | 1 | DIBBS |
| 4730-01-052-5975 | 2011-04-117 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-052-5975
Related Products | NSN 4730-01-052-5975
Technical Data | NSN 4730-01-052-5975
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5052 OR ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | WW-T-700/4 FED SPEC SINGLE MATERIAL RESPONSE OR WN-T-700/6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A9 GROOVED AND BEVELED |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.250 INCHES 1ST END |
| MANUFACTURERS CODE | 79326 |
| DESIGN CONTROL REFERENCE | W902-20D |
Restrictions/Controls & Freight Information | NSN 4730-01-052-5975
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-052-5975
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | WF | SU:F-16 AIR COMBAT FIGHTER |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
