NSN 4730-01-054-4437 ST7M16932C, ST7M169-32C, GC550CF32FC
Product Details | TUBE COUPLING SWAGE FERRULE
4730-01-054-4437 A flanged cylindrical metallic item used with a plain end tube and swaged in place. It is designed to be used as a component part of a flexible or rigid tube coupling.
Part Alternates: ST7M16932C, ST7M169-32C, GC550CF32FC, GC550FC, LUW6303C32, LUW6303C-32, 12F6332C, 12F63-32C, 6315232, 63152-32, 4730-01-054-4437, 01-054-4437, 4730010544437, 010544437
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 JAN 1978 | 01-054-4437 | 32679 ( FERRULE, SWAGE, TUBE COUPLING ) |

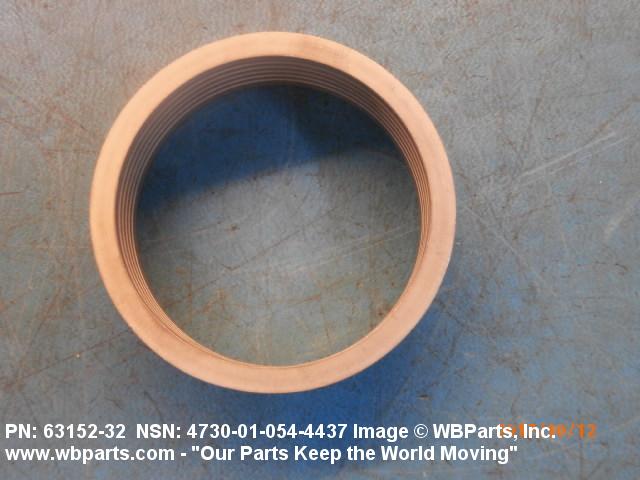

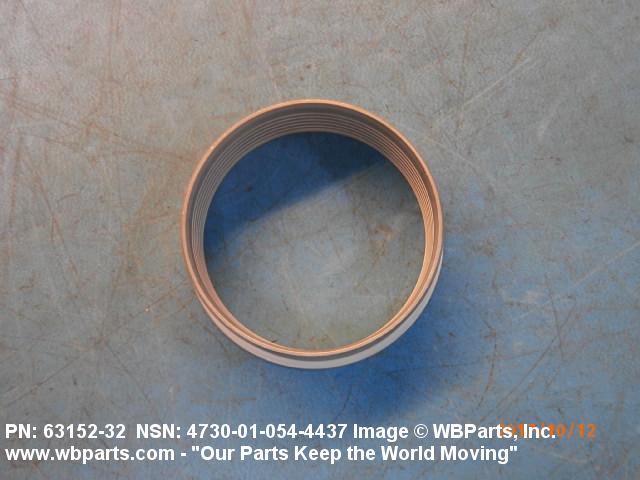

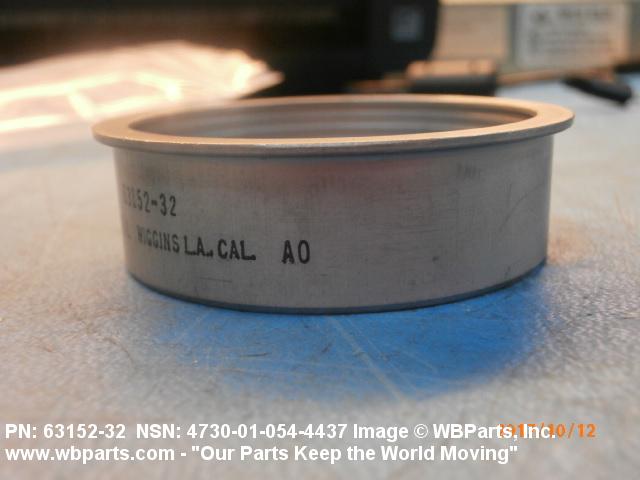

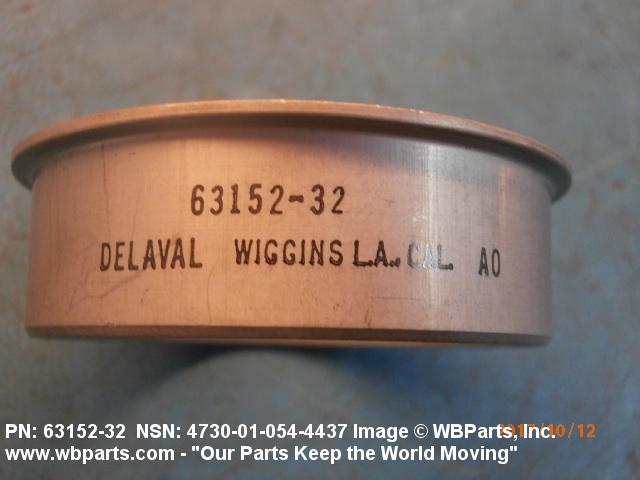

Drawings & Photos | NSN 4730-01-054-4437
Demand History | NSN 4730-01-054-4437
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-054-4437 | 2023-08-237 | 10 | US |
| 4730-01-054-4437 | 2018-04-115 | 1 | DIBBS |
| 4730-01-054-4437 | 2017-09-268 | 1 | United States |
| 4730-01-054-4437 | 2017-09-257 | 1 | US |
Cross Reference | NSN 4730-01-054-4437
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12F63-32C | 24984 | HYDRAFLOW |
| 63152-32 | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
| GC550CF32FC | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| GC550FC | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| LUW6303C-32 | 14963 | MIDDLETON ENTERPRISES, INC DIV AERO TUBE & CONNECTOR DIV. |
| ST7M169-32C | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-054-4437
Related Products | NSN 4730-01-054-4437
Technical Data | NSN 4730-01-054-4437
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5643 |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 2.000 INCHES NOMINAL |
| STYLE DESIGNATOR | T3 SINGLE FLANGE |

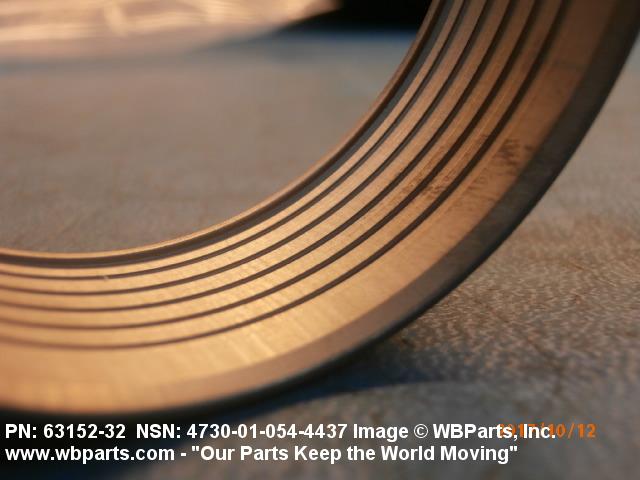

| SLOT DEPTH | 0.031 INCHES NOMINAL |
| SLOT WIDTH | 0.040 INCHES NOMINAL |

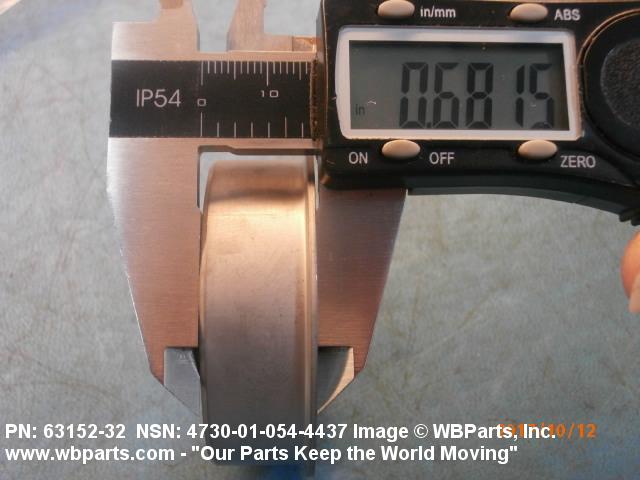

| OVERALL LENGTH | 0.695 INCHES MAXIMUM |

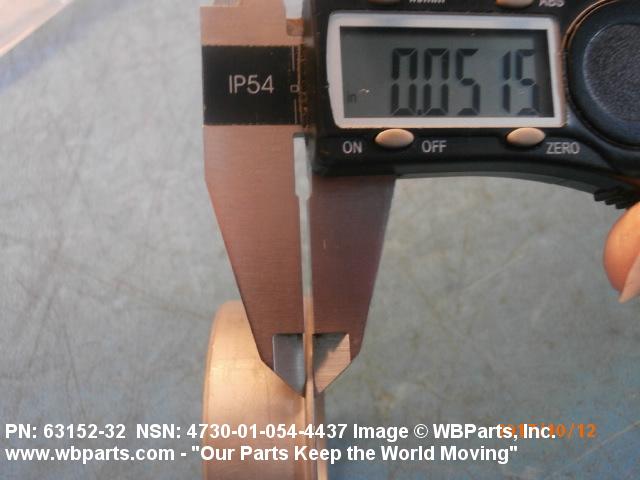

| FLANGE WIDTH | 0.045 INCHES NOMINAL |
| FLANGE INSIDE DIAMETER | 1.985 INCHES NOMINAL |

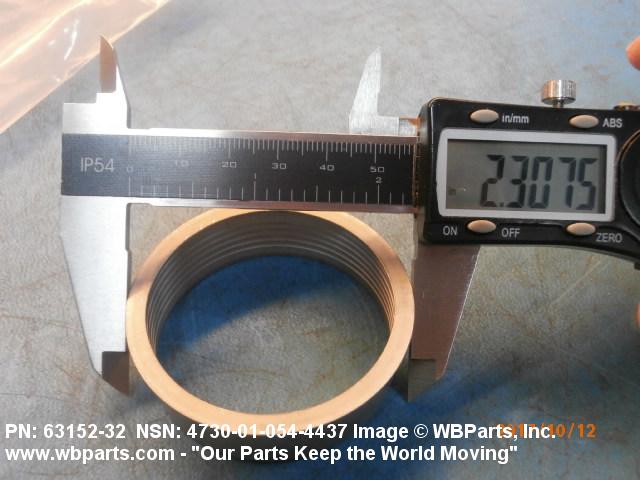

| FLANGE OUTSIDE DIAMETER | 2.313 INCHES MAXIMUM |

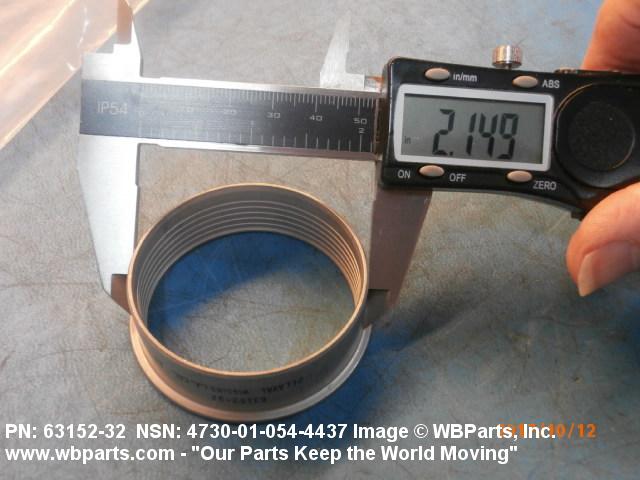

| SLEEVE OUTSIDE DIAMETER | 2.145 INCHES NOMINAL |
| SLOT QUANTITY | 5 |
Restrictions/Controls & Freight Information | NSN 4730-01-054-4437
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-054-4437
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
