NSN 4730-01-075-2981 AF164208, AF16420-8, AP309T08
Product Details | TUBE NIPPLE
4730-01-075-2981 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Part Alternates: AF164208, AF16420-8, AP309T08, ST7M206, ST7M206T8, R44382T08, 4730-01-075-2981, 01-075-2981, 4730010752981, 010752981
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 APR 1979 | 01-075-2981 | 03783 ( NIPPLE, TUBE ) |

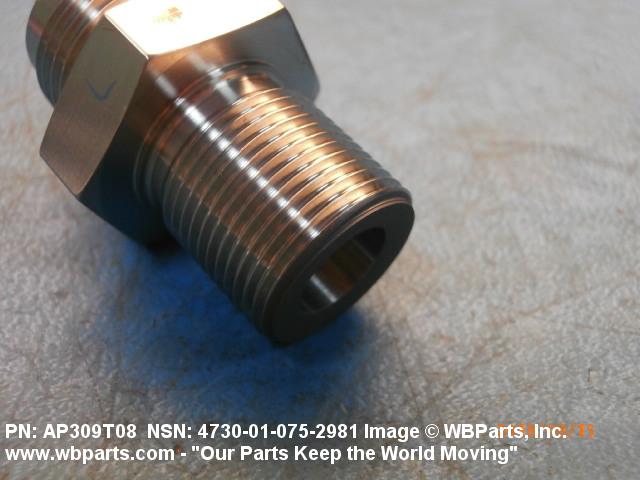

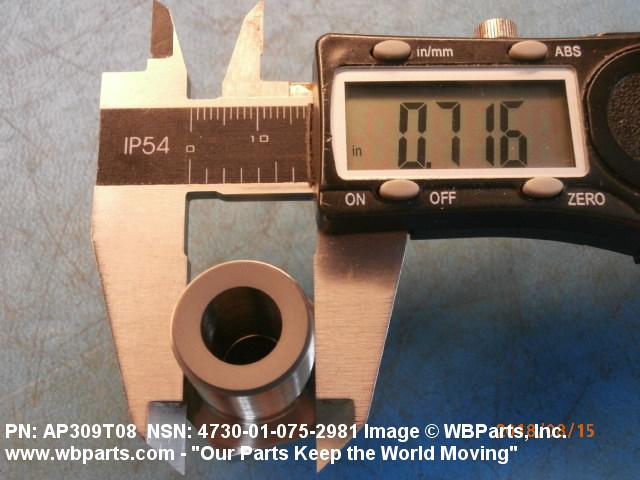

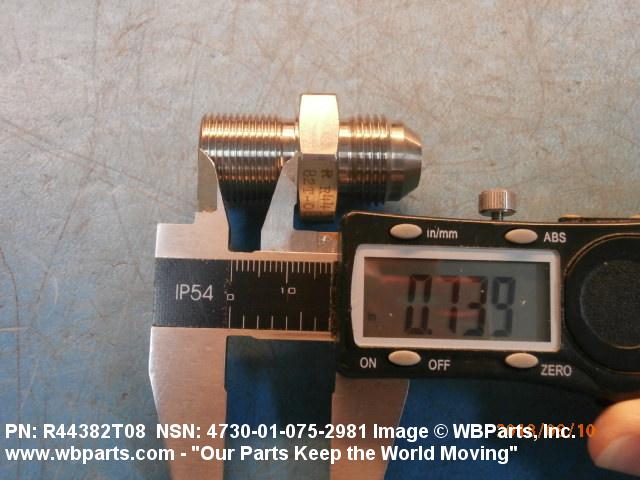

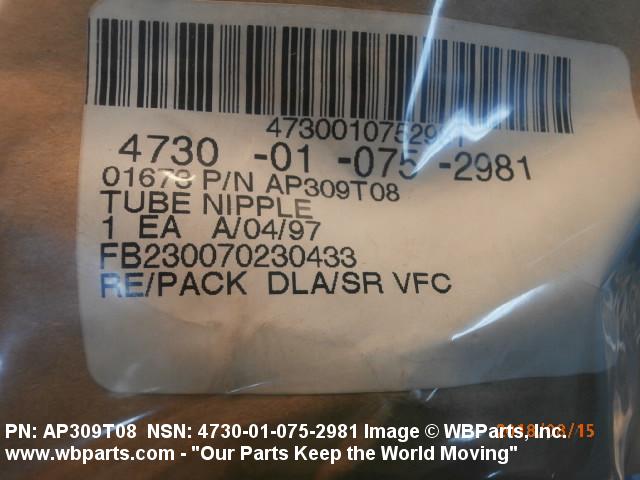

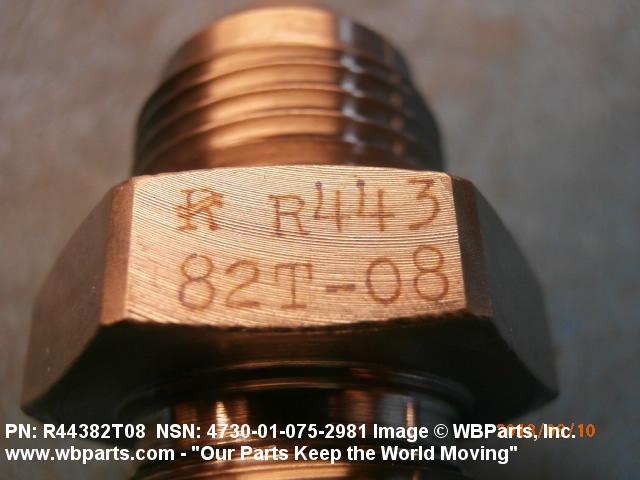

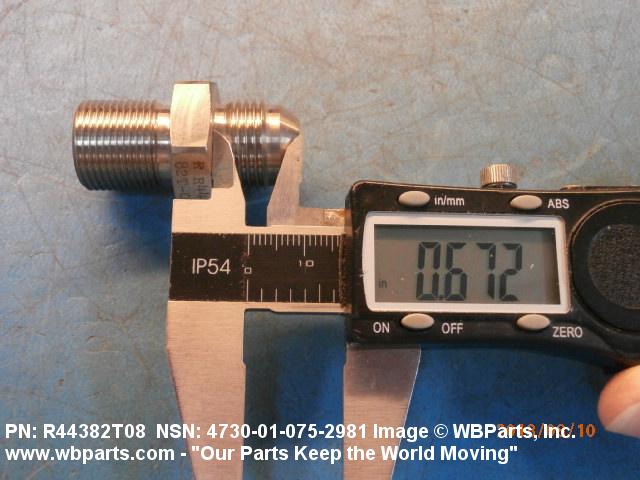

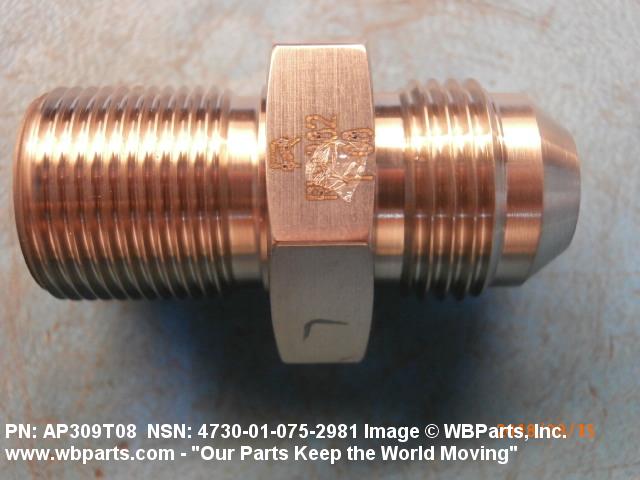

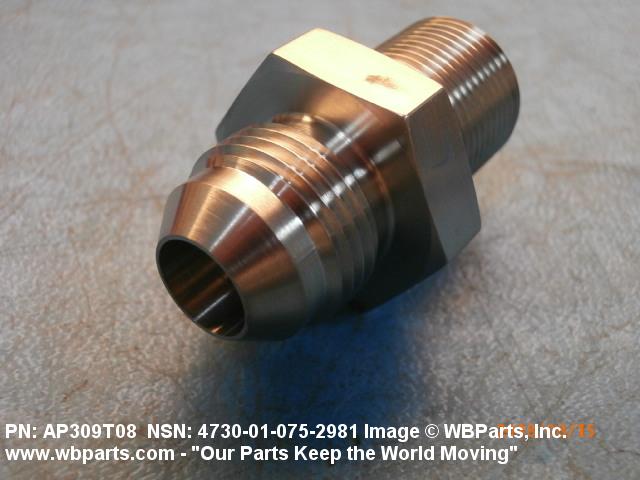

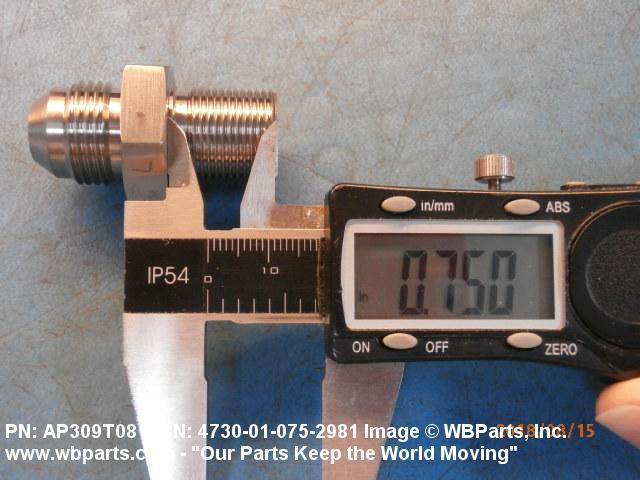

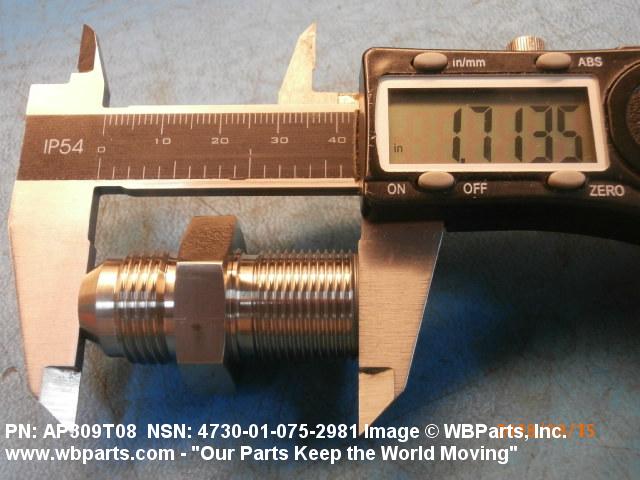

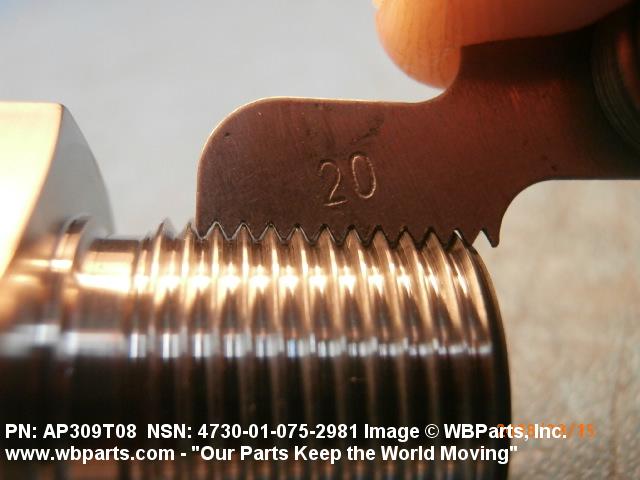

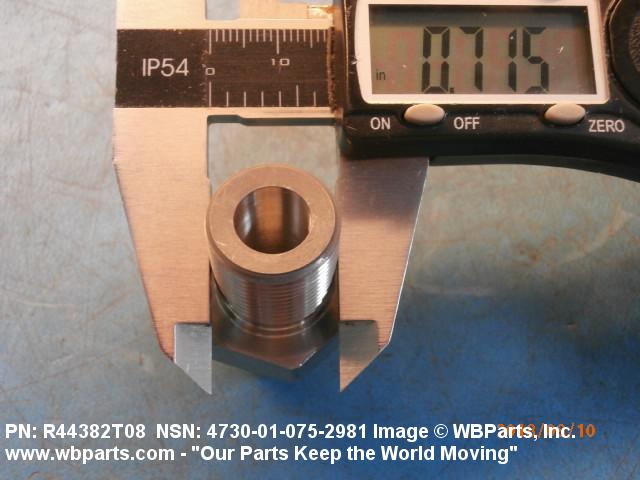

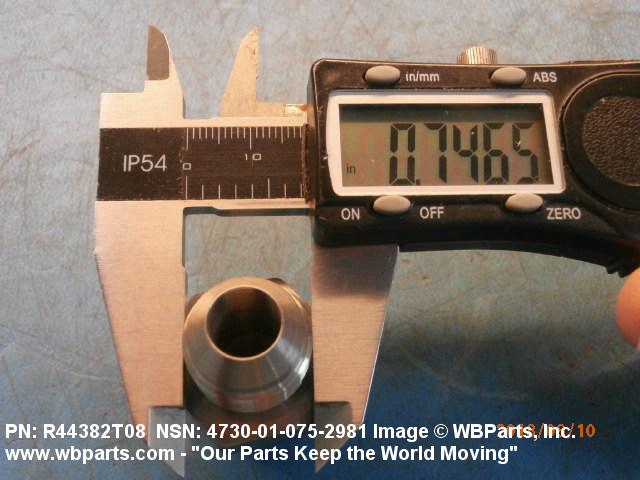

Drawings & Photos | NSN 4730-01-075-2981
Demand History | NSN 4730-01-075-2981
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-075-2981 | 2018-08-218 | 6 | us |
| 4730-01-075-2981 | 2018-07-212 | 8 | us |
| 4730-01-075-2981 | 2018-07-207 | 2 | us |
Cross Reference | NSN 4730-01-075-2981
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AF16420-8 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AP309T08 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| R44382T08 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| ST7M206 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST7M206T8 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-075-2981
Technical Data | NSN 4730-01-075-2981
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4965,6AL-4V ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A50 CLOSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B63A INVERTED FLARE 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 8.5 DEGREES 1ST END 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES 1ST END 0.500 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNJS 1ST END UNJF 2ND END |
| NOMINAL THREAD SIZE | 0.718 INCHES 1ST END 0.750 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 20 1ST END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |
| LEG LENGTH | 0.755 INCHES NOMINAL 1ST END 0.657 INCHES NOMINAL 2ND END |
| NOMINAL OVERALL LENGTH | 1.712 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-01-075-2981
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
