NSN 4730-01-081-4815 MS219143C, MS21914-3C, MS219143J
Product Details | TUBE CAP
4730-01-081-4815 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: MS219143C, MS21914-3C, MS219143J, MS21914-3J, 4730-01-081-4815, 01-081-4815, 4730010814815, 010814815
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 14 AUG 1979 | 01-081-4815 | 06074 ( CAP, TUBE ) |

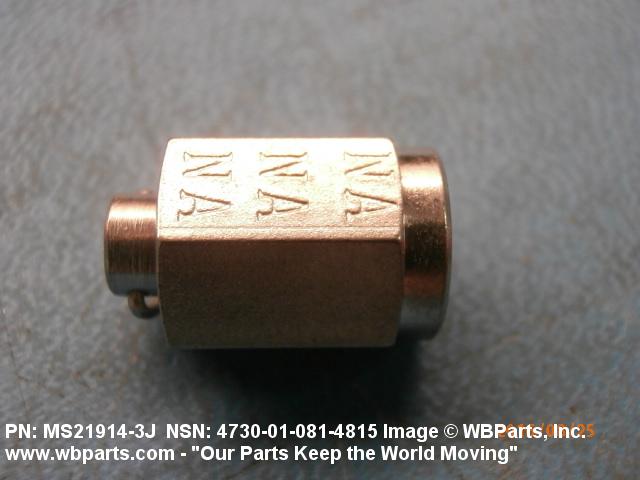

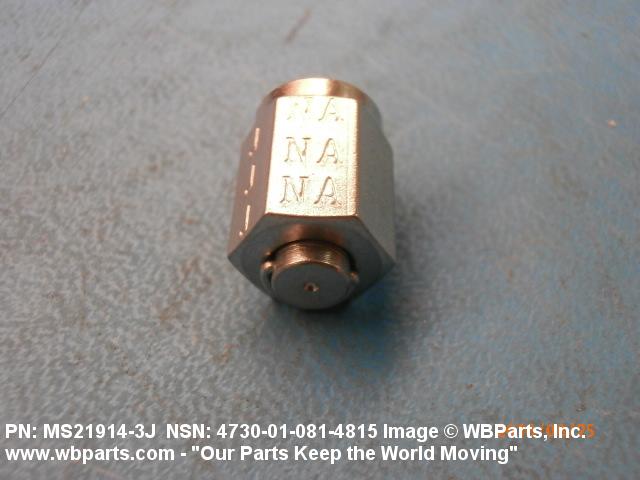

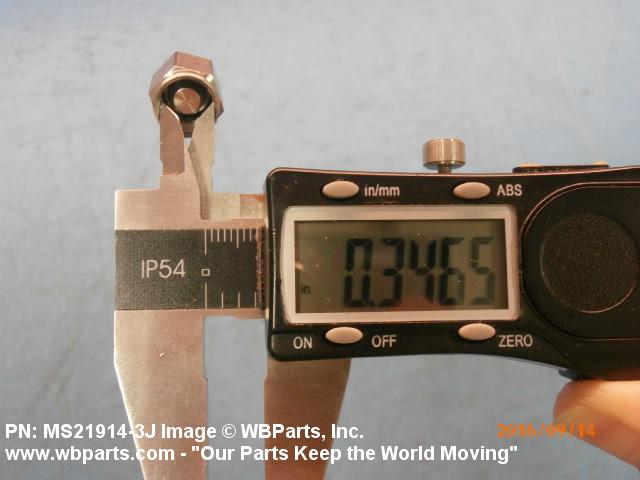

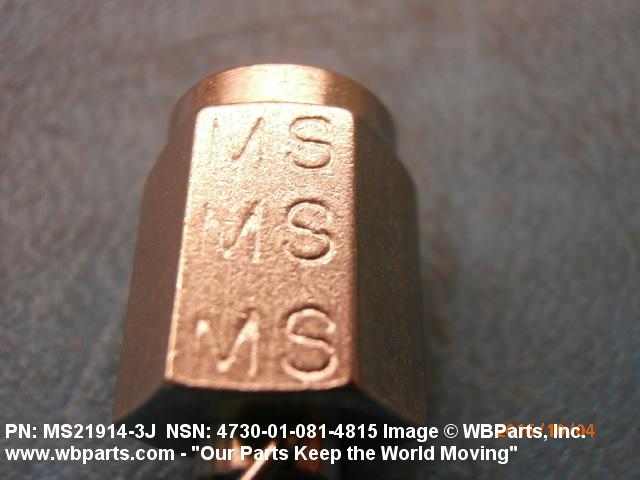

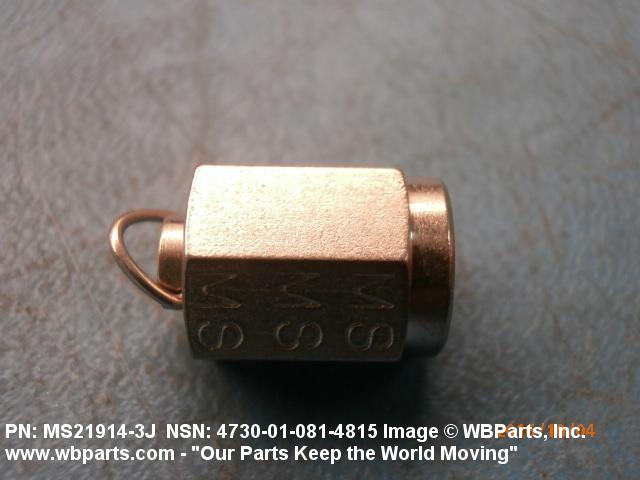

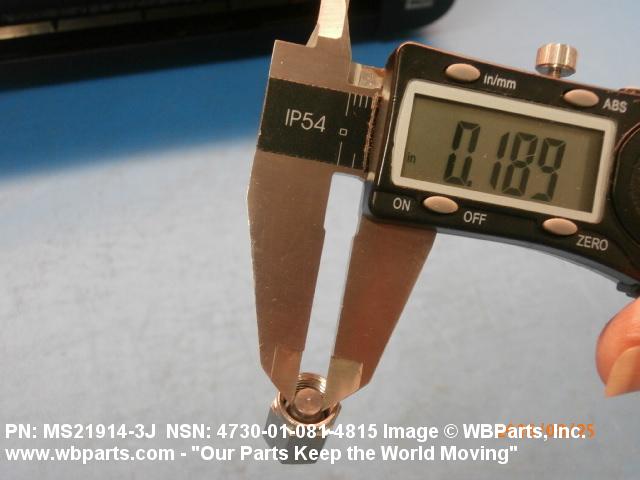

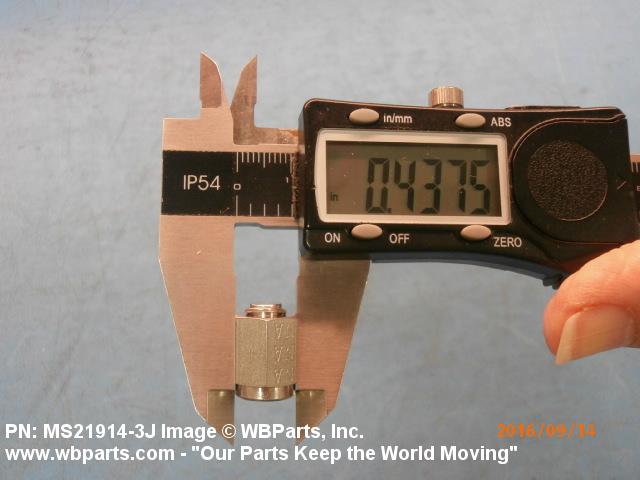

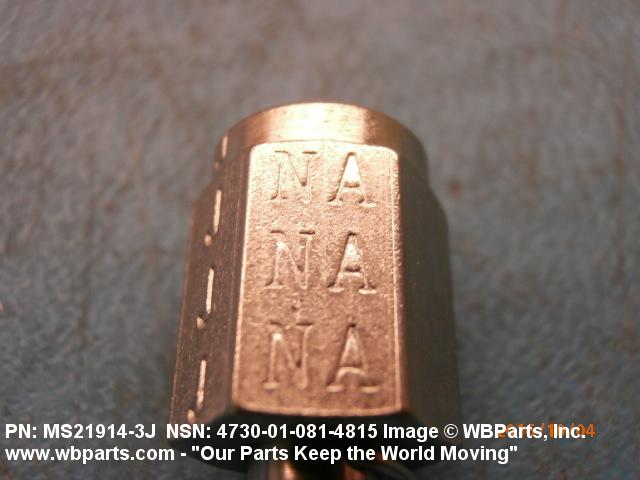

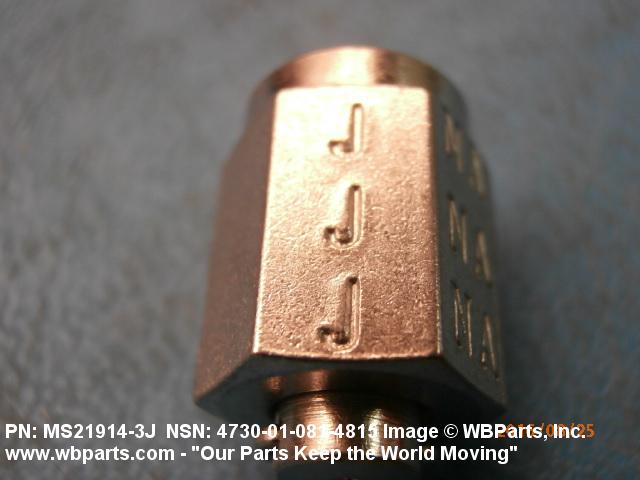

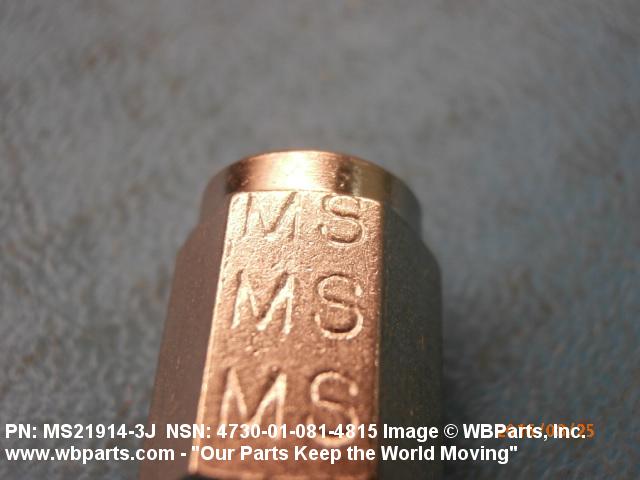

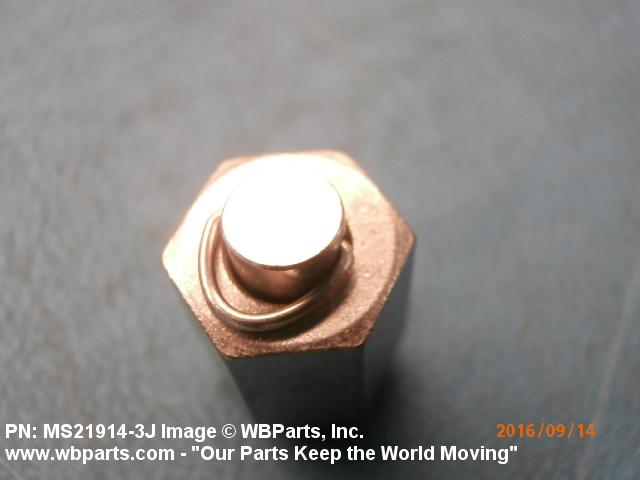

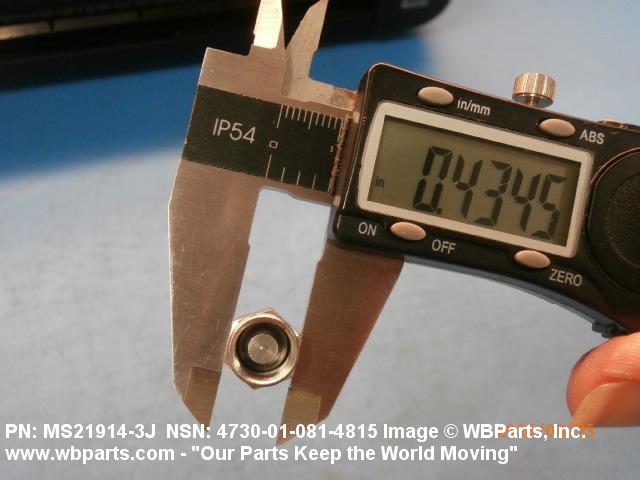

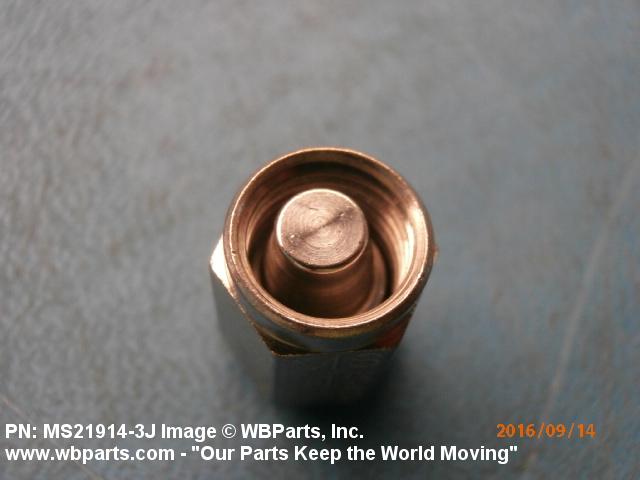

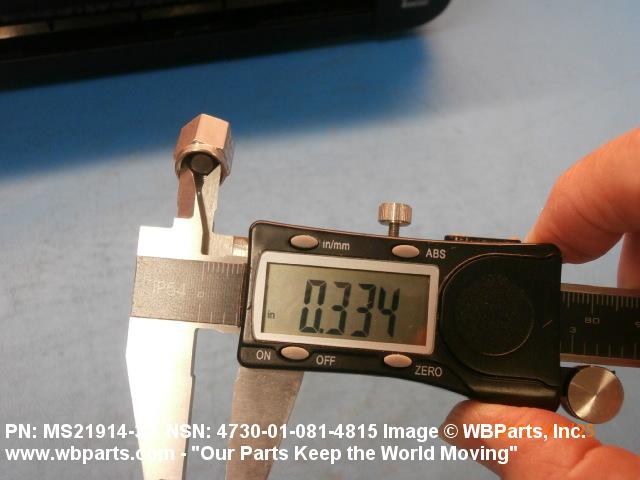

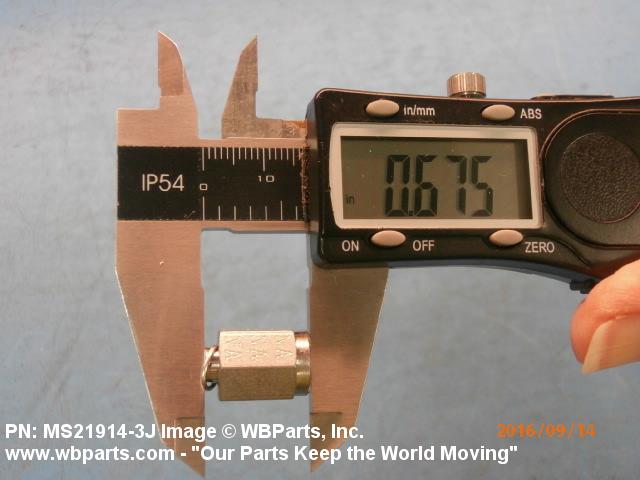

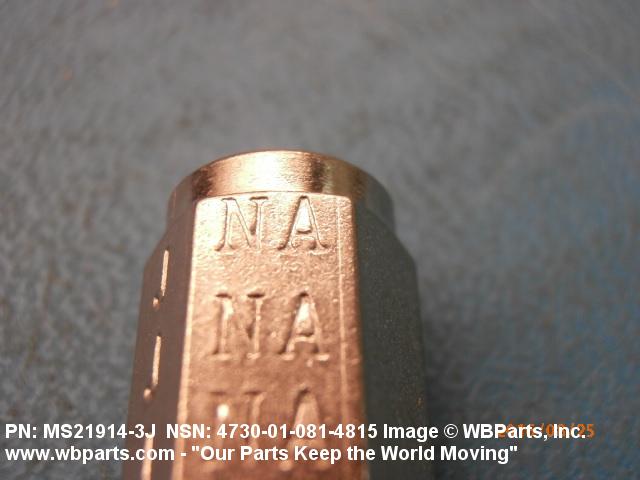

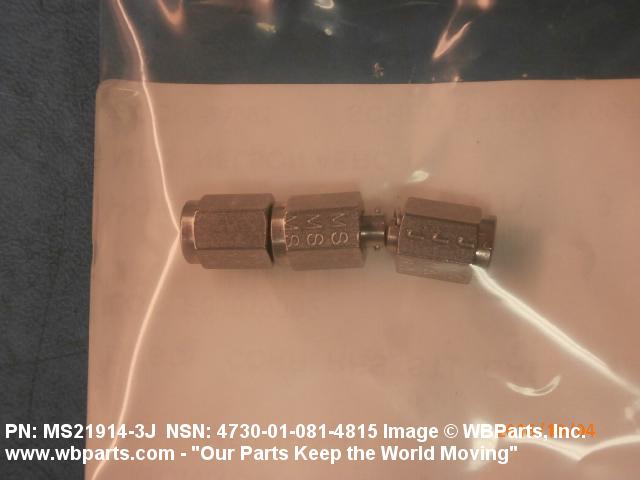

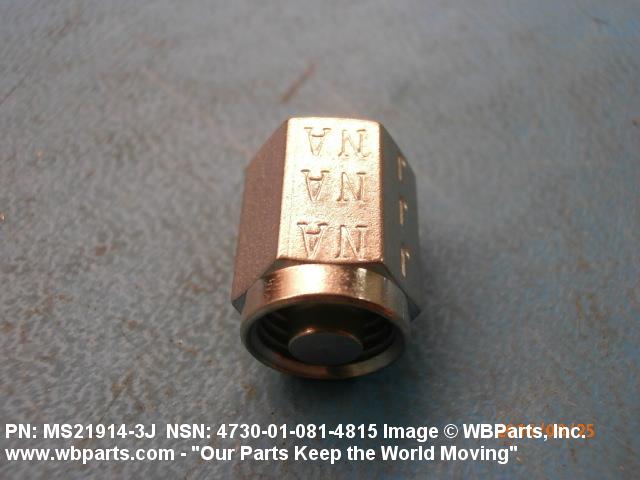

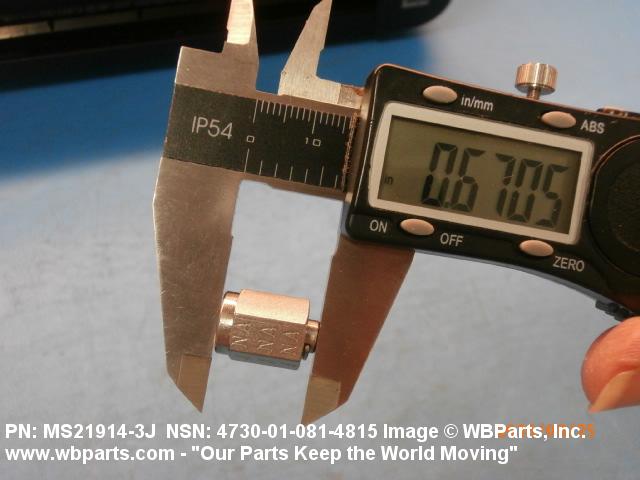

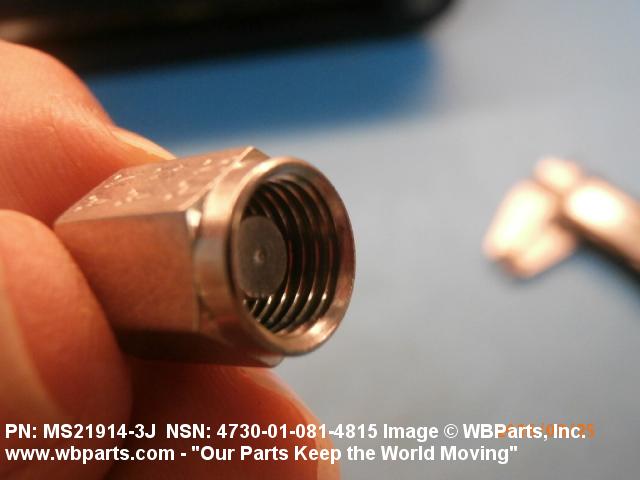

Drawings & Photos | NSN 4730-01-081-4815
Demand History | NSN 4730-01-081-4815
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS219143J | 2020-03-70 | 24 | United States |
| MS219143J | 2018-09-250 | 4 | US |
| MS219143J | 2016-08-236 | 10 | United States |
| MS219143J | 2014-08-217 | 4 | United States |
| MS219143J | 2014-07-212 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-081-4815
Technical Data | NSN 4730-01-081-4815
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1141 CAP |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637 FED SPEC SINGLE MATERIAL RESPONSE CAP |
| SURFACE TREATMENT | CADMIUM CAP |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE CAP |
| STYLE DESIGNATOR | A14 CAP, TUBE, FLARELESS |
| CONNECTION STYLE | G6 PRESSURE SEAL FLARELESS |
| THREAD SERIES DESIGNATOR | UNJF INTERNAL |
| NOMINAL THREAD SIZE | 0.375 INCHES INTERNAL |
| THREAD QUANTITY PER INCH | 2 INTERNAL |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| SEAT ANGLE | 12.0 DEGREES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.188 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21914-3J |
Restrictions/Controls & Freight Information | NSN 4730-01-081-4815
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
