NSN 4730-01-083-9651 AS4317K1612, KC133C1612, KC133C16-12
Product Details | TUBE TO BOSS STRAIGHT ADAPTER
4730-01-083-9651 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.
Part Alternates: AS4317K1612, KC133C1612, KC133C16-12, KC133K1612, KC133K16-12, 4730-01-083-9651, 01-083-9651, 4730010839651, 010839651
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 05 OCT 1979 | 01-083-9651 | 22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS ) |

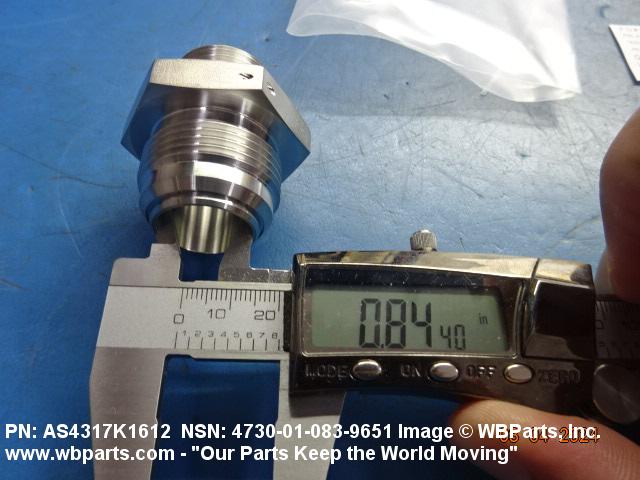

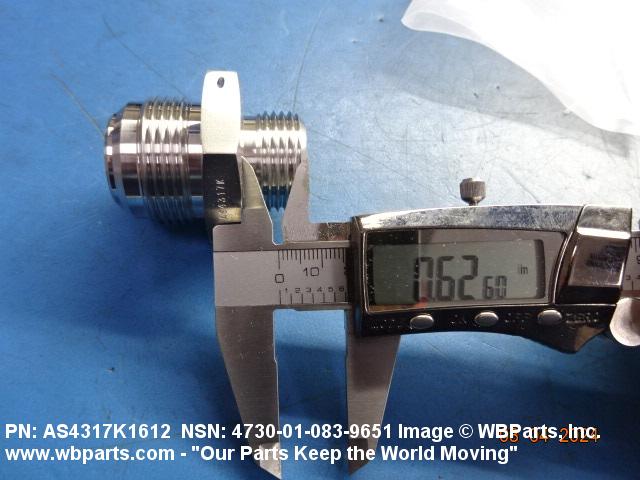

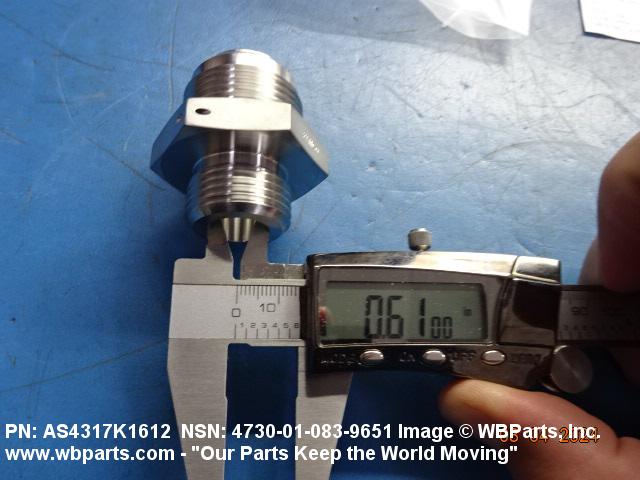

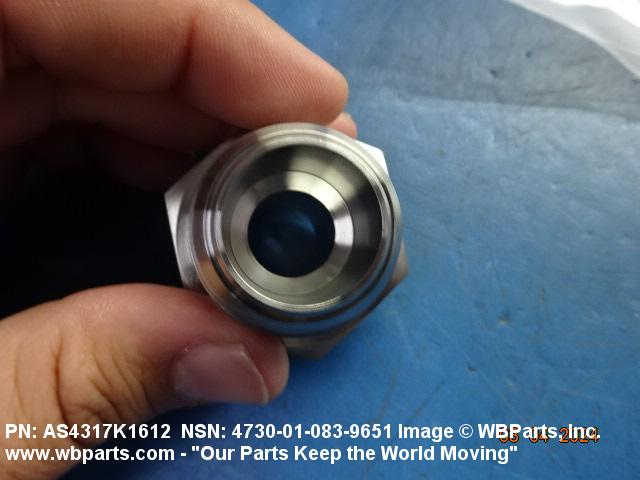

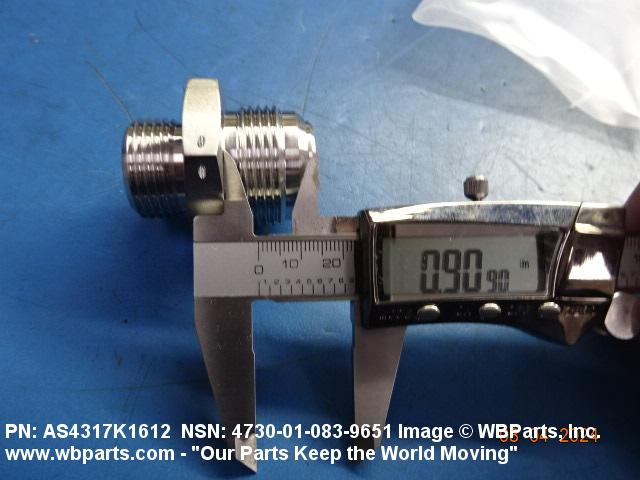

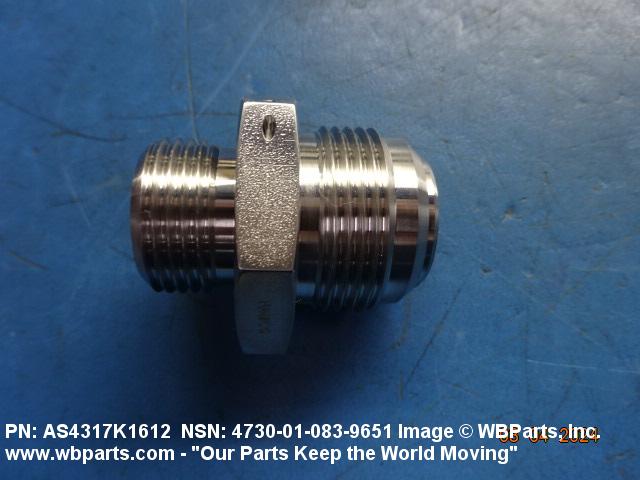

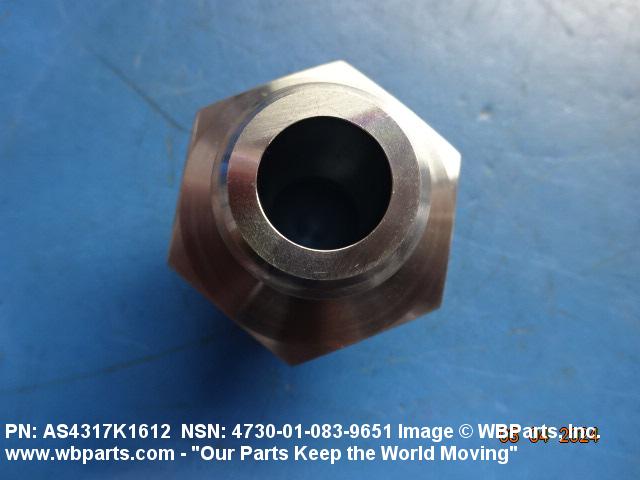

Drawings & Photos | NSN 4730-01-083-9651
Demand History | NSN 4730-01-083-9651
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS4317K1612 | 2025-08-240 | 30 | United States |
| AS4317K1612 | 2025-01-13 | 20 | US |
| AS4317K1612 | 2024-02-37 | 20 | United States |
| AS4317K1612 | 2023-03-83 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-083-9651
Technical Data | NSN 4730-01-083-9651
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B81 FLARED W/GASKET SEAL 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UN 1ST END UN 2ND END |
| NOMINAL THREAD SIZE | 1.312 INCHES 1ST END 1.062 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 12 1ST END 12 2ND END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |
| NOMINAL OVERALL LENGTH | 1.912 INCHES |
| SPECIAL FEATURES | MACHINED GROOVE IN FLARED END TO ACCOMMODATE SEAL RING PER KC103 |
Restrictions/Controls & Freight Information | NSN 4730-01-083-9651
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
