NSN 4730-01-087-7557 MS219218D, MS21921-8D, AS21921
Product Details | TUBE COUPLING NUT
4730-01-087-7557 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: MS219218D, MS21921-8D, AS21921, 4730-01-087-7557, 01-087-7557, 4730010877557, 010877557
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 DEC 1979 | 01-087-7557 | 03859 ( NUT, TUBE COUPLING ) |

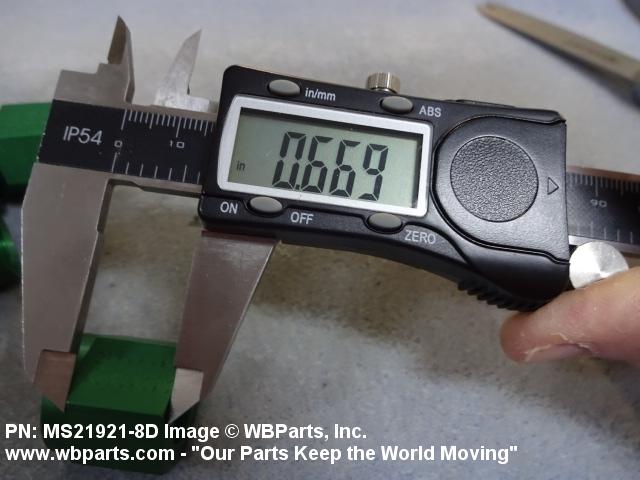

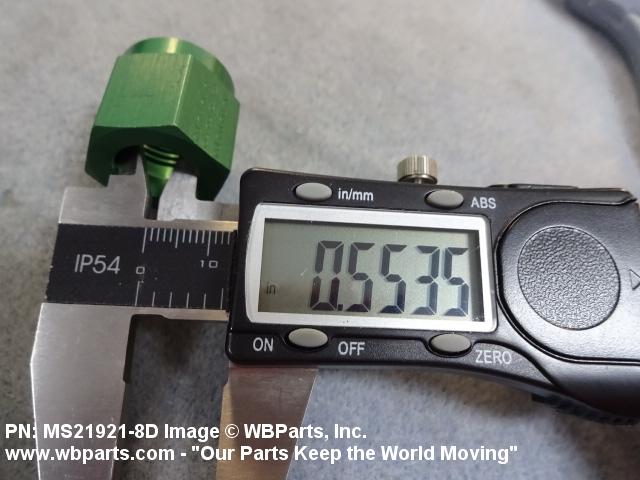

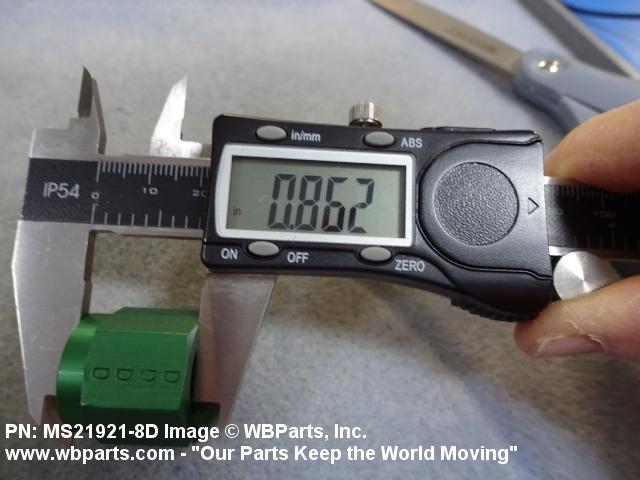

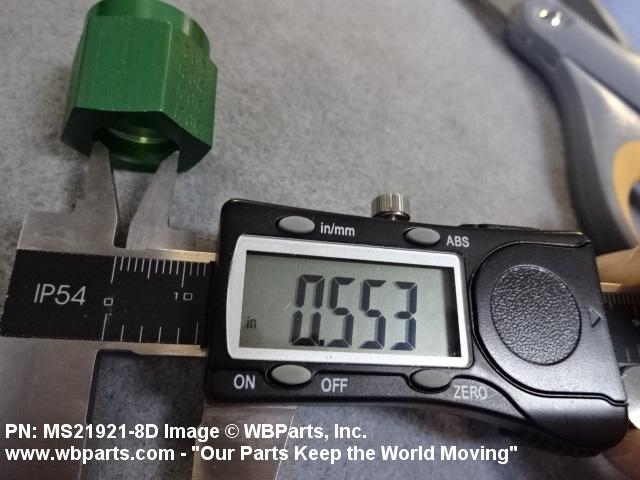

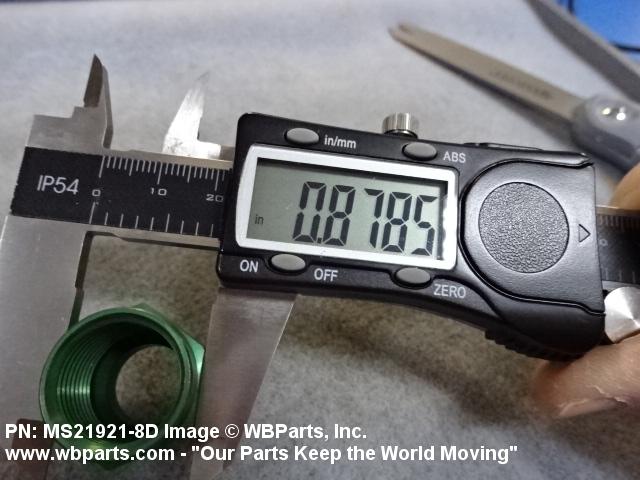

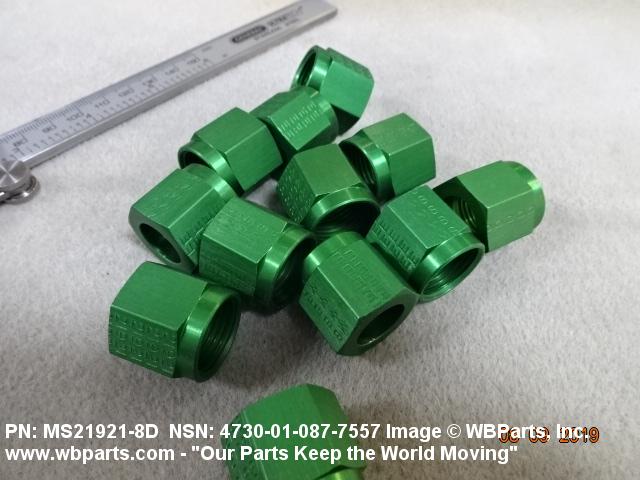

Drawings & Photos | NSN 4730-01-087-7557
Demand History | NSN 4730-01-087-7557
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS219218D | 2025-03-73 | 100 | us |
| MS219218D | 2017-08-228 | 30 | US |
| AS21921 | 2013-03-73 | 20 | US |
| AS21921 | 2013-03-73 | 50 | US |
| AS21921 | 2013-03-73 | 100 | US |
| AS21921 | 2013-03-73 | 20 | US |
| AS21921 | 2013-03-73 | 50 | US |
| AS21921 | 2013-03-73 | 100 | US |
| MS219218D | 2012-12-342 | 20 | Canada |
| MS219218D | 2012-11-331 | 100 | Canada |
| MS219218D | 2012-10-304 | 25 | US |
| MS219218D | 2010-06-176 | 28 | Italy |
| AS21921 | 2010-04-95 | 4 | Seychelles |
| MS219218D | 2008-09-273 | 50 | US |
| MS219218D | 2007-11-331 | 100 | United States |
| 4730-01-087-7557 | 2007-02-59 | 10 | US |
| MS219218D | 2006-07-201 | 20 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-087-7557
Related Products | NSN 4730-01-087-7557
Technical Data | NSN 4730-01-087-7557
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 2014 AND ALUMINUM ALLOY 2024 OVERALL |
| NUT STYLE | A350 TUBE COUPLING |
| NUT HEIGHT | 0.850 INCHES MINIMUM AND 0.870 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.871 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| LENGTH TO SHOULDER | 0.599 INCHES MINIMUM AND 0.619 INCHES MAXIMUM |
| SMALLEST INSIDE DIAMETER | 0.552 INCHES MINIMUM AND 0.557 INCHES MAXIMUM |
| SEAT ANGLE | 45.0 DEGREES NOMINAL |
| FABRICATION METHOD | ANY ACCEPTABLE |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.500 INCHES |
| SPECIFICATION/STANDARD DATA | 96906-MS21921 GOVERNMENT STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-01-087-7557
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-087-7557
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
