NSN 4730-01-088-7796 AS322008, AS3220-08, AS4841

Product Details | TUBE FITTING FLARED SLEEVE

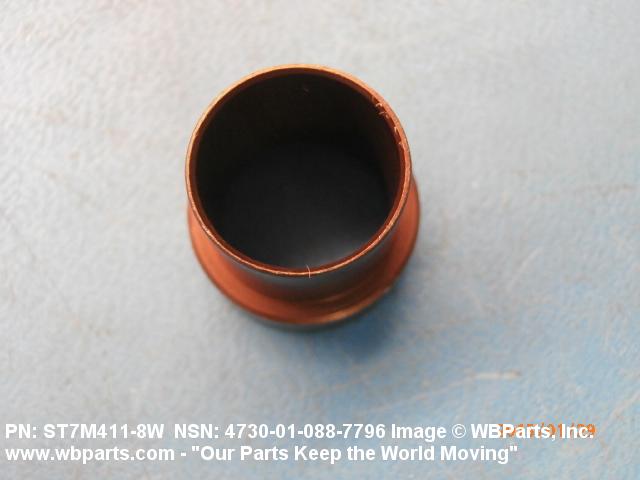

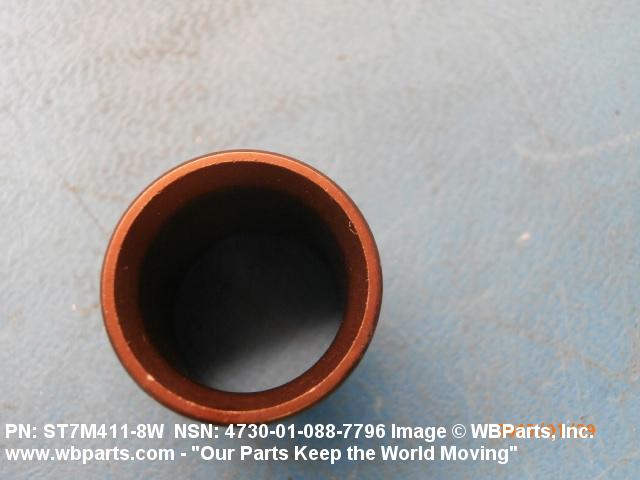

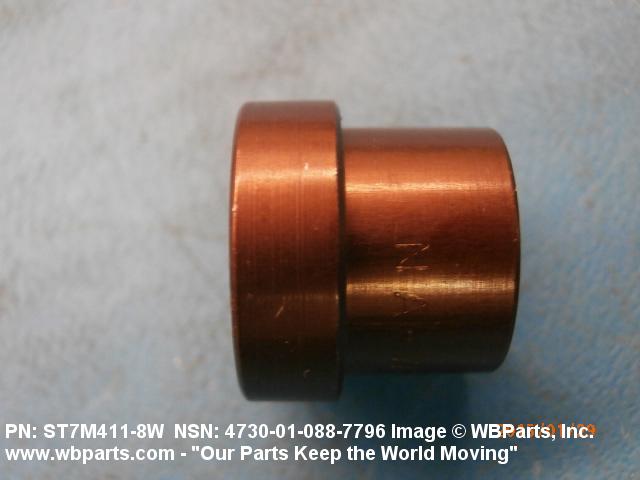

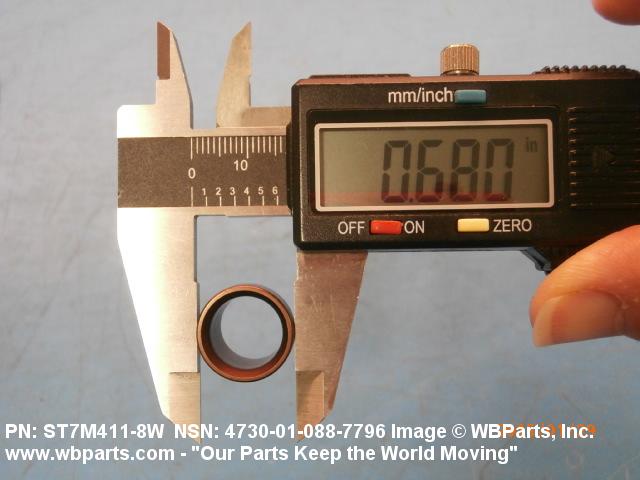

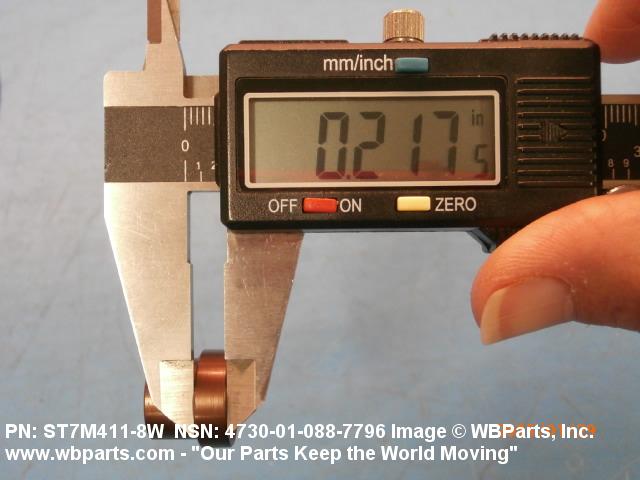

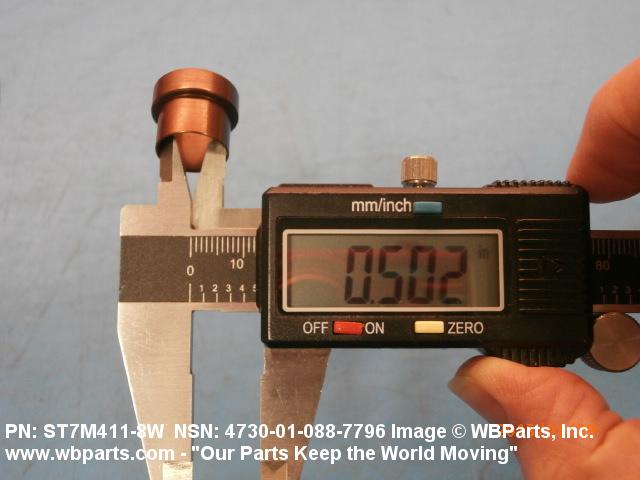

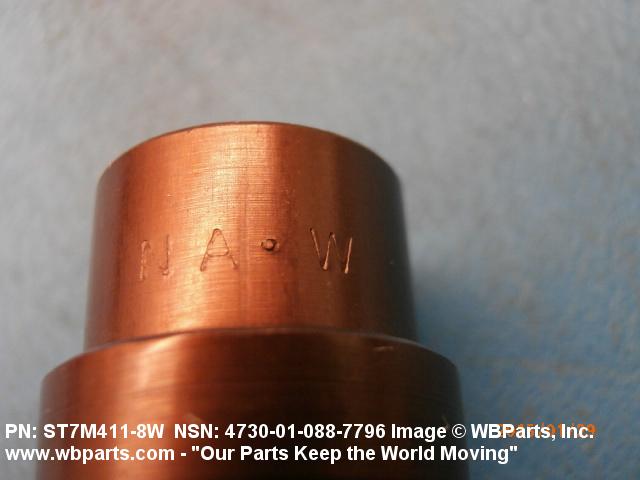

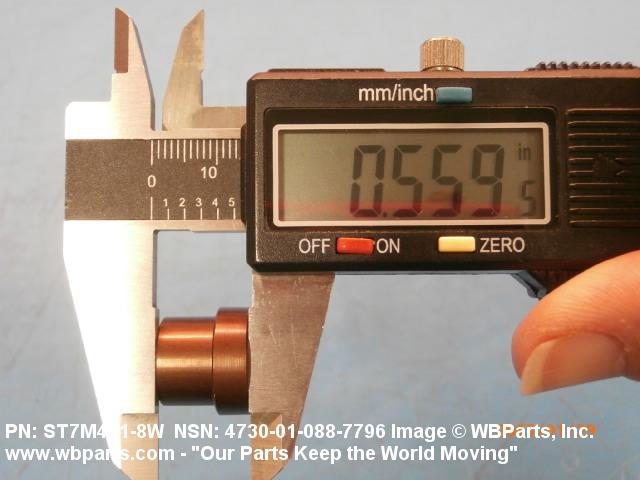

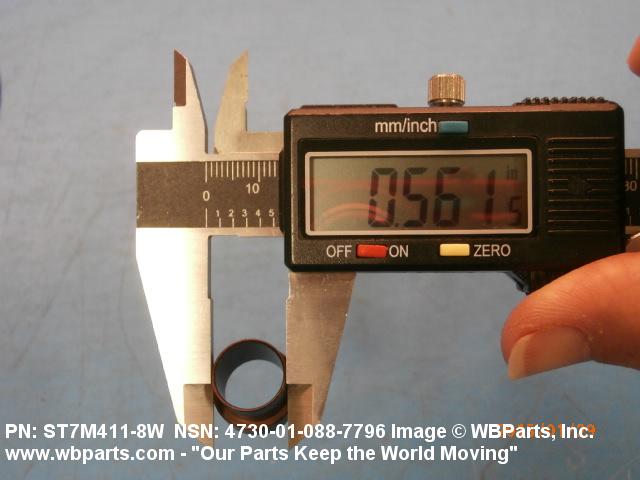

4730-01-088-7796 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
