NSN 4730-01-095-3548 C31E9224, C31E92249, C31E9224-9
Product Details | COUPLING ASSEMBLY
4730-01-095-3548
Part Alternates: C31E9224, C31E92249, C31E9224-9, ZN1454P12B12, ZN-1454P-12-B12, 4730-01-095-3548, 01-095-3548, 4730010953548, 010953548
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 MAY 1980 | 01-095-3548 | 77777 ( ) |

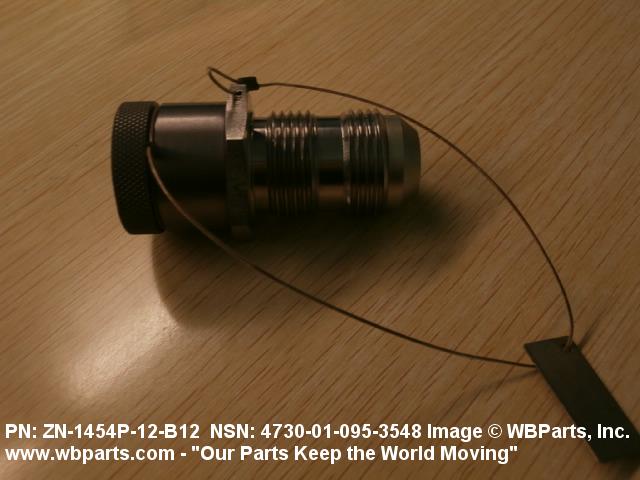

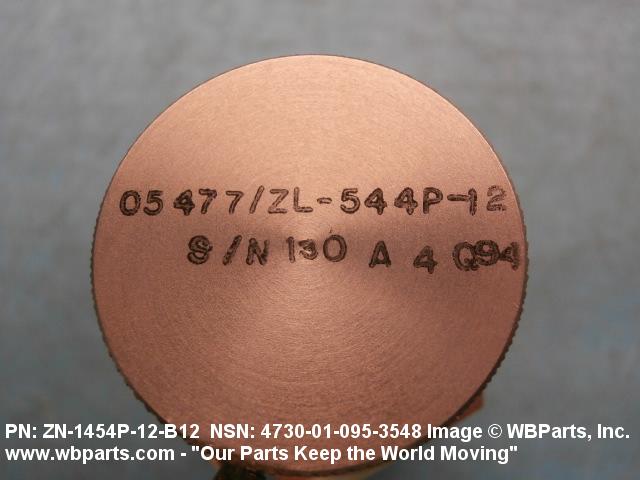

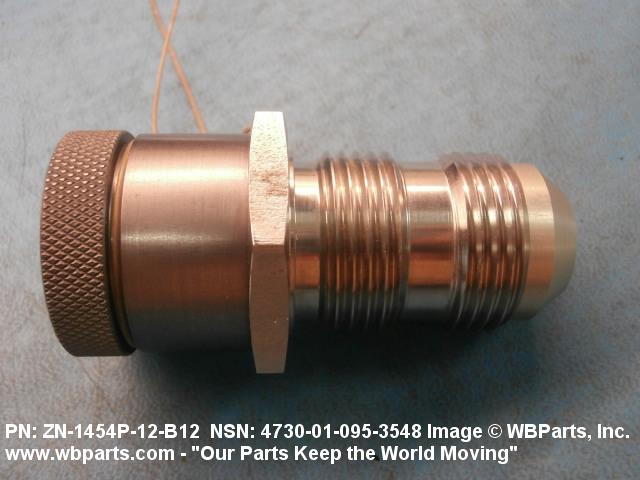

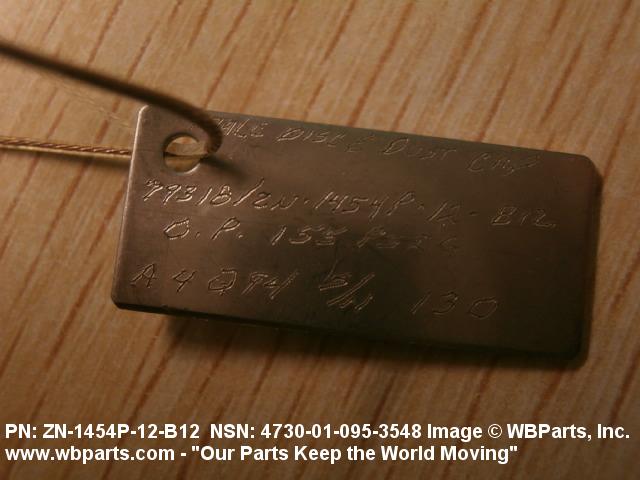

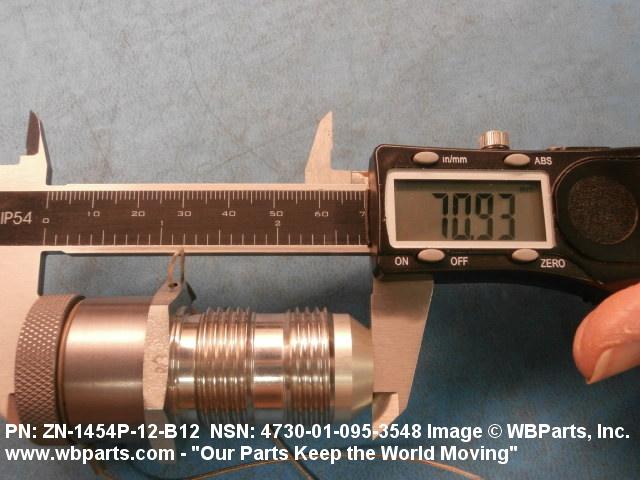

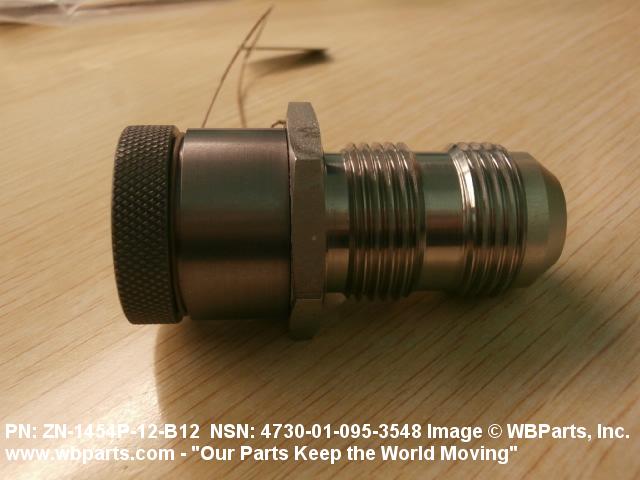

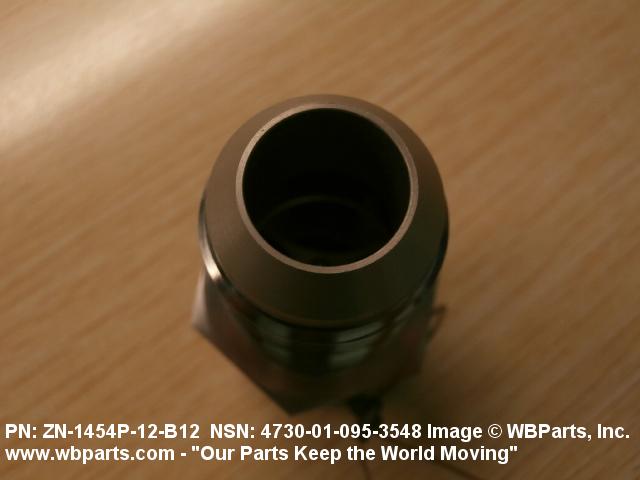

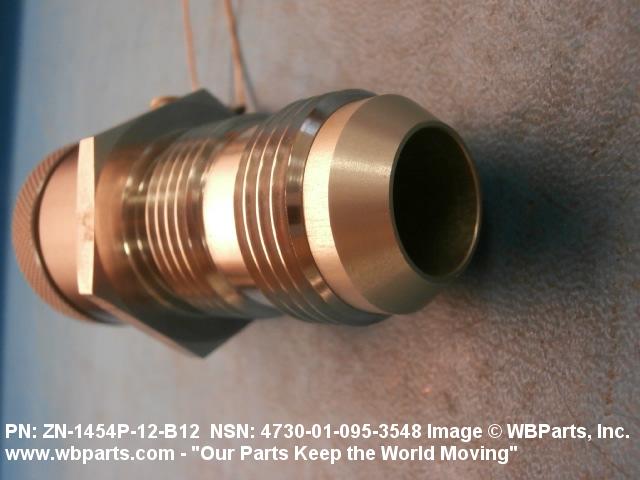

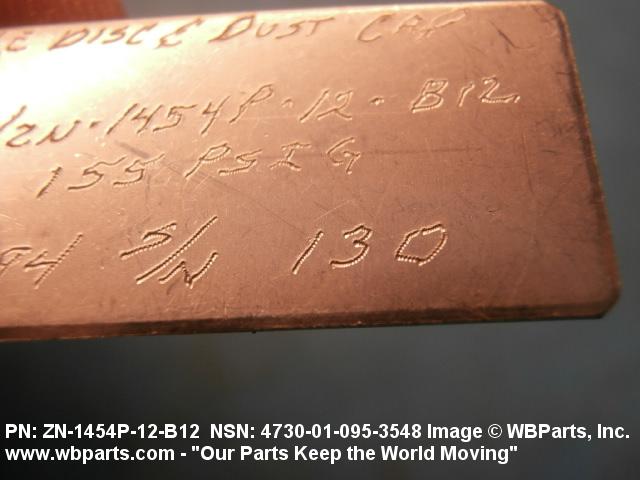

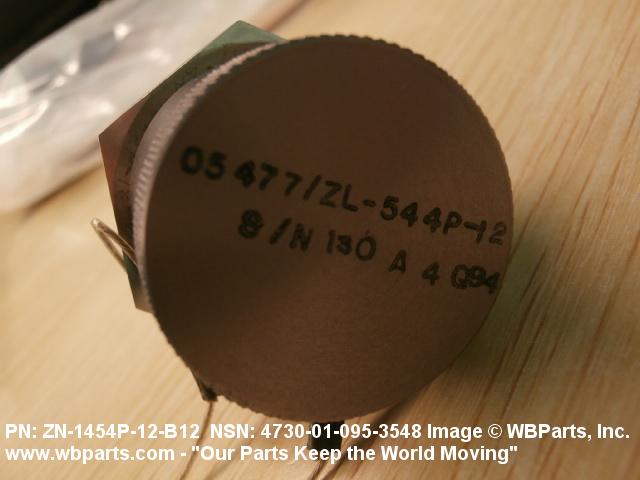

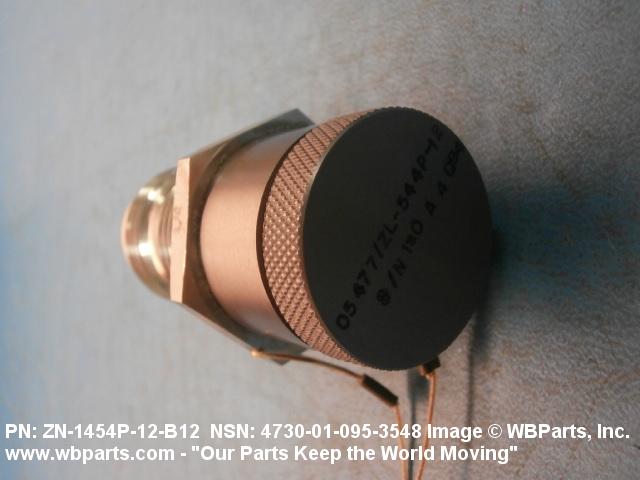

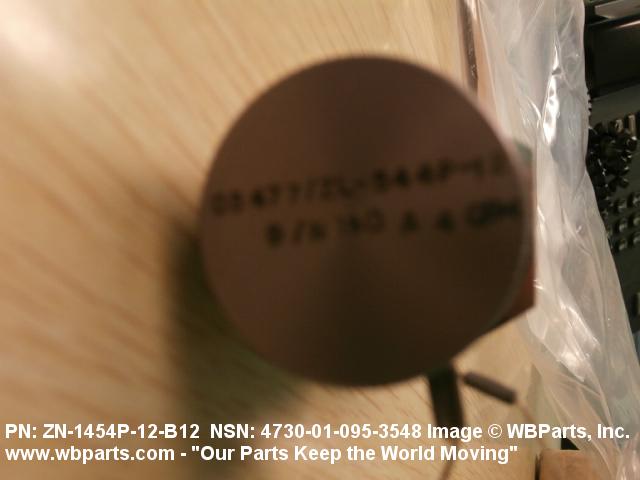

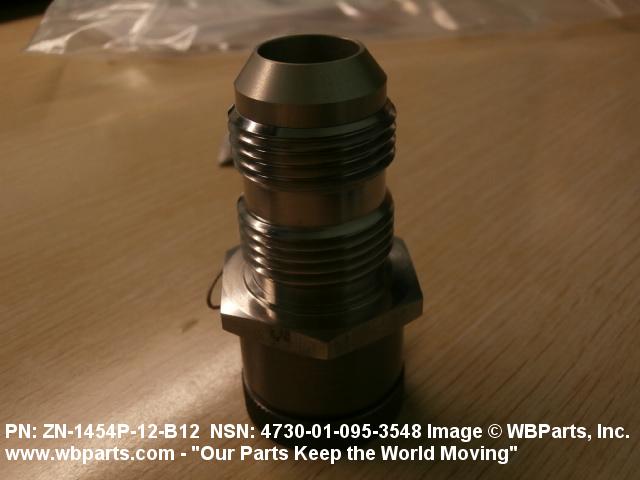

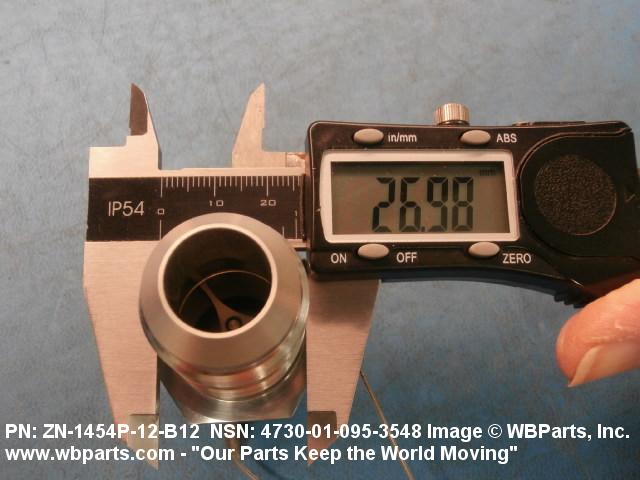

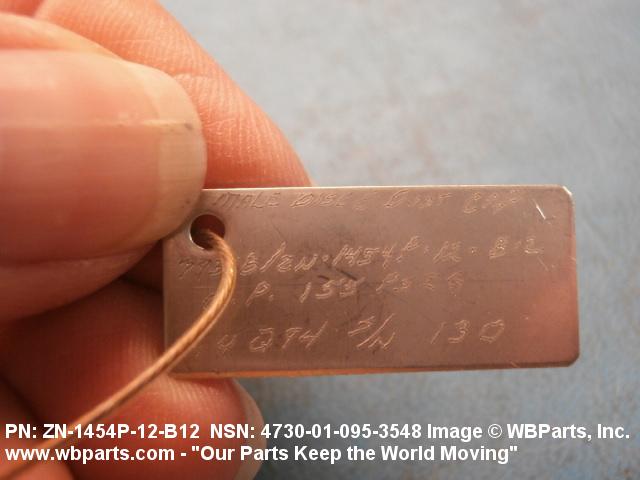

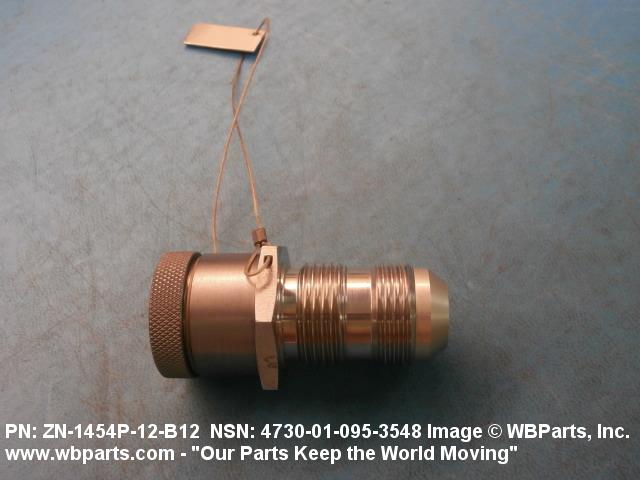

Drawings & Photos | NSN 4730-01-095-3548
Demand History | NSN 4730-01-095-3548
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ZN1454P12B12 | 2016-09-258 | 1 | United States |
Cross Reference | NSN 4730-01-095-3548
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C31E9224 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| C31E9224-9 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| ZN-1454P-12-B12 | 05477 | NEW SD INC SEATON-WILSON DIV |
| ZN-1454P-12-B12 | 79318 | MEGGITT (NORTH HOLLYWOOD), INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-095-3548
Related Products | NSN 4730-01-095-3548
Technical Data | NSN 4730-01-095-3548
| Characteristic | Specifications |
|---|---|

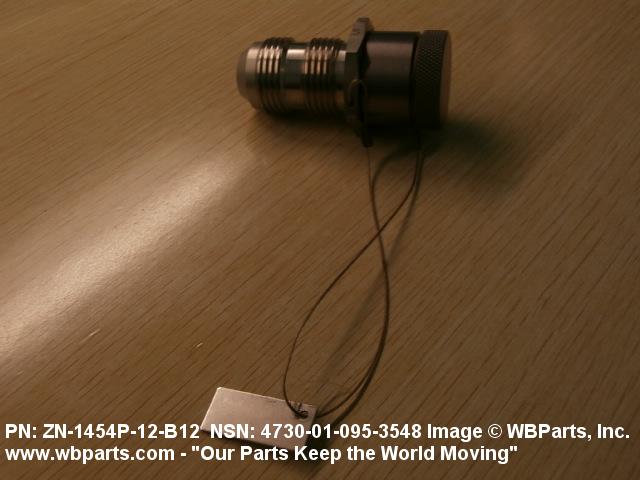

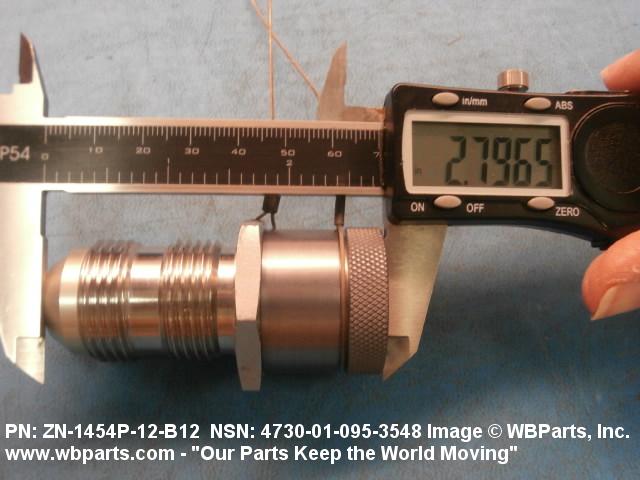

| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL,QQ-P-416,CADMIUM PLATE,QQ-P-416,FIRST COUPLING 2.730 IN. LG,11/16-12UNJ-3A THD,SECOND COUPLING 1.000 IN. LG,BOTH COUPLINGS CONNECTED BY A LANYARD |
| MANUFACTURERS CODE | 26512 |
| MFR SOURCE CONTROLLING REFERENCE | C31E9224 |
Restrictions/Controls & Freight Information | NSN 4730-01-095-3548
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
