NSN 4730-01-105-6180 0N536013, 01-105-6180, 011056180
Product Details | SPECIAL-SHAPED HOSE CLAMP
4730-01-105-6180 A clamp in which the body (band or wire) completely surrounds the item and exerts an evenly distributed pressure on its periphery. It is specifically designed to prevent leakage between a hose and its attaching connections when the body of the clamp is square, rectangular, or irregularly shaped. For items with round or circular bodies, see CLAMP (1) , HOSE.
Part Alternates: 0N536013, 4730-01-105-6180, 01-105-6180, 4730011056180, 011056180
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 31 DEC 1980 | 01-105-6180 | 42739 ( CLAMP, HOSE, SPECIAL-SHAPED ) |
Drawings & Photos | NSN 4730-01-105-6180
Cross Reference | NSN 4730-01-105-6180
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0N536013 | 98230 | NATIONAL SECURITY AGENCY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-105-6180
Technical Data | NSN 4730-01-105-6180
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5052 OVERALL |

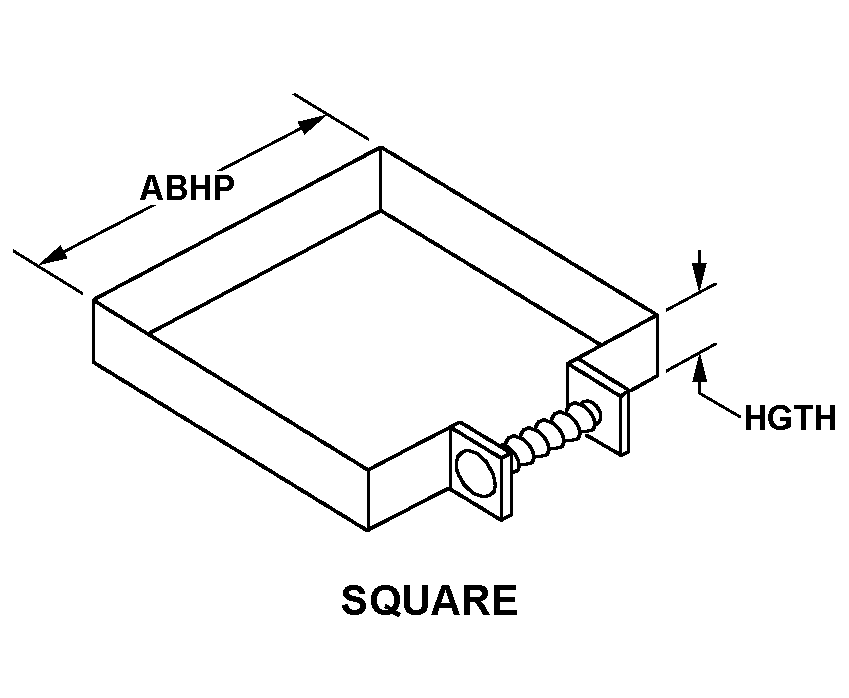

| STYLE DESIGNATOR | D1 SQUARE |
| OVERALL LENGTH | 1.120 INCHES NOMINAL |
| HEIGHT | 0.550 INCHES NOMINAL |
| FASTENING DEVICE TYPE | PLAIN SLOTTED HEAD SCREW |
| III END ITEM IDENTIFICATION | KG-84;HRT |
| MANUFACTURERS CODE | 98230 |
| DESIGN CONTROL REFERENCE | 0N536013 |
Restrictions/Controls & Freight Information | NSN 4730-01-105-6180
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
