NSN 4730-01-109-1159 11450833, 114508-33, 01-109-1159
Product Details | FLUID FLOW RESTRICTOR
4730-01-109-1159 An item of solid one-piece construction, designed to restrict the flow of a fluid through it. It has an orifice of a smaller size than the diameter of flow into it. Excludes items such as VALVE (1), (as modified); and others with an adjustable orifice. Excludes pipe, tube, or hose fittings with restricted passages and items designed to test fluid flow. For items containing screens or filters, see RESTRICTOR UNIT, FLUID FLOW.
Part Alternates: 11450833, 114508-33, 4730-01-109-1159, 01-109-1159, 4730011091159, 011091159
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 MAR 1981 | 01-109-1159 | 18263 ( RESTRICTOR, FLUID FLOW ) |

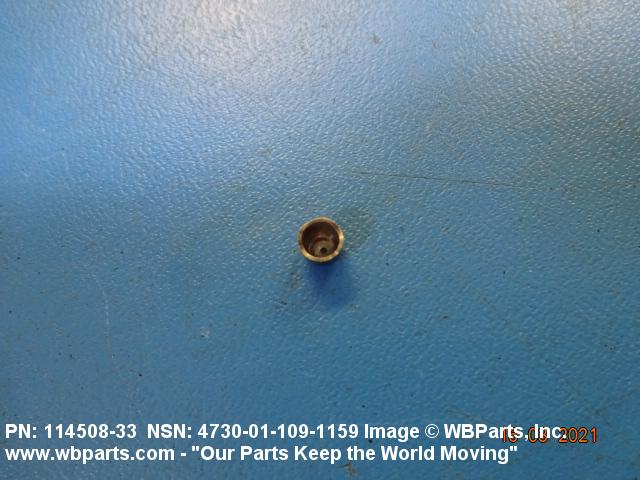

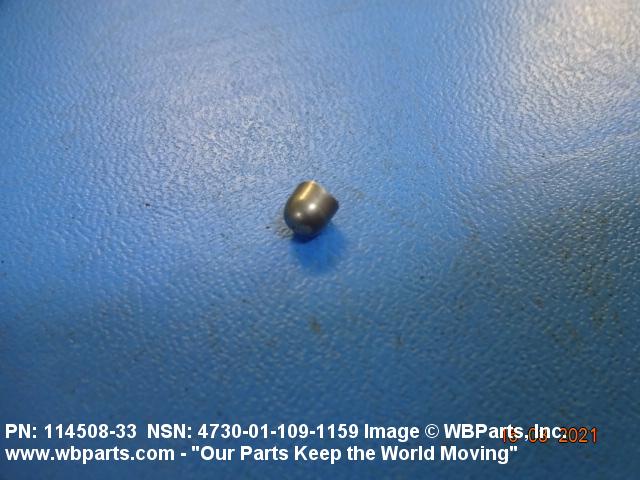

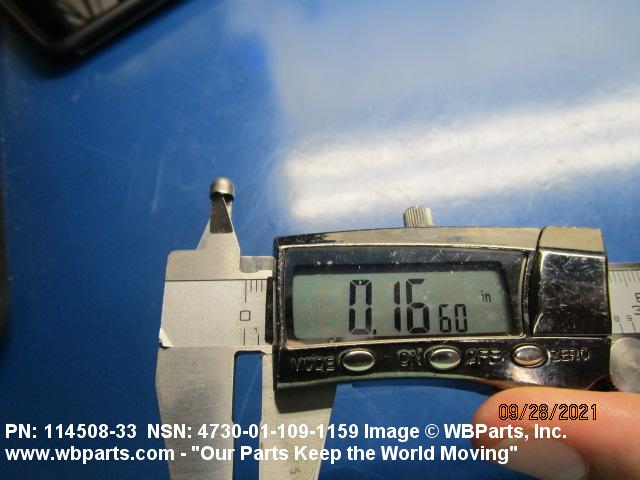

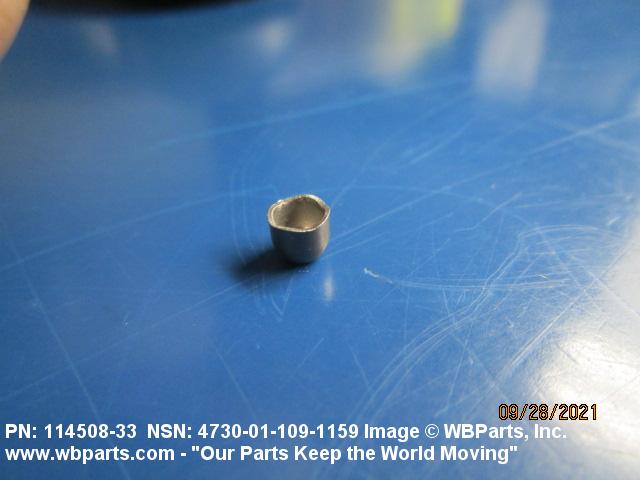

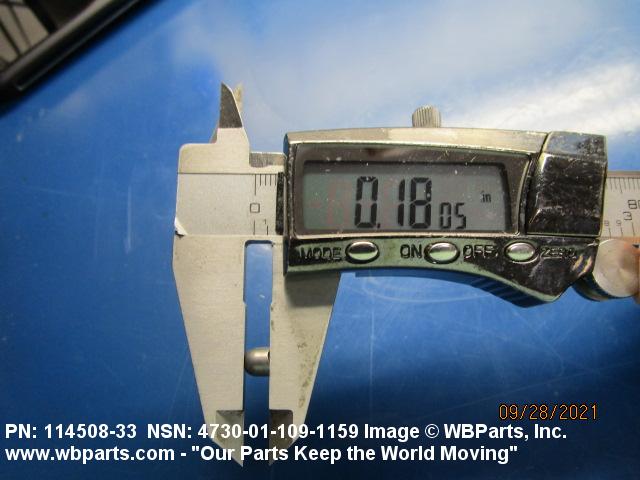

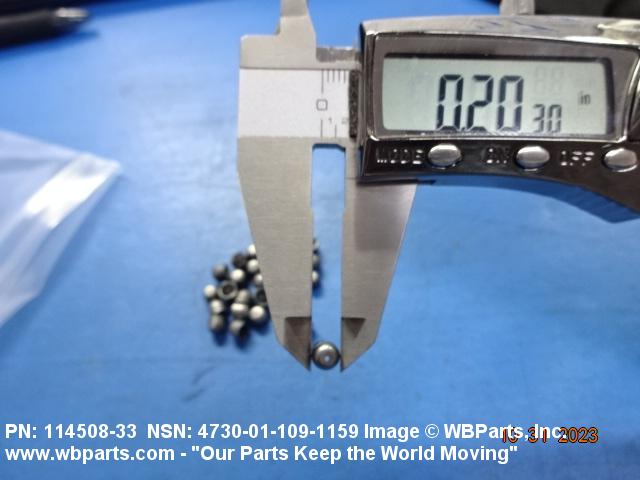

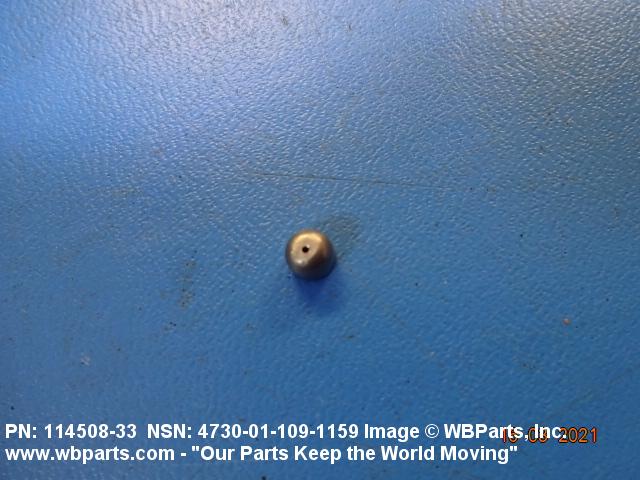

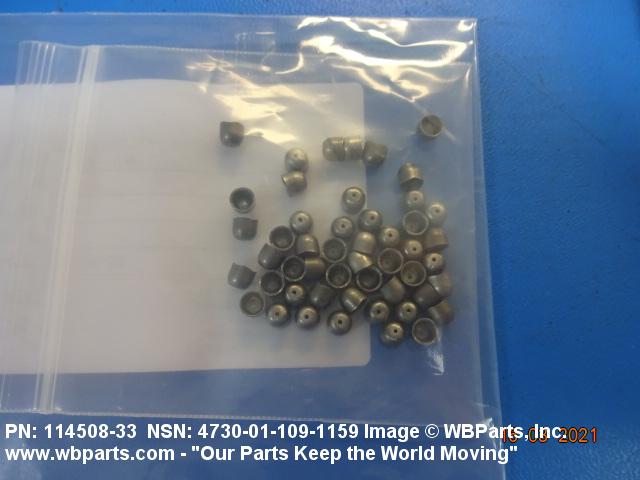

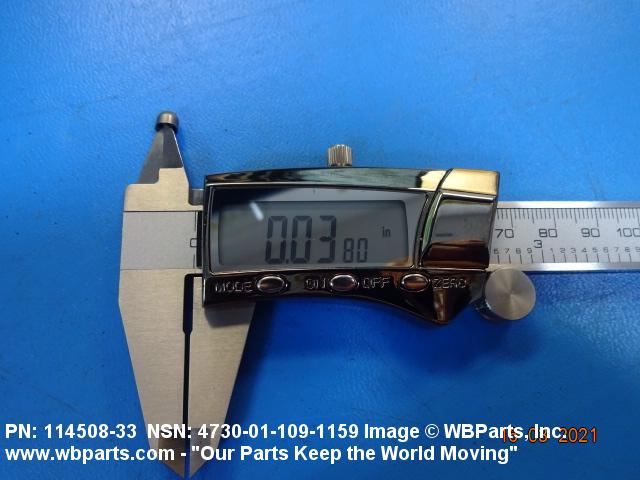

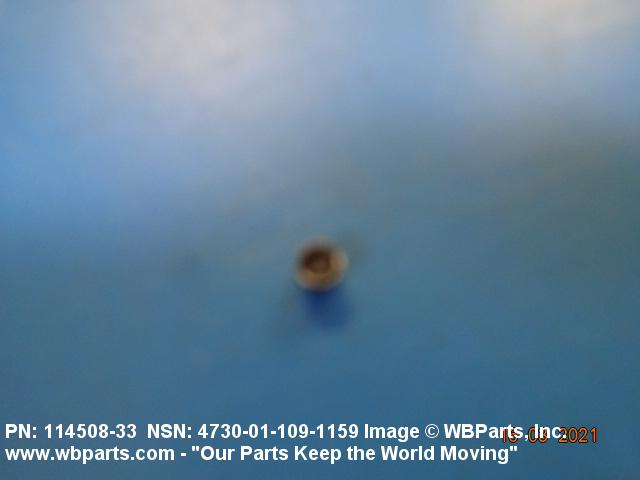

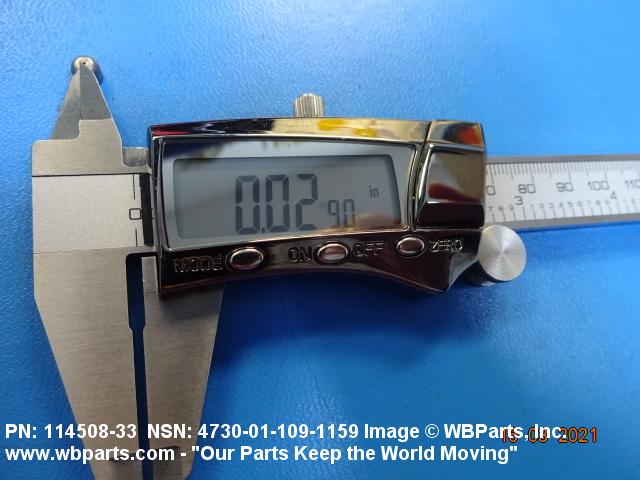

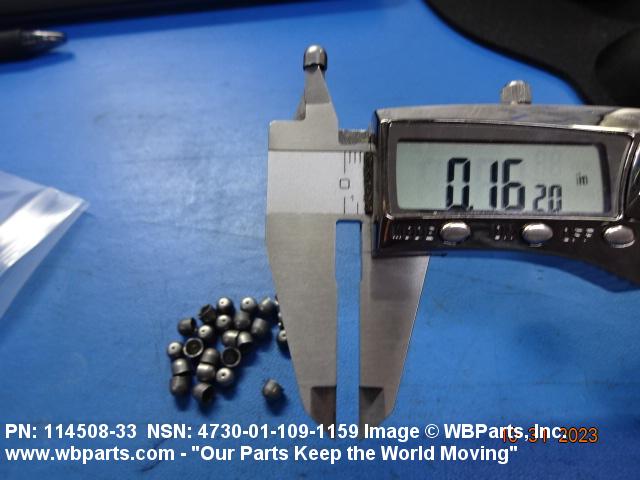

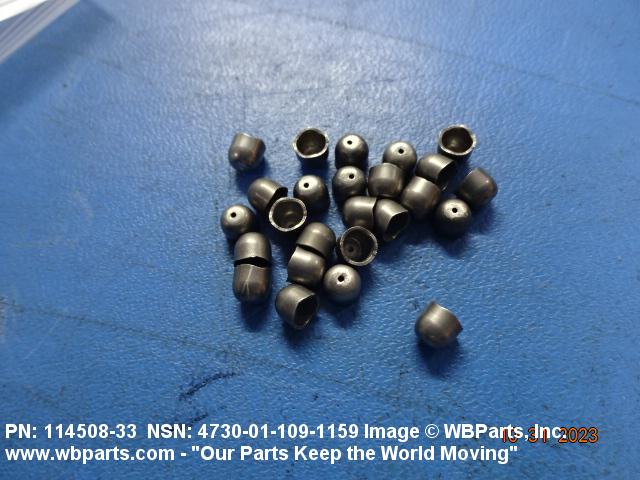

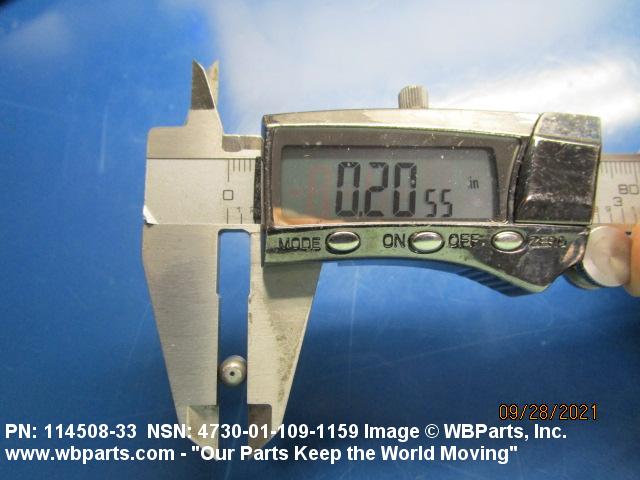

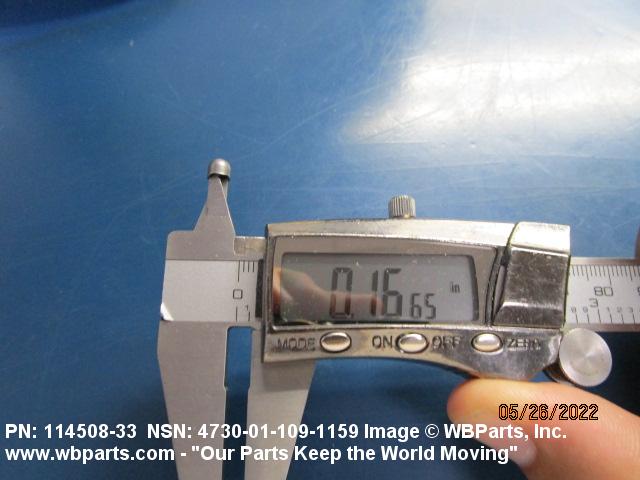

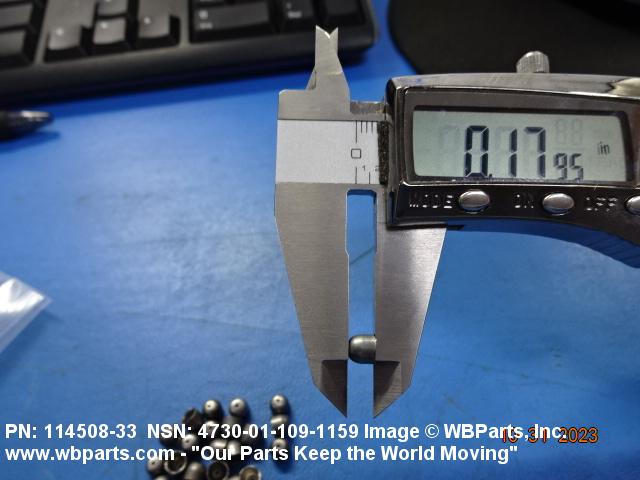

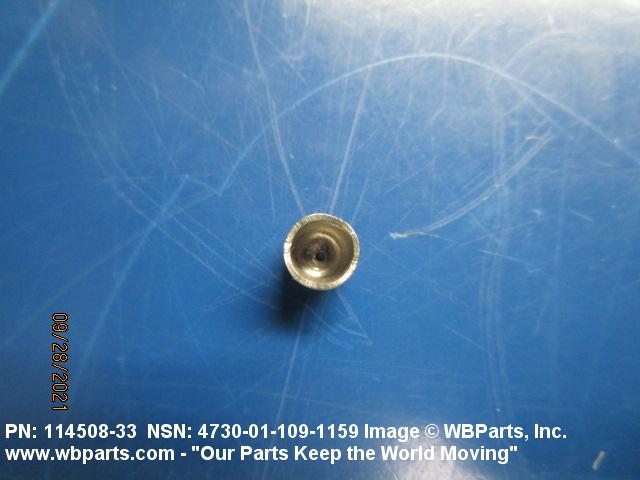

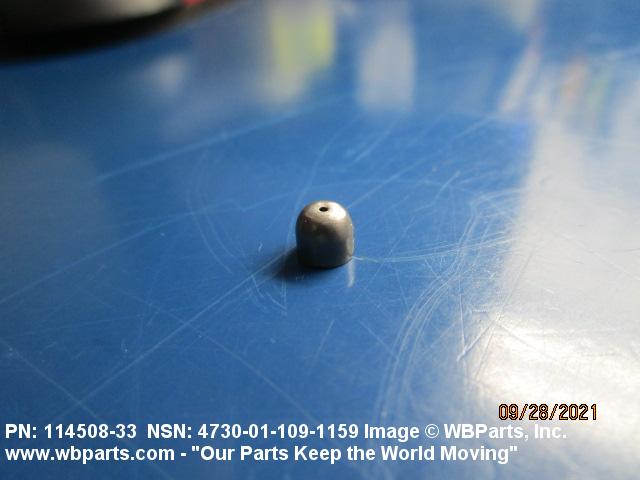

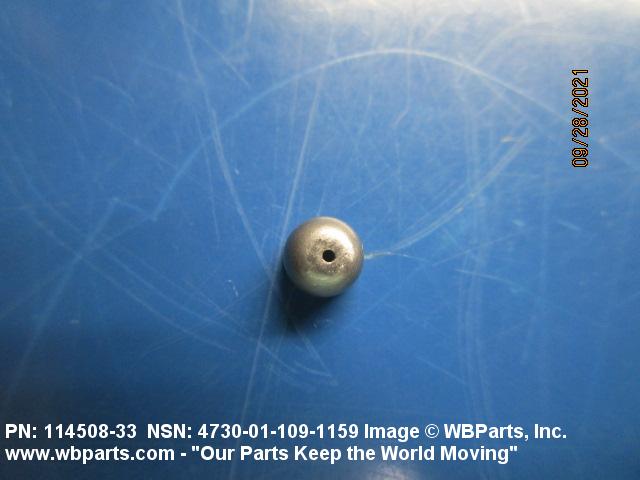

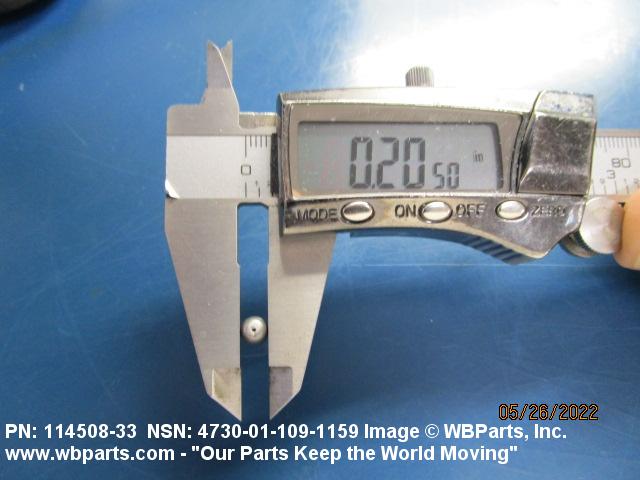

Drawings & Photos | NSN 4730-01-109-1159
Demand History | NSN 4730-01-109-1159
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11450833 | 2023-10-285 | 100 | United States |
| 11450833 | 2022-03-68 | 100 | United States |
| 11450833 | 2021-09-258 | 65 | United States |
| 11450833 | 2021-02-54 | 50 | United States |
| 11450833 | 2021-02-43 | 100 | United States |
| 4730-01-109-1159 | 2020-08-225 | 150 | United States |
| 11450833 | 2018-08-226 | 150 | US |
Cross Reference | NSN 4730-01-109-1159
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114508-33 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-109-1159
Technical Data | NSN 4730-01-109-1159
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ANODIZED, MIL-A-8625, TYPE 2 |
| DESIGN TYPE | TUBULAR |
| THREAD PROVISION | UNTHREADED |
| ORIFICE DIAMETER | 0.029 INCHES MINIMUM AND 0.031 INCHES MAXIMUM |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 114508-33 |
Restrictions/Controls & Freight Information | NSN 4730-01-109-1159
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-109-1159
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | GQ | (Non-JSL Items) TURBO PROPENGINES(T76) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
