NSN 4730-01-124-3719 BACT16CB04J, D10026, D1002604
Product Details | TUBE TEE
4730-01-124-3719 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: BACT16CB04J, D10026, D1002604, D10026-04, 4730-01-124-3719, 01-124-3719, 4730011243719, 011243719
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1982 | 01-124-3719 | 03809 ( TEE, TUBE ) |

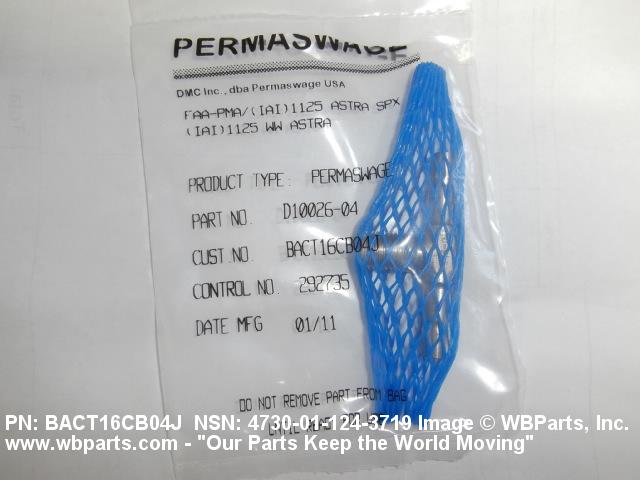

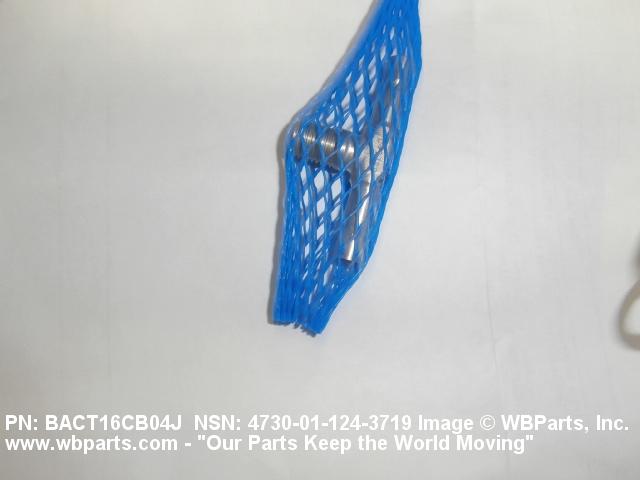

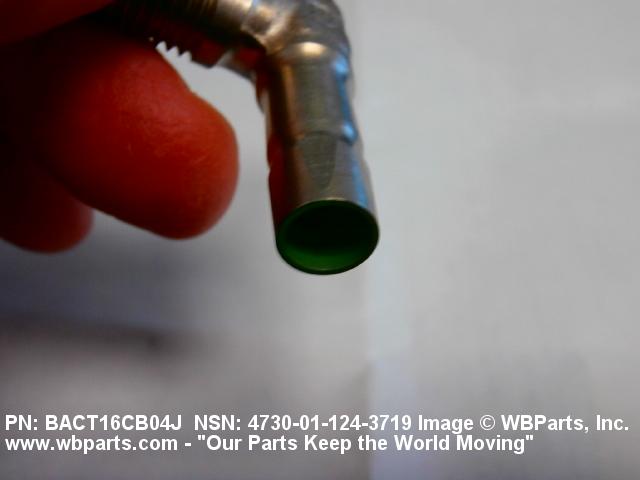

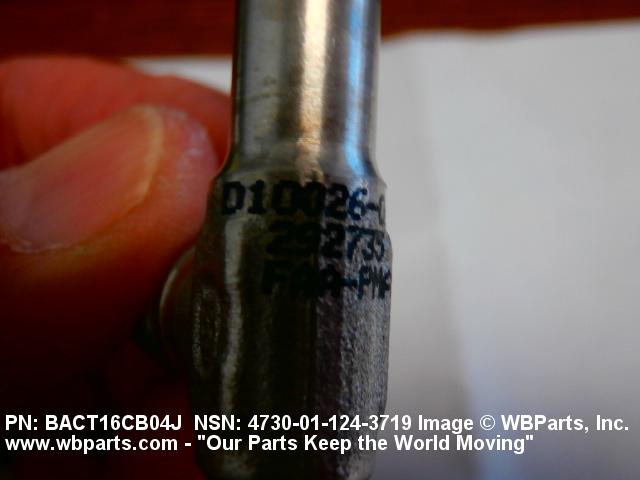

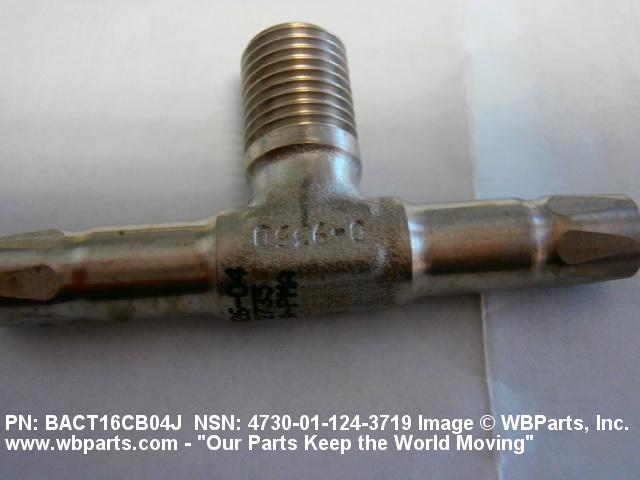

Drawings & Photos | NSN 4730-01-124-3719
Demand History | NSN 4730-01-124-3719
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-124-3719 | 2025-05-136 | 3 | Oman |
| 4730-01-124-3719 | 2025-04-107 | 3 | Oman |
| BACT16CB04J | 2019-01-31 | 274 | DIBBS |
| D10026-04 | 2019-01-31 | 274 | DIBBS |
| 4730-01-124-3719 | 2018-12-360 | 93 | DIBBS |
| 4730-01-124-3719 | 2016-09-252 | 66 | DIBBS |
| 4730-01-124-3719 | 2016-05-139 | 91 | DIBBS |
| 4730-01-124-3719 | 2015-02-47 | 82 | DIBBS |
| 4730-01-124-3719 | 2014-09-261 | 90 | DIBBS |
| 4730-01-124-3719 | 2014-01-10 | 69 | DIBBS |
| 4730-01-124-3719 | 2013-09-272 | 77 | DIBBS |
| 4730-01-124-3719 | 2013-08-220 | 27 | DIBBS |
| 4730-01-124-3719 | 2013-06-156 | 50 | DIBBS |
| 4730-01-124-3719 | 2012-09-249 | 46 | DIBBS |
| 4730-01-124-3719 | 2012-08-217 | 29 | DIBBS |
| 4730-01-124-3719 | 2012-06-156 | 29 | DIBBS |
| 4730-01-124-3719 | 2012-06-156 | 38 | DIBBS |
| BACT16CB04J | 2012-03-62 | 10 | Italy |
| 4730-01-124-3719 | 2010-10-301 | 39 | DIBBS |
| 4730-01-124-3719 | 2009-04-114 | 14 | DIBBS |
| 4730-01-124-3719 | 2009-04-97 | 60 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-124-3719
Related Products | NSN 4730-01-124-3719
Technical Data | NSN 4730-01-124-3719
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5656,TYPE 21-6-9 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE 1ST END UNTHREADED INTERNAL TUBE 2ND END THREADED EXTERNAL TUBE 3RD END |
| CONNECTION STYLE | B48 SWAGED W/GROOVES 1ST END B48 SWAGED W/GROOVES 2ND END B66 FLARELESS 3RD END |
| SEAT ANGLE | 12.0 DEGREES 3RD END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF 3RD END |
| NOMINAL THREAD SIZE | 0.437 INCHES 3RD END |
| THREAD CLASS | 3A 3RD END |
| LEG LENGTH | 1.130 INCHES NOMINAL 1ST END 1.130 INCHES NOMINAL 2ND END 0.875 INCHES NOMINAL 3RD END |
| SPECIAL FEATURES | TEFLON COATING TO COVER ALL EXTERNAL PERMASWAGE SURFACES |
| MANUFACTURERS CODE | 81205 |
| MFR SOURCE CONTROLLING REFERENCE | BACT16CB04J |
Restrictions/Controls & Freight Information | NSN 4730-01-124-3719
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-124-3719
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
