NSN 4730-01-132-0021 BACT16BX04J, H1107604, H11076-04

Product Details | TUBE TEE

4730-01-132-0021 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.

Part Alternates: BACT16BX04J, H1107604, H11076-04, LD82016040404, LD82016-040404, LD8300404, LD83004-04, LD83004040404, LD83004-040404, D1007604, D10076-04, D10076040404, D10076-040404, 4730-01-132-0021, 01-132-0021, 4730011320021, 011320021

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	20 MAY 1982	01-132-0021	03809 ( TEE, TUBE )

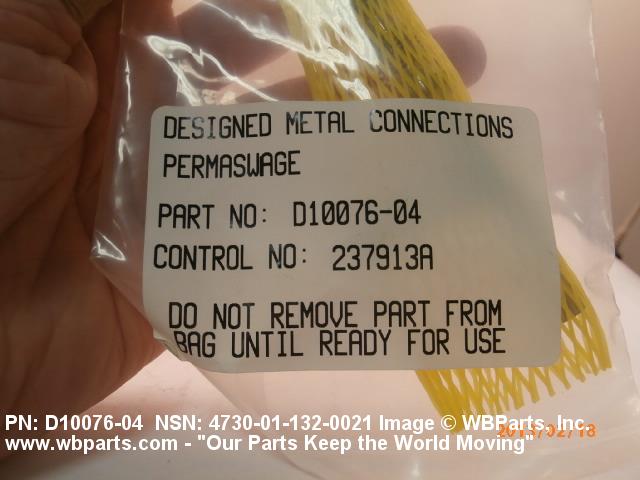

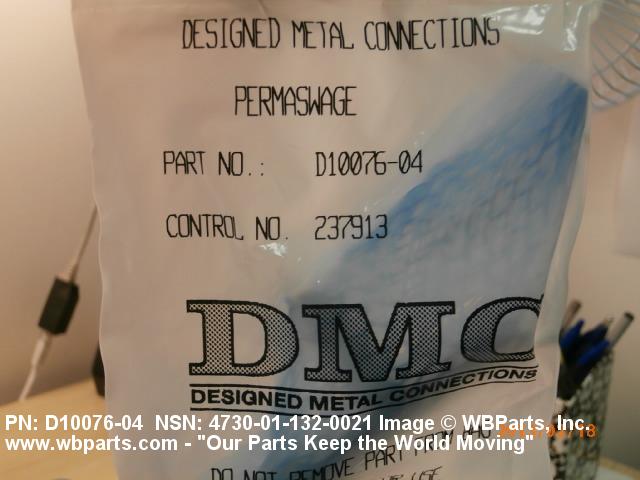

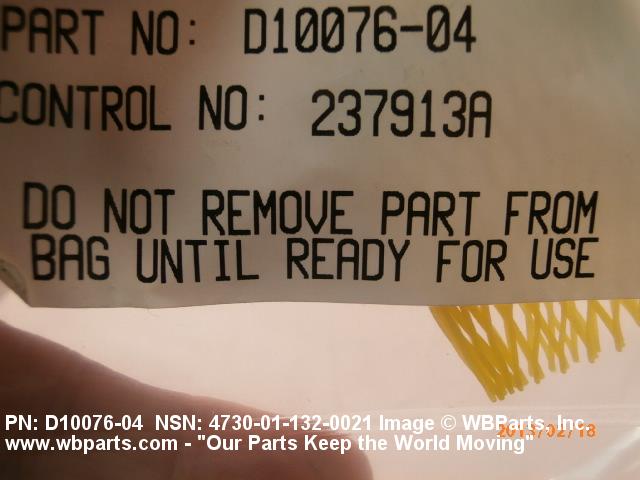

Drawings & Photos | NSN 4730-01-132-0021

Part Number	Request Date	QTY	Origin
BACT16BX04J	2020-10-294	36	DIBBS
D10076-04	2020-10-294	36	DIBBS
H10076-04	2020-10-294	36	DIBBS
D10076-04	2020-07-206	17	China
BACT16BX04J	2019-11-317	14	DIBBS
D10076-04	2019-11-317	14	DIBBS
H10076-04	2019-11-317	14	DIBBS
BACT16BX04J	2019-08-241	29	DIBBS
D10076-04	2019-08-241	29	DIBBS
H10076-04	2019-08-241	29	DIBBS
4730-01-132-0021	2018-02-36	16	DIBBS
4730-01-132-0021	2017-04-92	14	DIBBS
4730-01-132-0021	2013-07-212	46	DIBBS
4730-01-132-0021	2013-01-22	20	Italy
4730-01-132-0021	2013-01-22	20	Italy
BACT16BX04J	2012-11-312	20	Italy
BACT16BX04J	2012-11-311	20	Italy
BACT16BX04J	2012-09-271	25	Italy
BACT16BX04J	2012-09-257	25	Italy
BACT16BX04J	2012-03-67	41054	Italy

Cross Reference | NSN 4730-01-132-0021

Part Number	Cage Code	Manufacturer
BACT16BX04J	81205	THE BOEING COMPANY DBA BOEING
D10076-04	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
D10076-040404	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
H11076-04	08199	EATON AEROSPACE
LD82016-040404	00624	EATON CORPORATION DBA AEROSPACE DIV
LD83004-04	00624	EATON CORPORATION DBA AEROSPACE DIV
LD83004-040404	00624	EATON CORPORATION DBA AEROSPACE DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-132-0021

Compare

Related Products | NSN 4730-01-132-0021

4730-01-132-0022, 4730-01-132-0023, 4730-01-132-0024, 4730-01-132-0025, 4730-01-132-0026

Technical Data | NSN 4730-01-132-0021

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5656,TYPE 21-6-9 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PLASTIC POLYTETRAFLUOROETHYLENE INSIDE PASSIVATE OUTSIDE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	DEUTCH CO.SPEC NO.DMCPS1009 MFR REF SINGLE TREATMENT RESPONSE INSIDE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OUTSIDE
MEDIA FOR WHICH DESIGNED	FLUID SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	275.0 DEG FAHRENHEIT SINGLE RESPONSE
CONNECTION TYPE	UNTHREADED INTERNAL TUBE 1ST END UNTHREADED INTERNAL TUBE 3RD END THREADED EXTERNAL TUBE 2ND END BULKHEAD
CONNECTION STYLE	B48 SWAGED W/GROOVES 1ST END B48 SWAGED W/GROOVES 3RD END B66 FLARELESS 2ND END BULKHEAD
SEAT ANGLE	12.0 DEGREES 2ND END BULKHEAD
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNJF 2ND END BULKHEAD
NOMINAL THREAD SIZE	0.438 INCHES 2ND END BULKHEAD
THREAD CLASS	3A 2ND END BULKHEAD
LEG LENGTH	1.166 INCHES MINIMUM AND 1.250 INCHES MAXIMUM 1ST END 1.952 INCHES NOMINAL 2ND END 1.166 INCHES MINIMUM AND 1.250 INCHES MAXIMUM 3RD END
SPECIAL FEATURES	TEFLON COAT ON PERMASWAGE ENDS ON ID ONLY 0.190 IN. MIN 0.240 IN. MAX

Restrictions/Controls & Freight Information | NSN 4730-01-132-0021

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-132-0021

Army
Navy

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
