NSN 4730-01-152-8526 C020075GTZ, C-020-075-G-TZ, C020075PT0

Product Details | PIPE CLAMP COUPLING

4730-01-152-8526 A device of two or more bolted segments of housing and a gasket, designed to connect grooved or plain end pipe or tube (or fittings) and which creates a fluid tight joint.

Part Alternates: C020075GTZ, C-020-075-G-TZ, C020075PT0, C-020-075-P-T0, STYLE75-2IN T GRD STD GASKET, STYLE752INTGRDSTDGASKET, KG1052NZ, KG105-2NZ, L020075GT0, L-020-075-GT0 , L020075PT0, 1586860, 1992360, 2226270 , 4730-01-152-8526, 01-152-8526, 4730011528526, 011528526

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	10 MAY 1983	01-152-8526	17503 ( COUPLING, CLAMP, PIPE )

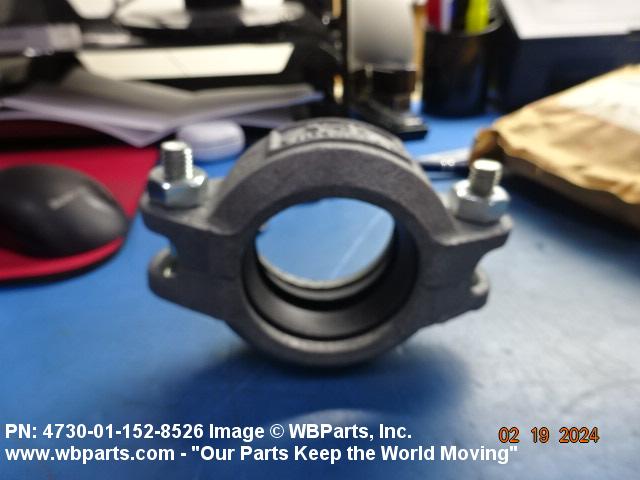

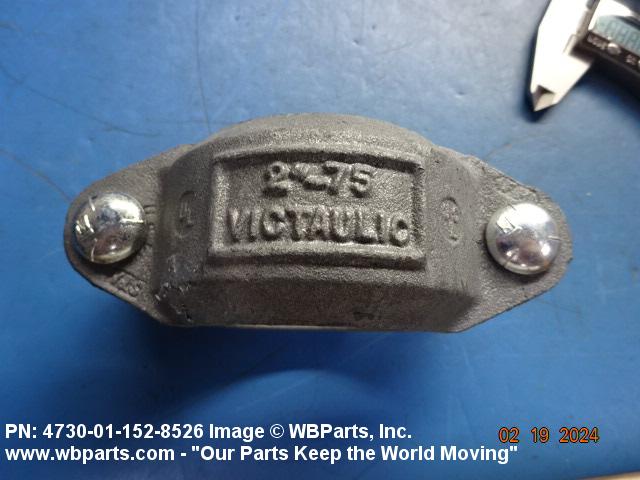

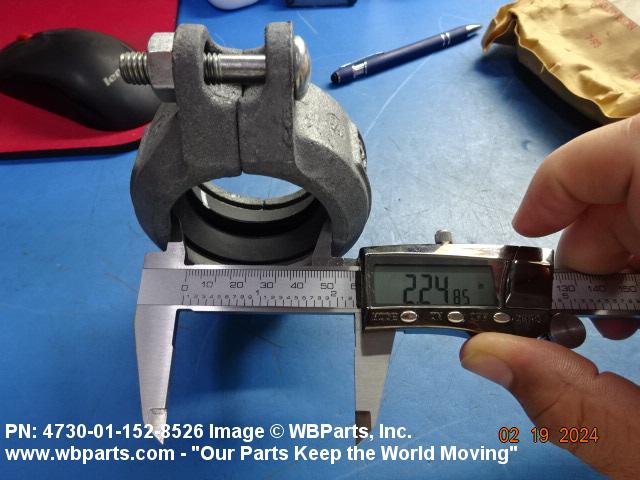

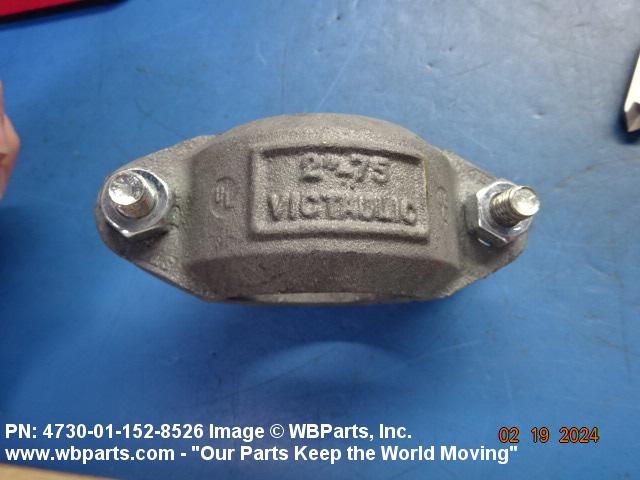

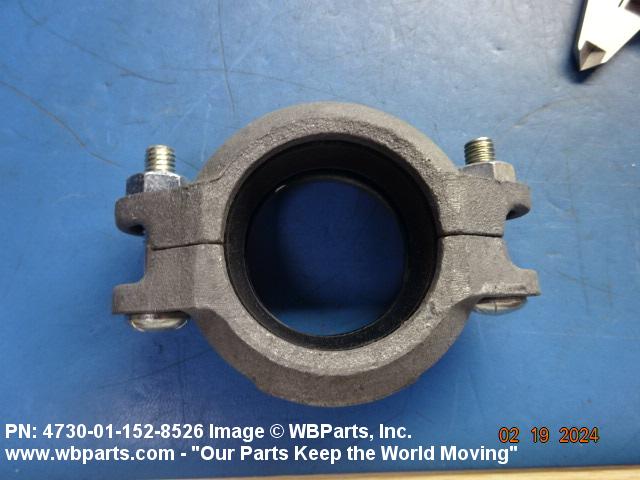

Drawings & Photos | NSN 4730-01-152-8526

Part Number	Request Date	QTY	Origin
4730-01-152-8526	2025-09-245	80	United States
1992360	2025-08-237	653	DIBBS
L-020-075-GT0	2025-08-237	653	DIBBS
1992360	2025-08-219	911	DIBBS
L-020-075-GT0	2025-08-219	911	DIBBS
1992360	2025-06-159	1679	DIBBS
L-020-075-GT0	2025-06-159	1679	DIBBS
1992360	2024-03-66	2107	DIBBS
L-020-075-GT0	2024-03-66	2107	DIBBS
4730-01-152-8526	2024-02-32	1	us
1992360	2024-01-01	2834	DIBBS
L-020-075-GT0	2024-01-01	2834	DIBBS
1992360	2023-09-257	1730	DIBBS
L-020-075-GT0	2023-09-257	1730	DIBBS
1992360	2023-08-242	1730	DIBBS
1992360	2023-08-242	1730	DIBBS
L-020-075-GT0	2023-08-242	1730	DIBBS
L-020-075-GT0	2023-08-242	1730	DIBBS
1992360	2023-05-128	2834	DIBBS
L-020-075-GT0	2023-05-128	2834	DIBBS
1992360	2023-04-117	2834	DIBBS
L-020-075-GT0	2023-04-117	2834	DIBBS
1992360	2019-04-105	5410	DIBBS
L-020-075-GT0	2019-04-105	5410	DIBBS
1992360	2019-04-93	5410	DIBBS
L-020-075-GT0	2019-04-93	5410	DIBBS
L020075GT0	2019-01-22	3
4730-01-152-8526	2018-11-308	1382	DIBBS
4730-01-152-8526	2018-08-242	634	DIBBS
4730-01-152-8526	2018-02-32	1	DIBBS-RFPs
4730-01-152-8526	2017-11-306	728	DIBBS
4730-01-152-8526	2017-09-264	549	DIBBS
4730-01-152-8526	2017-06-180	2743	DIBBS
4730-01-152-8526	2017-05-128	640	DIBBS
4730-01-152-8526	2016-11-318	2672	DIBBS
4730-01-152-8526	2016-10-293	510	DIBBS
4730-01-152-8526	2016-04-119	1079	DIBBS
4730-01-152-8526	2016-04-104	357	DIBBS
4730-01-152-8526	2015-04-110	457	DIBBS
4730-01-152-8526	2013-08-224	425	DIBBS
4730-01-152-8526	2013-07-209	425	DIBBS
4730-01-152-8526	2010-09-250	1079	DIBBS
4730-01-152-8526	2010-06-152	864	DIBBS

Cross Reference | NSN 4730-01-152-8526

Part Number	Cage Code	Manufacturer
1586860	45152	OSHKOSH CORPORATION
1992360	45152	OSHKOSH CORPORATION
1992360	75Q65	OSHKOSH DEFENSE, LLC
2226270	45152	OSHKOSH CORPORATION
C-020-075-G-TZ	79154	VICTAULIC COMPANY OF AMERICA INC DBA VICTAULIC COMPANY OF AMERICA
KG105-2NZ	23695	TYLER PIPE WADE DIV
L-020-075-GT0	79154	VICTAULIC COMPANY OF AMERICA INC DBA VICTAULIC COMPANY OF AMERICA
STYLE75-2IN T GRD STD GASKET	79154	VICTAULIC COMPANY OF AMERICA INC DBA VICTAULIC COMPANY OF AMERICA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-152-8526

Compare

Related Products | NSN 4730-01-152-8526

4730-01-152-8570, 4730-01-152-8616, 4730-01-152-8625, 4730-01-152-8746, 4730-01-152-8747

Technical Data | NSN 4730-01-152-8526

Characteristic	Specifications
END TYPE FOR WHICH DESIGNED	GROOVED
HOUSING MATERIAL	IRON, MALLEABLE
GASKET MATERIAL	RUBBER, SYNTHETIC
SEGMENT QUANTITY	2
PIPE SIZE ACCOMMODATED	2.375 INCHES NOMINAL
WORKING PRESSURE RATING	500.000 POUNDS PER SQUARE INCH NOMINAL
SPECIAL FEATURES	ORANGE COLOR
III END ITEM IDENTIFICATION	TRUCKS; (HEMTT) FUEL TANKER; REFUELING TRUCK A/S32R-11

Restrictions/Controls & Freight Information | NSN 4730-01-152-8526

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-152-8526

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
