NSN 4730-01-154-6328 10108798 , 7M150, 7M150V4
Product Details | TUBE TEE

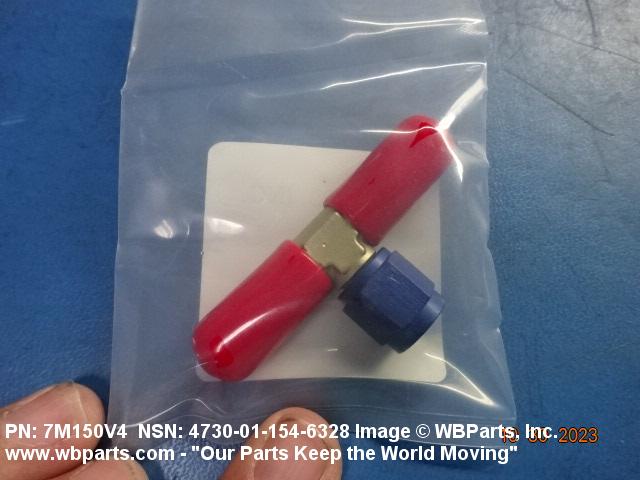

4730-01-154-6328 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: 10108798 , 7M150, 7M150V4, 4730-01-154-6328, 01-154-6328, 4730011546328, 011546328
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 MAY 1983 | 01-154-6328 | 03809 ( TEE, TUBE ) |

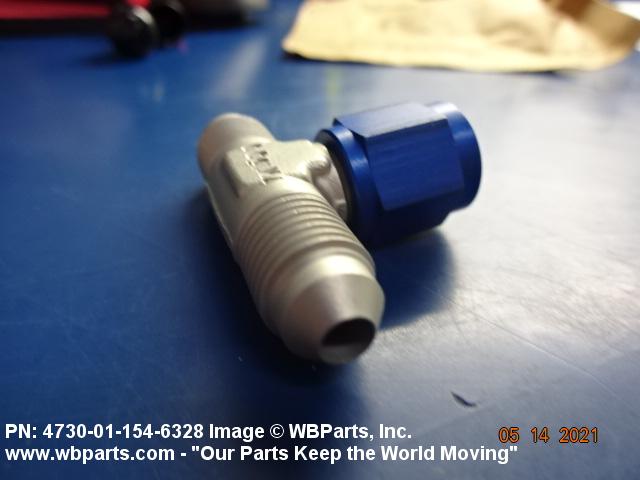

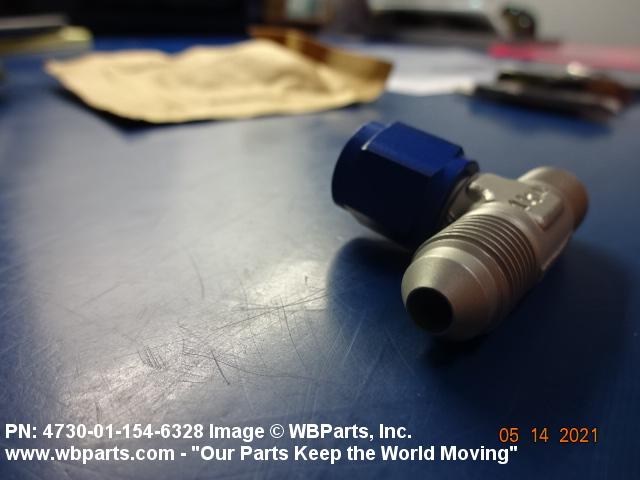

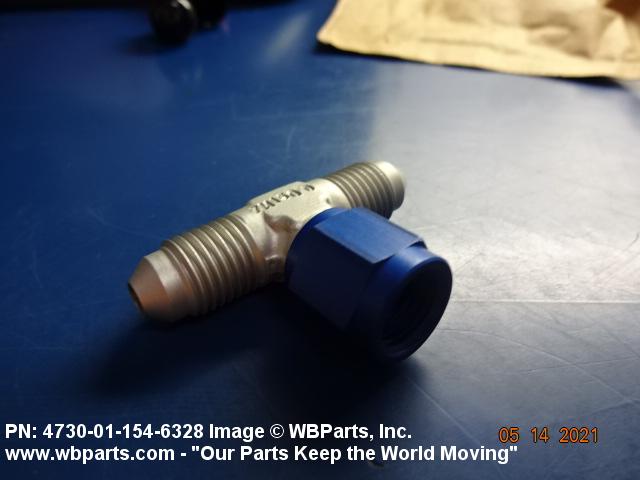

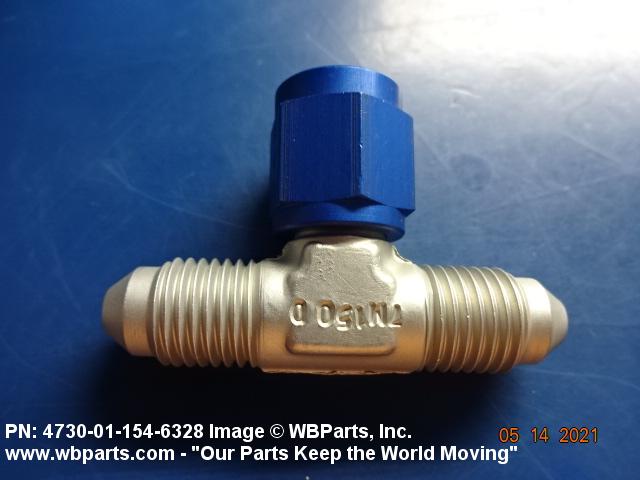

Drawings & Photos | NSN 4730-01-154-6328
Demand History | NSN 4730-01-154-6328
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7M150V4 | 2023-10-292 | 2 | United States |
| 7M150V4 | 2023-10-284 | 2 | United States |
| 4730-01-154-6328 | 2023-02-40 | 51 | DIBBS |
| 7M150V4 | 2021-12-355 | 5 | Singapore |
| 7M150V4 | 2021-04-105 | 1 | United States |
| 4730-01-154-6328 | 2016-11-318 | 31 | DIBBS |
| 4730-01-154-6328 | 2016-08-235 | 18 | DIBBS |
| 4730-01-154-6328 | 2016-08-224 | 18 | DIBBS |
| 4730-01-154-6328 | 2010-05-145 | 35 | DIBBS |
Cross Reference | NSN 4730-01-154-6328
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7M150 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 7M150V4 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| 7M150V4 | 14397 | FABER ENTERPRISES, INC. |
| 7M150V4 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| 7M150V4 | 30974 | AEROFIT, LLC |
| 7M150V4 | 52930 | NELSON AERO SPACE, INC. |
| 7M150V4 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 7M150V4 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-154-6328
Related Products | NSN 4730-01-154-6328
Technical Data | NSN 4730-01-154-6328
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 BODY ALUMINUM ALLOY 2024 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367 FED SPEC 1ST MATERIAL RESPONSE BODY QQ-A-225/6 FED SPEC 2ND MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | CHROMATE BODY ANODIZE NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-83488,TYPE 2,CLASS 3 MIL SPEC SINGLE TREATMENT RESPONSE BODY MIL-A-8625,TYPE 2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE NUT |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END THREADED INTERNAL TUBE 3RD END |
| CONNECTION STYLE | B64 FLARED 1ST END B64 FLARED 2ND END B3 SWIVEL NUT, FLARE 3RD END |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |

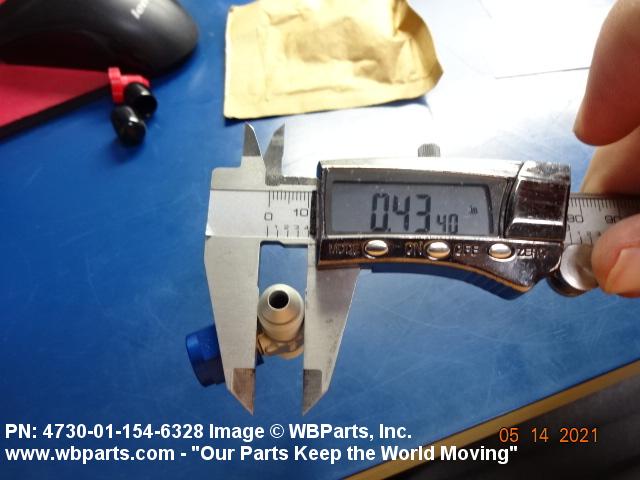

| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD CLASS | 3A 1ST END 3A 2ND END 3B 3RD END |

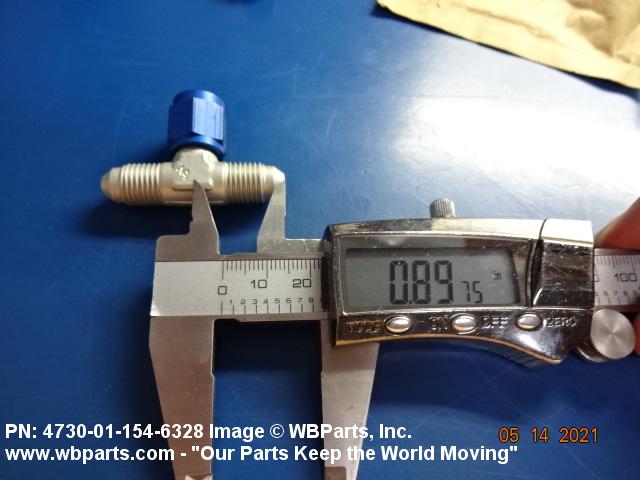

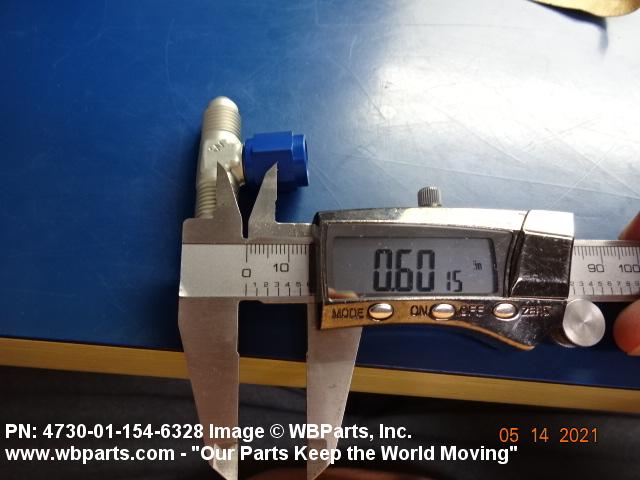

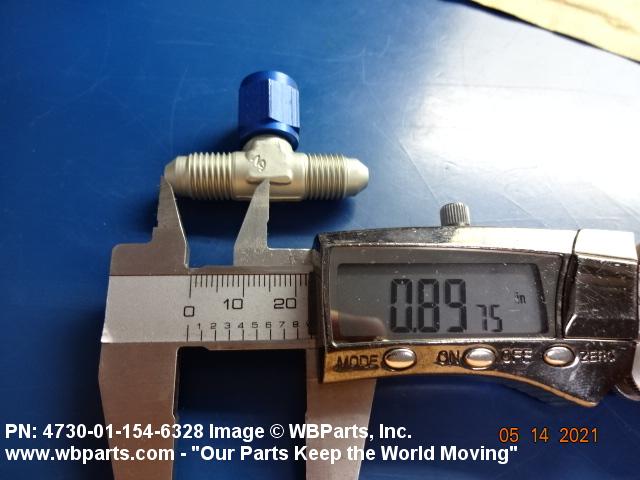

| LEG LENGTH | 0.891 INCHES NOMINAL 1ST END 0.891 INCHES NOMINAL 2ND END 0.600 INCHES NOMINAL 3RD END |
