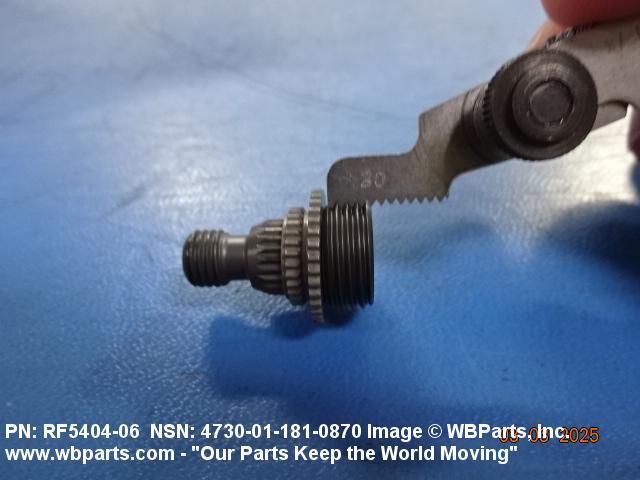

NSN 4730-01-181-0870 RF540406, RF5404-06, 59022271
Product Details | TUBE TO BOSS STRAIGHT ADAPTER
4730-01-181-0870 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.
Part Alternates: RF540406, RF5404-06, 59022271, 5902227-1, 4730-01-181-0870, 01-181-0870, 4730011810870, 011810870
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 JUN 1984 | 01-181-0870 | 22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS ) |
Demand History | NSN 4730-01-181-0870
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-181-0870 | 2025-10-302 | 5 | us |
| 4730-01-181-0870 | 2025-05-127 | 5 | us |
| 5902227-1 | 2025-05-121 | 50 | DIBBS |
| RF5404-06 | 2025-05-121 | 50 | DIBBS |
| 5902227-1 | 2025-04-110 | 50 | DIBBS |
| RF5404-06 | 2025-04-110 | 50 | DIBBS |
| RF540406 | 2025-02-51 | 10 | us |
| 5902227-1 | 2025-02-51 | 40 | DIBBS |
| RF5404-06 | 2025-02-51 | 40 | DIBBS |
| 5902227-1 | 2024-10-280 | 13 | DIBBS |
| RF5404-06 | 2024-10-280 | 13 | DIBBS |
| 5902227-1 | 2024-08-231 | 3 | DIBBS |
| 5902227-1 | 2023-11-333 | 38 | DIBBS |
| 5902227-1 | 2023-09-268 | 17 | DIBBS |
| 5902227-1 | 2023-09-260 | 17 | DIBBS |
| 5902227-1 | 2023-06-171 | 8 | DIBBS |
| 5902227-1 | 2023-03-75 | 5 | DIBBS |
| 5902227-1 | 2022-10-289 | 5 | DIBBS |
| 5902227-1 | 2021-10-280 | 2 | DIBBS |
| 5902227-1 | 2021-07-187 | 8 | DIBBS |
| 4730-01-181-0870 | 2021-04-116 | 180 | United States |
| 5902227-1 | 2021-04-108 | 8 | DIBBS |
| 5902227-1 | 2019-10-293 | 21 | DIBBS |
| 5902227-1 | 2019-02-49 | 12 | DIBBS |
| 4730-01-181-0870 | 2019-01-02 | 9 | DIBBS |
| 4730-01-181-0870 | 2018-12-359 | 9 | DIBBS |
| 4730-01-181-0870 | 2018-06-168 | 1 | DIBBS |
| 4730-01-181-0870 | 2017-11-311 | 23 | DIBBS |
| 4730-01-181-0870 | 2017-09-249 | 11 | DIBBS |
| 4730-01-181-0870 | 2017-05-123 | 9 | DIBBS |
| 4730-01-181-0870 | 2017-03-66 | 9 | DIBBS |
| 4730-01-181-0870 | 2016-07-202 | 8 | DIBBS |
| 4730-01-181-0870 | 2015-11-308 | 8 | DIBBS |
| 4730-01-181-0870 | 2015-08-237 | 10 | DIBBS |
| 4730-01-181-0870 | 2015-06-155 | 10 | DIBBS |
| 4730-01-181-0870 | 2013-02-35 | 18 | DIBBS |
| 4730-01-181-0870 | 2012-11-312 | 11 | DIBBS |
| 4730-01-181-0870 | 2012-11-312 | 11 | DIBBS |
| 4730-01-181-0870 | 2012-10-303 | 16 | DIBBS |
| 4730-01-181-0870 | 2012-09-270 | 17 | DIBBS |
| 4730-01-181-0870 | 2012-04-94 | 17 | DIBBS |
| 4730-01-181-0870 | 2011-11-307 | 6 | DIBBS |
| 4730-01-181-0870 | 2010-11-333 | 9 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-181-0870
Related Products | NSN 4730-01-181-0870
Technical Data | NSN 4730-01-181-0870
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM OVERALL |
| MAXIMUM OPERATING PRESSURE | 4000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END THREADED EXTERNAL TUBE CENTER BULKHEAD |
| CONNECTION STYLE | B64 FLARED 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJS 1ST END UNJF 2ND END UNJS CENTER BULKHEAD |
| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END 0.312 INCHES 2ND END 0.562 INCHES CENTER BULKHEAD |
| THREAD QUANTITY PER INCH | 20 1ST END 20 CENTER BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A CENTER BULKHEAD |
| NOMINAL OVERALL LENGTH | 0.978 INCHES |
| III END ITEM IDENTIFICATION | AIRCRAFT, B-1B |
Restrictions/Controls & Freight Information | NSN 4730-01-181-0870
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-181-0870
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
