NSN 4730-01-182-1712 CA11341-B PIECE 78, CA11341BPIECE78, J514
Product Details | TUBE TO BOSS STRAIGHT ADAPTER
4730-01-182-1712 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.
Part Alternates: CA11341-B PIECE 78, CA11341BPIECE78, J514, 6-6 080120, 66080120, 6F5BUM, 6F5BU-M, 6FSBU, 4730-01-182-1712, 01-182-1712, 4730011821712, 011821712
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 JUN 1984 | 01-182-1712 | 22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS ) |

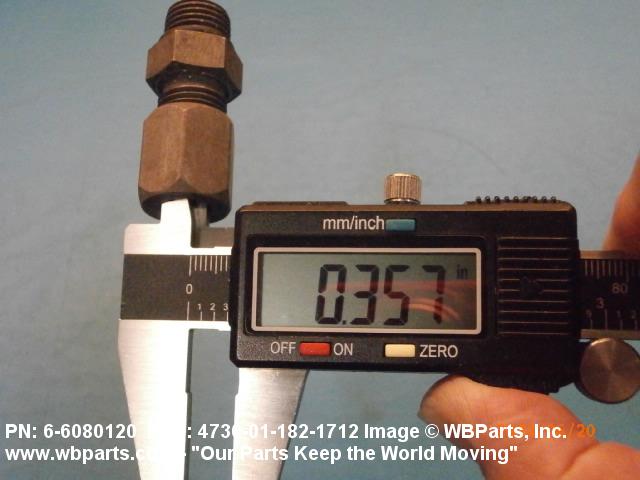

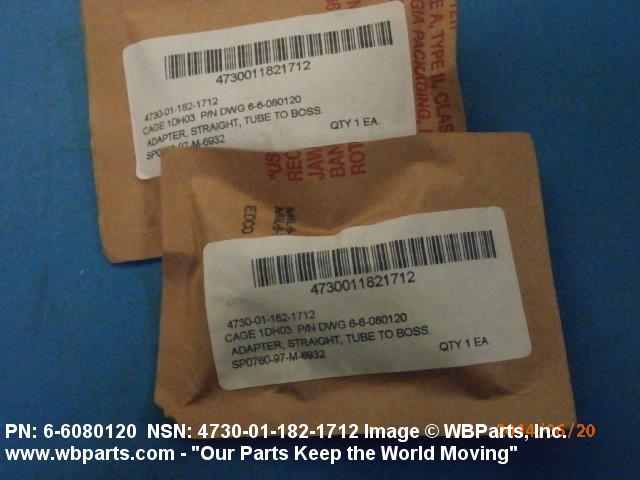

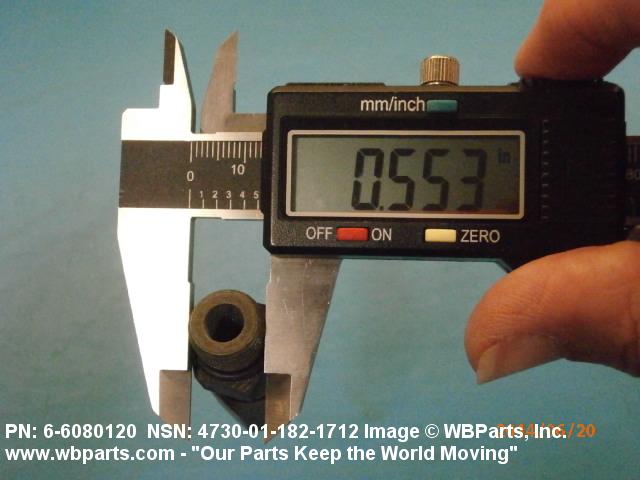

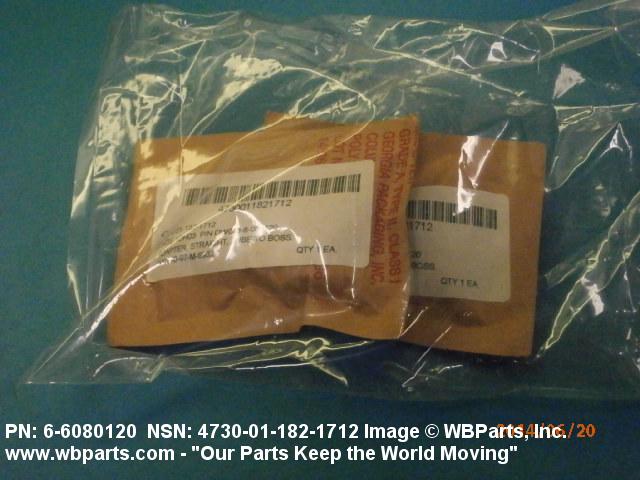

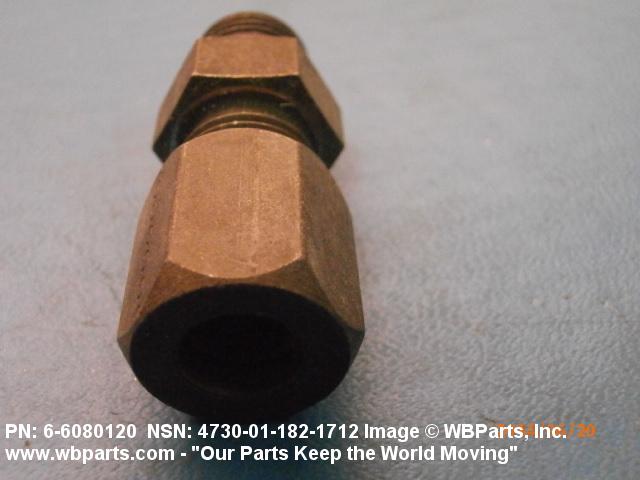

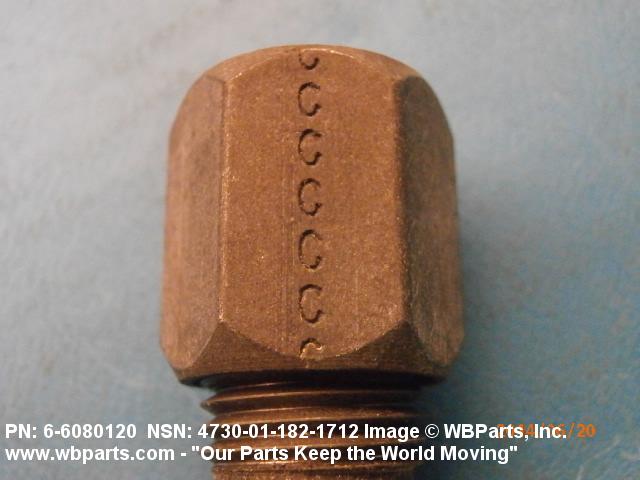

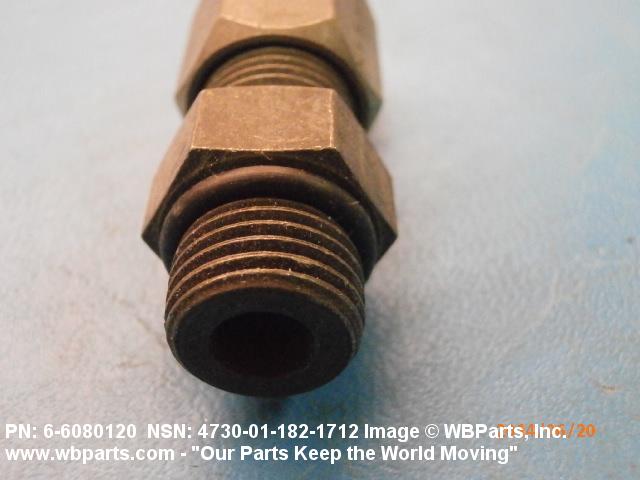

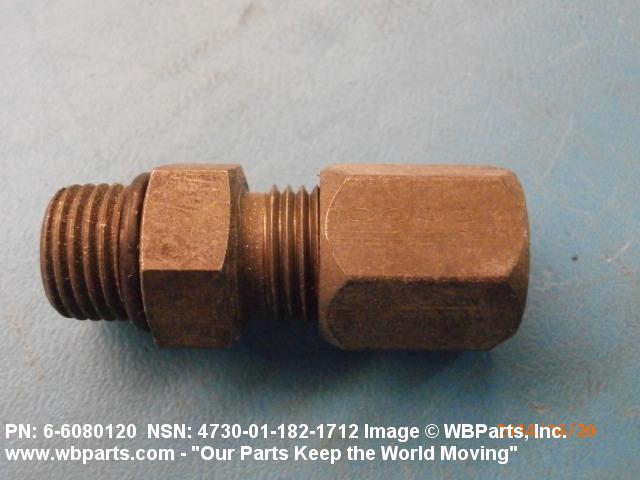

Drawings & Photos | NSN 4730-01-182-1712
Demand History | NSN 4730-01-182-1712
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6F5BU-M | 2022-07-209 | 366 | DIBBS |
| CA11341-B PIECE 78 | 2022-07-209 | 366 | DIBBS |
| 6F5BU-M | 2022-06-177 | 80 | DIBBS |
| CA11341-B PIECE 78 | 2022-06-177 | 80 | DIBBS |
| 6F5BU-M | 2022-06-173 | 40 | DIBBS |
| CA11341-B PIECE 78 | 2022-06-173 | 40 | DIBBS |
| 6F5BU-M | 2022-05-132 | 40 | DIBBS |
| CA11341-B PIECE 78 | 2022-05-132 | 40 | DIBBS |
| 6F5BU-M | 2022-03-79 | 152 | DIBBS |
| CA11341-B PIECE 78 | 2022-03-79 | 152 | DIBBS |
| 4730-01-182-1712 | 2020-09-254 | 568 | DIBBS |
| 4730-01-182-1712 | 2020-09-252 | 569 | DIBBS |
| 4730-01-182-1712 | 2020-06-156 | 429 | DIBBS |
| 4730-01-182-1712 | 2020-05-128 | 403 | DIBBS |
| 4730-01-182-1712 | 2020-04-100 | 329 | DIBBS |
| 4730-01-182-1712 | 2017-02-48 | 232 | DIBBS |
| 4730-01-182-1712 | 2017-02-37 | 232 | DIBBS |
| 4730-01-182-1712 | 2016-01-11 | 218 | DIBBS |
| 4730-01-182-1712 | 2015-12-364 | 218 | DIBBS |
| 4730-01-182-1712 | 2015-03-68 | 170 | DIBBS |
| J514 | 2015-02-48 | 1 | us |
| 4730-01-182-1712 | 2014-06-168 | 2 | United States |
| 4730-01-182-1712 | 2013-04-98 | 100 | DIBBS |
| 4730-01-182-1712 | 2012-09-269 | 81 | DIBBS |
| 4730-01-182-1712 | 2011-02-33 | 90 | DIBBS |
| J514 | 2010-02-47 | 20 | us |
| 4730-01-182-1712 | 2009-05-125 | 40 | DIBBS |
| 4730-01-182-1712 | 2009-04-120 | 20 | DIBBS |
Cross Reference | NSN 4730-01-182-1712
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6-6 080120 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 6F5BU-M | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 6F5BU-M | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 6FSBU | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| CA11341-B PIECE 78 | 83130 | BUFFALO PUMPS, INC. DIV BUFFALO PUMPS DIV |
| J514 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-182-1712
Technical Data | NSN 4730-01-182-1712
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B66 FLARELESS 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| SEAT ANGLE | 12.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
| THREAD CLASS | 2A ALL ENDS |

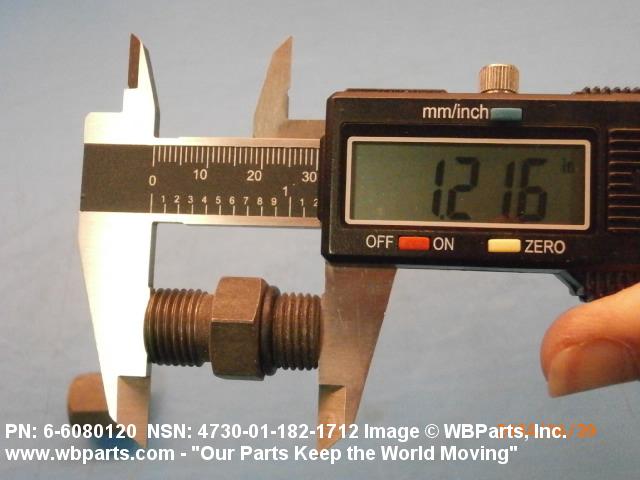

| NOMINAL OVERALL LENGTH | 1.210 INCHES |
| FURNISHED ITEMS AND QUANTITY | 1 TUBE COUPLING NUT W/SLEEVE AND 1 PREFORMED PACKING |
| SPECIFICATION/STANDARD DATA | 81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 20B FIGURE |
Restrictions/Controls & Freight Information | NSN 4730-01-182-1712
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-182-1712
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
