NSN 4730-01-187-6955 AN9294W, AN929-4W, AS4841

Product Details | TUBE CAP

4730-01-187-6955 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.

Part Alternates: AN9294W, AN929-4W, AS4841 , MILF5509, MIL-F-5509, 10108325 , 4730-01-187-6955, 01-187-6955, 4730011876955, 011876955

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	23 AUG 1984	01-187-6955	06074 ( CAP, TUBE )

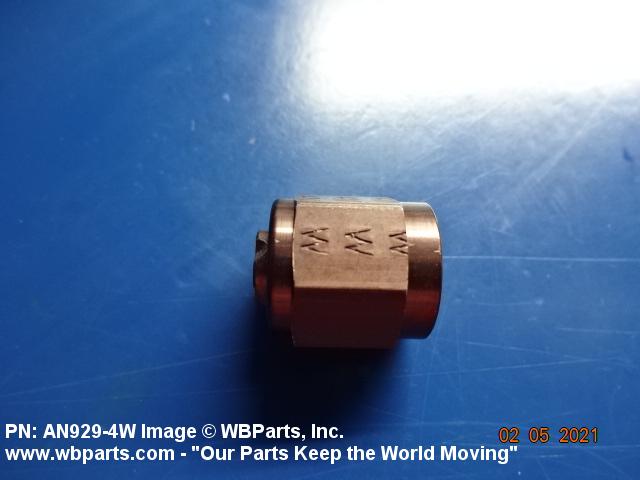

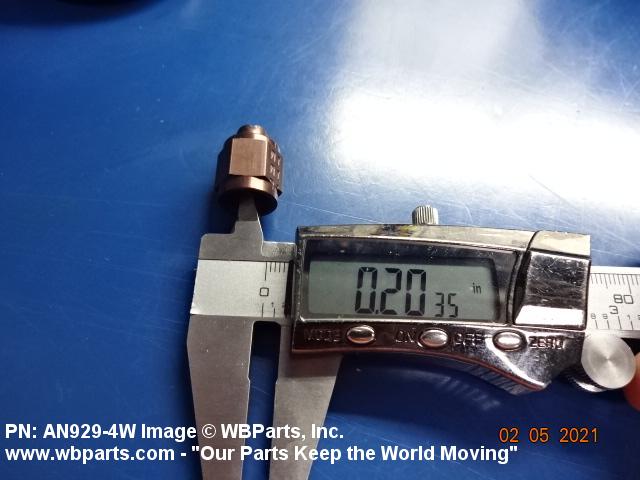

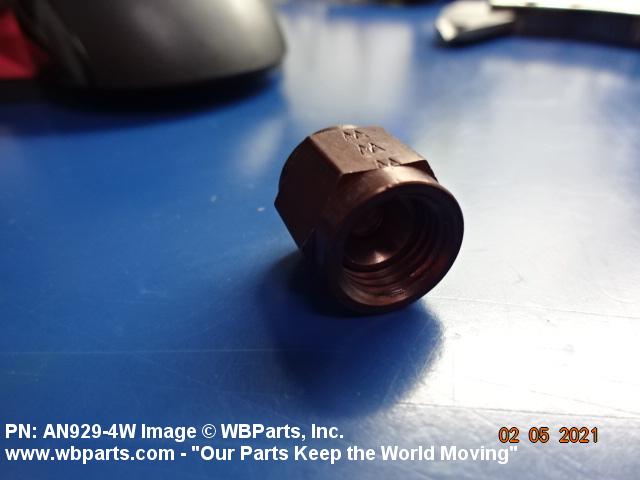

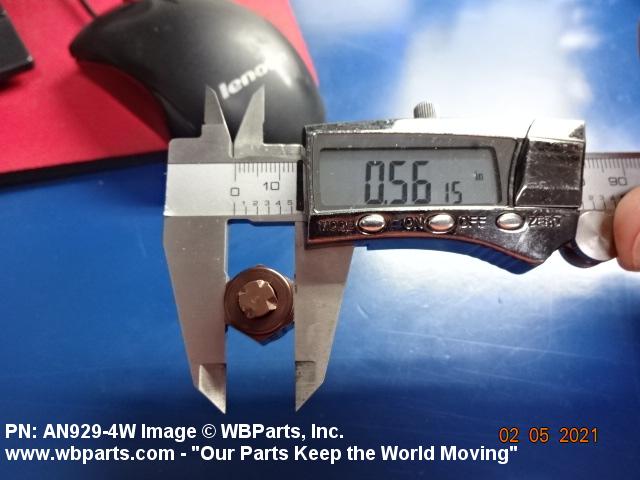

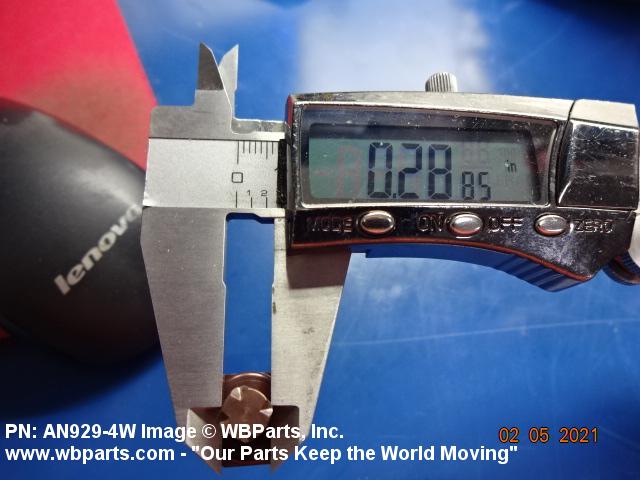

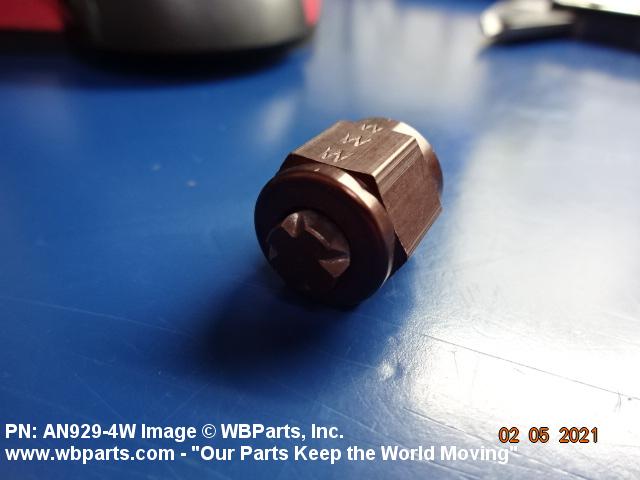

Drawings & Photos | NSN 4730-01-187-6955

Part Number	Request Date	QTY	Origin
4730-01-187-6955	2025-09-258	886	DIBBS
AS4841	2025-04-106	1	France
4730-01-187-6955	2022-09-244	2325	DIBBS
AN9294W	2021-01-28	586	United States
AN9294W	2021-01-28	586	United States
4730-01-187-6955	2019-02-51	60000	DIBBS
4730-01-187-6955	2019-01-07	60000	DIBBS
4730-01-187-6955	2018-11-317	1	PK
MILF5509	2018-07-201	6	United States
4730-01-187-6955	2017-12-346	21000	DIBBS
4730-01-187-6955	2017-01-17	23500	DIBBS
4730-01-187-6955	2016-11-312	34540	DIBBS
4730-01-187-6955	2016-07-206	23500	DIBBS
4730-01-187-6955	2016-05-129	3316	DIBBS
4730-01-187-6955	2016-04-97	27388	DIBBS
4730-01-187-6955	2016-02-41	6523	DIBBS
4730-01-187-6955	2015-09-250	23214	DIBBS
4730-01-187-6955	2015-08-214	6683	DIBBS
4730-01-187-6955	2015-07-200	1090	DIBBS
4730-01-187-6955	2015-07-186	1387	DIBBS
4730-01-187-6955	2015-06-174	1160	DIBBS
4730-01-187-6955	2015-05-130	782	DIBBS
AN929-4W	2015-03-71	2	United States
4730-01-187-6955	2015-03-68	902	DIBBS
4730-01-187-6955	2015-02-33	1992	DIBBS
4730-01-187-6955	2014-12-355	814	DIBBS
4730-01-187-6955	2014-10-293	782	DIBBS
AN9294W	2014-05-127	9	United States
AN929-4W	2014-05-127	9	United States
AS4841	2011-03-69	8
MILF5509	2009-10-301	1	PK
MILF5509	2009-02-55	100	US

Cross Reference | NSN 4730-01-187-6955

Part Number	Cage Code	Manufacturer
AN929-4W	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS4841	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-F-5509	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-187-6955

Compare

Related Products | NSN 4730-01-187-6955

4730-01-187-6956, 4730-01-187-6957, 4730-01-187-6958, 4730-01-187-6960, 4730-01-187-6978

Technical Data | NSN 4730-01-187-6955

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 7075 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/9 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	A12 CAP, TUBE, FLARED
CONNECTION STYLE	G5 PRESSURE SEAL FLARED
THREAD SERIES DESIGNATOR	UNJF INTERNAL
NOMINAL THREAD SIZE	0.437 INCHES INTERNAL
THREAD CLASS	3B INTERNAL
THREAD DIRECTION	RIGHT-HAND INTERNAL
SEAT ANGLE	37.0 DEGREES
TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED	0.250 INCHES NOMINAL
SPECIFICATION/STANDARD DATA	88044-AN929 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
(NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED	300.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN929-4W
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-5509

Restrictions/Controls & Freight Information | NSN 4730-01-187-6955

Restrictions
Freight

Category	Code	Description
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051140	HOSE:NOI TUBING
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	AH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-187-6955

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
