NSN 4730-01-189-6775 MS208196, MS20819-6, AS4841
Product Details | TUBE FITTING FLARED SLEEVE

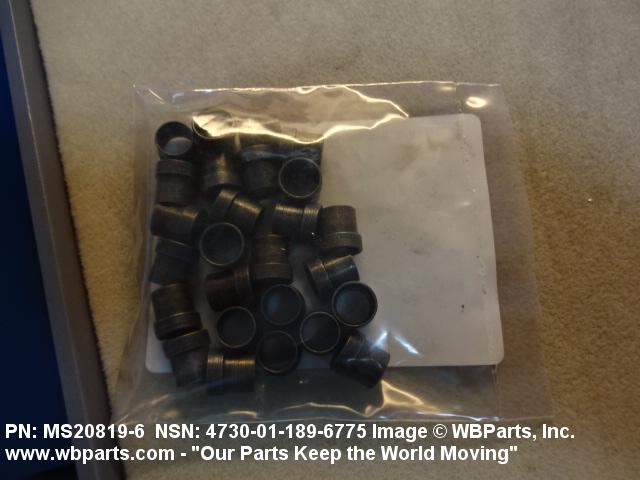

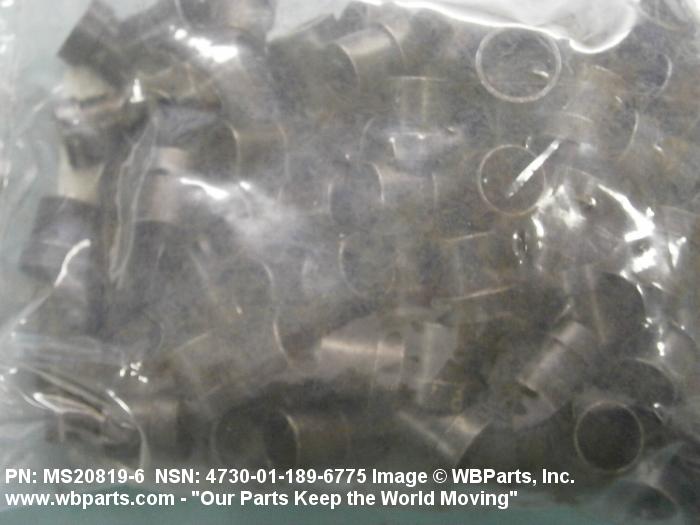

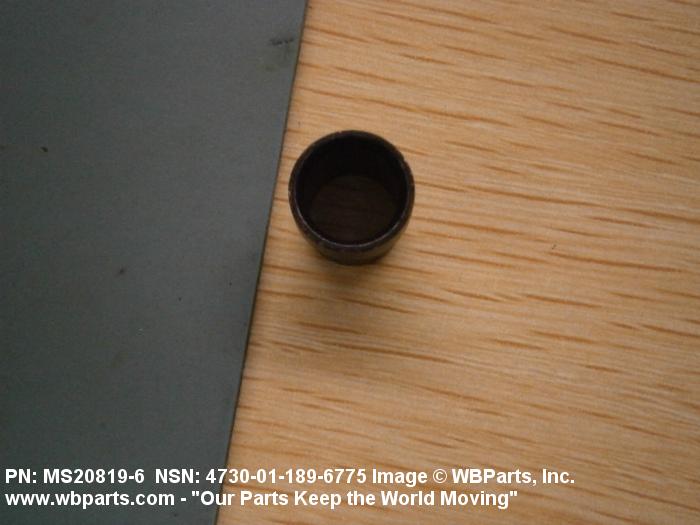

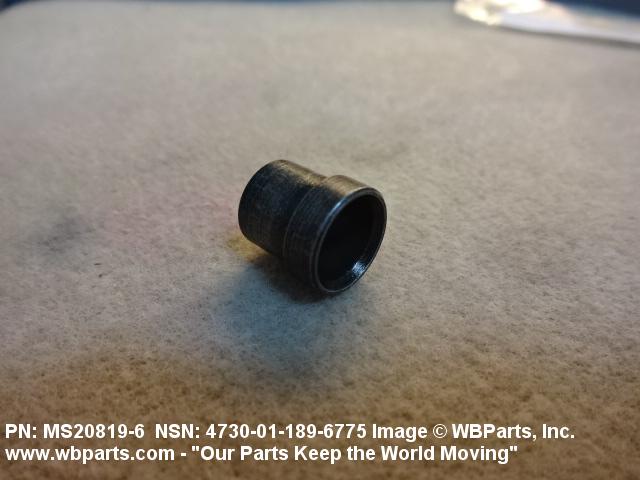

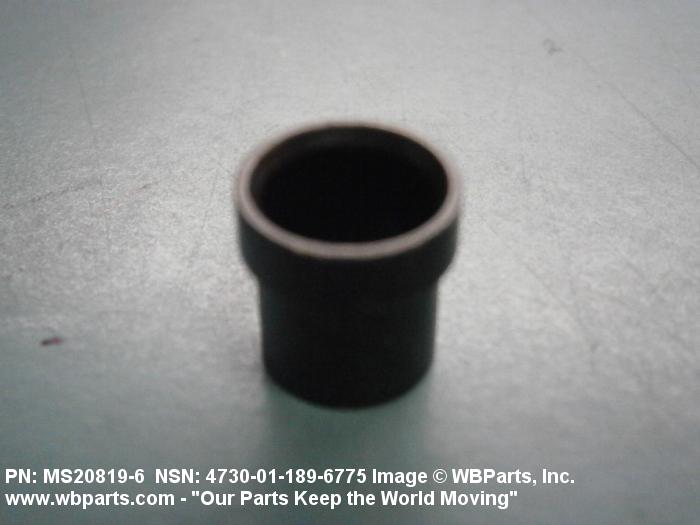

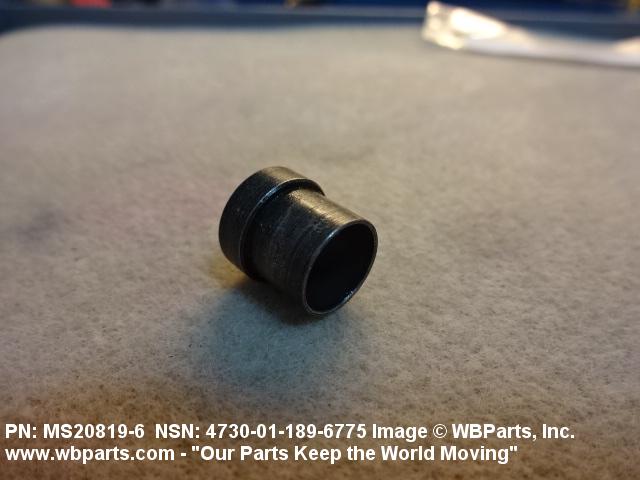

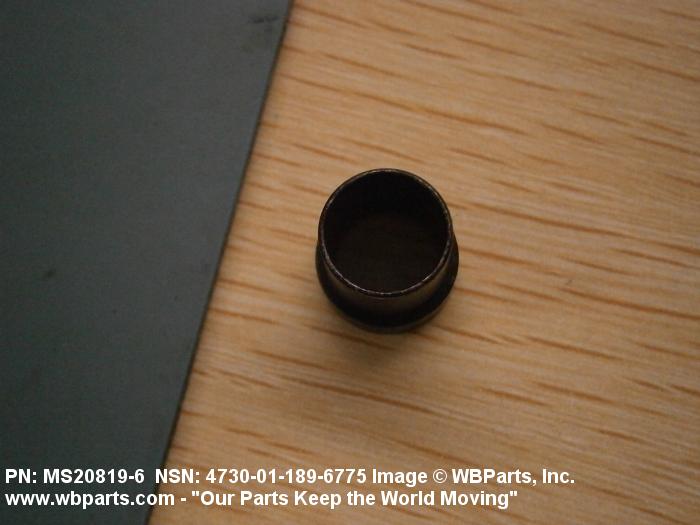

4730-01-189-6775 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: MS208196, MS20819-6, AS4841, AS5176, AS517606, AS5176-06, BACS13Z6, DAA1208196, DAA120819-6, DC08196, DC0819-6, 41115889896, 4111-588989-6, 4730-01-189-6775, 01-189-6775, 4730011896775, 011896775
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 SEP 1984 | 01-189-6775 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

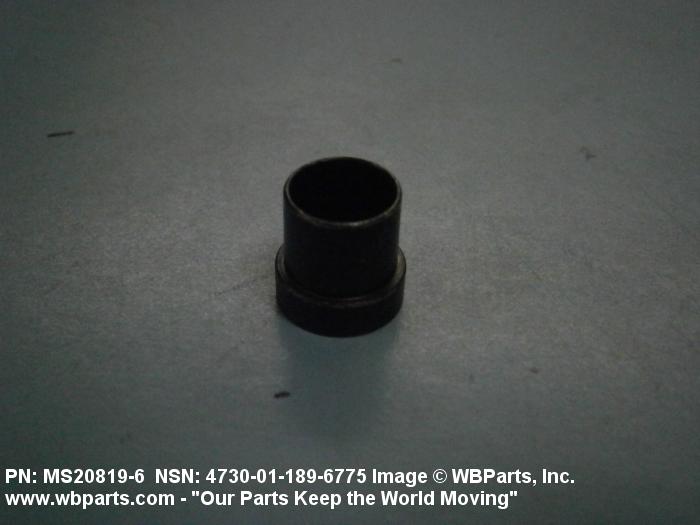

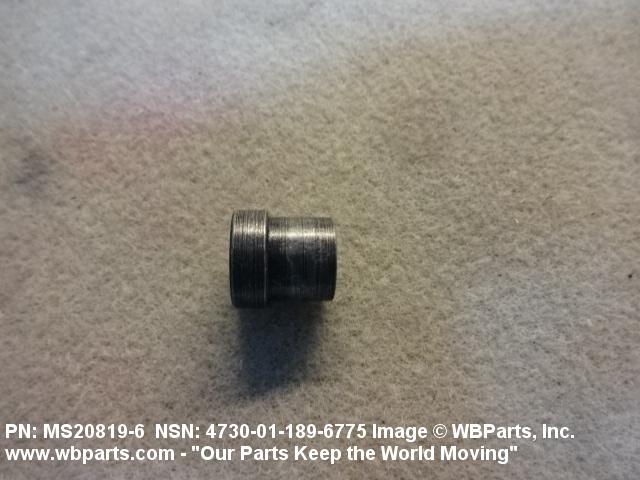

Drawings & Photos | NSN 4730-01-189-6775
Demand History | NSN 4730-01-189-6775
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS517606 | 2025-05-121 | 6 | United States |
| AS4841 | 2025-04-106 | 1 | France |
| 4730-01-189-6775 | 2024-11-315 | 26 | Malaysia |
| 4730-01-189-6775 | 2024-02-39 | 75 | United States |
| BACS13Z6 | 2023-04-109 | 20 | us |
| MS208196 | 2022-03-62 | 50 | IT |
| MS208196 | 2021-02-33 | 15 | United Arab Emirates |
| AS517606 | 2018-12-353 | 50 | United States |
| AS517606 | 2018-12-345 | 50 | United States |
| 4730-01-189-6775 | 2018-05-133 | 7169 | DIBBS |
| BACS13Z6 | 2018-03-66 | 16 | United States |
| MS208196 | 2017-03-81 | 30 | Brazil |
| AS517606 | 2016-05-126 | 250 | Italy |
| 4730-01-189-6775 | 2016-03-84 | 1828 | DIBBS |
| 4730-01-189-6775 | 2015-12-356 | 3035 | DIBBS |
| MS208196 | 2015-09-271 | 30 | United States |
| MS208196 | 2015-09-271 | 30 | United States |
| MS208196 | 2015-09-271 | 100 | United States |
| AS517606 | 2015-03-62 | 100 | Italy |
| MS208196 | 2014-12-364 | 180 | US |
| MS208196 | 2013-07-206 | 10 | United States |
| AS517606 | 2013-04-106 | 250 | IT |
| AS517606 | 2013-04-98 | 250 | Italy |
| MS208196 | 2013-04-98 | 250 | Italy |
| AS517606 | 2012-05-142 | 2 | US |
| AS517606 | 2012-03-64 | 200 | US |
| MS208196 | 2012-03-64 | 200 | US |
| 4730-01-189-6775 | 2012-01-11 | 1948 | DIBBS |
| BACS13Z6 | 2011-09-270 | 200 | United States |
| 4730-01-189-6775 | 2011-07-206 | 1322 | DIBBS |
| 4730-01-189-6775 | 2011-05-122 | 450 | Singapore |
| AS4841 | 2011-03-69 | 8 | |
| 4730-01-189-6775 | 2011-01-31 | 500 | Singapore |
| 4730-01-189-6775 | 2010-05-132 | 1293 | DIBBS |
| 4730-01-189-6775 | 2010-02-44 | 200 | Malaysia |
| 4730-01-189-6775 | 2009-10-277 | 500 | Malta |
| MS208196 | 2009-06-166 | 6 | us |
| 4730-01-189-6775 | 2006-10-278 | 10 | IT |
| MS208196 | 2006-09-265 | 10 | IT |
Cross Reference | NSN 4730-01-189-6775
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4111-588989-6 | 50948 | PARKER HANNIFIN CORP STRATOFLEX DIV AIRCRAFT FITTINGS OPN |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5176 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5176-06 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BACS13Z6 | 81205 | THE BOEING COMPANY DBA BOEING |
| DAA120819-6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| DAA120819-6 | 97928 | HUCK INTL INC |
| DC0819-6 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| MS20819-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-189-6775
Related Products | NSN 4730-01-189-6775
Technical Data | NSN 4730-01-189-6775

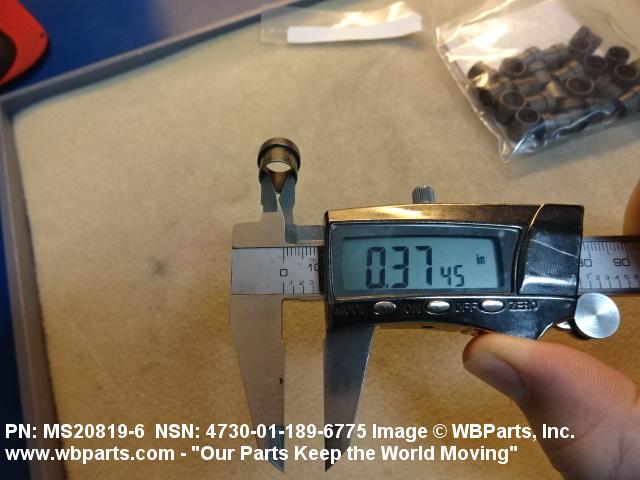

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, MIL-S-6758, COMP 4130 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 2 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| STYLE DESIGNATOR | M1 SLEEVE |

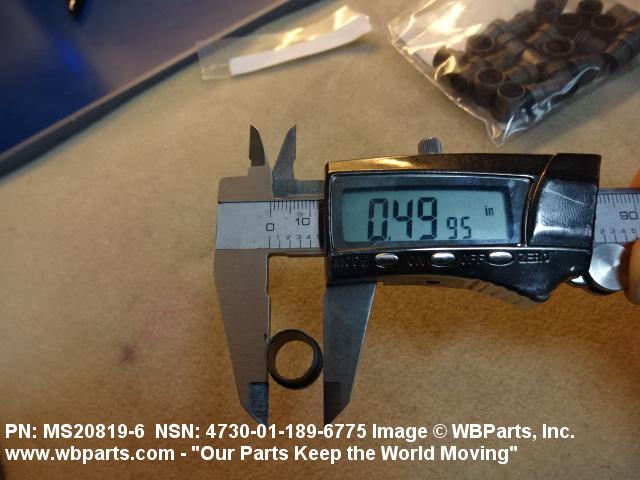

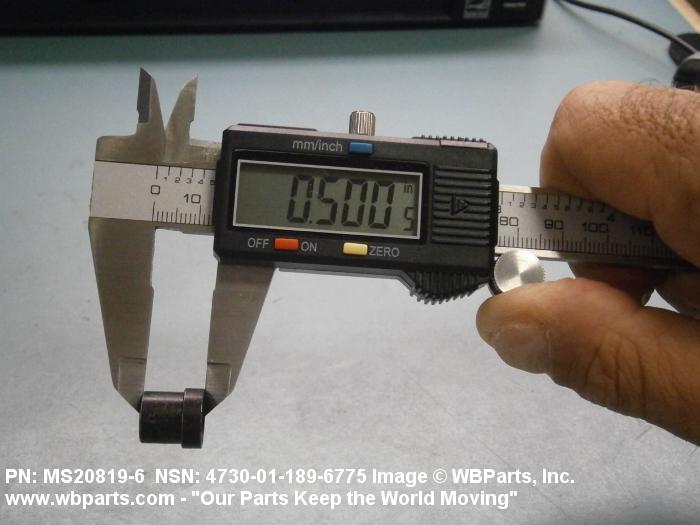

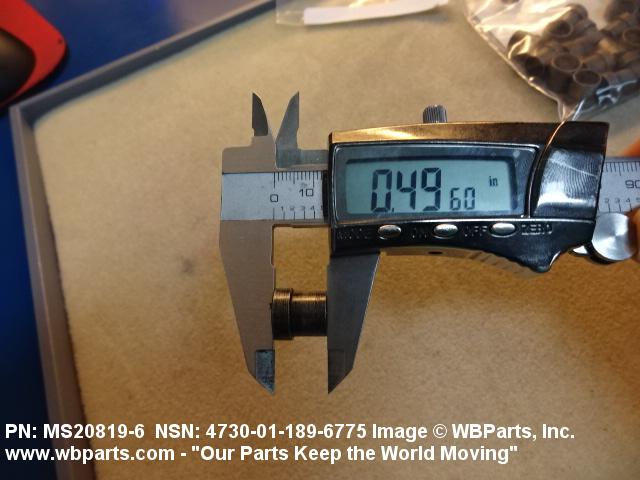

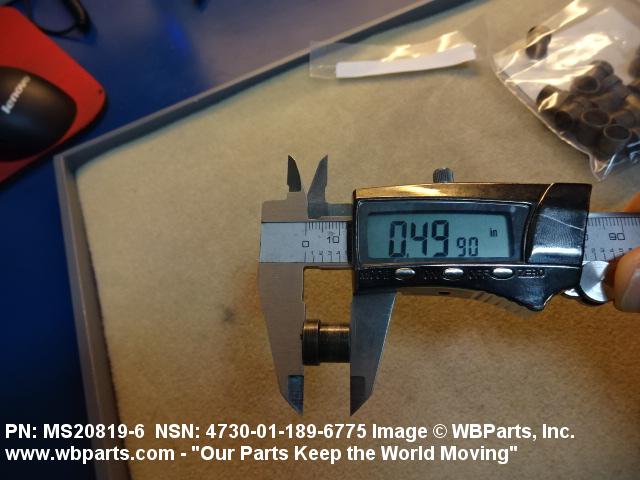

| OVERALL LENGTH | 0.500 INCHES NOMINAL |

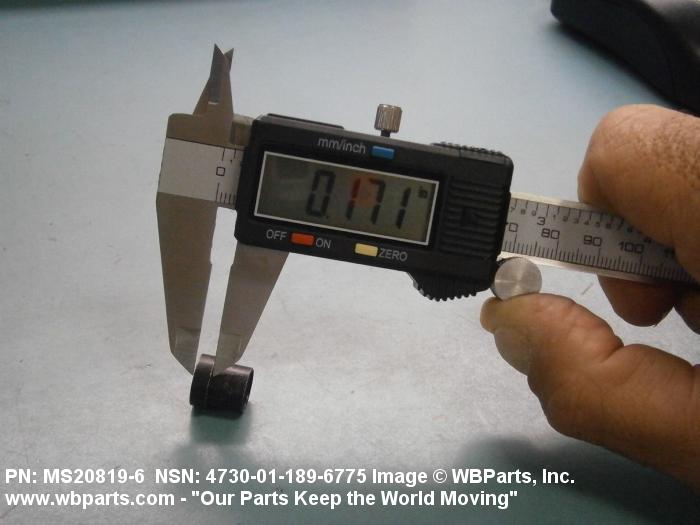

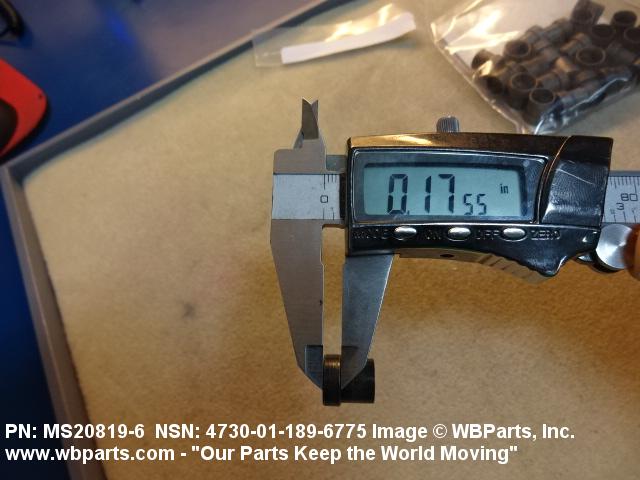

| FLANGE WIDTH | 0.172 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.441 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 33.0 |

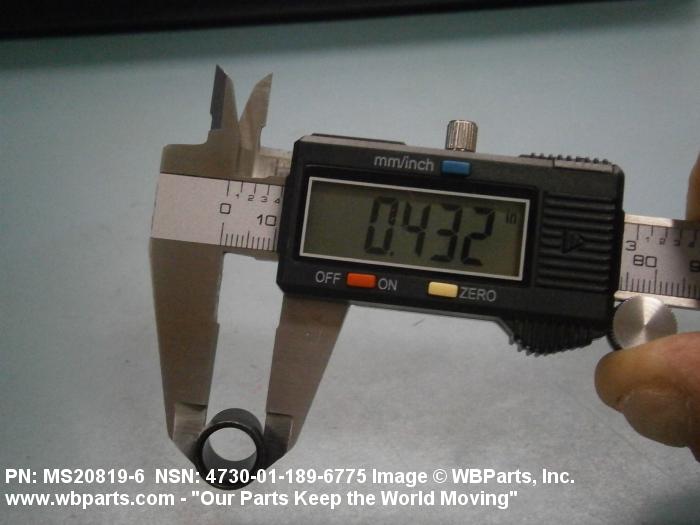

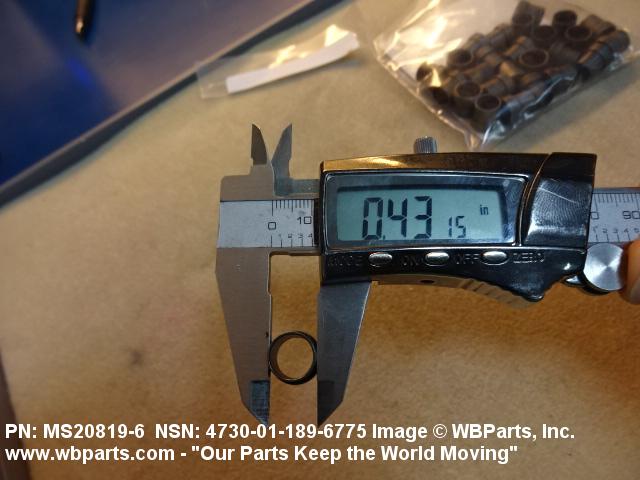

| SLEEVE OUTSIDE DIAMETER | 0.432 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20819-6 |
Restrictions/Controls & Freight Information | NSN 4730-01-189-6775
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
