NSN 4730-01-191-4110 AN894D104, AN894D10-4, 01-191-4110
Product Details | TUBE TO BOSS STRAIGHT ADAPTER
4730-01-191-4110 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.
Part Alternates: AN894D104, AN894D10-4, 4730-01-191-4110, 01-191-4110, 4730011914110, 011914110
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 07-OCT-84 | 01-191-4110 | 22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS ) |

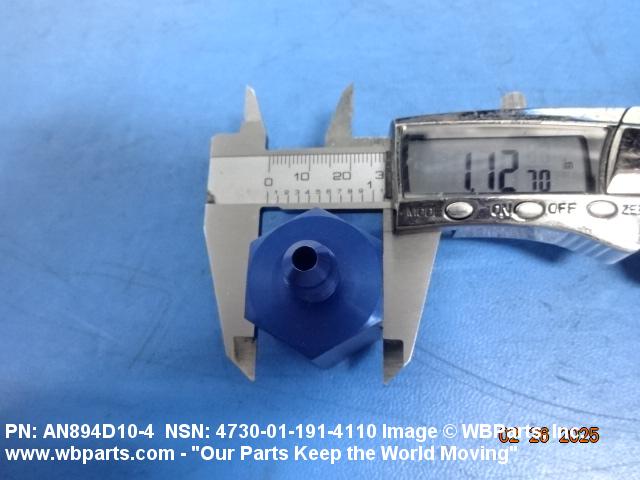

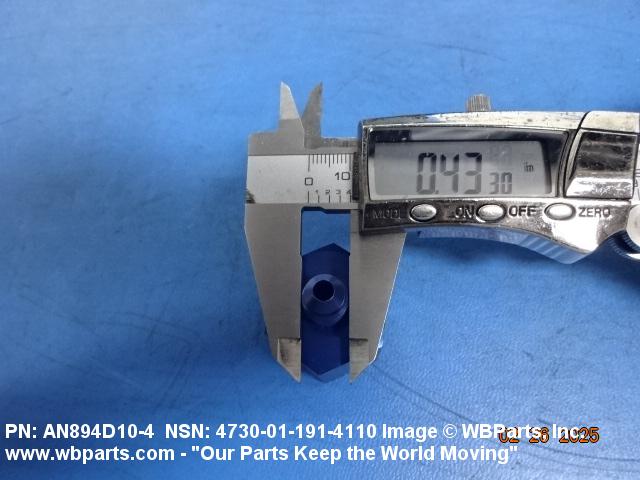

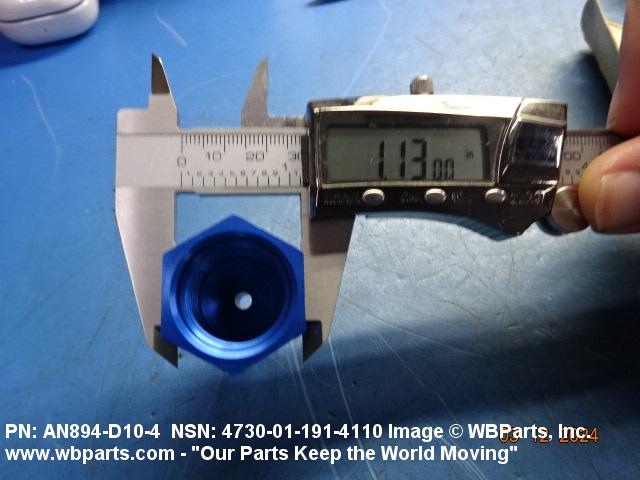

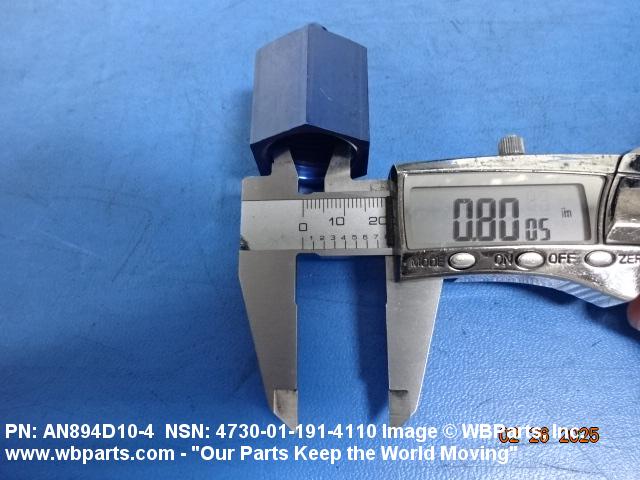

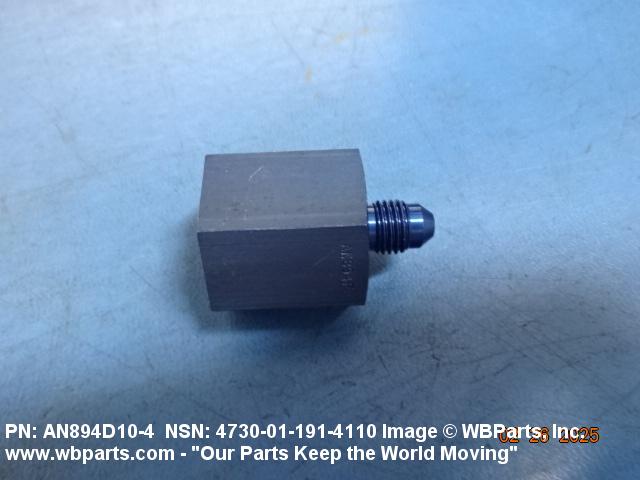

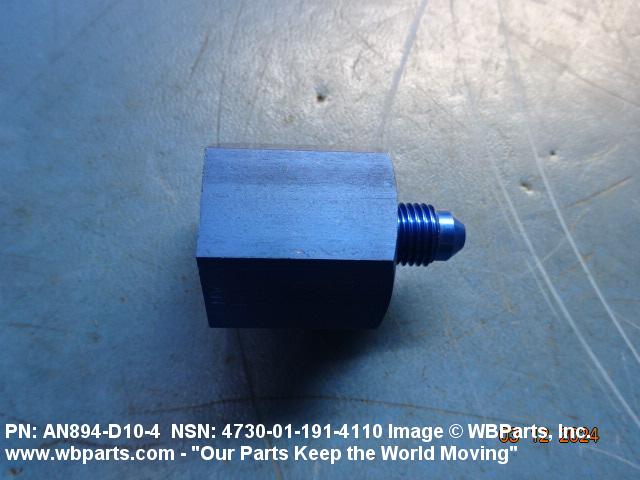

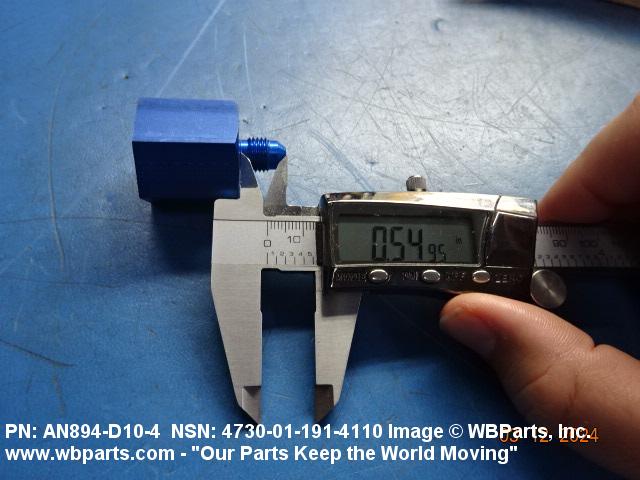

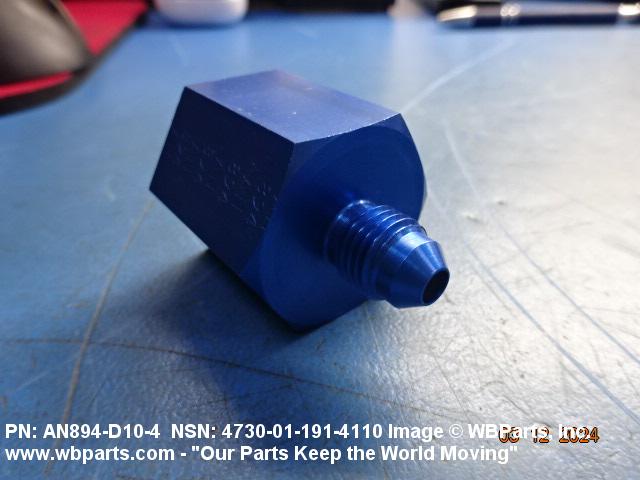

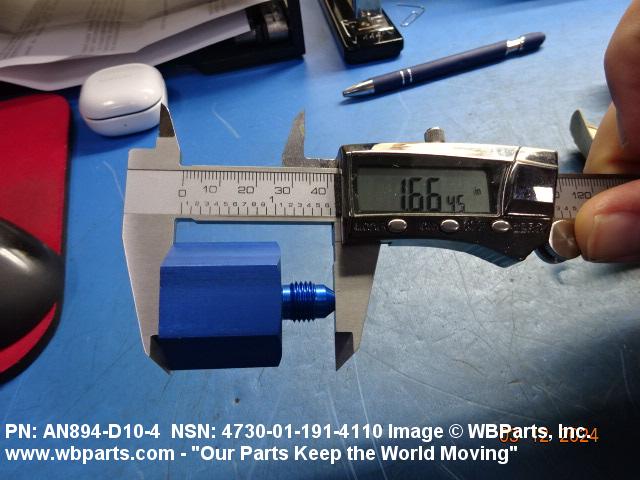

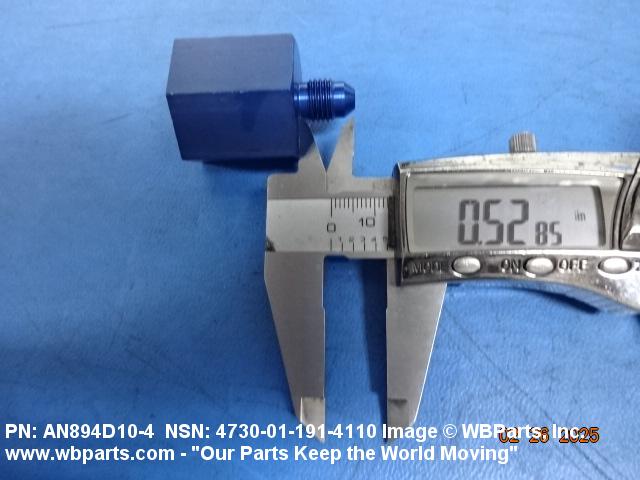

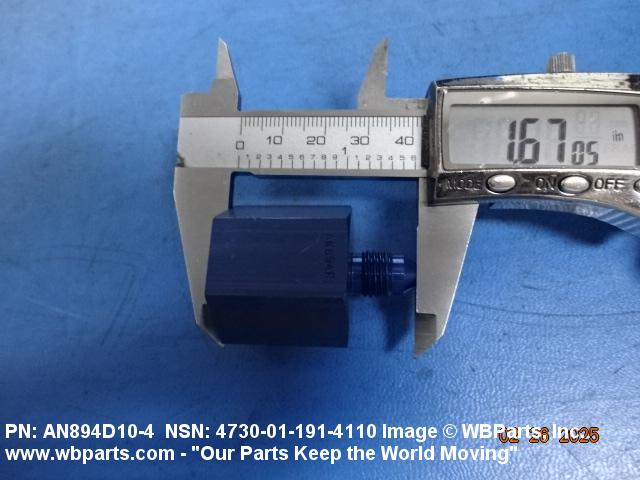

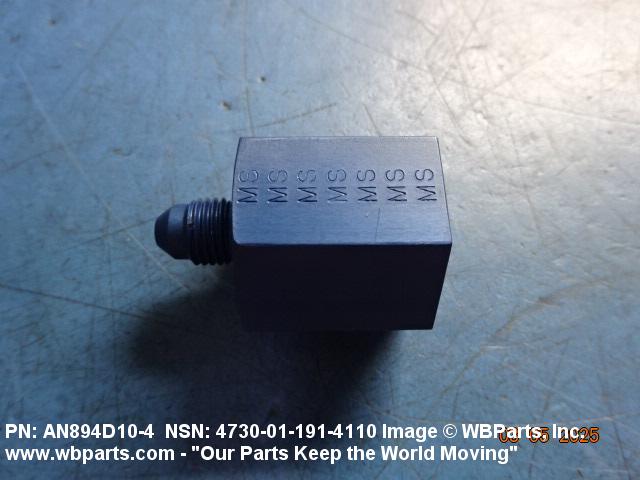

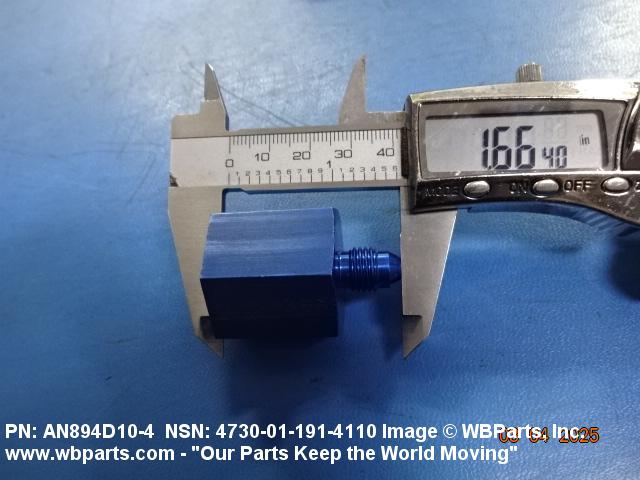

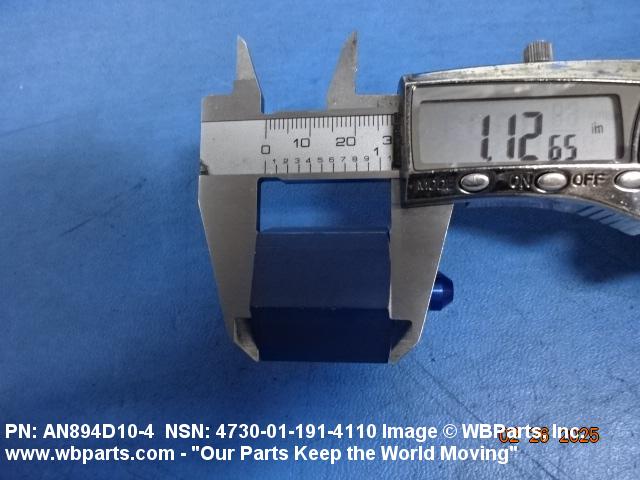

Drawings & Photos | NSN 4730-01-191-4110
Demand History | NSN 4730-01-191-4110
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-191-4110 | 2025-07-204 | 40 | US |
| AN894D104 | 2025-03-78 | 2 | United States |
| AN894D104 | 2025-02-45 | 32 | United States |
| AN894D104 | 2025-02-38 | 32 | United States |
| AN894D104 | 2024-02-57 | 18 | United States |
| AN894D104 | 2024-01-24 | 18 | United States |
| AN894D104 | 2021-10-301 | 2 | Croatia |
Cross Reference | NSN 4730-01-191-4110
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS4875/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5173 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5173D1004 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24398D10-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-191-4110
Technical Data | NSN 4730-01-191-4110
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED INTERNAL BOSS 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B9 GASKET SEAL 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.875 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END 3B 2ND END |
| NOMINAL OVERALL LENGTH | 1.672 INCHES |
| SPECIFICATION/STANDARD DATA | 88044-AN894 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD AND 81349-MIL-F-5509 GOVERNMENT SPECIFICATION |
| III END ITEM IDENTIFICATION | 10F AIRCRAFT, F-111 |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN894D10-4 |
Restrictions/Controls & Freight Information | NSN 4730-01-191-4110
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
