NSN 4730-01-199-3125 R44797P081008, R44797P081008W, 74J548018
Product Details | TUBE TEE
4730-01-199-3125 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: R44797P081008, R44797P081008W, 74J548018, 10163757 , 4730-01-199-3125, 01-199-3125, 4730011993125, 011993125
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 19 JAN 1985 | 01-199-3125 | 03809 ( TEE, TUBE ) |

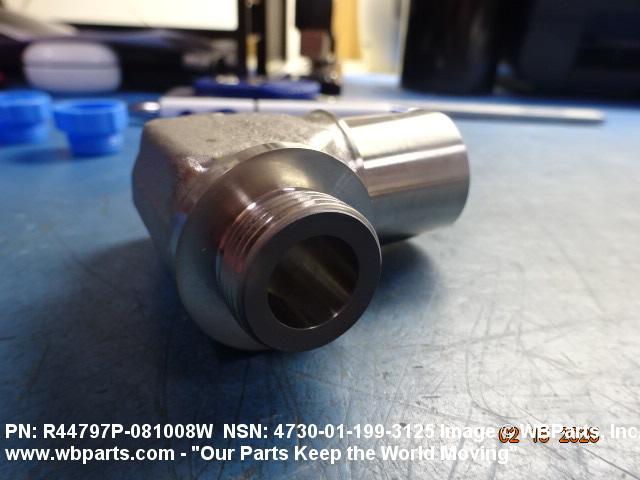

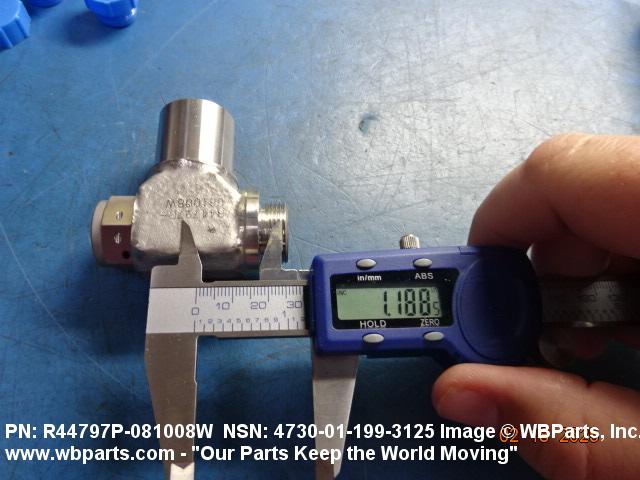

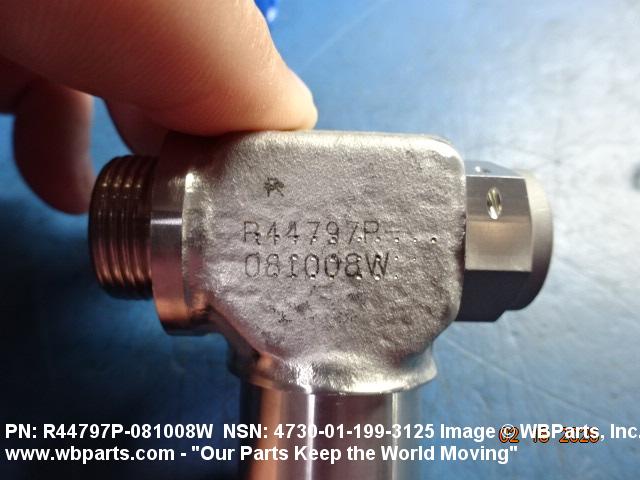

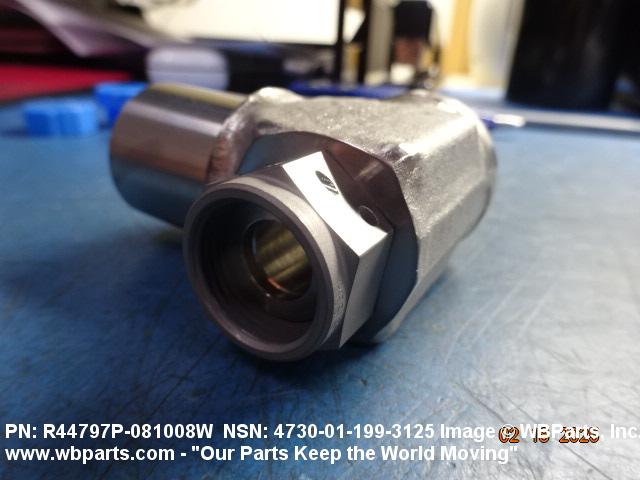

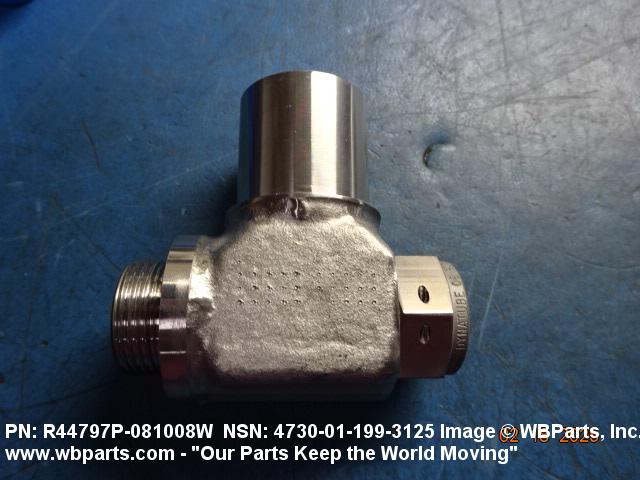

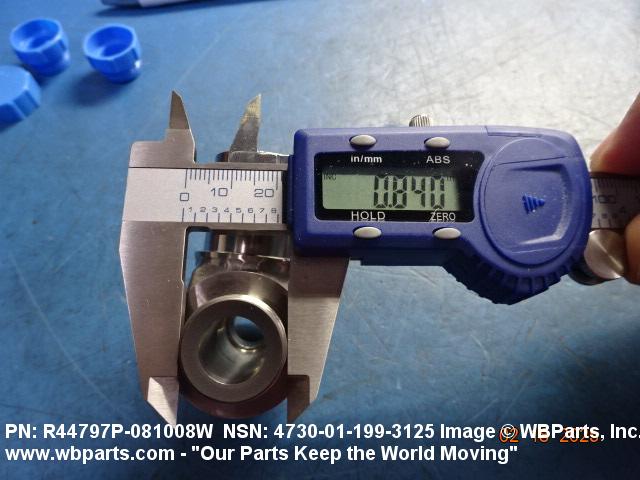

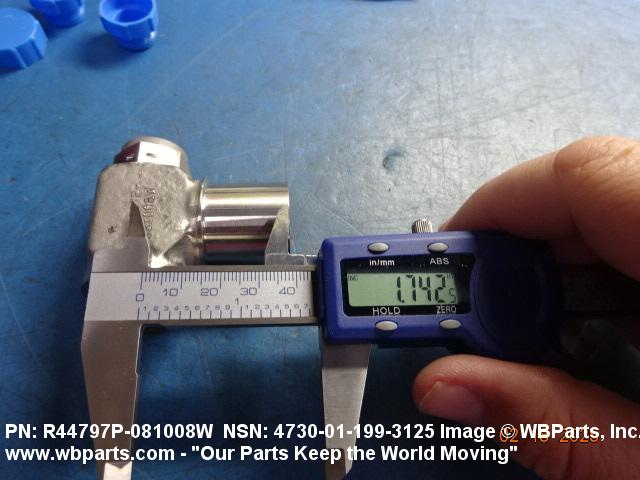

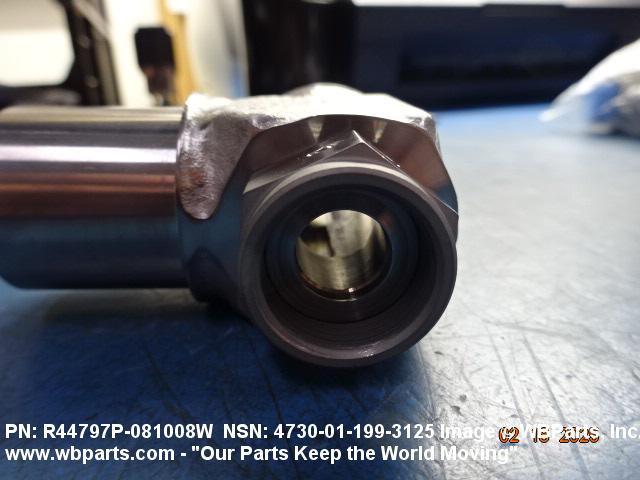

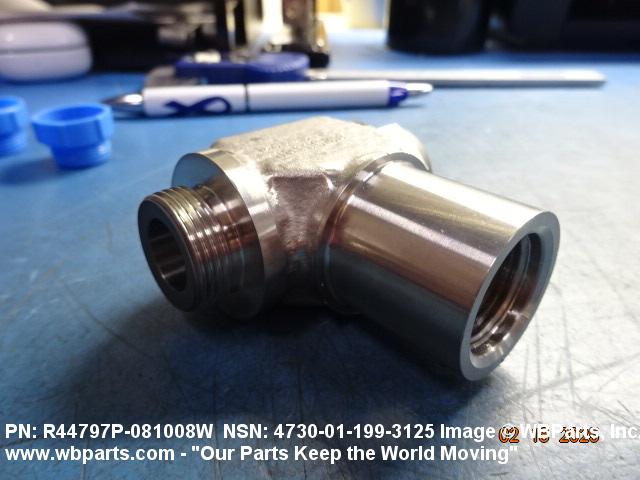

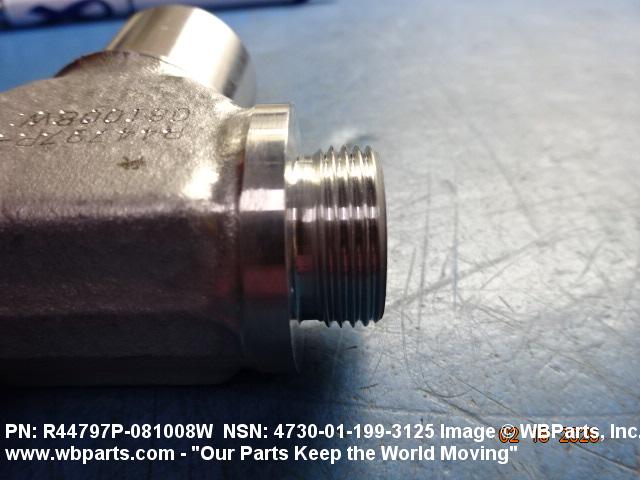

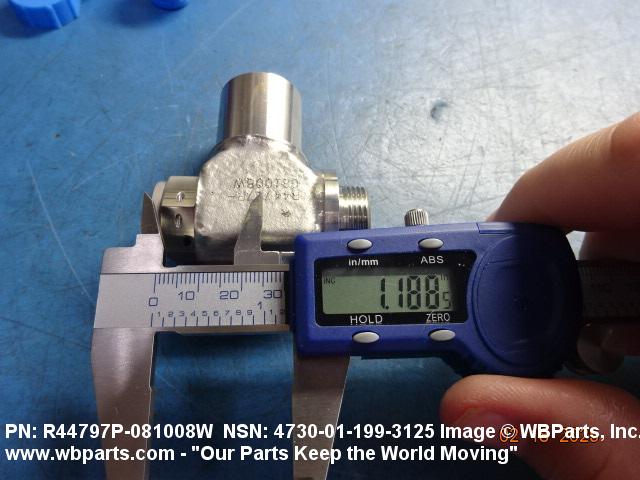

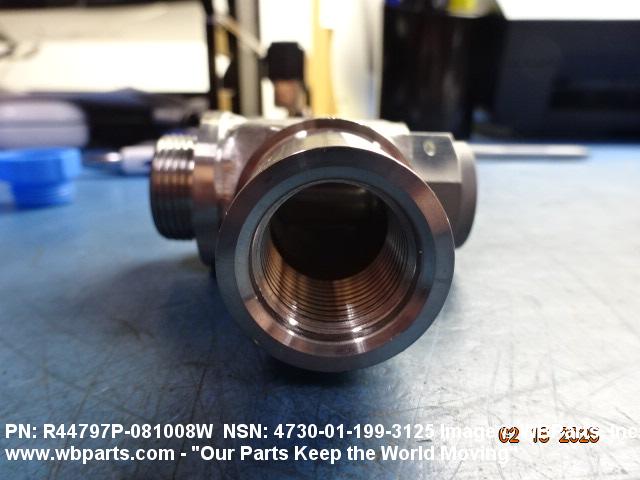

Drawings & Photos | NSN 4730-01-199-3125
Demand History | NSN 4730-01-199-3125
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| R44797P081008 | 2025-06-156 | 3 | us |
| R44797P081008 | 2024-09-263 | 4 | us |
| R44797P081008 | 2024-08-229 | 4 | us |
| 4730-01-199-3125 | 2024-04-112 | 2 | us |
| R44797P081008W | 2024-02-52 | 5 | DIBBS |
| R44797P081008W | 2023-04-94 | 2 | DIBBS |
| R44797P081008W | 2023-01-18 | 1 | DIBBS |
| 4730-01-199-3125 | 2014-07-202 | 8 | DIBBS |
| 4730-01-199-3125 | 2014-07-191 | 8 | DIBBS |
| 4730-01-199-3125 | 2014-06-168 | 9 | DIBBS |
| 4730-01-199-3125 | 2014-05-146 | 9 | DIBBS |
| 4730-01-199-3125 | 2013-05-150 | 6 | DIBBS |
| 4730-01-199-3125 | 2013-05-134 | 6 | DIBBS |
| 4730-01-199-3125 | 2009-09-244 | 8 | DIBBS |
| 4730-01-199-3125 | 2009-05-122 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-199-3125
Technical Data | NSN 4730-01-199-3125
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END THREADED INTERNAL TUBE 2ND END THREADED EXTERNAL TUBE 3RD END |
| CONNECTION STYLE | B23 SWIVEL NUT, FLARELESS 1ST END B14B PLAIN 2ND END B67A PLAIN 3RD END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END |
| NOMINAL THREAD SIZE | 0.7188 INCHES 1ST END 0.4375 INCHES 2ND END 0.8438 INCHES 3RD END |
| THREAD CLASS | 3B 1ST END 3B 2ND END 3A 3RD END |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | F/A-18 HORNET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ADAPTER OIL LINES ACCESS DRIVE GRBX-CAGE 76301 OR DYNATUBE TEE-CAGE 50599 |
Restrictions/Controls & Freight Information | NSN 4730-01-199-3125
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-199-3125
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
