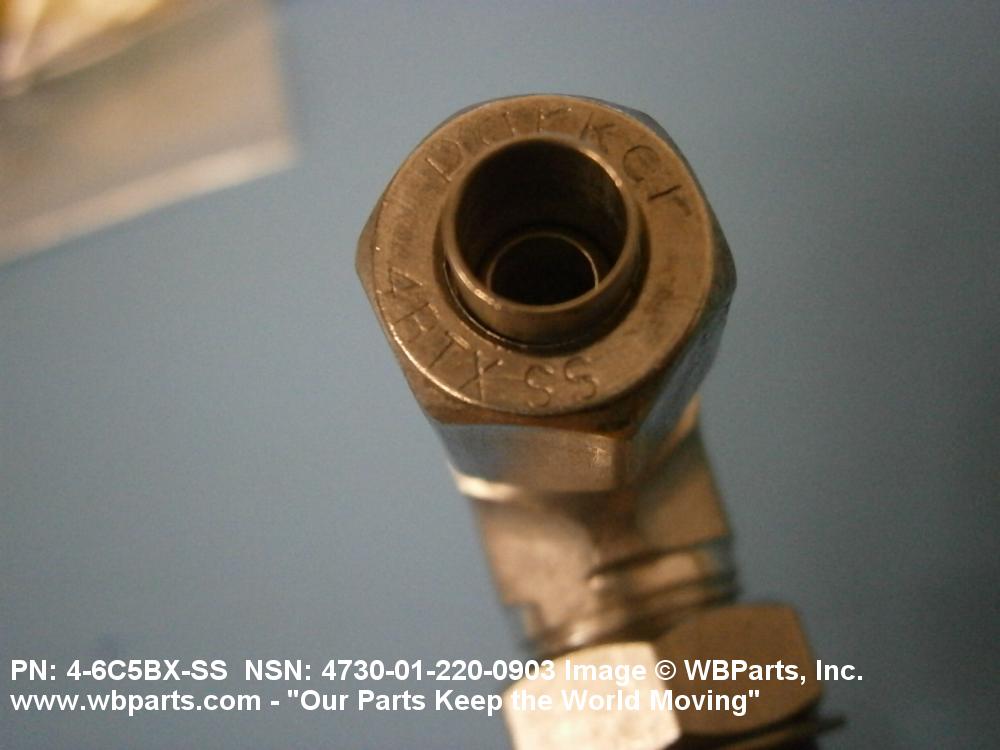

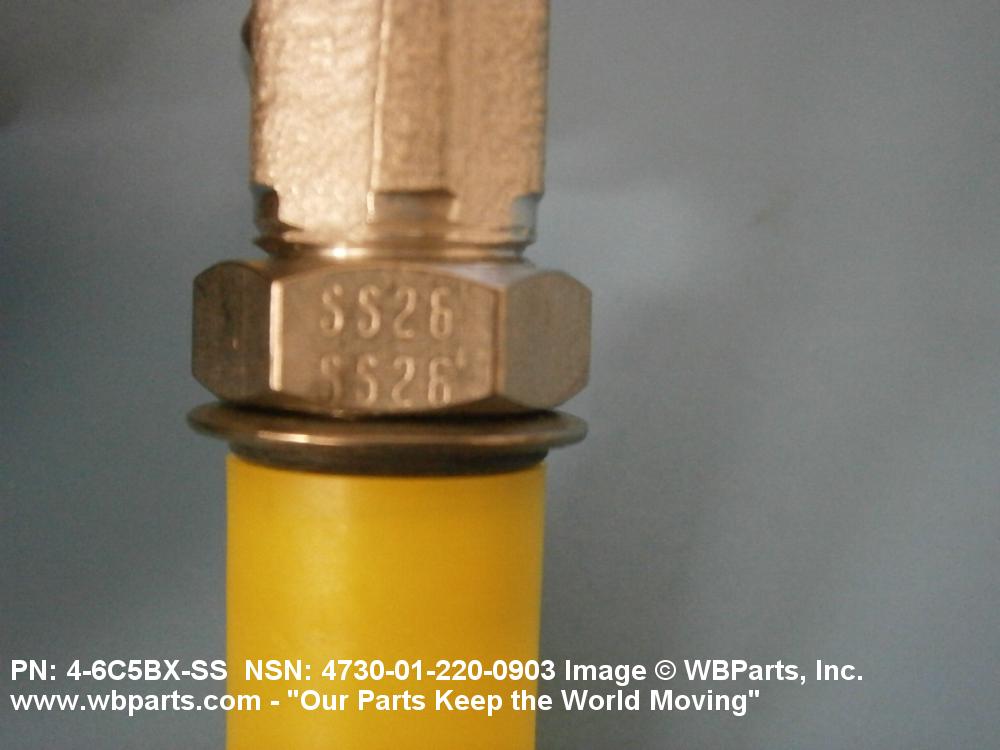

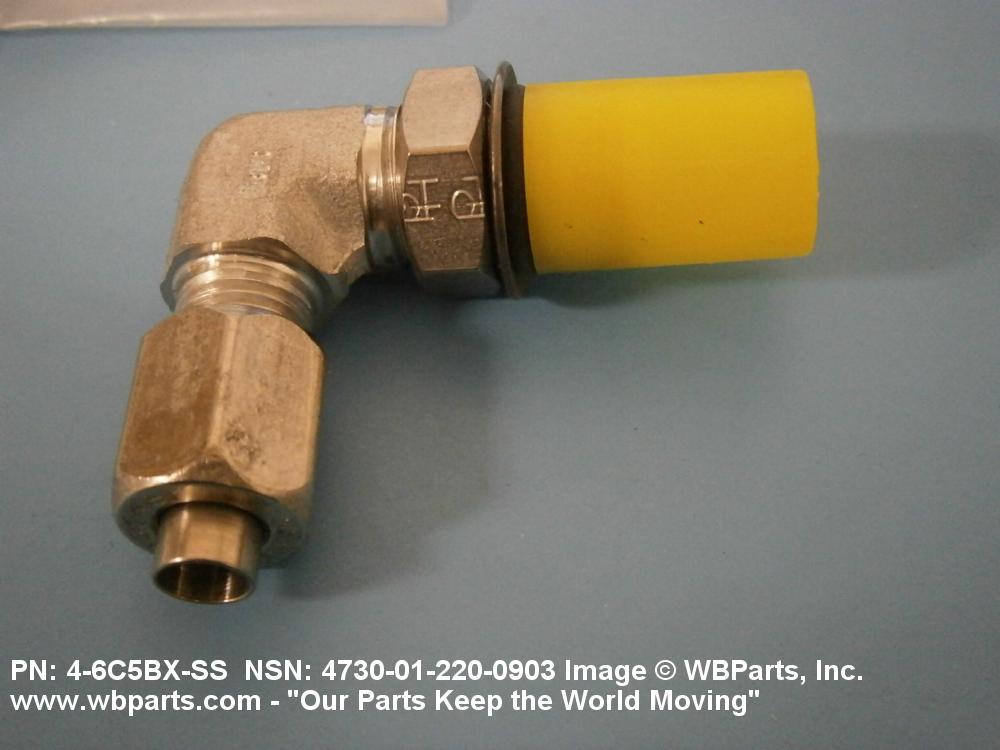

Product Details | TUBE TO BOSS ELBOW
4730-01-220-0903 A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like.
Part Alternates: J514 4-6 070220SA , J51446070220SA, 4-6 070220SA , 46070220SA, 4-6070220SA, 46C5BXSS, 4-6C5BX-SS, 71011133001, J514, 4730-01-220-0903, 01-220-0903, 4730012200903, 012200903
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 NOV 1985 | 01-220-0903 | 22679 ( ELBOW, TUBE TO BOSS ) |
Drawings & Photos | NSN 4730-01-220-0903
Demand History | NSN 4730-01-220-0903
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-220-0903 | 2023-06-171 | 6 | US |
| 4730-01-220-0903 | 2020-05-126 | 76 | DIBBS |
| 4730-01-220-0903 | 2020-04-100 | 76 | DIBBS |
| 4730-01-220-0903 | 2020-02-58 | 76 | DIBBS |
| J514 | 2015-02-48 | 1 | us |
| 4730-01-220-0903 | 2014-10-279 | 191 | DIBBS |
| 4730-01-220-0903 | 2013-01-04 | 150 | United States |
| 4730-01-220-0903 | 2012-03-89 | 84 | DIBBS |
| 4730-01-220-0903 | 2011-10-277 | 6 | Taiwan |
| 4730-01-220-0903 | 2011-10-276 | 65 | DIBBS |
| J514 | 2010-02-47 | 20 | us |
| 4730-01-220-0903 | 2009-05-135 | 61 | DIBBS |
Cross Reference | NSN 4730-01-220-0903
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4-6 070220SA | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 4-6C5BX-SS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 4-6C5BX-SS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 71011133001 | 89944 | KOLLSMAN, INC. |
| J514 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| J514 4-6 070220SA | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
