NSN 4730-01-225-9016 1376-18-407, 201091, 5520411
Product Details | SELF-SEALING COUPLING HALF
4730-01-225-9016 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an external or internal thread for connecting a mating part to form a self-sealing coupling assembly. The fitting has either a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half, or, if it has no self-sealing feature, is specifically designed to mate with a fitting with a self-sealing feature. For self-sealing fittings with a quick disconnect end, see COUPLING HALF, QUICK DISCONNECT. For fluid line fittings without a self-sealing feature, see COUPLING (as modified).
Part Alternates: 1376-18-407, 201091, 5520411, 4730-01-225-9016, 01-225-9016, 4730012259016, 137618407, 012259016
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 FEB 1986 | 01-225-9016 | 18281 ( COUPLING HALF, SELF-SEALING ) |
Drawings & Photos | NSN 4730-01-225-9016
Demand History | NSN 4730-01-225-9016
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 201091 | 2024-04-120 | 12 | United States |
| 4730-01-225-9016 | 2013-04-106 | 2 | DIBBS |
| 4730-01-225-9016 | 2013-04-91 | 2 | DIBBS |
| 4730-01-225-9016 | 2012-10-303 | 1 | DIBBS |
| 4730-01-225-9016 | 2012-10-281 | 1 | DIBBS |
| 137618407 | 2010-06-173 | 2 | Turkey |
| 4730-01-225-9016 | 2009-05-121 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-225-9016
Technical Data | NSN 4730-01-225-9016
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |
| MEDIA FOR WHICH DESIGNED | WATER, SALT SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 600.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 120.0 DEG CELSIUS SINGLE RESPONSE |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| OVERALL LENGTH | 105.0 MILLIMETERS NOMINAL |
| CONNECTION TYPE | THREADED INTERNAL TUBE FIRST FLUID END CONNECTION |

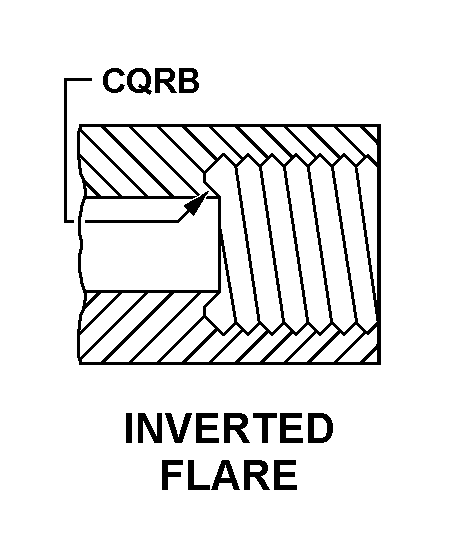

| CONNECTION STYLE | B12 INVERTED FLARE ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS |
| NOMINAL THREAD SIZE | 1.312 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 3B ALL ENDS |
| (NON-CORE DATA) FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 25.4 MILLIMETERS NOMINAL |
| (NON-CORE DATA) FIRST LEG LENGTH EQUIP | 40.0 MILLIMETERS NOMINAL MENT |
Restrictions/Controls & Freight Information | NSN 4730-01-225-9016
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-225-9016
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
