NSN 4730-01-233-5001 NAS192202751, NAS1922-0275-1, NAS192202753
Product Details | HOSE CLAMP
4730-01-233-5001 A clamp in which the body (band or wire) completely encircles an item and distributes a relatively even amount of pressure throughout the entire 360 degrees (6.282 radians) of the periphery of the item to be compressed. Its compression quality is dependent upon an integral screw mechanism, (screw, bolt spring compression and the like mechanical fasteners), or it may be applied by a device not integral with the clamp itself. It is specifically designed to prevent leakage between a hose and its attaching connection(s) when the body of the clamp is round or circular. For square, rectangular, or irregularly shaped items, see CLAMP, HOSE, SPECIAL-SHAPED. Excludes CLAMP, ELECTRICAL; CLAMP, LOOP; CLAMP, FIRE HOSE, SHUTOFF; FERRULE (as modified); and HAND SCREW.
Part Alternates: NAS192202751, NAS1922-0275-1, NAS192202753, NAS1922-0275-3, NH1023010275, NH102301-0275, ST9M623, ST9M623275, ST9M623-275, C7898275, C7898-275, LS111432751, LS11143-275-1, 10A26027518, 10A260-275-18, 10A2602751B, 10A260-275-1B, 10A2602753B, 10A260-275-3B, 62M44, 4730-01-233-5001, 01-233-5001, 4730012335001, 012335001
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 31 MAY 1986 | 01-233-5001 | 13566 ( CLAMP, HOSE ) |

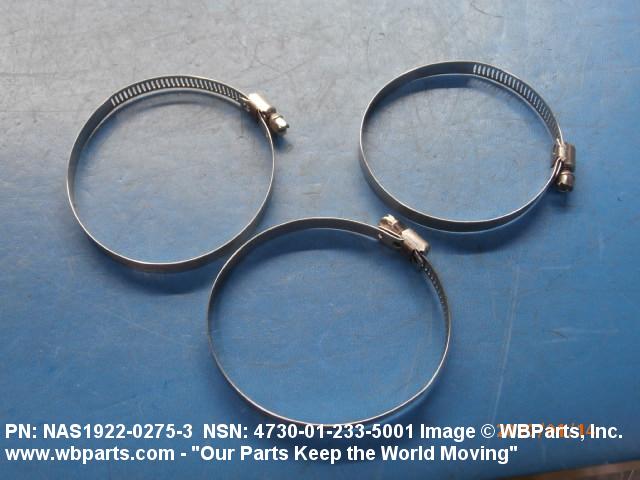

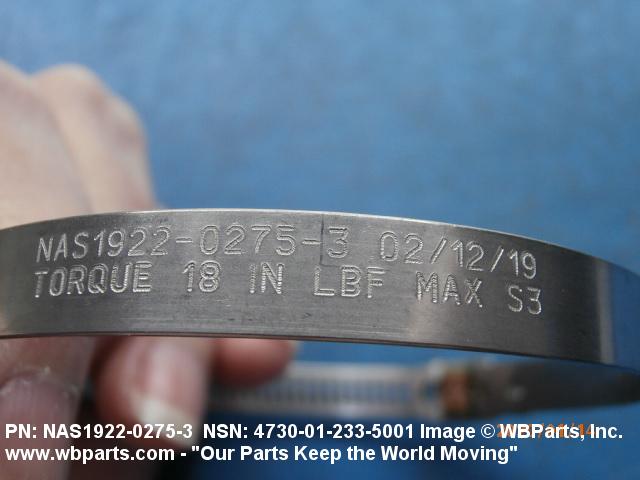

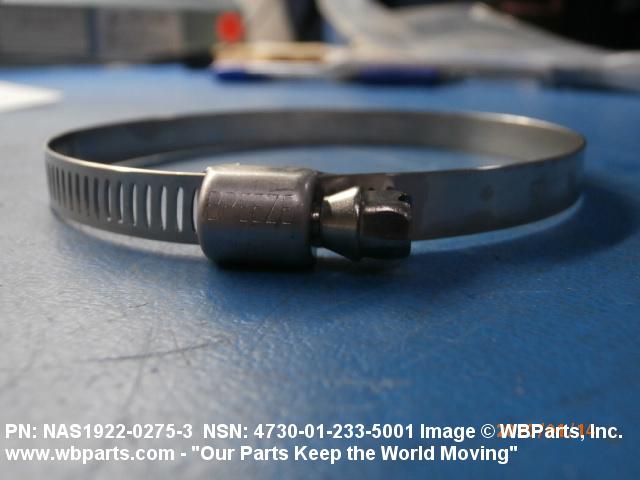

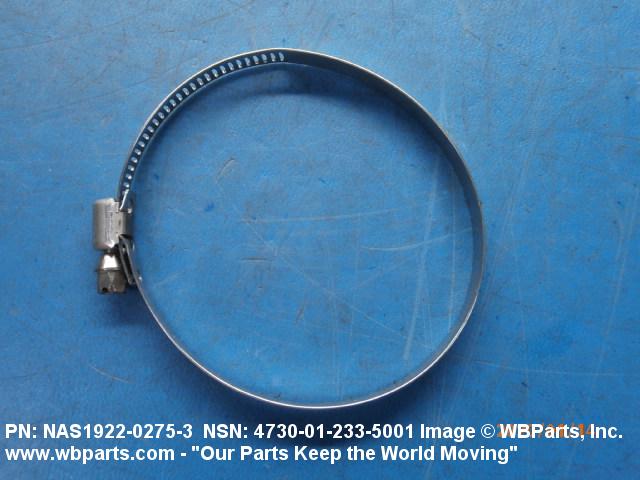

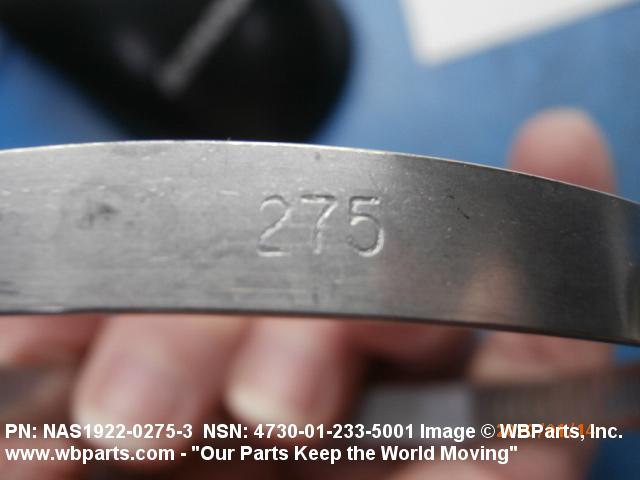

Drawings & Photos | NSN 4730-01-233-5001
Demand History | NSN 4730-01-233-5001
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-233-5001 | 2025-07-202 | 809 | DIBBS |
| 4730-01-233-5001 | 2024-06-154 | 824 | DIBBS |
| C7898275 | 2023-12-349 | 1 | United States |
| 4730-01-233-5001 | 2023-08-229 | 632 | DIBBS |
| 4730-01-233-5001 | 2023-07-194 | 509 | DIBBS |
| 4730-01-233-5001 | 2023-05-138 | 464 | DIBBS |
| 4730-01-233-5001 | 2023-04-103 | 475 | DIBBS |
| 4730-01-233-5001 | 2023-02-51 | 477 | DIBBS |
| 4730-01-233-5001 | 2022-02-45 | 1610 | DIBBS |
| 4730-01-233-5001 | 2022-01-30 | 1610 | DIBBS |
| NAS192202751 | 2021-02-46 | 100 | CA |
| 4730-01-233-5001 | 2021-02-42 | 521 | DIBBS |
| 4730-01-233-5001 | 2021-02-42 | 517 | DIBBS |
| 4730-01-233-5001 | 2020-07-209 | 100 | United States |
| NAS192202753 | 2020-01-06 | 3 | United States |
| 62M44 | 2019-01-17 | 24 | TH |
| 62M44 | 2018-12-355 | 24 | TH |
| 4730-01-233-5001 | 2018-08-242 | 1433 | DIBBS |
| 4730-01-233-5001 | 2017-11-306 | 1394 | DIBBS |
| 4730-01-233-5001 | 2015-10-302 | 1529 | DIBBS |
| NAS1922-0275-3 | 2015-06-176 | 20 | Turkey |
| 4730-01-233-5001 | 2015-06-172 | 1549 | DIBBS |
| 4730-01-233-5001 | 2015-05-133 | 22 | United States |
| 4730-01-233-5001 | 2012-11-307 | 896 | DIBBS |
| 4730-01-233-5001 | 2012-07-194 | 599 | DIBBS |
| NAS192202751 | 2012-02-41 | 2 | United States |
| NAS192202751 | 2012-02-41 | 10 | United States |
| NAS192202751 | 2012-02-41 | 25 | United States |
| NAS192202751 | 2012-02-38 | 10 | United States |
| 4730-01-233-5001 | 2011-02-48 | 847 | DIBBS |
| 4730-01-233-5001 | 2011-02-46 | 4 | US |
| 4730-01-233-5001 | 2009-10-294 | 400 | DE |
| 4730-01-233-5001 | 2009-10-294 | 2285 | DIBBS |
| NAS192202751 | 2009-09-266 | 50 | United States |
| 4730-01-233-5001 | 2009-04-107 | 2790 | DIBBS |
| 4730-01-233-5001 | 2008-09-263 | 1088 | DIBBS |
Cross Reference | NSN 4730-01-233-5001
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10A260-275-18 | 14711 | RSA ENGINEERED PRODUCTS, LLC |
| 10A260-275-1B | 14711 | RSA ENGINEERED PRODUCTS, LLC |
| 10A260-275-3B | 14711 | RSA ENGINEERED PRODUCTS, LLC |
| 62M44 | 81646 | EPICOR INDUSTRIES INC IDEAL DIV |
| C7898-275 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| LS11143-275-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| NAS1922-0275-1 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1922-0275-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NH102301-0275 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| ST9M623 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST9M623-275 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-233-5001
Technical Data | NSN 4730-01-233-5001
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C21 BAND |

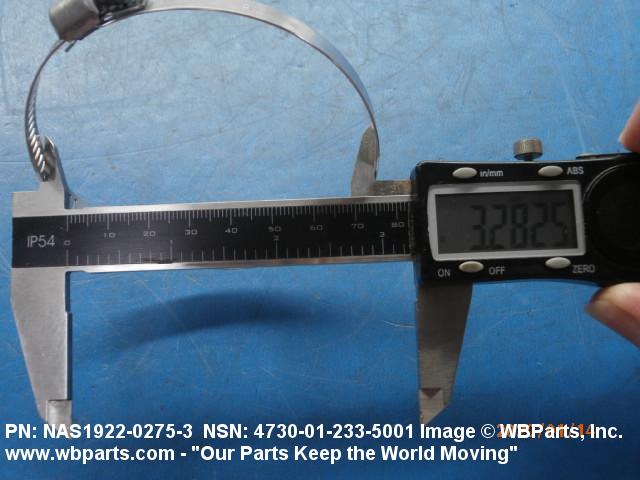

| INSIDE DIAMETER | 2.531 INCHES MINIMUM AND 3.234 INCHES MAXIMUM |

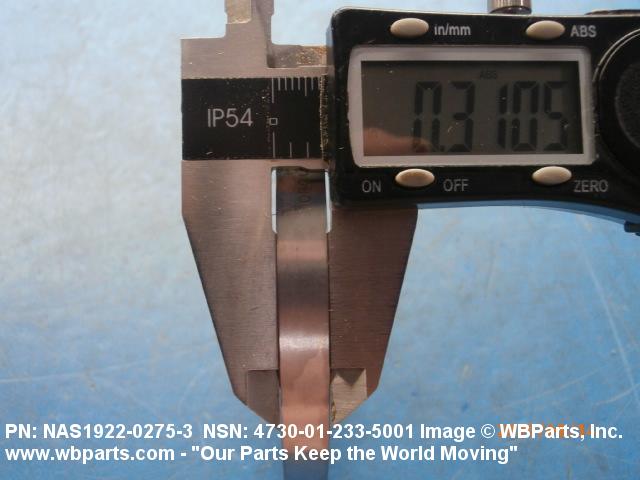

| OVERALL WIDTH | 0.306 INCHES MINIMUM AND 0.330 INCHES MAXIMUM |

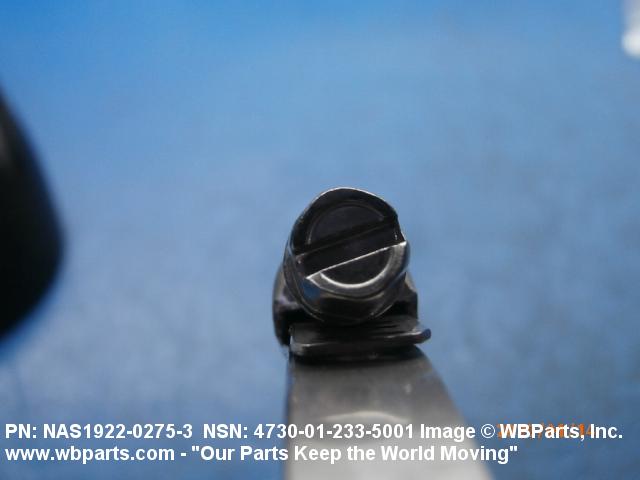

| FASTENING DEVICE TYPE | SLOTTED HEXAGON HEAD SCREW |
| SPECIFICATION/STANDARD DATA | 80205-NAS1922 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-01-233-5001
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
