NSN 4730-01-242-5988 MS245908, MS24590-8, 01-242-5988
Product Details | HOSE COUPLING NUT
4730-01-242-5988 A cylindrical item which serves as the outer shell of a multipiece end connection designed to directly grip the end of a hose.
Part Alternates: MS245908, MS24590-8, 4730-01-242-5988, 01-242-5988, 4730012425988, 012425988
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 13 OCT 1986 | 01-242-5988 | 03858 ( NUT, HOSE COUPLING ) |

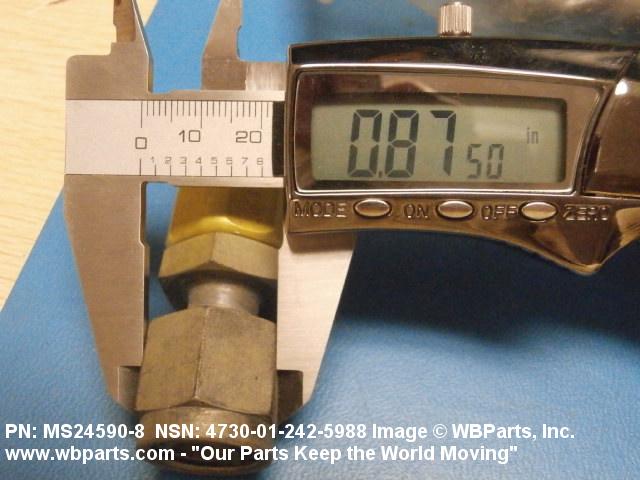

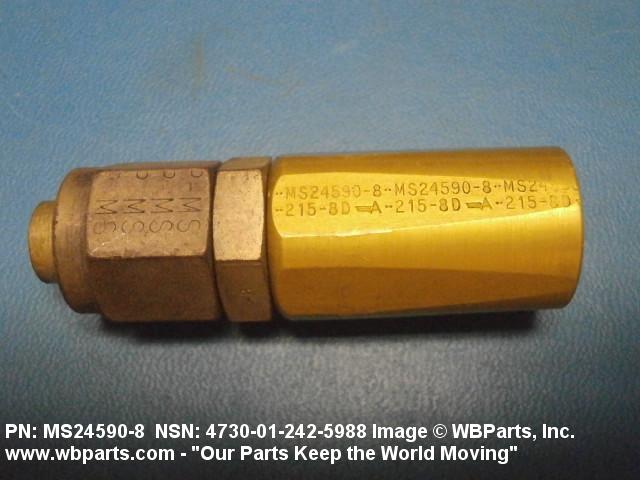

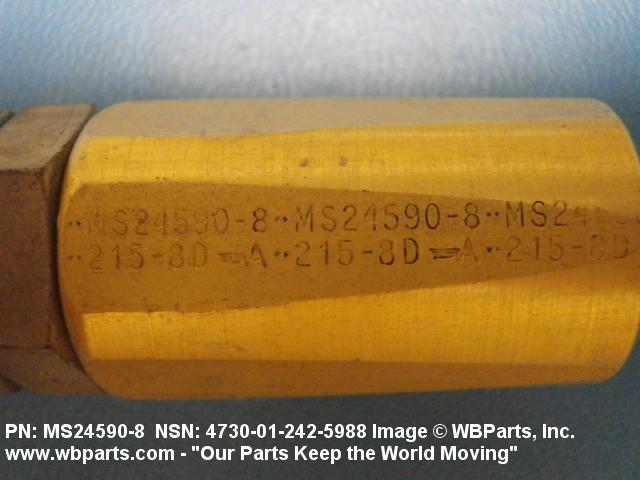

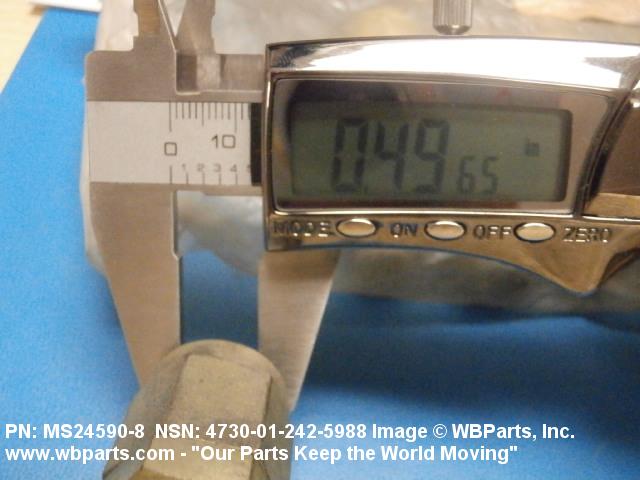

Drawings & Photos | NSN 4730-01-242-5988
Demand History | NSN 4730-01-242-5988
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-242-5988 | 2021-11-322 | 1 | US |
| 4730-01-242-5988 | 2019-07-192 | 2 | US |
| 4730-01-242-5988 | 2015-04-111 | 40 | United States |
| MS245908 | 2014-01-13 | 2 | US |
| MS245908 | 2009-06-154 | 2 | US |
Cross Reference | NSN 4730-01-242-5988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS24590-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-242-5988
Technical Data | NSN 4730-01-242-5988
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNEF |
| NOMINAL THREAD SIZE | 0.5625 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-268 T6 OR T851 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TY2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A354 HOSE COUPLING |
| NUT HEIGHT | 1.640 INCHES MINIMUM AND 1.660 INCHES MAXIMUM |

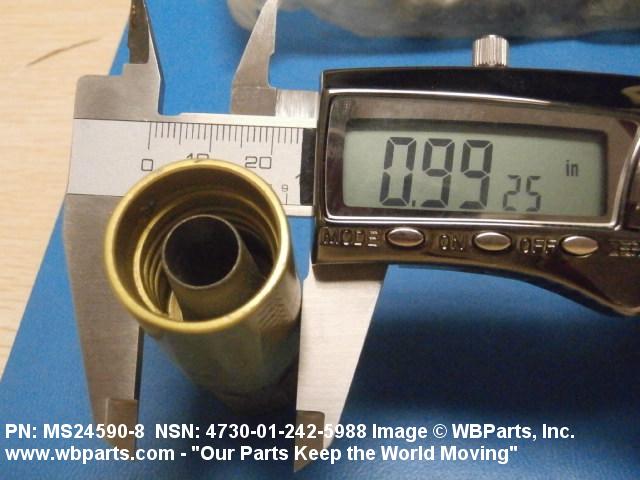

| LARGEST OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |

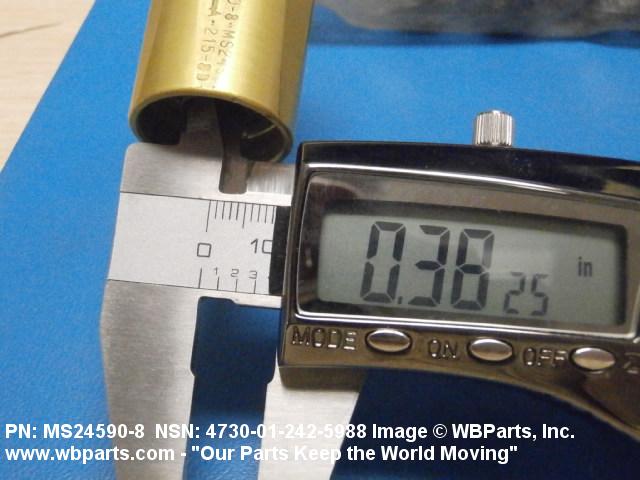

| SMALLEST INSIDE DIAMETER | 0.383 INCHES MINIMUM AND 0.387 INCHES MAXIMUM |
| HOSE NOMINAL SIZE | 0.385 INCHES |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24590-8 |
Restrictions/Controls & Freight Information | NSN 4730-01-242-5988
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
