NSN 4730-01-248-0183 1414IN, 141-4IN, 01-248-0183
Product Details | SEDIMENT STRAINER
4730-01-248-0183 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: 1414IN, 141-4IN, 4730-01-248-0183, 01-248-0183, 4730012480183, 012480183
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 JAN 1987 | 01-248-0183 | 04200 ( STRAINER, SEDIMENT ) |
Drawings & Photos | NSN 4730-01-248-0183
Cross Reference | NSN 4730-01-248-0183
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 141-4IN | 78527 | STAPLES & PFEIFFER INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-248-0183
Related Products | NSN 4730-01-248-0183
Technical Data | NSN 4730-01-248-0183
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C1 Y STRAINER W/BLOW-OFF PLUG |
| BODY LENGTH | 15.625 INCHES NOMINAL |
| DISTANCE FROM BOTTOM OF BODY TO CENTER OF INLET | 13.000 INCHES NOMINAL |
| MATERIAL | STEEL BODY STEEL COMP 316 SCREENING |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A216,GRADE WCB ASSN STD SINGLE MATERIAL RESPONSE BODY |
| FILTERING MEDIA DESIGN | PERFORATED SINGLE FILTERING MEDIA RESPONSE |
| PERFORATION DIAMETER | 0.062 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | WATER |
| MAXIMUM OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH |
| FIRST INTAKE CONNECTION TYPE | RAISED FACE FLANGE TOP SIDE |
| FIRST INTAKE FLANGE SHAPE STYLE | 2 ROUND W/UNTHREADED BOLT HOLES |
| FIRST INTAKE FLANGE OUTSIDE DIAMETER | 9.000 INCHES NOMINAL |
| FIRST INTAKE FLANGE THICKNESS | 0.922 INCHES NOMINAL |

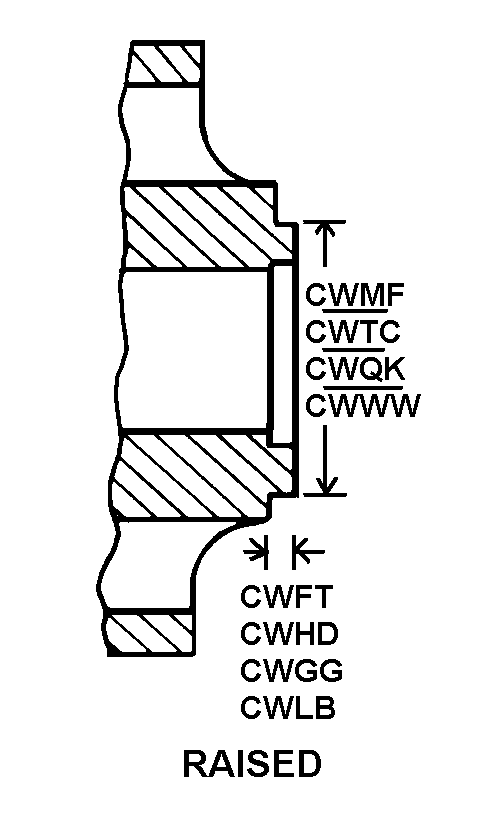

| FIRST INTAKE FLANGE FACE STYLE | 6 RAISED |
| FIRST INTAKE FLANGE RAISED FACE HEIGHT | 0.062 INCHES NOMINAL |
| FIRST INTAKE FLANGE RAISED FACE DIAMETER | 6.188 INCHES NOMINAL |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING TYPE | UNTHREADED HOLE TOP SIDE |
| MOUNTING HOLE QUANTITY | 8 |
| MOUNTING HOLE DIAMETER | 0.625 INCHES NOMINAL |
| MANUFACTURERS CODE | 78527 |
| DESIGN CONTROL REFERENCE | 141-4IN |
Restrictions/Controls & Freight Information | NSN 4730-01-248-0183
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-248-0183
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | M1 | MSC unique components |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
