NSN 4730-01-256-8606 AN-3.0-125F-CS-C, AN30125FCSC, 01-256-8606
Product Details | SEDIMENT STRAINER
4730-01-256-8606 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: AN-3.0-125F-CS-C, AN30125FCSC, 4730-01-256-8606, 01-256-8606, 4730012568606, 012568606
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01-256-8606 | 04200 ( STRAINER, SEDIMENT ) |
Drawings & Photos | NSN 4730-01-256-8606
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-256-8606
Technical Data | NSN 4730-01-256-8606
| Characteristic | Specifications |
|---|---|

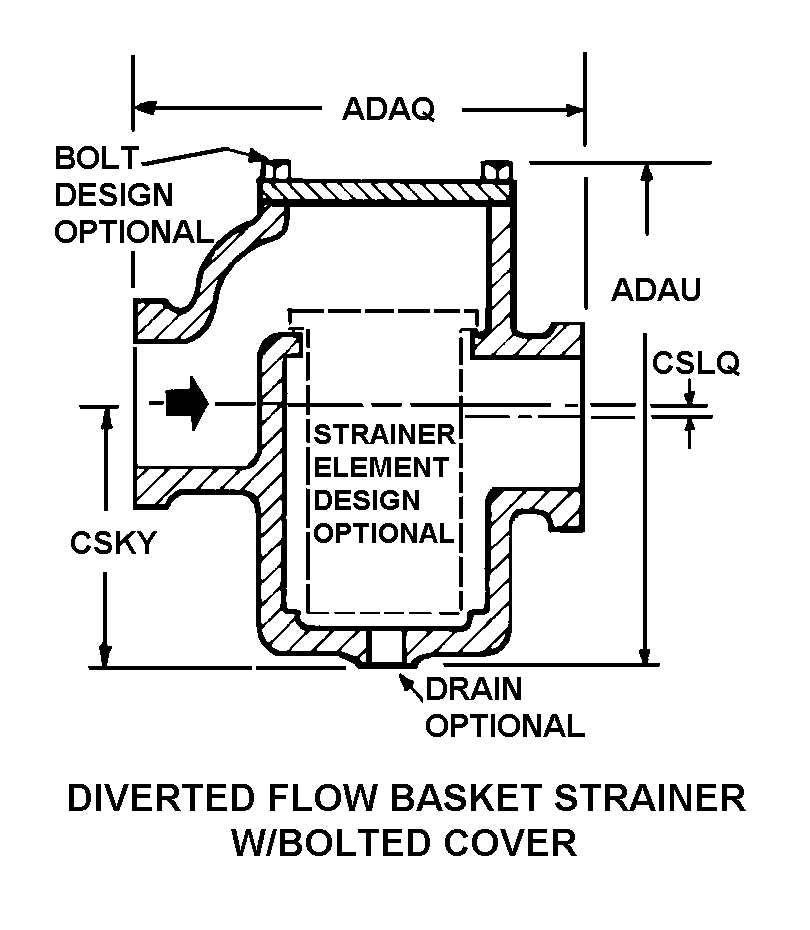

| STYLE DESIGNATOR | C4 DIVERTED FLOW BASKET STRAINER W/BOLTED COVER |
| BODY LENGTH | 11.688 INCHES MINIMUM AND 11.812 INCHES MAXIMUM |
| BODY HEIGHT | 15.875 INCHES NOMINAL |
| DISTANCE FROM BOTTOM OF BODY TO CENTER OF INLET | 11.375 INCHES NOMINAL |
| MATERIAL | STEEL BODY COPPER ALLOY SCREENING |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A216,WCB ASSN STD SINGLE MATERIAL RESPONSE BODY |
| FILTERING MEDIA DESIGN | PERFORATED SINGLE FILTERING MEDIA RESPONSE |
| PERFORATION DIAMETER | 0.156 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE | 285.0 POUNDS PER SQUARE INCH |
| FIRST INTAKE CONNECTION TYPE | RAISED FACE FLANGE TOP SIDE |
| FIRST INTAKE FLANGE SHAPE STYLE | 2 ROUND W/UNTHREADED BOLT HOLES |
| FIRST INTAKE FLANGE FACE STYLE | 4 RAISED |
| FIRST INTAKE FLANGE RAISED FACE DIAMETER | 3.000 INCHES NOMINAL |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING TYPE | INLET CONNECTION AND OUTLET CONNECTION TOP SIDE |
| MANUFACTURERS CODE | 76588 |
| DESIGN CONTROL REFERENCE | AN-3.0-125F-CS-C |
Restrictions/Controls & Freight Information | NSN 4730-01-256-8606
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
