NSN 4730-01-257-8686 C7869, C786910L, C7869-10L
Product Details | TUBE ELBOW
4730-01-257-8686 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: C7869, C786910L, C7869-10L, D11055AP10W, D11055AP-10W, D11055AT10W, D11055AT-10W, 4730-01-257-8686, 01-257-8686, 4730012578686, 012578686
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 JUN 1987 | 01-257-8686 | 03771 ( ELBOW, TUBE ) |

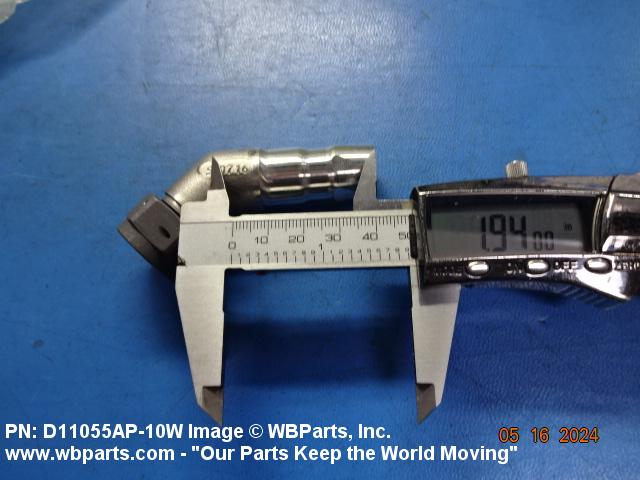

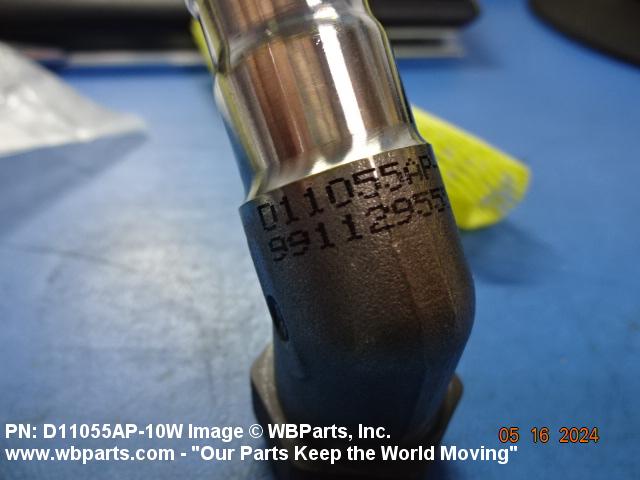

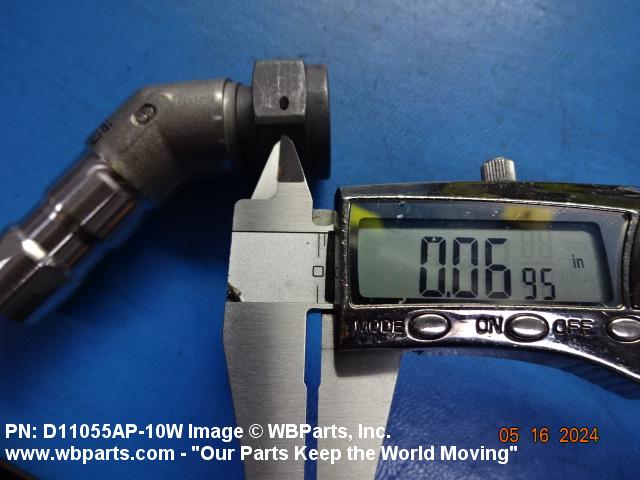

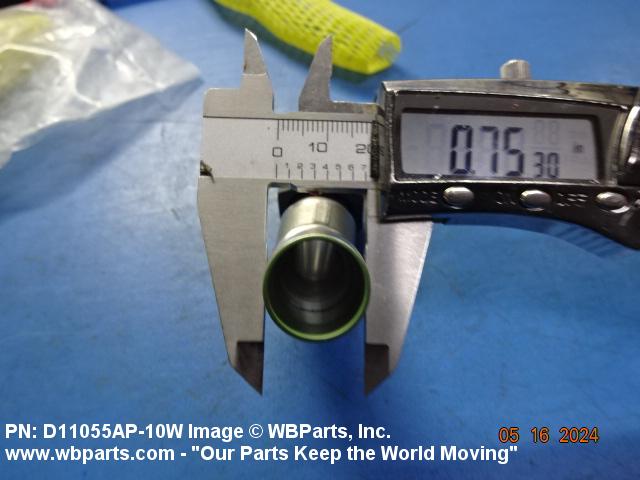

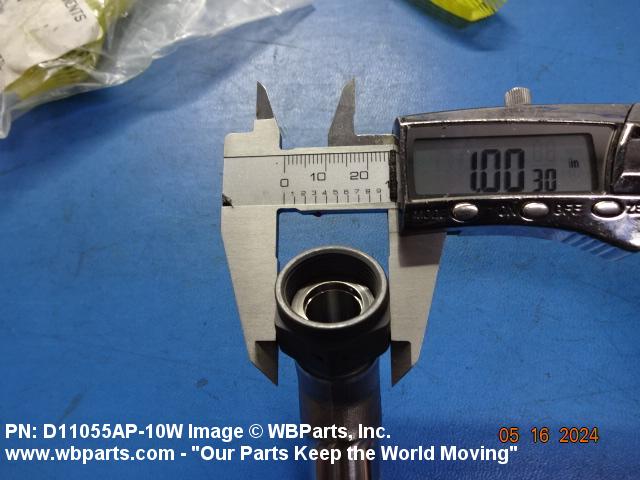

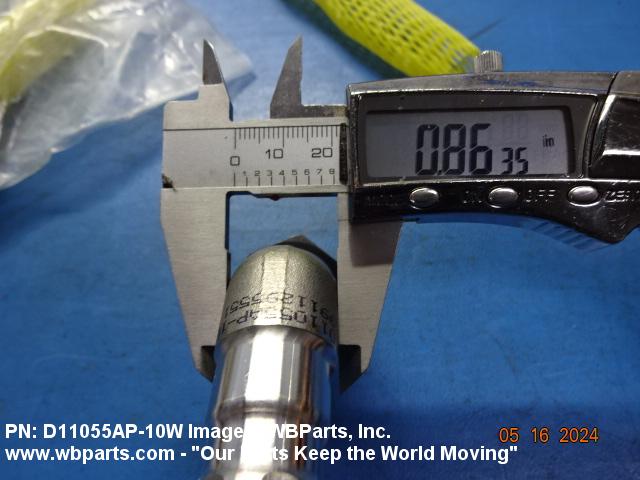

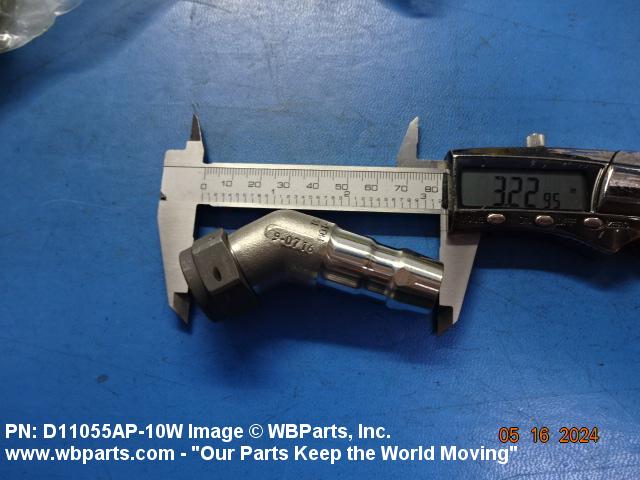

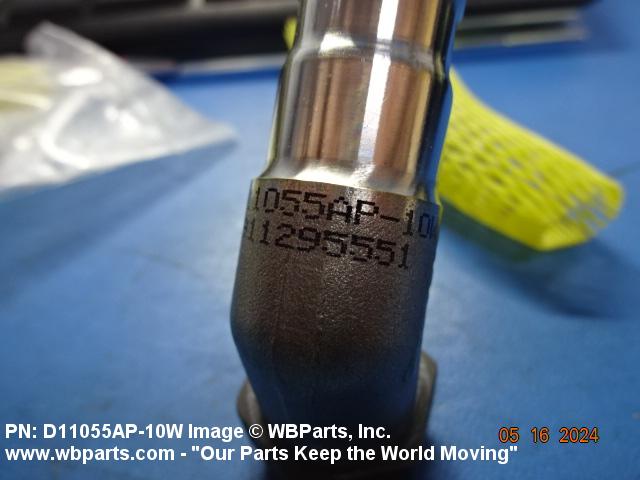

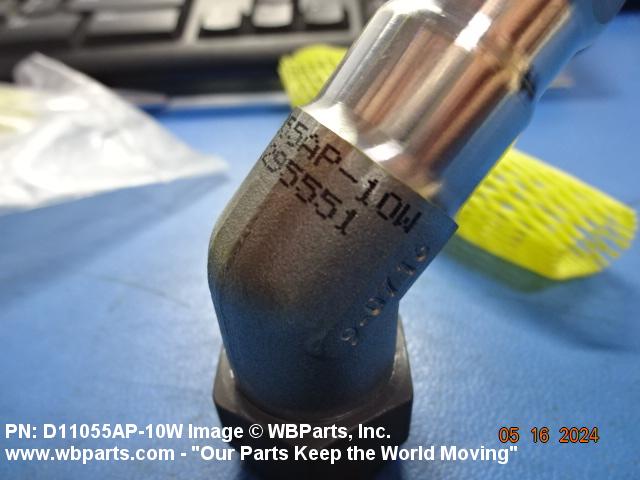

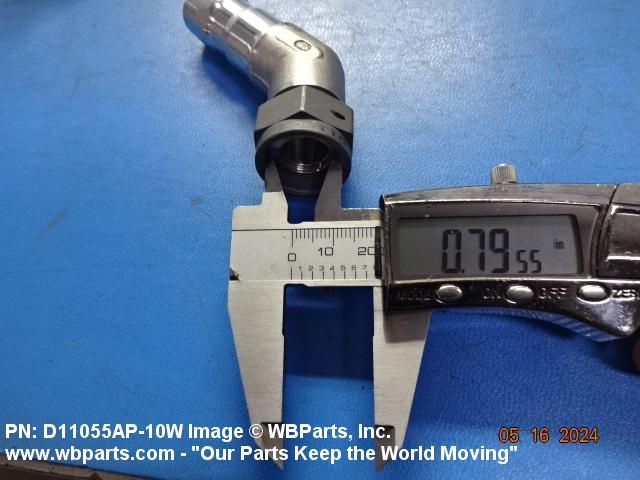

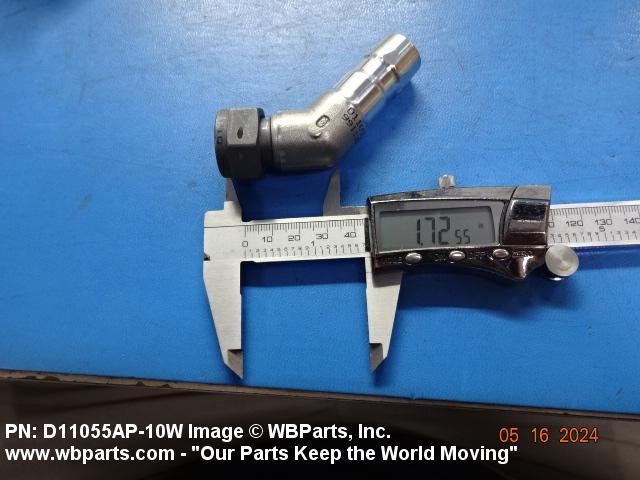

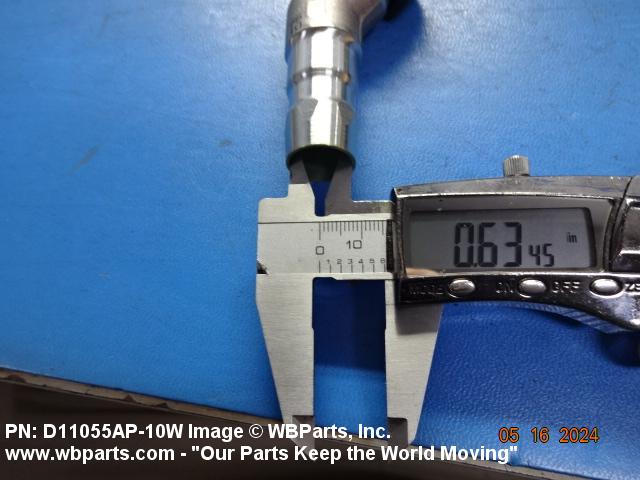

Drawings & Photos | NSN 4730-01-257-8686
Demand History | NSN 4730-01-257-8686
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-257-8686 | 2025-06-170 | 1 | United States |
| 4730-01-257-8686 | 2025-06-170 | 1 | United States |
| 4730-01-257-8686 | 2025-06-154 | 13 | United States |
| C7869-10L | 2025-03-83 | 51 | DIBBS |
| D11055AP-10W | 2025-03-83 | 51 | DIBBS |
| D11055AT-10W | 2025-03-83 | 51 | DIBBS |
| C7869-10L | 2025-03-72 | 51 | DIBBS |
| D11055AP-10W | 2025-03-72 | 51 | DIBBS |
| D11055AT-10W | 2025-03-72 | 51 | DIBBS |
| C7869-10L | 2024-10-281 | 184 | DIBBS |
| D11055AP-10W | 2024-10-281 | 184 | DIBBS |
| D11055AT-10W | 2024-10-281 | 184 | DIBBS |
| C7869-10L | 2024-09-270 | 184 | DIBBS |
| D11055AP-10W | 2024-09-270 | 184 | DIBBS |
| D11055AT-10W | 2024-09-270 | 184 | DIBBS |
| D11055AP10W | 2024-07-192 | 2 | United States |
| D11055AP10W | 2024-05-129 | 2 | United States |
| C7869-10L | 2024-04-92 | 138 | DIBBS |
| D11055AP-10W | 2024-04-92 | 138 | DIBBS |
| D11055AT-10W | 2024-04-92 | 138 | DIBBS |
| C7869-10L | 2024-03-81 | 138 | DIBBS |
| D11055AP-10W | 2024-03-81 | 138 | DIBBS |
| D11055AT-10W | 2024-03-81 | 138 | DIBBS |
| C7869-10L | 2024-02-57 | 73 | DIBBS |
| D11055AP-10W | 2024-02-57 | 73 | DIBBS |
| D11055AT-10W | 2024-02-57 | 73 | DIBBS |
| C7869-10L | 2024-02-46 | 73 | DIBBS |
| D11055AP-10W | 2024-02-46 | 73 | DIBBS |
| D11055AT-10W | 2024-02-46 | 73 | DIBBS |
| C7869-10L | 2023-05-138 | 65 | DIBBS |
| D11055AP-10W | 2023-05-138 | 65 | DIBBS |
| D11055AT-10W | 2023-05-138 | 65 | DIBBS |
| C7869-10L | 2023-03-61 | 52 | DIBBS |
| D11055AP-10W | 2023-03-61 | 52 | DIBBS |
| D11055AT-10W | 2023-03-61 | 52 | DIBBS |
| C7869-10L | 2023-01-26 | 18 | DIBBS |
| D11055AP-10W | 2023-01-26 | 18 | DIBBS |
| D11055AT-10W | 2023-01-26 | 18 | DIBBS |
| C7869-10L | 2022-12-349 | 24 | DIBBS |
| D11055AP-10W | 2022-12-349 | 24 | DIBBS |
| D11055AT-10W | 2022-12-349 | 24 | DIBBS |
| C7869-10L | 2022-04-118 | 9 | DIBBS |
| D11055AP-10W | 2022-04-118 | 9 | DIBBS |
| D11055AT-10W | 2022-04-118 | 9 | DIBBS |
| C7869-10L | 2022-02-40 | 15 | DIBBS |
| D11055AP-10W | 2022-02-40 | 15 | DIBBS |
| D11055AT-10W | 2022-02-40 | 15 | DIBBS |
| C7869-10L | 2022-01-30 | 5 | DIBBS |
| D11055AP-10W | 2022-01-30 | 5 | DIBBS |
| D11055AT-10W | 2022-01-30 | 5 | DIBBS |
| C7869-10L | 2021-07-199 | 5 | DIBBS |
| D11055AP-10W | 2021-07-199 | 5 | DIBBS |
| D11055AT-10W | 2021-07-199 | 5 | DIBBS |
| C7869-10L | 2020-09-274 | 11 | DIBBS |
| D11055AP-10W | 2020-09-274 | 11 | DIBBS |
| D11055AT-10W | 2020-09-274 | 11 | DIBBS |
| C7869-10L | 2020-07-212 | 11 | DIBBS |
| D11055AP-10W | 2020-07-212 | 11 | DIBBS |
| D11055AT-10W | 2020-07-212 | 11 | DIBBS |
| C7869-10L | 2019-11-329 | 23 | DIBBS |
| D11055AP-10W | 2019-11-329 | 23 | DIBBS |
| D11055AT-10W | 2019-11-329 | 23 | DIBBS |
| C7869-10L | 2019-11-317 | 23 | DIBBS |
| D11055AP-10W | 2019-11-317 | 23 | DIBBS |
| D11055AT-10W | 2019-11-317 | 23 | DIBBS |
| C7869-10L | 2019-04-112 | 18 | DIBBS |
| D11055AP-10W | 2019-04-112 | 18 | DIBBS |
| D11055AT-10W | 2019-04-112 | 18 | DIBBS |
| C7869-10L | 2019-04-101 | 18 | DIBBS |
| D11055AP-10W | 2019-04-101 | 18 | DIBBS |
| D11055AT-10W | 2019-04-101 | 18 | DIBBS |
| 4730-01-257-8686 | 2017-02-33 | 55 | DIBBS |
| 4730-01-257-8686 | 2010-12-337 | 40 | DIBBS |
| 4730-01-257-8686 | 2010-09-246 | 27 | DIBBS |
| 4730-01-257-8686 | 2010-07-202 | 55 | DIBBS |
| 4730-01-257-8686 | 2010-06-172 | 18 | DIBBS |
| 4730-01-257-8686 | 2010-05-124 | 80 | DIBBS |
| 4730-01-257-8686 | 2010-04-97 | 40 | DIBBS |
| 4730-01-257-8686 | 2010-03-84 | 15 | DIBBS |
| 4730-01-257-8686 | 2010-03-70 | 10 | DIBBS |
| 4730-01-257-8686 | 2010-03-67 | 5 | DIBBS |
| 4730-01-257-8686 | 2009-11-317 | 21 | DIBBS |
| 4730-01-257-8686 | 2009-10-302 | 21 | DIBBS |
| 4730-01-257-8686 | 2009-10-293 | 150 | DIBBS |
| 4730-01-257-8686 | 2009-07-183 | 10 | DIBBS |
| 4730-01-257-8686 | 2009-04-98 | 27 | DIBBS |
| 4730-01-257-8686 | 2008-11-330 | 11 | DIBBS |
Cross Reference | NSN 4730-01-257-8686
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C7869 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| C7869-10L | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| D11055AP-10W | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| D11055AT-10W | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-257-8686
Related Products | NSN 4730-01-257-8686
Technical Data | NSN 4730-01-257-8686
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5656,TY 21-6-9 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PLASTIC POLYTETRAFLUOROETHYLENE INSIDE PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END UNTHREADED INTERNAL TUBE 2ND END |
| CONNECTION STYLE | B4A SWIVEL NUT INVERTED FLARE 1ST END B48 SWAGED W/GROOVES 2ND END |
| SEAT ANGLE | 30.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJS 1ST END |
| NOMINAL THREAD SIZE | 0.844 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 18 1ST END |
| THREAD CLASS | 3B 1ST END |
| LEG LENGTH | 1.174 INCHES NOMINAL 1ST END 1.940 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 45.0 DEGREES |
| FURNISHED ITEMS AND QUANTITY | 1 SWIVEL NUT |
| SPECIAL FEATURES | TWO LOCKWIRE HOLES 180 DEG APART ON NUT |
Restrictions/Controls & Freight Information | NSN 4730-01-257-8686
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-257-8686
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
